保姆式 Hadoop之Flume日志采集系统的部署与使用

一、准备工作

1、前期已经安装好了Hadoop，并且HDFS和YARN服务能正常运行；

2、flume的安装包，apache-flume-1.9.0-bin.tar.gz；

3、远程连接设备xftp8和xshell8；

4、保证主机的网络通畅；

二、上传并解压

1、上传

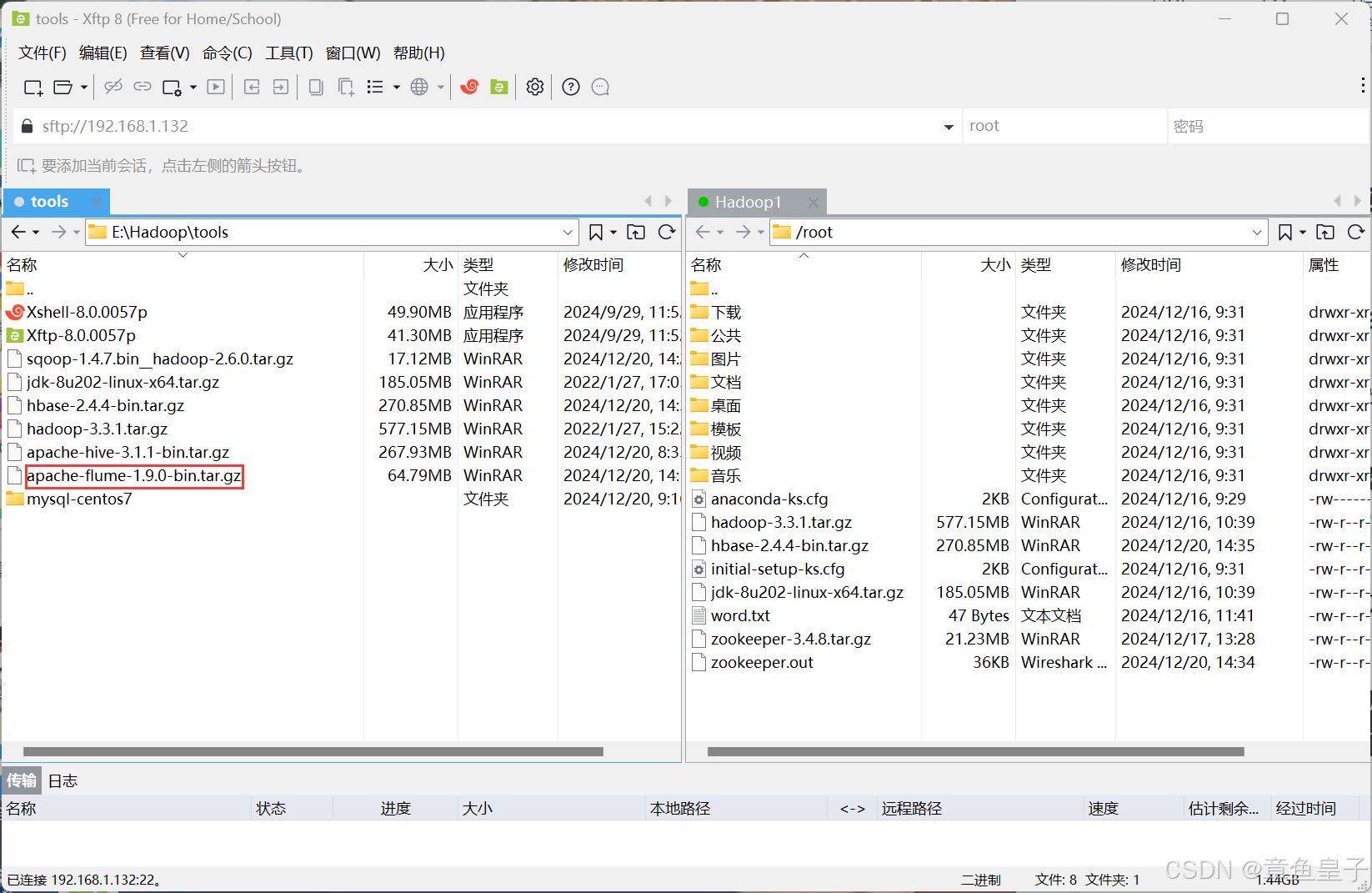

通过xftp8将本地已经下载好的flume安装包上传至Hadoop1中

2、解压

命令如下：

tar -zxvf apache-flume-1.9.0-bin.tar.gz -C /export/servers/

3、重命名

（1）切换目录，命令如下：

cd /export/servers

（2）重命名，命令如下：

mv apache-flume-1.9.0-bin flume-1.9.0



三、配置环境变量

vi /etc/profile
# 添加内容如下：
export FLUME_HOME=/export/servers/flume-1.9.0
export PATH=$PATH:$FLUME_HOME/bin
#配置完成后，初始化环境变量：
source /etc/profile

四、分发

1、分发Hadoop1上的flume-1.9.0的配置文件

scp -r /export/servers/flume-1.9.0 hadoop2:/export/servers/
scp -r /export/servers/flume-1.9.0 hadoop3:/export/servers/

2、分发Hadoop1上的环境变量

scp /etc/profile hadoop2:/etc/profile
scp /etc/profile hadoop3:/etc/profile

3、初始化环境变量

分发完成后，到Hadoop2、Hadoop3中初始化环境变量：

source /etc/profile

五、编写采集方案

1、编写Hadoop1的采集方案

cd /export/servers/flume-1.9.0/conf/
vi exec-avro.conf

#编辑内容如下：
a1.sources = r1
a1.sinks = k1 k2
a1.channels = c1
a1.sources.r1.channels = c1
a1.sources.r1.type = exec
a1.sources.r1.command = tail -F /export/data/123.log
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.sinks.k1.channel = c1
a1.sinks.k1.type = avro
a1.sinks.k1.hostname = hadoop2
a1.sinks.k1.port = 53421

a1.sinks.k2.channel = c1
a1.sinks.k2.type = avro
a1.sinks.k2.hostname = hadoop3
a1.sinks.k2.port = 53421
a1.sinkgroups = g1
a1.sinkgroups.g1.sinks = k1 k2
a1.sinkgroups.g1.processor.type = load_balance
a1.sinkgroups.g1.processor.backoff = true
a1.sinkgroups.g1.processor.selector = random
a1.sinkgroups.g1.processor.maxTimeOut=10000

2、编写Hadoop2的采集方案

cd /export/servers/flume-1.9.0/conf/
vi avro-logger1.conf

# 编辑内容如下：
a1.sources = r1
a1.sinks = k1
a1.channels = c1
a1.sources.r1.type = avro
a1.sources.r1.bind = hadoop2
a1.sources.r1.port = 53421
a1.sinks.k1.type = logger
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

3、编写Hadoop3的采集方案

cd /export/servers/flume-1.9.0/conf/
vi avro-logger2.conf

# 编辑内容如下：（除第五行的hadoop3，其余地方与hadoop2相同）
a1.sources = r1
a1.sinks = k1
a1.channels = c1
a1.sources.r1.type = avro
a1.sources.r1.bind = hadoop3
a1.sources.r1.port = 53421
a1.sinks.k1.type = logger
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

六、采集数据

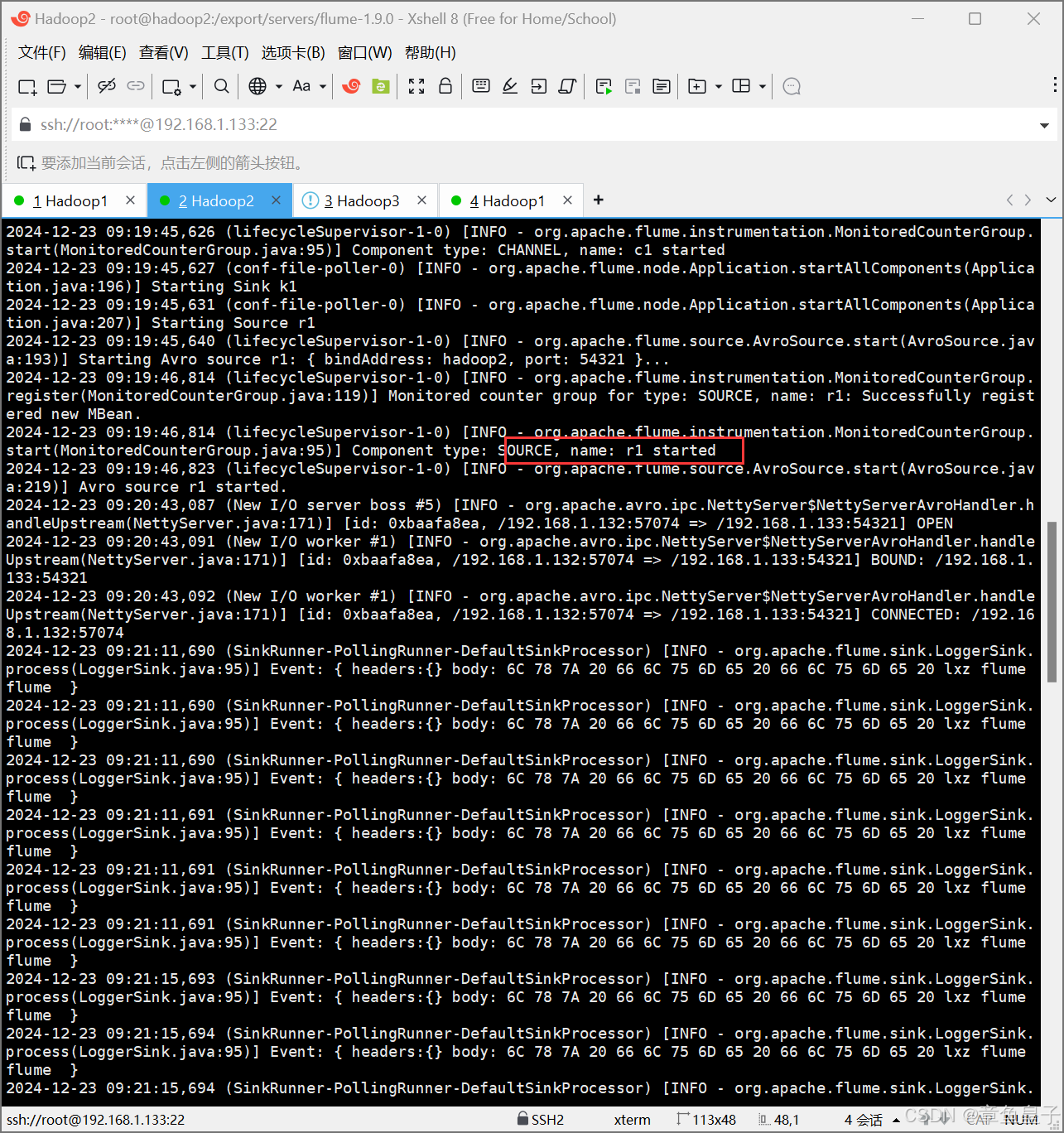

1、Hadoop2开始采集

source /etc/profile

cd /export/servers/flume-1.9.0/

flume-ng agent --name a1 --conf conf/ --conf-file conf/avro-logger1.conf -Dflume.root.logger=INFO,console



2、Hadoop3开始采集

source /etc/profile

cd /export/servers/flume-1.9.0/

flume-ng agent --name a1 --conf conf/ --conf-file conf/avro-logger1.conf -Dflume.root.logger=INFO,console

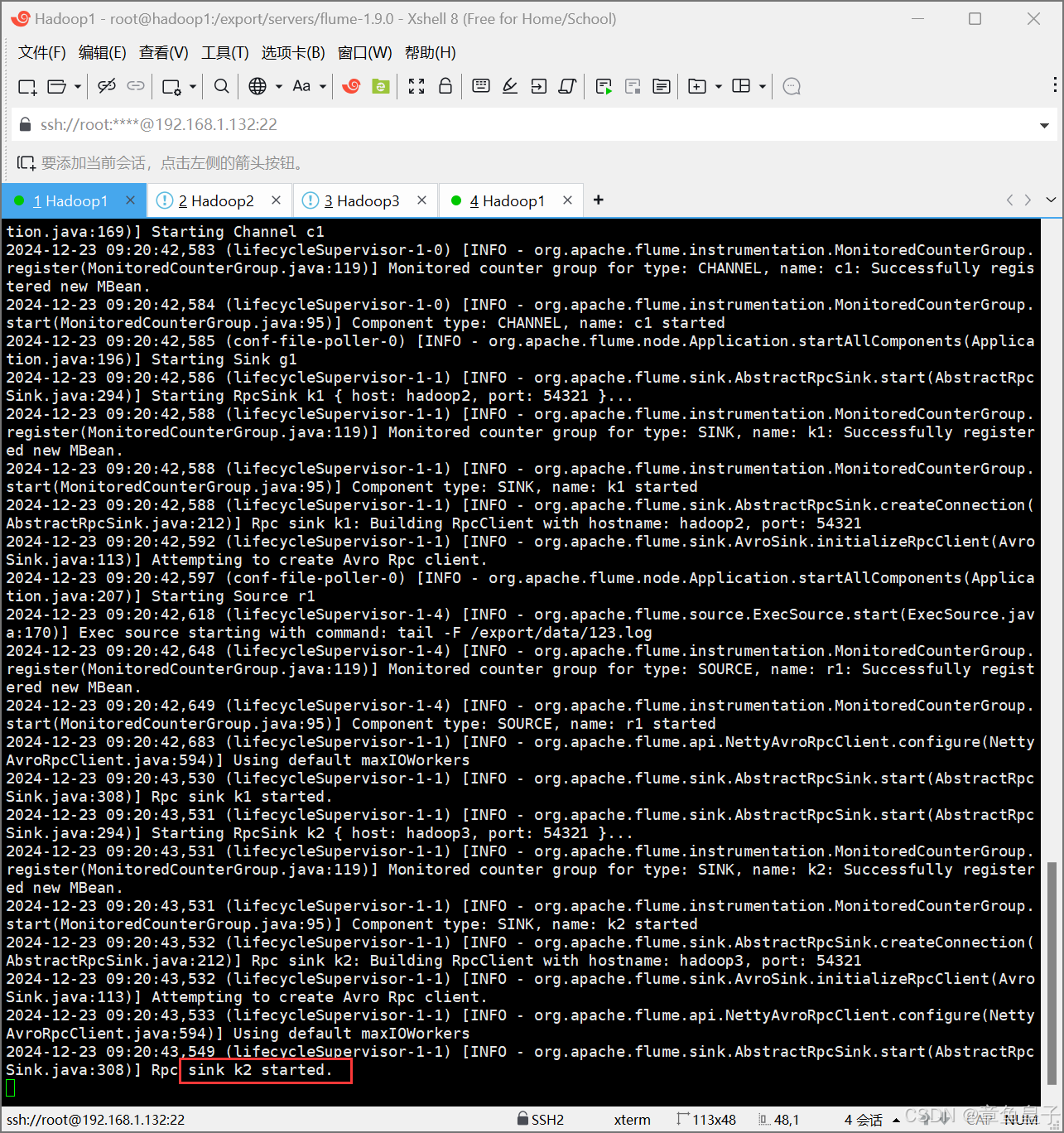

3、Hadoop1开始采集

source /etc/profile

cd /export/servers/flume-1.9.0/

flume-ng agent --name a1 --conf conf/ --conf-file conf/exec-avro.conf -Dflume.root.logger=INFO,console

4、hadoop1 的命令行执行

（注：再在xshell8中打开一个Hadoop1的端口执行）

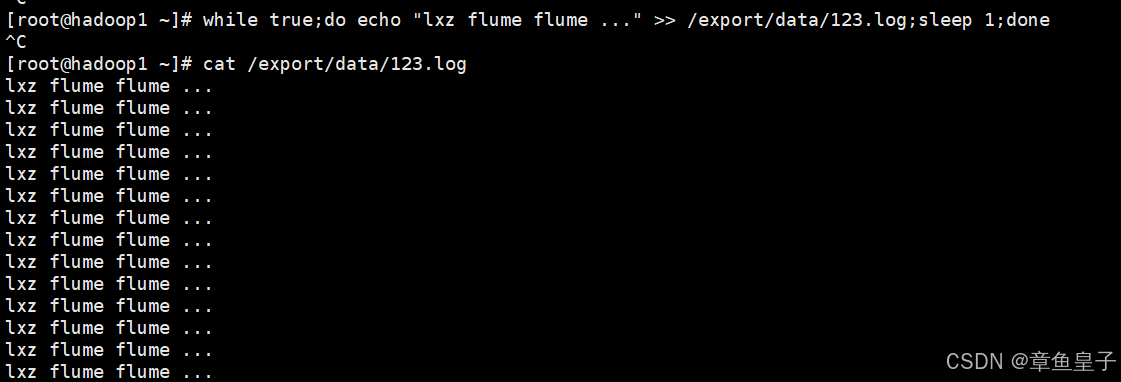

while true;do echo "lxz flume flume ..." >> /export/data/123.log;sleep 1;done

最后可以用CTRL+C结束掉采集的进程.
