对基础配置与链路类型的运用+静态路由

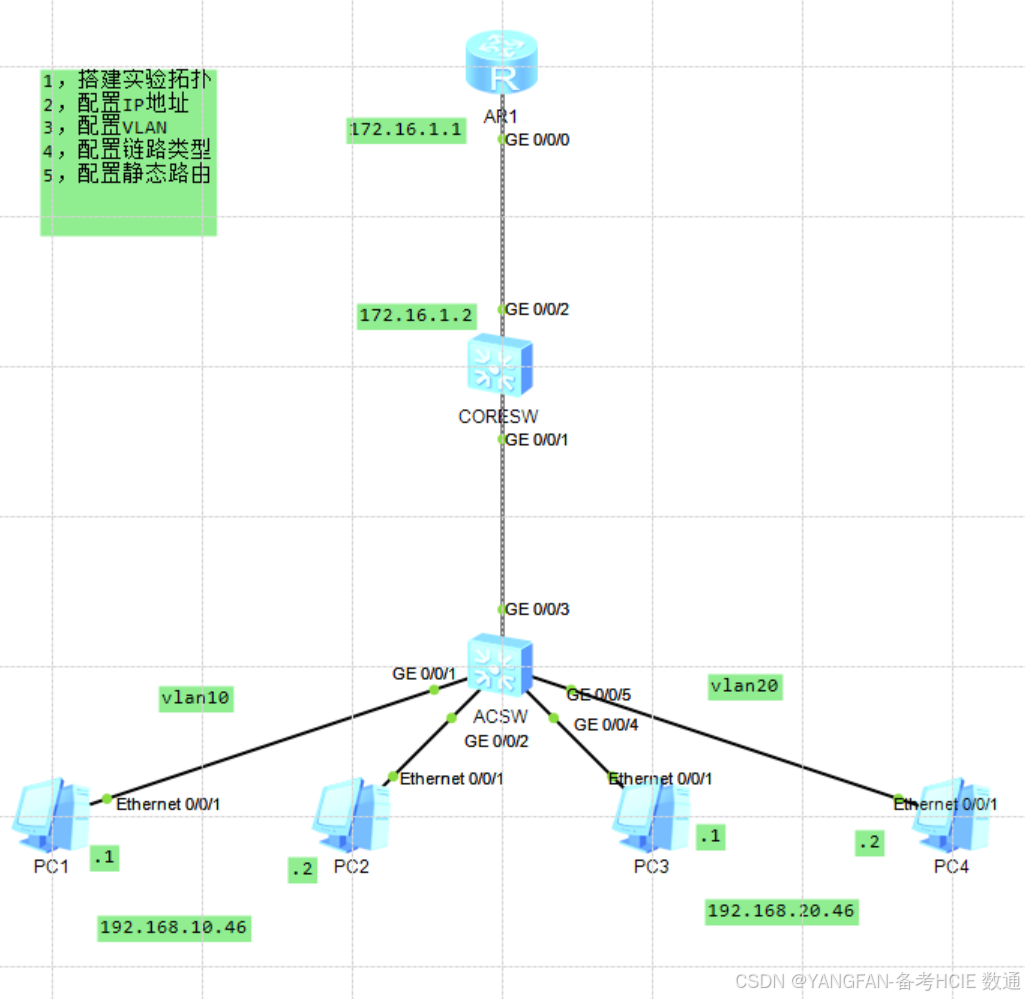

实验拓扑：

1，搭建实验拓扑:略  ；

2，配置IP地址：PC地址略

[AR1]interface GigabitEthernet 0/0/0
[AR1-GigabitEthernet0/0/0]IP address 172.16.1.1 24

[CORESW]interface Vlanif 1
[CORESW-Vlanif1]IP address 172.16.1.2 24

[CORESW]interface Vlanif 10
[CORESW-Vlanif10]192.168.10.46 24

[CORESW]interface Vlanif 20
[CORESW-Vlanif20]ip address 192.168.20.46 24

3，配置VLAN

[ACSW]vlan 10
[ACSW]vlan 20

[CORESW]vlan 10
[CORESW]vlan 20

4，配置链路类型

[ACSW]interface GigabitEthernet 0/0/1
[ACSW-GigabitEthernet0/0/1]port link-type access
[ACSW-GigabitEthernet0/0/1]port default vlan 10

[ACSW-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[ACSW-GigabitEthernet0/0/2]port link-type access
[ACSW-GigabitEthernet0/0/2]port default vlan 10

[ACSW]interface GigabitEthernet 0/0/4
[ACSW-GigabitEthernet0/0/4]port link-type access
[ACSW-GigabitEthernet0/0/4]port default vlan 20

[ACSW-GigabitEthernet0/0/4]interface GigabitEthernet 0/0/5
[ACSW-GigabitEthernet0/0/5]port link-type access
[ACSW-GigabitEthernet0/0/5]port default vlan 20

[ACSW]interface GigabitEthernet 0/0/3
[ACSW-GigabitEthernet0/0/3]port link-type trunk
[ACSW-GigabitEthernet0/0/3]port trunk allow-pass vlan all

[CORESW]interface GigabitEthernet 0/0/1
[CORESW-GigabitEthernet0/0/1]port link-type trunk
[CORESW-GigabitEthernet0/0/1]port trunk allow-pass vlan all

5，配置静态路由

[CORESW]ip route-static 172.16.1.0 24 Vlanif1 172.16.1.1

[AR1]ip route-static 192.168.10.0 24 GigabitEthernet 0/0/0 172.16.1.2
[AR1]ip route-static 192.168.20.0 24 GigabitEthernet 0/0/0 172.16.1.2

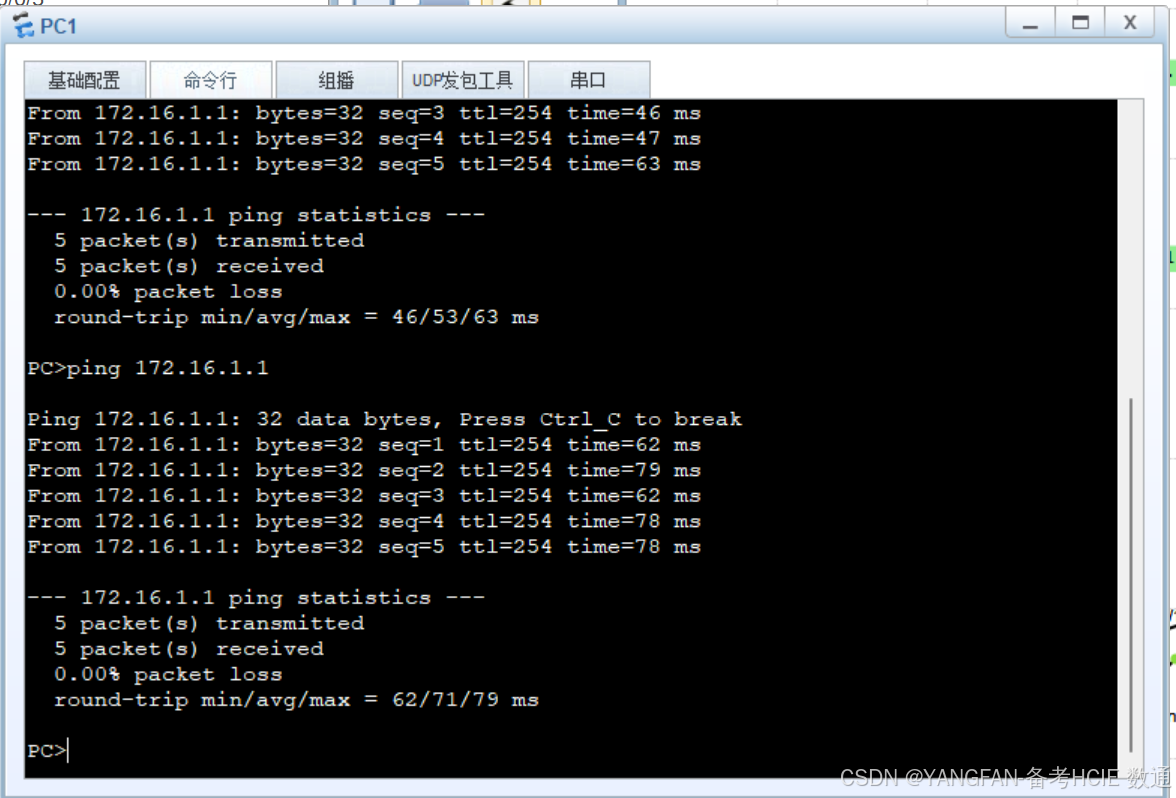

验证：

---

温馨提示：记得保存配置哦，在用户视图 <CORESW>save
