ensp 简单的单臂路由配置

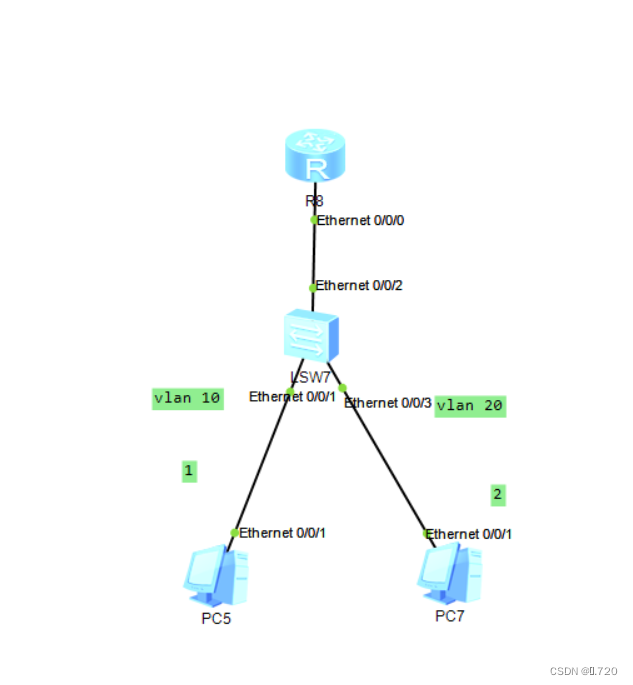

PC5:ip：1.1.1.1 netmask:255.0.0.0 gateway：1.1.1.254

PC7:ip：2.1.1.1 netmask:255.0.0.0 gateway：2.1.1.254

SW: [Huawei]int e0/0/2

[Huawei-Ethernet0/0/2]port link-type trunk

[Huawei-Ethernet0/0/2]port trunk allow-pass vlan 10 20

[Huawei]int e0/0/1

[Huawei-Ethernet0/0/1]port link-type access (设置为access链路)

[Huawei-Ethernet0/0/1]port default vlan 10（只允许vlan10通过）

Quit

[Huawei]int e0/0/3

[Huawei-Ethernet0/0/3]port link-type access

[Huawei-Ethernet0/0/3]port default vlan 20

[Huawei-Ethernet0/0/3]quit

R5：[Huawei]int Ethernet 0/0/0.10

[Huawei-Ethernet0/0/0.10]dot1q termination vid 10

[Huawei-Ethernet0/0/0.10]ip add 1.1.1.254 8

[Huawei-Ethernet0/0/0.10]arp broad enable

[Huawei-Ethernet0/0/0.10]quit

[Huawei]int e0/0/0.20

[Huawei-Ethernet0/0/0.20]dot1q termination vid 20

[Huawei-Ethernet0/0/0.20]ip add 2.1.1.254 8

[Huawei-Ethernet0/0/0.20]arp broad enable
