eNSP中单臂路由的配置和使用

一、拓扑图

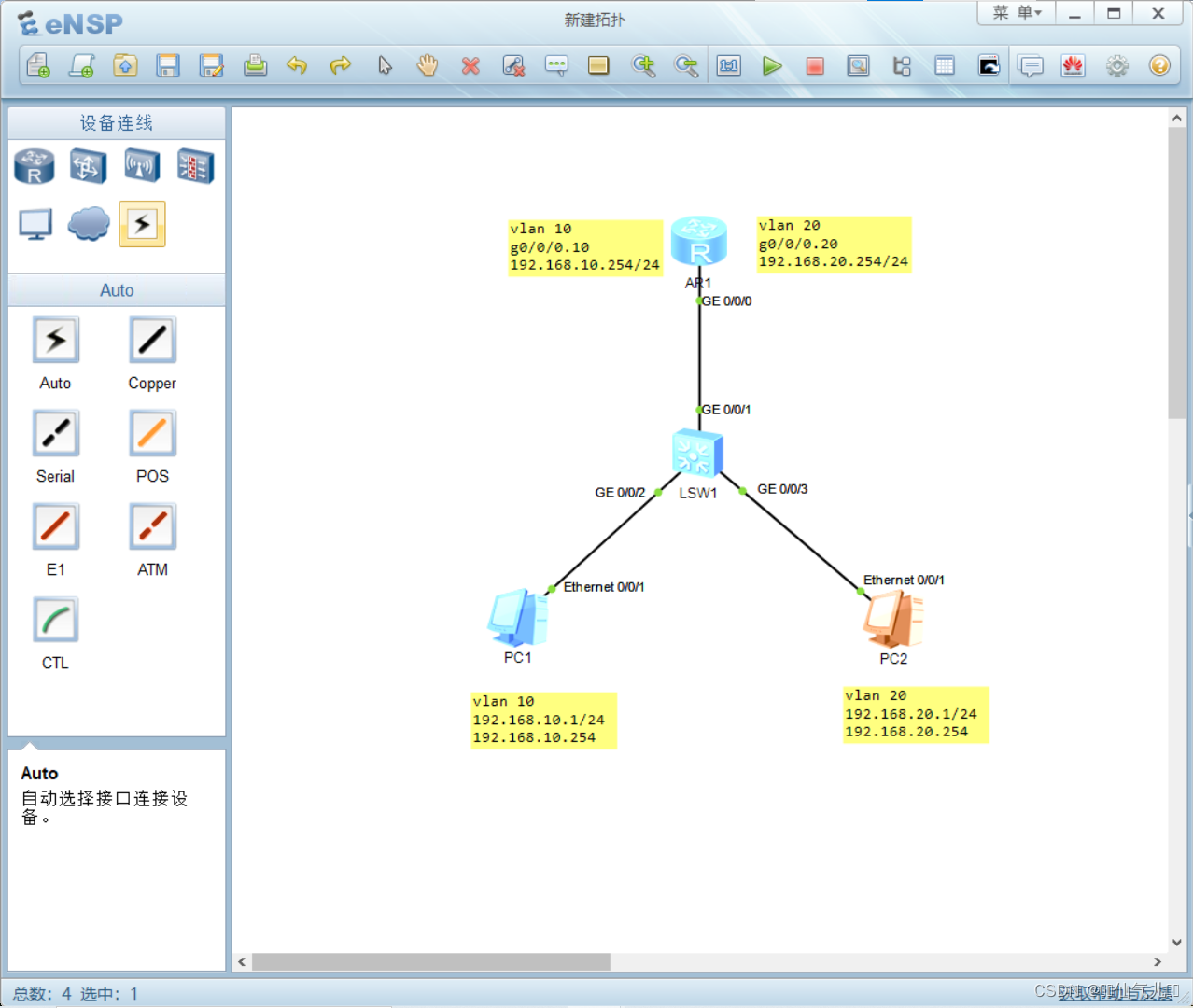

1.新建拓扑图

2.PC端配置

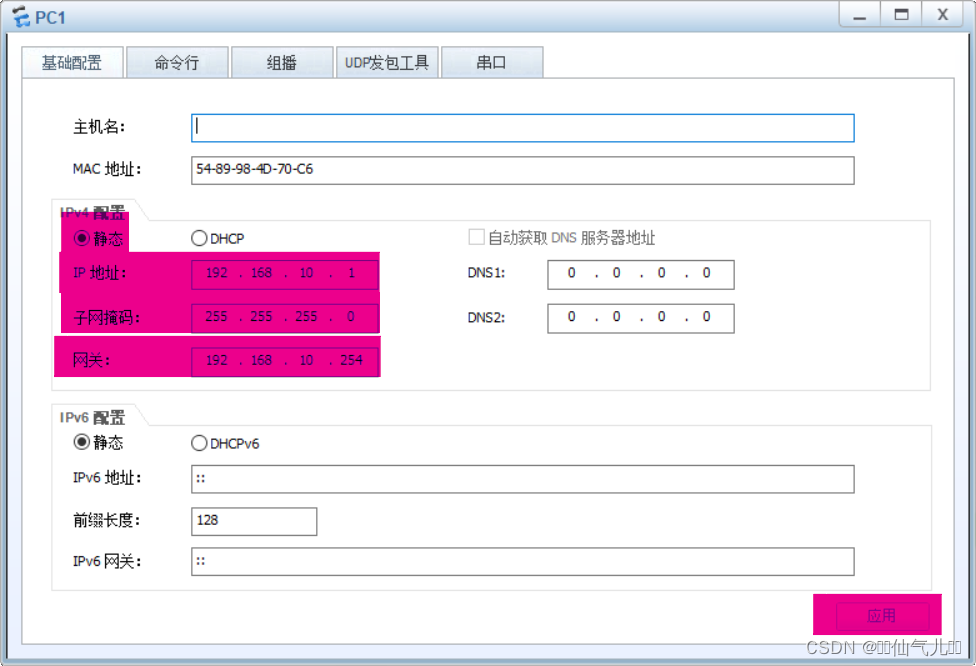

PC1:

PC2:

二、基本命令配置

1.S1配置

<Huawei>system-view

[Huawei]sysname S1

[S1]vlan batch 10 20

[S1]interface GigabitEthernet 0/0/1

[S1-GigabitEthernet0/0/1]port link-type trunk

[S1-GigabitEthernet0/0/1]port trunk allow-pass vlan all

[S1-GigabitEthernet0/0/1]quit

[S1]interface GigabitEthernet 0/0/2

[S1-GigabitEthernet0/0/2]port link-type access

[S1-GigabitEthernet0/0/2]port default vlan 10

[S1-GigabitEthernet0/0/2]quit

[S1]interf
