OpenCV-Python实战（18）——KNN手写数字识别

一、KNN 算法

1.1 建立 KNN 对象

knn = cv2.ml.KNearest_create()

1.2 train 函数训练数据

knn.train(train,cv2.ml.ROW_SAMPLE,train_labels)

 train：训练数据集。

cv2.ml.ROW_SAMPLE：将整个数组的长度视为一行。

train_labels：训练标签。

1.3 findNearest 函数测试

ret,result,neighbours,dist = knn.findNearest(test,k=*)

ret：为检测到的数量。

result：分类结果。

neighbours：目前相邻（K个）数据的分类。

dist：目前相邻（K个）数据的距离。

test：测试数据。

k：依据最近的 k 组数据判断聚类结果。

二、手写数字识别

import cv2
import numpy as np
import matplotlib.pyplot as plt
plt.rcParams['font.family']=['Microsoft JhengHei']

#读取图片转为灰度图
img_gray = cv2.imread('digits.png',cv2.IMREAD_GRAYSCALE)

#把图片分隔成5000个，每个20x20大小
cells = [np.hsplit(row,100) for row in np.vsplit(img_gray,50)]

#再转成numpy数组
x = np.array(cells)

#一半用来训练的数组，一半用来测试的数组
train = x[:,:50].reshape(-1,400).astype(np.float32)
test = x[:,50:].reshape(-1,400).astype(np.float32)

#创建训练和测试的标签
k = np.arange(10)
train_labels = np.repeat(k,250)[:,np.newaxis]
test_labels = train_labels.copy()

#创建一个K-Nearest Neighbour分类器，训练数据，然后用测试数据测试它
knn = cv2.ml.KNearest_create()
knn.train(train,cv2.ml.ROW_SAMPLE,train_labels)
ret,result,neighbours,dist = knn.findNearest(test,k=5)

#最终检查测试的精确度，比较结果，检查哪些是错误的，最终输出正确率
matches = result == test_labels
correct = np.count_nonzero(matches)
accuracy = correct*100.0 / result.size

print(len(result))
print(neighbours.shape)
print(dist.shape)
print('测试数据识别成功率{}'.format(accuracy))

测试数据识别成功率  91.76

三、存储训练

3.1 存储

#保存数据
np.savez('name.npz',train=train, train_labels=train_labels)

'name.npz'：存储实例的名称。

train：训练数据。

train_labels：分类标签。

 3.2 读取

#下次运行时读取
with np.load('name.npz') as data:
    train = data['train']
    train_labels = data['train_labels']

 3.3 train数据集的更新和识别

import cv2
import numpy as np
#定义更新knn的方法，有新的数据样本就添加，没有就训练opencv默认的数据
def updateKnn(knn, train, train_labels, newData=None, newDataLabel=None):
    if newData != None and newDataLabel != None:
        print(train.shape, newData.shape)
        newData = newData.reshape(-1,400).astype(np.float32)
        train = np.vstack((train,newData))
        train_labels = np.hstack((train_labels,newDataLabel))
    knn.train(train,cv2.ml.ROW_SAMPLE,train_labels)
    return knn, train, train_labels
#读取图片转为灰度图
img = cv2.imread('digits.png')
gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
#把图片分隔成5000个，每个20x20大小
cells = [np.hsplit(row,100) for row in np.vsplit(gray,50)]
train = np.array(cells).reshape(-1,400).astype(np.float32)
k = np.arange(10)
train_labels = np.repeat(k,500)
#创建一个K-Nearest Neighbour分类器，训练数据
knn = cv2.ml.KNearest_create()
knn, train, trainLabel = updateKnn(knn, train, train_labels)
#开启摄像头，usb摄像头用1
cap = cv2.VideoCapture(1)
count = 0

while True:
    #读取每一帧画面
    ret, frame = cap.read()
    rois = []
    #转为灰度图
    gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
    #定义一个3x3大小，正方形的核
    element = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
    #进行形态学膨胀和腐蚀，然后通过cv2.adsdiff(A, B)两幅图像作差，找到边
    gray2 = cv2.dilate(gray, element)
    gray2 = cv2.erode(gray2, element)
    edges = cv2.absdiff(gray, gray2)
    #运用Sobels算子去噪点
    x = cv2.Sobel(edges, cv2.CV_16S, 1, 0)
    y = cv2.Sobel(edges, cv2.CV_16S, 0, 1)
    #convertScaleAbs()函数将其转回原来的uint8形式，否则将无法显示图像
    absX = cv2.convertScaleAbs(x)
    absY = cv2.convertScaleAbs(y)
    #Sobel算子是在两个方向计算的，最后还需要用cv2.addWeighted(...)函数将其组合起来
    dst = cv2.addWeighted(absX, 0.5, absY, 0.5, 0)
    #设置一个阈值来对图像进行分类
    ret_1, ddst = cv2.threshold(dst, 50, 255, cv2.THRESH_BINARY)
    #找图片的轮廓
    contours, hierarchy = cv2.findContours(ddst, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)
    #把宽度大于10，高度大于20的轮廓用矩形画出
    for c in contours:
        x, y, w, h = cv2.boundingRect(c)
        if w > 10 and h > 20:
            rois.append((x, y, w, h))
    #找到ROI，把每个找到的图通过阈值分类再设置成20x20大小，再设置成一维数组400个灰度值代表这个数字的特征
    digits = []
    for r in rois:
        x, y, w, h = r
        ret_roi, th = cv2.threshold(edges[y:y+h,x:x+w], 50, 255, cv2.THRESH_BINARY)
        th = cv2.resize(th, (20, 20))
        out = th.reshape(-1, 400).astype(np.float32)
        #根据knn算法，找到这个数字特征和训练样本的特征进行分类，识别出是哪个数字
        ret_n, result, neighbours, dist = knn.findNearest(out, k=5)
        digit = int(result[0][0])
        digits.append(cv2.resize(th,(20,20)))
        #用矩形画出这个识别数字再写出这个识别数字
        cv2.rectangle(frame, (x,y), (x+w,y+h), (0,255,0), 2)
        cv2.putText(frame, str(digit), (x,y), cv2.FONT_HERSHEY_SIMPLEX, 1, (255,0,0), 2)

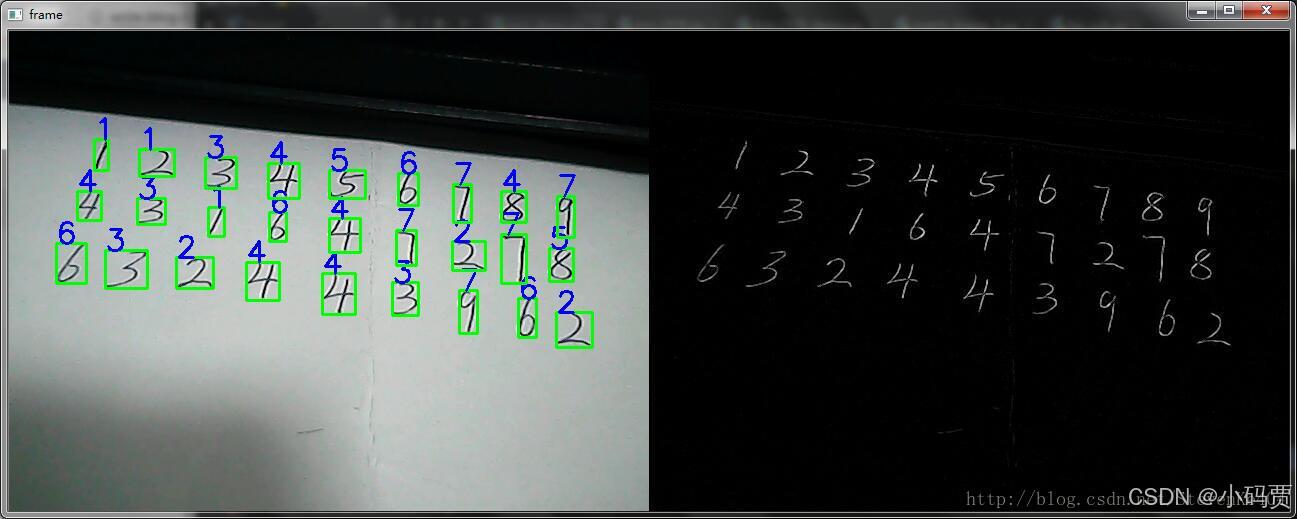

    newEdges = cv2.cvtColor(edges, cv2.COLOR_GRAY2BGR)
    newFrame = np.hstack((frame, newEdges))
    cv2.imshow('frame', newFrame)
    key = cv2.waitKey(1) & 0xff
    #按空格退出程序
    if key == ord(' '):
        break
    #按s保存当前的数据
    elif key == ord('s'):
        np.savez('data.npz', train=train, train_labels=train_labels)
        print('保存数据成功')
    #按u更新新的数据样本进行训练
    elif key == ord('u'):
        Nd = len(digits)
        output = np.zeros(20 * 20 * Nd).reshape(-1, 20)
        for i in range(Nd):
            output[20 * i:20 * (i + 1), :] = digits[i]
        showDigits = cv2.resize(output, (60, 60 * Nd))
        cv2.imshow('digits', showDigits)
        cv2.imwrite(str(count) + '.png', showDigits)
        count += 1
        if cv2.waitKey(0) & 0xff == ord('e'):
            pass
        print('输入数字，用空格分隔')
        numbers = input().split(' ')
        Nn = len(numbers)
        if Nd != Nn:
            print('更新失败')
            continue
        try:
            for i in range(Nn):
                numbers[i] = int(numbers[i])
        except:
            continue
        knn, train, train_labels = updateKnn(knn, train, train_labels, output, numbers)
        print('更新成功')
        print('当前训练的图片', len(train))
        print('当前训练的图片标签', len(train_labels))

print('训练的图片',len(train))
print('训练的图片标签', len(train_labels))
cap.release()
cv2.destroyAllWindows()
