第十九章Java绘图

Java绘图类

1.Graphics类
提供了绘图常用的方法，利用这些方法可以实现直线，矩形，多边形等文本，图片的绘制其操作主要包括颜色，字体，画笔，文本，图像等

2.Graphics2D类
使用Graphics2D类可以实现更强的图像绘制功能

3.将Graphics强制转换成Graphics2D类：

public static void paint(Graphics g){
    Graphics2D g2 = (Graphics2D)g;
}


绘制图形
Graphics 类常用图形绘制方法

方法    说明

• draw(int x,int y,int height,int startAngle,int arcAngle)    弧形
• drawLine(int x1,int y1,int x2,int y2)    直线
• drawOval(int x,int y,int width,int height)    椭圆
• drawPolygon(int[] xPoints,int[] yPoints,int nPoints)    多边形
• drawPolyline(int[] xPoints,int[] yPoints,int nPoints)    多边线
• drawRect(int x,int y,int width,int height)    矩形
• drawRoundRect(int x,int y,int width,int height,int arcWidth,int arcAngle)    圆角矩形
• fillArc(int x,int y,int width,int height,int startAngle,int arcAngle)    实心弧形
• fillOval(int x,int y,int width,int height)    实心椭圆
• fillPolygon(int[] xPoints,int[] yPoints,int nPoints)    实心多边形
• fillRect(int x,int y,int width,int height)    实心矩形
• fillRoundRect(int x,int y,int width,int height,int arcWidth,int arcHeight)    实心圆角矩形

当我们要绘制图形时，我们必须要进行创建并初始化图形类对象。这些图形必须时Shape接口的实现类，然后使用Graphics2D类的draw方法进行绘制，或者fill方法进行填充。

语法：

1. draw(Shape form)

2. fill(Shape form)

常用图形类：

主函数：

public static void main(String[] args) {
        new G_1().setVisible(true);
    }

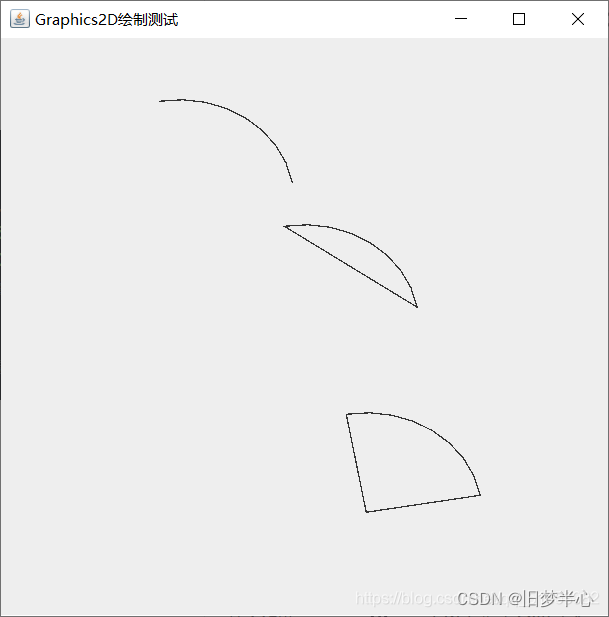

Arc2D类：弧

Graphics2D g2d =(Graphics2D)g;
            Shape[] shapes = new Shape[3];
            shapes[0] = new Arc2D.Double(50,50,185,160,10,90,Arc2D.OPEN);//坐标位置(50，50)，宽85，高60，起始角是5度，终止角是90度
            shapes[1] = new Arc2D.Double(150,150,185,160,10,90,Arc2D.CHORD);
            shapes[2] = new Arc2D.Double(200,300,185,160,10,90,Arc2D.PIE);
            for (Shape shape:shapes){//遍历图形数组
                g2d.draw(shape);//绘制图形
            }
//Arc2D.OPEN、Arc2D.CHORD、Arc2D.PIE分别表示圆弧是开弧、弓弧和饼弧。

• CubicCurve2D类：立方曲线

   class drawplace extends JPanel{
              public void paint(Graphics g){
                  Graphics2D g2d =(Graphics2D)g;
                  Shape[] shapes = new Shape[1];
                  shapes[0] =new CubicCurve2D.Double(100,100,50,75,15,15,260,300);
                  //参数分别表示坐标起点，控制点1，控制点2，终点的坐标
                  for (Shape shape:shapes){//遍历图形数组
                      g2d.draw(shape);//绘制图形
                  }
              }
      }


  class drawplace extends JPanel{
              public void paint(Graphics g){
                  Graphics2D g2d =(Graphics2D)g;
                  Shape[] shapes = new Shape[1];
                  shapes[0] = new Ellipse2D.Double(150,150,200,100);
                  //参数表示起点，宽，高
                  for (Shape shape:shapes){//遍历图形数组
                      g2d.draw(shape);//绘制图形
                  }
              }
      }



  class drawplace extends JPanel{
              public void paint(Graphics g){
                  Graphics2D g2d =(Graphics2D)g;
                  Shape[] shapes = new Shape[1];
                  shapes[0] = new Ellipse2D.Double(150,150,200,100);
                  //参数表示起点，宽，高
                  for (Shape shape:shapes){//遍历图形数组
                      g2d.draw(shape);//绘制图形
                  }
              }
      }

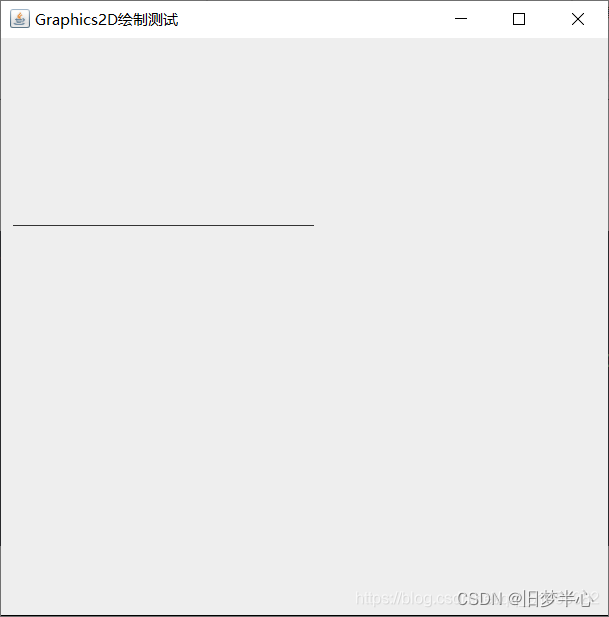

  Line2D类：线
  class drawplace extends JPanel{
              public void paint(Graphics g){
                  Graphics2D g2d =(Graphics2D)g;
                  Shape[] shapes = new Shape[1];
                  shapes[0] = new Line2D.Double(10,150,250,150);
                  //参数表示起点和终点
                  for (Shape shape:shapes){//遍历图形数组
                      g2d.draw(shape);//绘制图形
                  }
              }
      }



  Point2D类：点

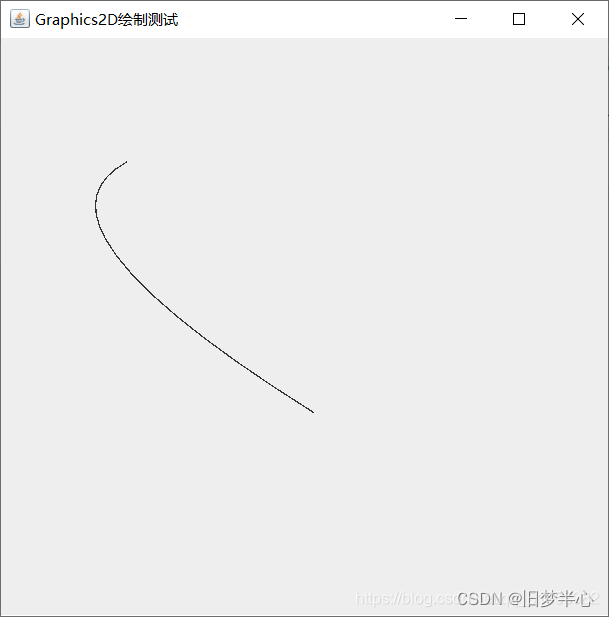

  QuadCurve2D类：二次曲线

  class drawplace extends JPanel{
              public void paint(Graphics g){
                  Graphics2D g2d =(Graphics2D)g;
                  Shape[] shapes = new Shape[1];
                  shapes[0] = new QuadCurve2D.Double(100,100,10,150,250,300);
                  //参数表示起点,控制点，终点
                  for (Shape shape:shapes){//遍历图形数组
                      g2d.draw(shape);//绘制图形}
                  }
              }
    }

• Rectangle2D类：矩形
• RoundRectangle2D类：圆角矩形

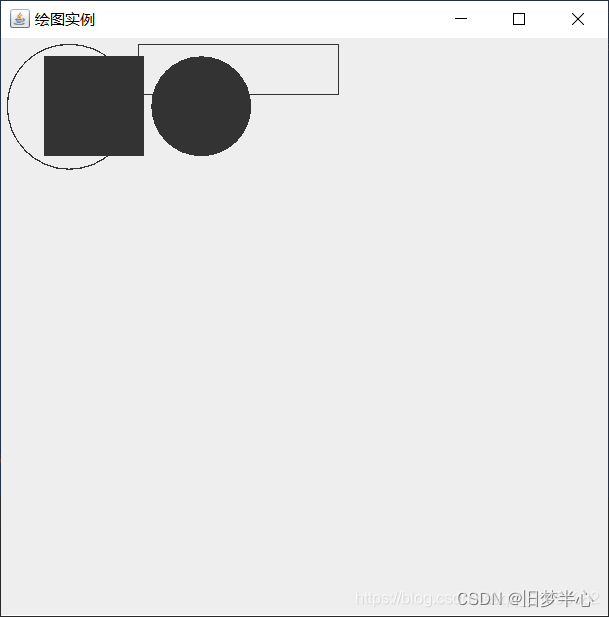

  例子：

import javax.swing.*;
import java.awt.*;
import java.awt.geom.Ellipse2D;
import java.awt.geom.Rectangle2D;

public class G_1 extends JFrame {
    public G_1(){
        setTitle("绘图实例");
        setSize(500,500);//设置窗体大小
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);//设置窗体的关闭模式
        add(new CanvasPanel());//设置窗体画板为绘图画板对象
    }
    class CanvasPanel extends JPanel{   //绘图画板
        public void paint(Graphics g){
            Graphics2D g2d = (Graphics2D)g;
            Shape[] shapes = new Shape[4];//声明图形数组
            shapes[0] = new Ellipse2D.Double(5,5,100,100);//创建圆形对象
            shapes[1] = new Rectangle2D.Double(110,5,160,40);//矩形
            shapes[2] = new Ellipse2D.Double(120,15,80,80);
            shapes[3] = new Rectangle2D.Double(35,15,80,80);
            for (Shape shape:shapes){//遍历图形数组
                Rectangle2D bounds = shape.getBounds2D();
                if (bounds.getWidth()==80){
                    g2d.fill(shape);//填充
                }
                else {
                    g2d.draw(shape);//绘制图形
                }
            }
        }
    }
    public static void main(String[] args) {
        new G_1().setVisible(true);
    }
}

绘图颜色和画笔属性

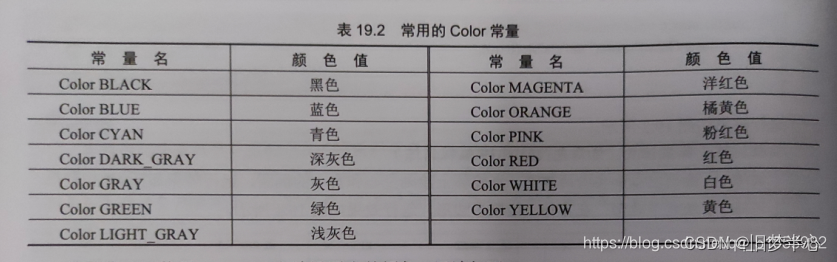

1.设置颜色
语法：

常用构造方法：

• BasicStroke()
• BasicStroke(float width)
• BasicStroke(float width,int cap,int join)
• BasicStroke(float width,int cap,int join,float miterlimit)
• BasicStroke(float width,int cap,int join,float miterlimit,float[] dash,float dash_phase)

BasicStroke类构造方法的参数说明

参数    说明
width    画笔宽度默认为1px
cap    线端点装饰
join    应用在路径线段交汇处的装饰
miterlimit    斜接处的剪裁限制，参数必须大于等于1.0f
dash    表示虚线模式的数组
dash_phase    开始虚线模式的偏移量
cap参数的三个常量：

CAP_BUTT：末端圆滑
CAP_ROUND：末端平整
CAP_SQUARE：末端设置以线段宽度为边长的方形
join参数的三个常量：

JOIN_BEVEL：平角
JOIN_MITER：尖角
JOIN_ROUND：圆角


绘制文本

1.设置字体
可以设置名称，样式，字体大小
语法：

Font f = new Font("方正舒体",Font.BOLD,25);
g2d.setFont(f);

Font类的常量：

PLAIN：普通
BOLD：加粗
ITALIC：斜体
ITALIC|BOLD：斜体加粗
例子：

import javax.swing.*;
import java.awt.*;

public class G_3 extends JFrame {
    public G_3(){
        setTitle("font_test");
        setSize(400,400);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        add(new drawplace());
    }
    class drawplace extends JPanel{
        public void paint(Graphics g){
            Graphics2D g2d = (Graphics2D)g;
            Font f = new Font("方正舒体",Font.BOLD,25);
            g2d.setFont(f);
            g2d.drawString("文字：方正舒体",100,100);
        }
    }

    public static void main(String[] args) {
        new G_3().setVisible(true);
    }
}

显示图片

使用drawImage方法将图片显示到绘图中
语法：

drawImage(Image img,int x,int y,ImageObserver observer)
1
参数表示要显示的图片对象，坐标，要通知的图像观察者
例子:

import javax.imageio.ImageIO;
import javax.swing.*;
import java.awt.*;
import java.io.File;
import java.io.IOException;

public class show_photos extends JFrame {
    Image img;

    public show_photos(){
        try{
            img = ImageIO.read(new File("D:\\work\\累.png"));
        }catch(IOException e){
            e.printStackTrace();
        }

        setTitle("show_photos");
        setSize(916,525);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        add(new drawplace());
    }

    class drawplace extends JPanel{
        public void paint(Graphics g){
            Graphics2D g2d = (Graphics2D)g;
            g2d.drawImage(img,0,0,this);
        }
    }

    public static void main(String[] args) {
        new show_photos().setVisible(true);
    }
}

图像处理

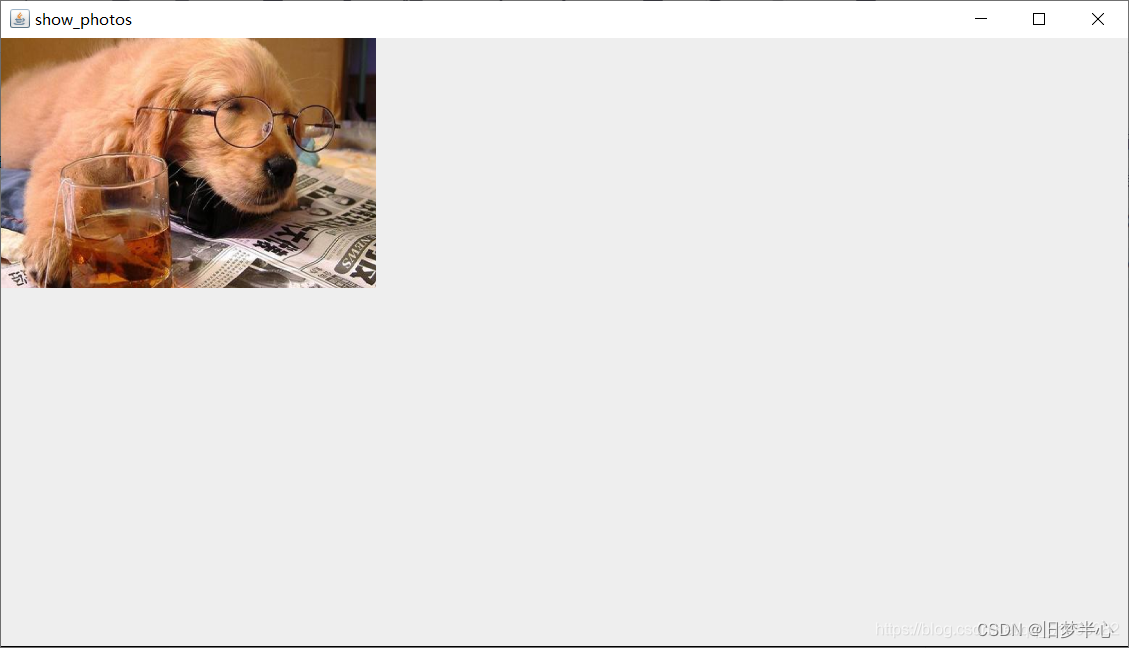

1.放大和缩小
依然使用drawImage方法语法：

drawImage(Image img,int x,int y,int width,int height,ImageObserver observer)
1
例子：

import javax.imageio.ImageIO;
import javax.swing.*;
import java.awt.*;
import java.io.File;
import java.io.IOException;

public class show_photos extends JFrame {
    Image img;

    public show_photos(){
        try{
            img = ImageIO.read(new File("D:\\work\\累.png"));
        }catch(IOException e){
            e.printStackTrace();
        }

        setTitle("show_photos");
        setSize(916,525);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        add(new drawplace());
    }

    class drawplace extends JPanel{
        public void paint(Graphics g){
            Graphics2D g2d = (Graphics2D)g;
            g2d.drawImage(img,0,0,300,200,this);
        }
    }

    public static void main(String[] args) {
        new show_photos().setVisible(true);
    }
}

import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;

public class G_2 extends JFrame {
    public G_2(){
        setTitle("Graphics2D绘制测试");
        setSize(500,500);
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        add(new drawplace());
    }
    class drawplace extends JPanel{
            public void paint(Graphics g){
                Graphics2D g2d =(Graphics2D)g;
                g2d.setColor(Color.green);
                Shape[] shapes = new Shape[1];
                shapes[0] = new Ellipse2D.Double(150,150,200,200);
                for (Shape shape:shapes){//遍历图形数组
                    g2d.fill(shape);
                    g2d.draw(shape);//绘制图形
                }
            }
    }

    public static void main(String[] args) {
        new G_2().setVisible(true);
    }
}
