代码随想录算法训练营第18天 | Binary Tree - 06

I. Key Takeaways

• Double Pointers in a Tree --> Often used to keep track of the last visited node during traversal.

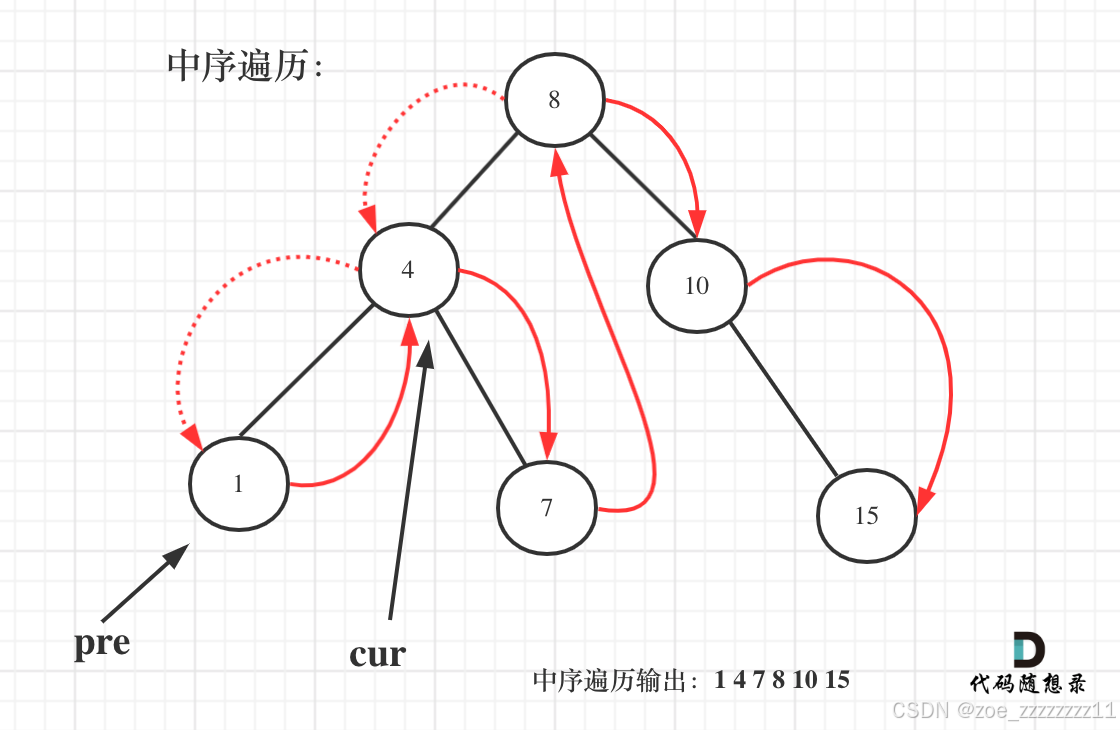

• In-order Traverse in Binary Search Tree (BST) --> Produces a one-dimentional array where nodes are arranged in an ascending order.

II. Leetcode Exercises

(Easy) 530. Minimum Absolute Difference in BST

Methods: In-order traversal, double pointers

Notes:

• Use in-order traversal while keeping track of the previous node, enabling comparison between the current node and its adjacent node.
• Since we are looking for the sallest difference in a tree, when we initialise minDiff with Integer.MAX_VALUE

private class Solution {
  private int minDiff;
  private TreeNode prev;

  public int getMinimumDifference(TreeNode root) {
    minDiff = Integer.MAX_VALUE;
    prev = null;
    traverse(root);
    return minDiff;
  }

  public void traverse(TreeNode root) {
    if (root == null) { return; }

    // Left
    traverse(root.left);

    // Root
    if (prev != null) {
      minDiff = Math.min(minDiff, Math.abs(root.val - prev.val));
    }
    prev = root;

   // Right
    traverse(root.right);
  }
}

(Easy) 501. Find Mode in Binary Search Tree

Methods: In-order traversal

Notes:

• Utilise in-order traversal to process nodes in ascending order.
• Track the maximum frequency and record multiple mode values sharing the same frequency. Clear the recorded mode values when a new maximum frequency is found.

private class Solution {
  private ArrayList<Integer> res;
  private TreeNode prev;
  private int maxCount;
  private int count;

  public int[] findMode(TreeNode root) {
    count = 0;
    maxCount = 0;
    prev = null;
    res = new ArrayList<>();
    traverse(root);

    int[] modes = new int[res.size()];
    for (int i = 0; i < res.size(); i++) {
      modes[i] = res.get(i);
    }
    return modes;
  }

  public void traverse(TreeNode root) {
    if (root == null) { return; }

    traverse(root.left);

    if (prev == null || prev.val != root.val) {
      count = 1;
    } else {
      count++;
    }
    if (count > maxCount) {
      res.clear();
      res.add(root.val);
      maxCount = count;
    } else if (maxCount == count) {
      res.add(root.val);
    }

    prev = root;

    traverse(root.right);
  }
}

(Medium) 236. Lowest Common Ancestor of a Binary Tree

Methods: Post-order traversal, return values back in recursion.

class Solution {
    public TreeNode lowestCommonAncestor(TreeNode root, TreeNode p, TreeNode q) {
      if (root == null) { return null; }
      if (root == p) { return p; }
      if (root == q) { return q; }

      TreeNode resLeft = lowestCommonAncestor(root.left, p, q);
      TreeNode resRight = lowestCommonAncestor(root.right, p, q);

      if (resLeft != null && resRight == null) {
        return resLeft;
      } else if (resLeft == null && resRight != null) {
        return resRight;
      } else if (resLeft != null && resRight != null) {
        return root;
      }

      return null;
    }
}
