Harris 角点检测算法（也称Harris & Stephens 角点检测器）是一个极为简单的角点检测算法。该算法的主要思想是，如果像素周围显示存在多于一个方向的边，我们认为该点为兴趣点。该点就称为角点。

from PIL import Image
from numpy import *
from pylab import *
from scipy.ndimage import filters

def compute_harris_response(im,sigma=3):
    """ 在一幅灰度图像中，对每个像素计算Harris 角点检测器响应函数"""
    # 计算导数
    imx = zeros(im.shape)
    filters.gaussian_filter(im, (sigma,sigma), (0,1), imx)
    imy = zeros(im.shape)
    filters.gaussian_filter(im, (sigma,sigma), (1,0), imy)
    # 计算Harris 矩阵的分量
    Wxx = filters.gaussian_filter(imx*imx,sigma)
    Wxy = filters.gaussian_filter(imx*imy,sigma)
    Wyy = filters.gaussian_filter(imy*imy,sigma)
    # 计算特征值和迹
    Wdet = Wxx*Wyy - Wxy**2
    Wtr = Wxx + Wyy
    return Wdet / Wtr

def get_harris_points(harrisim,min_dist=10,threshold=0.1):
    """ 从一幅Harris 响应图像中返回角点。min_dist 为分割角点和图像边界的最少像素数目"""
    # 寻找高于阈值的候选角点
    corner_threshold = harrisim.max() * threshold
    harrisim_t = (harrisim > corner_threshold) * 1
    # 得到候选点的坐标
    coords = array(harrisim_t.nonzero()).T
    # 以及它们的Harris 响应值
    candidate_values = [harrisim[c[0],c[1]] for c in coords]
    # 对候选点按照Harris 响应值进行排序
    index = argsort(candidate_values)
    # 将可行点的位置保存到数组中
    allowed_locations = zeros(harrisim.shape)
    allowed_locations[min_dist:-min_dist,min_dist:-min_dist] = 1
    # 按照min_distance 原则，选择最佳Harris 点
    filtered_coords = []
    for i in index:
        if allowed_locations[coords[i,0],coords[i,1]] == 1:
            filtered_coords.append(coords[i])
            allowed_locations[(coords[i,0]-min_dist):(coords[i,0]+min_dist),
                              (coords[i,1]-min_dist):(coords[i,1]+min_dist)] = 0
    return filtered_coords

def plot_harris_points(image,filtered_coords):
    """ 绘制图像中检测到的角点"""
    figure()
    gray()
    imshow(image)
    plot([p[1] for p in filtered_coords],[p[0] for p in filtered_coords],'*')
    axis('off')
    show()

im = array(Image.open('ji.jpg').convert('L'))
harrisim = compute_harris_response(im)
filtered_coords = get_harris_points(harrisim,6)
plot_harris_points(im, filtered_coords)

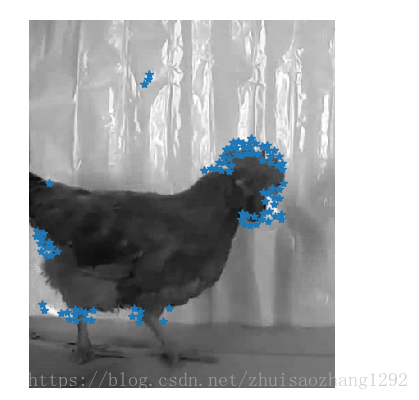

输出：

Harris角点检测器检测图像中的兴趣点

harris.py

from PIL import Image

from pylab import *
from scipy.ndimage import filters

def compute_harris_response(im,sigma=3):
    """ 在一幅灰度图像中，对每个像素计算Harris 角点检测器响应函数"""
    # 计算导数
    imx = zeros(im.shape)
    filters.gaussian_filter(im, (sigma,sigma), (0,1), imx)
    imy = zeros(im.shape)
    filters.gaussian_filter(im, (sigma,sigma), (1,0), imy)
    # 计算Harris 矩阵的分量
    Wxx = filters.gaussian_filter(imx*imx,sigma)
    Wxy = filters.gaussian_filter(imx*imy,sigma)
    Wyy = filters.gaussian_filter(imy*imy,sigma)
    # 计算特征值和迹
    Wdet = Wxx*Wyy - Wxy**2
    Wtr = Wxx + Wyy
    return Wdet / Wtr

def get_harris_points(harrisim,min_dist=10,threshold=0.1):
    """ 从一幅Harris 响应图像中返回角点。min_dist 为分割角点和图像边界的最少像素数目"""
    # 寻找高于阈值的候选角点
    corner_threshold = harrisim.max() * threshold
    harrisim_t = (harrisim > corner_threshold) * 1
    # 得到候选点的坐标
    coords = array(harrisim_t.nonzero()).T
    # 以及它们的Harris 响应值
    candidate_values = [harrisim[c[0],c[1]] for c in coords]
    # 对候选点按照Harris 响应值进行排序
    index = argsort(candidate_values)
    # 将可行点的位置保存到数组中
    allowed_locations = zeros(harrisim.shape)
    allowed_locations[min_dist:-min_dist,min_dist:-min_dist] = 1
    # 按照min_distance 原则，选择最佳Harris 点
    filtered_coords = []
    for i in index:
        if allowed_locations[coords[i,0],coords[i,1]] == 1:
            filtered_coords.append(coords[i])
            allowed_locations[(coords[i,0]-min_dist):(coords[i,0]+min_dist),
                              (coords[i,1]-min_dist):(coords[i,1]+min_dist)] = 0
    return filtered_coords

def plot_harris_points(image,filtered_coords):
    """ 绘制图像中检测到的角点"""
    figure()
    gray()
    imshow(image)
    plot([p[1] for p in filtered_coords],[p[0] for p in filtered_coords],'*')
    axis('off')
    show()

def get_descriptors(image,filtered_coords,wid=5):
    """ 对于每个返回的点，返回点周围2*wid+1 个像素的值（假设选取点的min_distance > wid）"""
    desc = []
    for coords in filtered_coords:
        patch = image[coords[0]-wid:coords[0]+wid+1,
        coords[1]-wid:coords[1]+wid+1].flatten()
    desc.append(patch)
    return desc

def match(desc1,desc2,threshold=0.5):
    """ 对于第一幅图像中的每个角点描述子，使用归一化互相关，选取它在第二幅图像中的匹配角点"""
    n = len(desc1[0])
    # 点对的距离
    d = -ones((len(desc1),len(desc2)))
    for i in range(len(desc1)):
        for j in range(len(desc2)):
            d1 = (desc1[i] - mean(desc1[i])) / std(desc1[i])
            d2 = (desc2[j] - mean(desc2[j])) / std(desc2[j])
            ncc_value = sum(d1 * d2) / (n-1)
            if ncc_value > threshold:
                d[i,j] = ncc_value
        ndx = argsort(-d)
        matchscores = ndx[:,0]
    return matchscores

def match_twosided(desc1,desc2,threshold=0.5):
    """ 两边对称版本的match()"""
    matches_12 = match(desc1,desc2,threshold)
    matches_21 = match(desc2,desc1,threshold)
    ndx_12 = where(matches_12 >= 0)[0]
    # 去除非对称的匹配
    for n in ndx_12:
        if matches_21[matches_12[n]] != n:
            matches_12[n] = -1
    return matches_12

def appendimages(im1,im2):
    """ 返回将两幅图像并排拼接成的一幅新图像"""
    # 选取具有最少行数的图像，然后填充足够的空行
    rows1 = im1.shape[0]
    rows2 = im2.shape[0]
    if rows1 < rows2:
        im1 = concatenate((im1,zeros((rows2-rows1,im1.shape[1]))),axis=0)
    elif rows1 > rows2:
        im2 = concatenate((im2,zeros((rows1-rows2,im2.shape[1]))),axis=0)
    # 如果这些情况都没有，那么它们的行数相同，不需要进行填充
    return concatenate((im1,im2), axis=1)

def plot_matches(im1,im2,locs1,locs2,matchscores,show_below=True):
    """ 显示一幅带有连接匹配之间连线的图片
    输入：im1，im2（数组图像），locs1，locs2（特征位置），matchscores（match() 的输出），
    show_below（如果图像应该显示在匹配的下方）"""
    im3 = appendimages(im1,im2)
    if show_below:
        im3 = vstack((im3,im3))
    imshow(im3)
    cols1 = im1.shape[1]
    for i,m in enumerate(matchscores):
        if m>0:
            plot([locs1[i][1],locs2[m][1]+cols1],[locs1[i][0],locs2[m][0]],'c')
    axis('off')

main.py

import harris
from numpy import *
from pylab import *
from PIL import Image

im1 = array(Image.open('hcl.jpg').convert('L'))
im2 = array(Image.open('ln.jpg').convert('L'))

wid = 5

harrisim = harris.compute_harris_response(im1,5)
filtered_coords1 = harris.get_harris_points(harrisim,wid+1)
d1 = harris.get_descriptors(im1,filtered_coords1,wid)

harrisim = harris.compute_harris_response(im2,5)
filtered_coords2 = harris.get_harris_points(harrisim,wid+1)
d2 = harris.get_descriptors(im2,filtered_coords2,wid)

print ('starting matching')
matches = harris.match_twosided(d1,d2)
figure()
gray()
harris.plot_matches(im1,im2,filtered_coords1,filtered_coords2,matches)
show()
