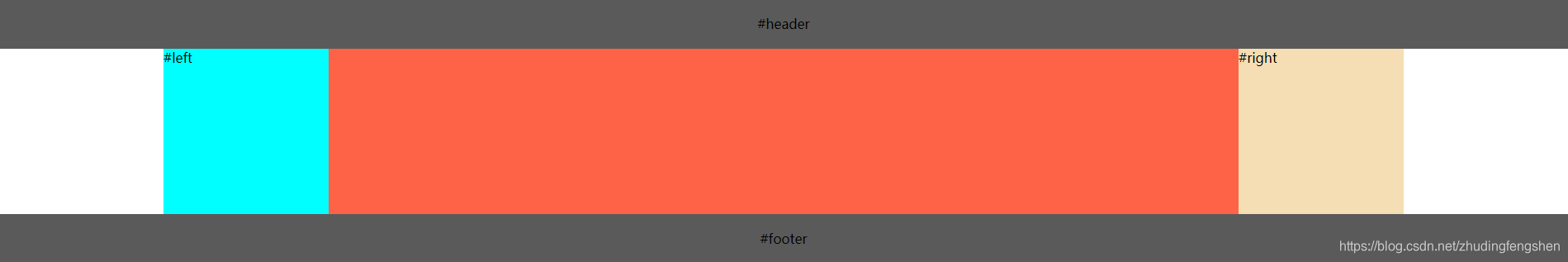

一.圣杯布局

先给出html结构，注意想要自适应的center放在前面。

<body>
  <div id="header">#header</div>
  <div id="container">
    <div id="center" class="column">#center</div>
    <div id="left" class="column">#left</div>
    <div id="right" class="column">#right</div>
  </div>
  <div id="footer">#footer</div>
</body>

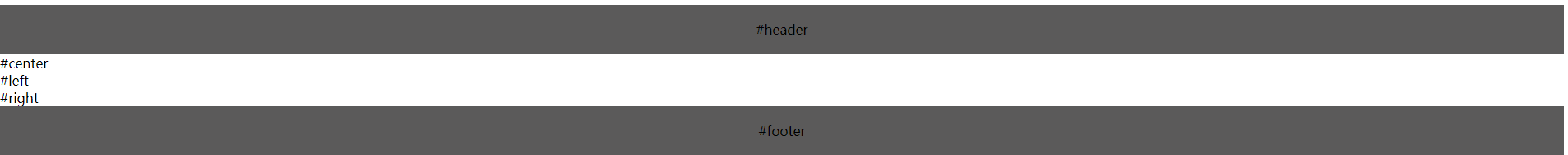

写好header和footer样式，使之横向撑满。

#header, #footer {
    background: rgba(29, 27, 27, 0.726);
    text-align: center;
    height: 60px;
    line-height: 60px;
  }

三列的左右两列均定宽200px，中间部分center设置100%撑满。

.column{
      height: 200px;
  }
  #left{
      width: 200px;
      background-color: aqua;
  }
  #right{
      width: 200px;
      background-color: wheat;
  }
  #center{
      width: 100%;
      background-color: tomato;
  }

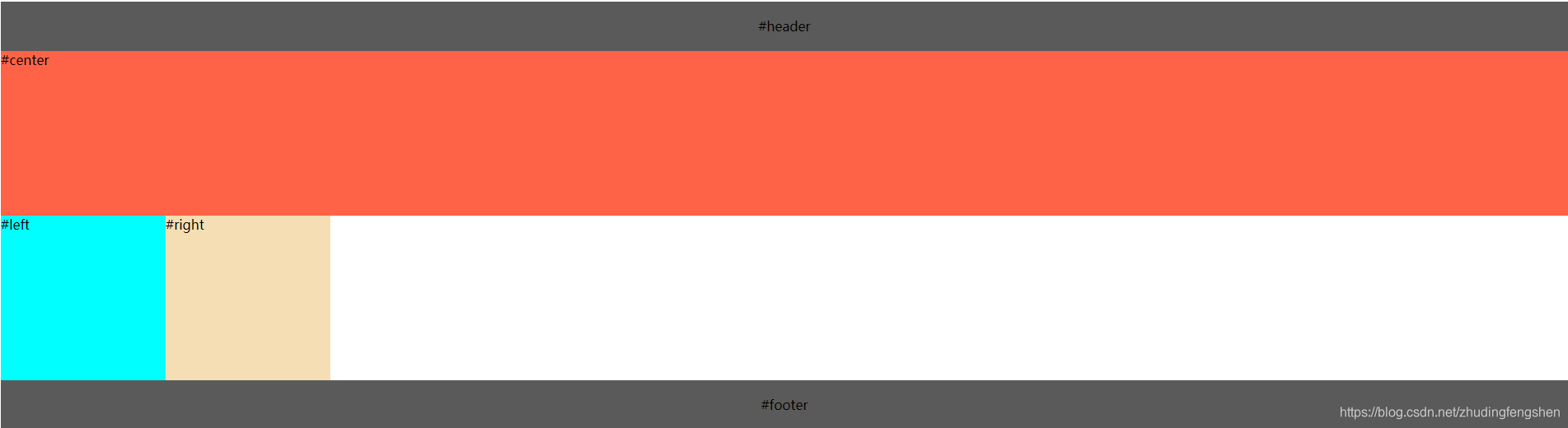

设置全部左浮动，并清除footer浮动

#header,
#footer {
     background: rgba(29, 27, 27, 0.726);
     text-align: center;
     height: 60px;
     line-height: 60px;
     clear: both;
  }
 .column{
      height: 200px;
      float: left;
  }

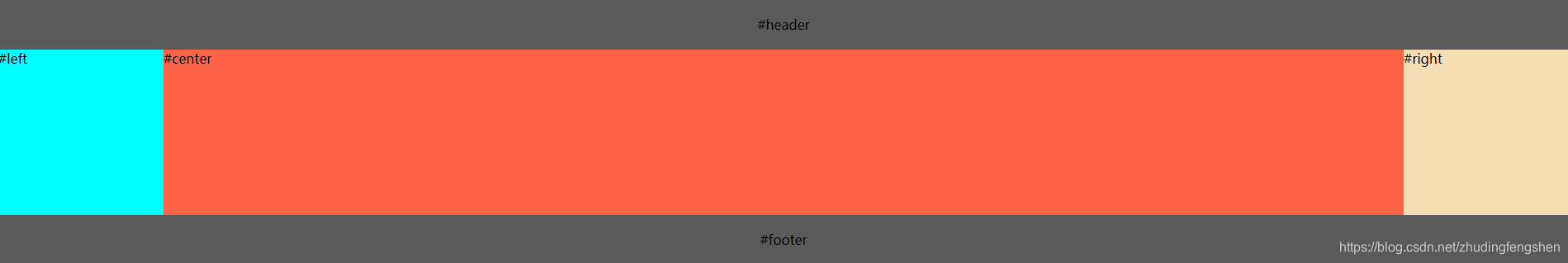

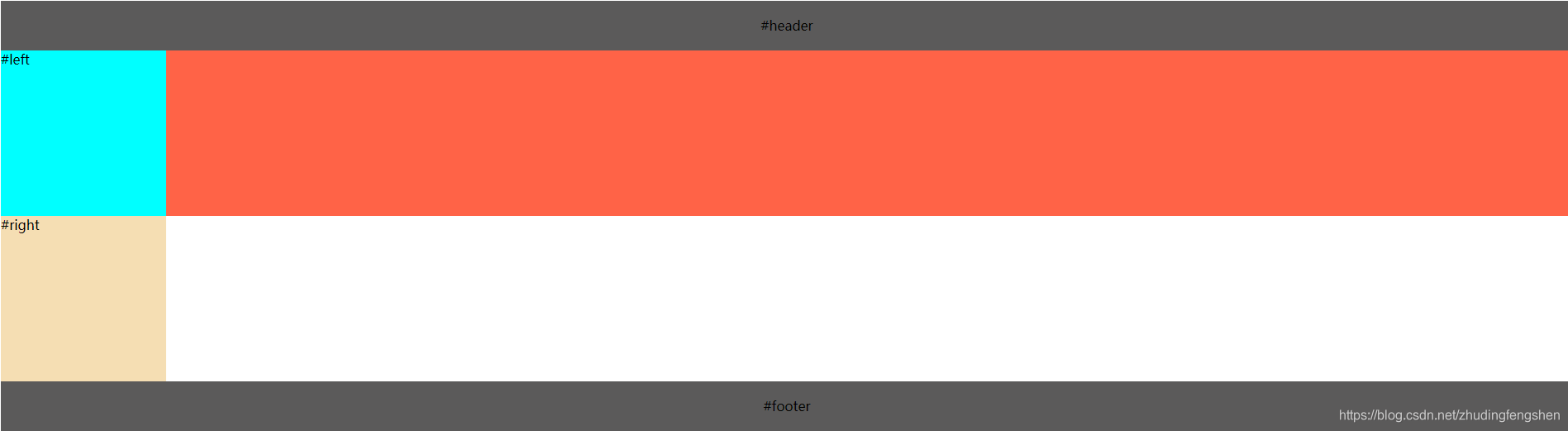

left元素设置margin-left:100%;拉回行头

#left {
     width: 200px;
     background-color: aqua;
     margin-left:-100%
  }

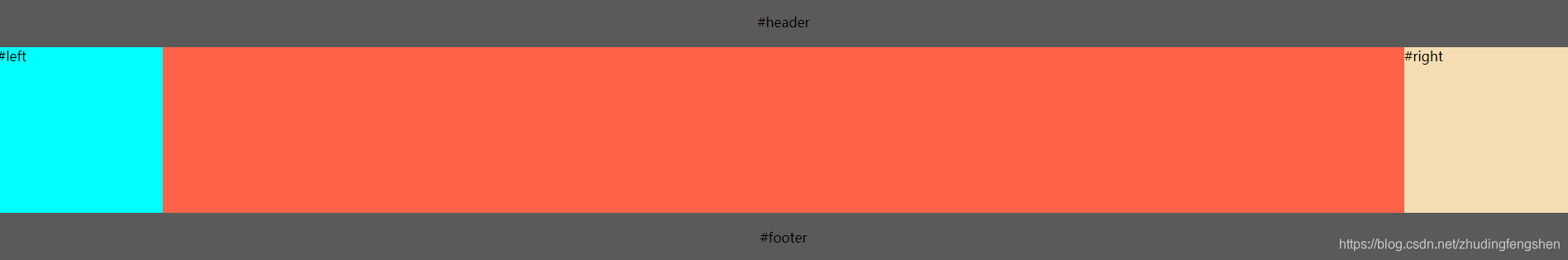

right元素设置margin-left: -200px;拉回行尾

#right {
    width: 200px;
    background-color: wheat;
    margin-left: -200px;
    right: -200px;
}

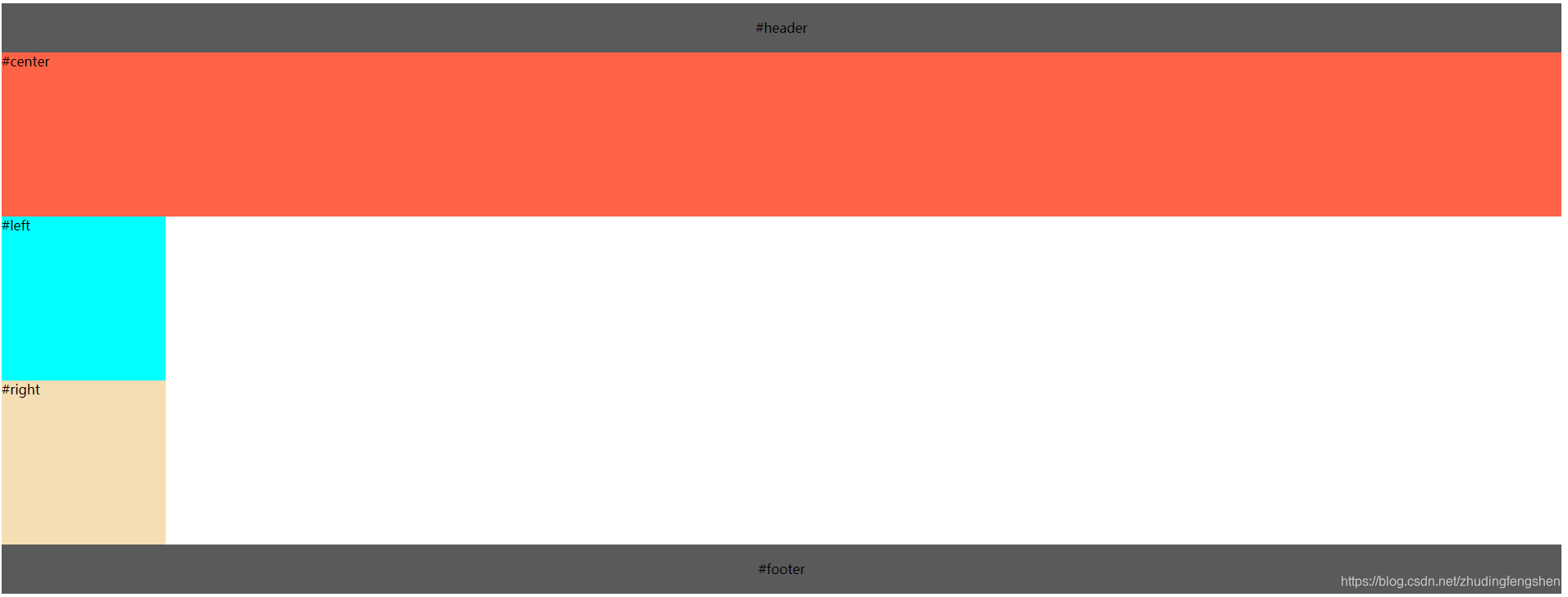

设置padding

#container {
    padding: 0 200px;
    overflow: hidden;
}

设置定位

二.完整代码

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        #header,
        #footer {
            background: rgba(29, 27, 27, 0.726);
            text-align: center;
            height: 60px;
            line-height: 60px;
            clear: both;
        }

        #container {
            padding: 0 200px;
            overflow: hidden;
        }

        .column {
            height: 200px;
            float: left;
            position: relative;
        }

        #left {
            width: 200px;
            background-color: aqua;
            margin-left: -100%;
            left: -200px;
        }

        #right {
            width: 200px;
            background-color: wheat;
            margin-left: -200px;
            right: -200px;
        }

        #center {
            width: 100%;
            background-color: tomato;
        }
    </style>
</head>

<body>
    <div id="header">#header</div>
    <div id="container">
        <div id="center" class="column">#center</div>
        <div id="left" class="column">#left</div>
        <div id="right" class="column">#right</div>
    </div>
    <div id="footer">#footer</div>
</body>

</html>
