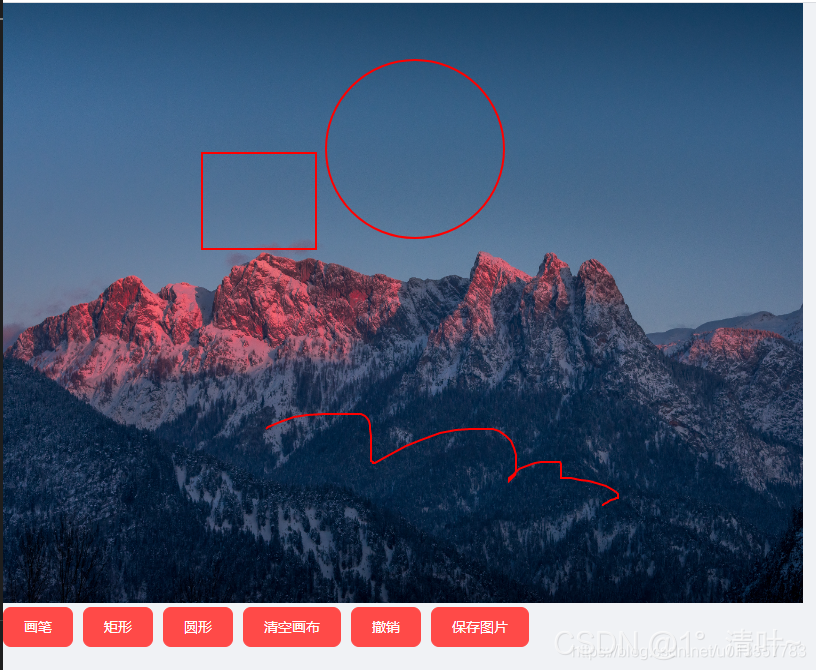

vue canvas 画笔 矩形 圆形 清空画布 撤销 保存图片（鼠标滑动成圆形矩形）

<template>
  <div class="test">
    <canvas
      id="mycanvas"
      width="800"
      height="600"
      ref="canvas"
      @mousedown="canvasDown($event)"
      @mouseup="canvasUp($event)"
      @mousemove="canvasMove($event)"
    ></canvas>

    <img :src="signSrc" alt="" />

    <el-button type="danger" @click="penClick">画笔</el-button>
    <el-button type="danger" @click="rectangleClick">矩形</el-button>
    <el-button type="danger" @click="roundClick">圆形</el-button>
    <el-button type="danger" @click="resetCanvas">清空画布</el-button>
    <el-button type="danger" @click="revoke">撤销</el-button>
    <el-button type="danger" @click="saveImg">保存图片</el-button>
  </div>
</template>

<script>
export default {
  components: {},
  data () {
    return {
      flag: false, // 是否绘制
      imgUrl:
        'https://cube.elemecdn.com/6/94/4d3ea53c084bad6931a56d5158a48jpeg.jpeg',
      img: new Image(), // 背景图片缓存
      context: {}, // canvas对象
      oldX: 0, // 第一次点击X轴
      oldY: 0, // 第一次点击Y轴
      penDraw: false, // 画笔工具是否启用
      rectangleDraw: false, // 矩形工具是否启用
      roundDraw: false, // 圆形工具是否启用
      history: [], // 存储每次操作
      signSrc: '' // 保存的图片地址
    }
  },

  mounted () {
    this.initDraw()
  },
  methods: {
    initDraw () {
      // 初始化画布
      const canvas = this.$refs.mycanvas//document.getElementById('mycanvas')
          var a = setInterval(() => {
          canvas = document.getElementById('mycanvas')
          if(!canvas){
            return false
          }else{
            clearInterval(a)
            this.context = canvas.getContext('2d')
            this.img.src = this.imgUrl
            this.img.onload = () => {
              if(this.img.complete){
                //根据图像重新设定canvas宽高
                canvas.setAttribute("width",img.width)
                canvas.setAttribute("height",this.img.height)
                //绘制图片
                this.context.drawImage(this.img, 0, 0, this.img.width, this.img.height)
                this.context.lineWidth = 3 // 画笔粗细
                this.context.strokeStyle = '#FF0000' // 画笔颜色
              }
            }
          }
        },1)

    },
    // 点击画笔
    penClick () {
      this.penDraw = true
      this.rectangleDraw = false
      this.roundDraw = false
    },
    // 点击矩形
    rectangleClick () {
      this.penDraw = false
      this.rectangleDraw = true
      this.roundDraw = false
    },
    // 点击圆形
    roundClick () {
      this.penDraw = false
      this.rectangleDraw = false
      this.roundDraw = true
    },

    // 保存图片
    saveImg () {
      // location.href = this.$refs.canvas.toDataURL().replace('image/png', 'image/stream')
      const imgBase64 = this.$refs.canvas.toDataURL('image/png')
      this.signSrc = imgBase64
    },

    resetCanvas () {
      // 清空画布
      this.context.clearRect(0, 0, 800, 600) // 清空
      this.flag = false
      this.history.length = 0 // 清空记录
      this.initDraw()
    },
    // 撤销
    revoke () {
      this.history.pop()
      if (this.history.length > 0) {
        // 从存入的记录里删除
        this.context.putImageData(this.history[this.history.length - 1], 0, 0)
      }
    },
    // 绘制铅笔
    pencil (e) {
      const newx = e.offsetX  //e.pageX
      const newy = e.offsetY  //e.pageY
      this.context.lineTo(newx, newy)
      this.context.stroke()
    },
    // 绘制矩形
    rectangle (e) {
      const newX = e.offsetX  //e.pageX
      const newY = e.offsetY  // e.pageY
      this.context.beginPath()
      this.context.rect(this.oldX, this.oldY, newX - this.oldX, newY - this.oldY)
      this.context.stroke()
    },
    // 绘制圆形
    round (e) {
      const newX = e.offsetX // e.pageX
      const newY = e.offsetY //e.pageY
      this.context.beginPath()
      var r = Math.sqrt(Math.pow(newX - this.oldX, 2), Math.pow(newY - this.oldY), 2)
/**
         ctx.arc(x, y, radius, startAngle, endAngle, Boolean)
         圆心坐标: (x, y)
         半径: radius
         起始角度: startAngle
         结束角度: endAngle
         是否逆时针旋转: false 代表顺时针旋转
         */
      this.context.arc(this.oldX, this.oldY, r, 0, 2 * Math.PI)
      this.context.closePath()
      this.context.stroke()
    },

    // 鼠标落下
    canvasDown (e) {
      this.context.beginPath() // 分开路径，开始一个新的路径
      this.flag = true // 开始绘制
      // 获取鼠标起始位置
      this.oldX = e.offsetX // e.pageX
      this.oldY = e.offsetY // e.pageY
    },
    // 鼠标滑动
    canvasMove (e) {
      if (this.flag === true) {
        if (this.history.length > 0) {
          // history数组的长度大于0，才可以putImageData()
          this.context.putImageData(
            this.history[this.history.length - 1],
            0,
            0
          )
        } else {
          this.history.push(this.context.getImageData(0, 0, 800, 600))
        }
        // 执行画笔
        if (this.flag === true && this.penDraw === true) {
          this.pencil(e)
        }
        // 执行矩形
        if (this.flag === true && this.rectangleDraw === true) {
          this.rectangle(e)
        }
        // 执行圆形
        if (this.flag === true && this.roundDraw === true) {
          this.round(e)
        }
      }
    },
    // 鼠标抬起
    canvasUp (e) {
      console.log(e)
      // getImageData() 方法返回 ImageData 对象，该对象拷贝了画布指定矩形的像素数据。
      this.history.push(this.context.getImageData(0, 0, 800, 600))
      this.flag = false
    }
  }
}
</script>

<style lang="less" scoped></style>
