音频波形图PcgView，一屏显示2秒的数据量

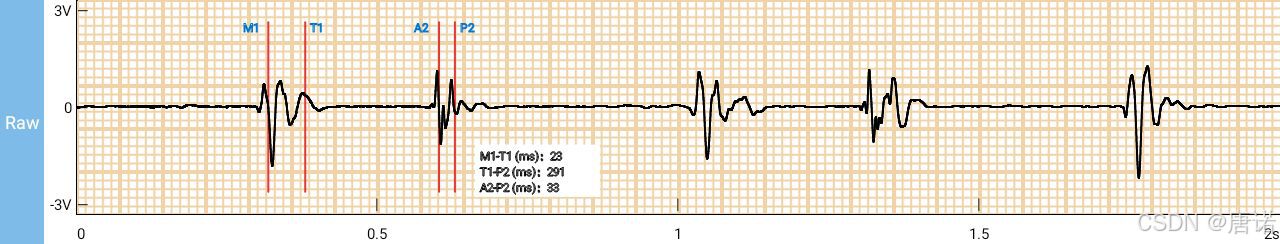

效果图：

心电图是被记录在布满大小方格的纸上，所以想要知道心电图怎么看，首要的是知道这些格子代表的意义。这些方格中每一条细竖线相隔1mm，每一条细横线也是相隔1mm，它们围成了1mm见方的小格。粗线是每五个小格一条，每条粗线之间相隔就是5mm，横竖粗线又构成了大方格。

心电图记录纸是按照国际规定的标准速度移动的，移动速度为25mm/s，也就是说横向的每个小细格代表0.04s；每两条粗线之间的距离就是代表0.2s。

国际上对记录心电图时的外加电压也是有规定的，即外加1mV电压时，基线就应该准确地抬高10个小格，也就是说，每个小横格表示0.1mV，而每个大格就表示0.5mV，每两个大格就代表了这1mV。

特点：

• 走纸速度不固定，不是标准的25mm/s
• 一屏显示2秒的数据量；

标准的波形图，代码注释，请参考：心电波形图EcgView

动态适配版本：

package com.kl.common_base.view.wave;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.support.annotation.Nullable;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import com.kl.common_base.R;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.LinkedList;
import java.util.List;
import java.util.Map;

public class PdfEcgWaveView extends View {


    private List<Short> pointList = Collections.synchronizedList(new LinkedList<>());
    private Paint mPaint;
    private Paint mPaintLine;
    private int mWidth = 0;
    private int mHeight = 0;
    private int mCenterY = 0;
    public float points[];
    List<Short> nativeDatas = null;
    private int len = 0;
    private int index = 0;

    private double zoom;
    private double gapX = 0.2f;
    private int xSize = 0;
    private final int maxMillimeter = 25;
    private final int FILTER_SIZE = 1;
    private int sampleRate = 8000 / FILTER_SIZE;
    private int gain = 5;
    private final int maxMidScopeY = 0;
    private double screenTotalTime;
    private int[] lineArray;
    private int[] cycleArray;
    private Map<Integer, Integer> lineMap = new HashMap();
//    private List<Float> xList = new ArrayList<>();

    public PdfEcgWaveView(Context context) {


        super(context);
//        Log.d("caowj", "55555555555555555555555555");
        initPaint();
    }

    public PdfEcgWaveView(Context context, @Nullable AttributeSet attrs) {


        super(context, attrs);
//        Log.d("caowj", "66666666666666666666666666");
        initPaint();

    }

    public PdfEcgWaveView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {


        super(context, attrs, defStyleAttr);
//        Log.d("caowj", "77777777777777777777777777");
        initPaint();

    }

    private void initPaint() {


//        Log.d("caowj", "initPaint--------------");
        if (mPaint == null) {


            mPaint = new Paint();
            mPaint.setColor(Color.BLACK);
            mPaint.setAntiAlias(true);
            mPaint.setStrokeWidth(2);
            mPaint.setStrokeCap(Paint.Cap.ROUND);
            mPaint.setStyle(Paint.Style.STROKE);
        }
        if (mPaintLine == null) {


            mPaintLine = new Paint();
            mPaintLine.setColor(getContext().getResources().getColor(R.color.red));
            mPaintLine.setAntiAlias(true);
            mPaintLine.setStrokeWidth(2);
            mPaintLine.setStrokeCap(Paint.Cap.ROUND);
            mPaintLine.setStyle(Paint.Style.STROKE);
        }
    }

    public void addWaveDataInVisiable(short[] waveData, int[] peakArray, int[] cycleArray) {


        if (peakArray != null
