AOP实现分页有什么好处
利用AOP实现分页功能可以达到零代码入侵的目的,只需要在请求方法上传入对应的分页请求数据即可,SQL的编写以及后台业务与分页代码无关。
PageHelper
PageHelper是Mybatis的一款分页插件,利用ThreadLocal实现分页功能。PageHelper先是根据你即将发出的SQL命令获取count值(也就是数据总量),然后获取当前线程上的线程变量进行分页操作。
执行流程
- 使用aop获取controller方法中分页的相关请求数据PageBean
- 将PageBean保存在线程变量中
- 使用aop拦截dao方法,调用PageHelper的分页方法(使用两次aop是因为PageHelper只会对即将执行的SQL语句进行分页,假设你要分页的数据是第二顺序执行,这时候则会导致第一顺序执行的SQL语句被分页,而第二顺序执行的SQL语句相反)
说一下为什么要使用AOP进行分页实现,先看代码
@Override
public PageInfo<User> selectAllUser(Integer currentPage, Integer pageSize) {
PageHelper.startPage(currentPage,pageSize);
List<User> userList = userMapper.selectPage();
PageInfo<User> userPageInfo = new PageInfo<>(userList);
return userPageInfo;
}
在查询语句的上下都需要引用相应的PageHelper方法,当方法较少的时候没什么,但如果有好几百个方法都是这样的,那么就会显得代码冗余,我们就可以通过AOP思想将其提取出来,减少代码量。

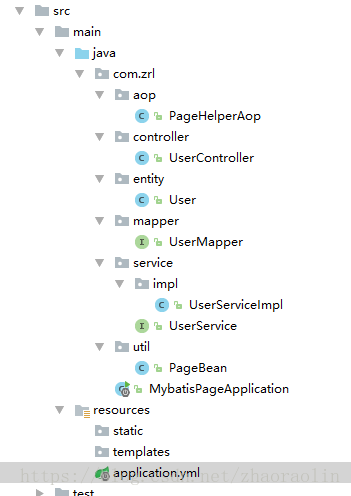

我是使用SpringBoot进行的代码测试,目录结构如下:
pom.xml文件所引用的jar包:
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.3.2</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<!-- springboot 整合 pagehelper -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>1.2.5</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.7</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
</dependencies>
application.yml文件配置:
spring:
datasource:
driver-class-name: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/test
username: root
password: 123
pagehelper:
helper-dialect: mysql
reasonable: true
support-methods-arguments: true
params:
count: countSql
page-size-zero: true
注意:我用的SpringBoot版本为2.0.x,在引用数据源的时候用driver-class-name,
如果是1.5.x版本的话,需要是driverClassName
实体类:
@Data
public class User {
private Integer id;
private String name;
private String code;
private Long password;
private boolean status;
}
分页工具类:
@Data
public class PageBean<T> {
// 当前页
private Integer currentPage;
// 每页显示的总条数
private Integer pageSize;
// 总条数
private Integer totalNum;
// 是否有下一页
private Integer isMore;
// 总页数
private Integer totalPage;
// 开始索引
private Integer startIndex;
// 分页结果
private List<T> items;
}
Mapper接口层:
public interface UserMapper {
@Select("select * from user")
List<User> selectPage();
@Select("select * from user")
List<User> selectWithPage();
}
注意:此处之所以没有写@Mapper注解是因为,我已经在SpringBoot启动类中已经加上
@MapperScan(basePackages = {"com.zrl.mapper"})进行声明了
编写Controller
Controller方法中使用了PageBean接收分页参数或者使用restful风格接收参数,这里并没有限制你必须这么接收,不过你怎么接收分页参数的就需要在aop中怎么拦截并获取,我这里是使用实体类进行接收:
@RestController
@Slf4j
public class UserController {
@Autowired
private UserService userService;
@RequestMapping("/select")
public List<User> selectAll(){
return userService.selectAll();
}
@RequestMapping("/selectAllUser/{currentPage}/{pageSize}")
public PageInfo<User> selectAllUser(@PathVariable("currentPage") Integer currentPage, @PathVariable("pageSize") Integer pageSize){
return userService.selectAllUser(currentPage,pageSize);
}
/**
* 必须要用这两个注解 @PostMapping @RequestBody
*/
@PostMapping("/selectAllUserWithPage")
public PageInfo<User> selectAllUserWithPage(@RequestBody PageBean pageBean){
return userService.selectAllUserWithPage();
}
}
service层实现类:
@Service
public class UserServiceImpl implements UserService {
@Autowired
private UserMapper userMapper;
@Override
public List<User> selectAll() {
return userMapper.selectPage();
}
@Override
public PageInfo<User> selectAllUser(Integer currentPage, Integer pageSize) {
PageHelper.startPage(currentPage,pageSize);
List<User> userList = userMapper.selectPage();
PageInfo<User> userPageInfo = new PageInfo<>(userList);
return userPageInfo;
}
/**
* 引用PageHelper.startPage(currentPage,pageSize);这一步,通过AOP前置通知完成,节省代码
* new PageInfo<>(userList) 这一步理论上也应该能够实现,但我没想到怎么实现,有思路的大神提一下意见
* @return
*/
@Override
public PageInfo<User> selectAllUserWithPage() {
return new PageInfo<>(userMapper.selectWithPage());
}
}
编写PageHelperAOP类
@Component
@Aspect
public class PageHelperAop {
private static final Logger log = LoggerFactory.getLogger(PageHelperAop.class);
//使用线程本地变量
private static final ThreadLocal<PageBean> pageBeanContext = new ThreadLocal<>();
//以WithPage结尾的Controller方法都是需要分页的方法
@Before(value = "execution(public * com.zrl.controller.*.*WithPage(..))")
public void controllerAop(JoinPoint joinPoint) throws Exception {
log.info("Controller正在执行PageHelperAop");
PageBean pageBean =null;
Object[] args = joinPoint.getArgs();
//获取类名
String clazzName = joinPoint.getTarget().getClass().getName();
//获取方法名称
String methodName = joinPoint.getSignature().getName();
//通过反射获取参数列表
Map<String,Object > nameAndArgs = this.getFieldsName(this.getClass(), clazzName, methodName,args);
pageBean = (PageBean) nameAndArgs.get("pageBean");
if(pageBean == null){
pageBean = new PageBean();
pageBean.setCurrentPage((Integer) nameAndArgs.get("currentPage"));
pageBean.setPageSize((Integer) nameAndArgs.get("pageSize"));
}
//将分页参数放置线程变量中
pageBeanContext.set(pageBean);
}
@Before(value = "execution(public * com.zrl.service.impl.*.*WithPage(..))")
public void serviceImplAop(){
log.info("Impl正在执行PageHelperAop");
PageBean pageBean = pageBeanContext.get();
PageHelper.startPage(pageBean.getCurrentPage(), pageBean.getPageSize());
}
@AfterReturning(value = "execution(* com.zrl.mapper.*.*WithPage(..))")
public void mapperAop(){
log.info("mapper正在执行PageHelperAop");
}
/**
* 通过反射获取参数列表
* @throws Exception
*/
private Map<String,Object> getFieldsName(Class cls, String clazzName, String methodName, Object[] args) throws Exception {
Map<String,Object > map=new HashMap<String,Object>();
ClassPool pool = ClassPool.getDefault();
ClassClassPath classPath = new ClassClassPath(cls);
pool.insertClassPath(classPath);
CtClass cc = pool.get(clazzName);
CtMethod cm = cc.getDeclaredMethod(methodName);
MethodInfo methodInfo = cm.getMethodInfo();
CodeAttribute codeAttribute = methodInfo.getCodeAttribute();
LocalVariableAttribute attr = (LocalVariableAttribute) codeAttribute.getAttribute(LocalVariableAttribute.tag);
if (attr == null) {
// exception
}
int pos = Modifier.isStatic(cm.getModifiers()) ? 0 : 1;
for (int i = 0; i < cm.getParameterTypes().length; i++){
map.put( attr.variableName(i + pos),args[i]);
}
return map;
}
}
测试:

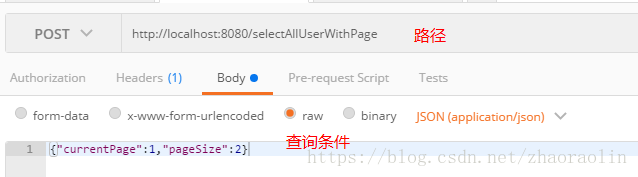

应用Postman软件进行模拟请求:

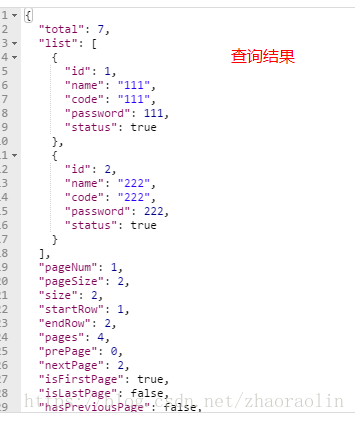

查询结果:

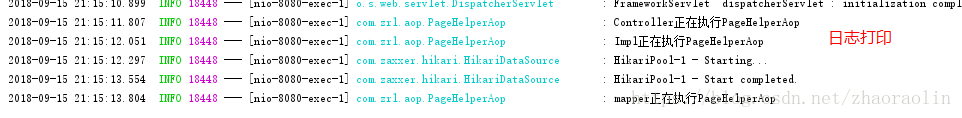

日志打印:
