SpringBoot整合Mybatis,Maven,Mysql,swagger或spring data jpa或mongodb或springcloud

一.springboot+mybatis+maven+mysql+swagger

按下列步骤操作

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.6.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.springboot_mybatis_module</groupId>
	<artifactId>springboot_mybatis_module</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>springboot_mybatis_module</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>2.1.0</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

在application.properties中添加如下内容

#开发配置
spring.datasource.driverClassName = com.mysql.cj.jdbc.Driver
spring.datasource.url = jdbc:mysql://127.0.0.1:3306/zmx?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT
spring.datasource.username = root
spring.datasource.password = root
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2



至此一个简单的springboot项目可以启动成功

 在pom.xml中添加 为自动生成代码配置做准备

<dependency>
      <groupId>org.mybatis.generator</groupId>
      <artifactId>mybatis-generator-core</artifactId>
      <version>1.3.2</version>
 </dependency>

添加generatorConfig.xml文件，如下图所示

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >

<generatorConfiguration>
    <!--导入属性配置-->
    <properties resource="application.properties"></properties>

    <!-- 指定数据库驱动的jdbc驱动jar包的位置 -->
    <!--<classPathEntry location="E:\test\ssm\src\main\tools\mysql-connector-java-5.1.41.jar" />-->

    <!-- context 是逆向工程的主要配置信息 -->
    <!-- id：起个名字 -->
    <!-- targetRuntime：设置生成的文件适用于那个 mybatis 版本 -->
    <context id="default" targetRuntime="MyBatis3">

        <!--optional,旨在创建class时，对注释进行控制-->
        <commentGenerator>
            <property name="suppressDate" value="true" />
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true" />
        </commentGenerator>

        <!--jdbc的数据库连接-->
        <jdbcConnection driverClass="${spring.datasource.driverClassName}"
                        connectionURL="${spring.datasource.url}"
                        userId="${spring.datasource.username}"
                        password="${spring.datasource.password}">
        </jdbcConnection>

        <!--非必须，类型处理器，在数据库类型和java类型之间的转换控制-->
        <javaTypeResolver>
            <!-- 默认情况下数据库中的 decimal，bigInt 在 Java 对应是 sql 下的 BigDecimal 类 -->
            <!-- 不是 double 和 long 类型 -->
            <!-- 使用常用的基本类型代替 sql 包下的引用类型 -->
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>

        <!-- targetPackage：生成的实体类所在的包 -->
        <!-- targetProject：生成的实体类所在的硬盘位置 -->
        <javaModelGenerator targetPackage="com.springboot_mybatis_module.springboot_mybatis_module.model"
                            targetProject=".\springboot_mybatis_module\src\main\java">
            <!-- 是否允许子包 -->
            <property name="enableSubPackages" value="false" />
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true" />
            <!-- 是否清理从数据库中查询出的字符串左右两边的空白字符 -->
            <property name="trimStrings" value="true" />
            <!-- 建立model对象是否不可改变 即生成的modal对象不会有setter方法，只有构造方法 -->
            <property name="immutable" value="false" />
        </javaModelGenerator>

        <!-- targetPackage 和 targetProject：生成的 mapper 文件的包和位置 -->
        <sqlMapGenerator targetPackage="mapper"
                         targetProject=".\springboot_mybatis_module\src\main\resources">
            <!-- 针对数据库的一个配置，是否把 schema 作为字包名 -->
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>

        <!-- targetPackage 和 targetProject：生成的 interface 文件的包和位置 -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.springboot_mybatis_module.springboot_mybatis_module.dao" targetProject=".\springboot_mybatis_module\src\main\java">
            <!-- 针对 oracle 数据库的一个配置，是否把 schema 作为字包名 -->
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>


        <table tableName="film" domainObjectName="Film"
               enableCountByExample="false" enableUpdateByExample="false"
               enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false">
        </table>
    </context>
</generatorConfiguration>

接下来，在下列位置新建java类Generator.java

下图所示位置

Generator.java

package com.springboot_mybatis_module.springboot_mybatis_module;

import org.junit.runner.RunWith;
import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.exception.InvalidConfigurationException;
import org.mybatis.generator.exception.XMLParserException;
import org.mybatis.generator.internal.DefaultShellCallback;
import org.springframework.test.context.junit4.SpringRunner;

import java.io.File;
import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

/**
 * @Author zhaomengxia
 * @create 2019/8/6 17:26
 */
@RunWith(SpringRunner.class)
public class Generator {
    public static void main(String[] args){
        List<String> warning=new ArrayList<>();
        boolean overwrite=true;
        File configFile=new File("springboot_mybatis_module\\src\\main\\resources\\generatorConfig.xml");
        ConfigurationParser cp = new ConfigurationParser(warning);
        Configuration config;
        try {
            config = cp.parseConfiguration(configFile);
            DefaultShellCallback callback = new DefaultShellCallback(overwrite);
            MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warning);
            myBatisGenerator.generate(null);
            System.out.println("ok");
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (XMLParserException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (SQLException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } catch (InvalidConfigurationException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
}

运行Generator.java

运行结果如下



git-add之后

提交代码

pom.xml配置文件添加swagger依赖

<!-- swagger -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.5.0</version>
		</dependency>
		<!-- swagger-ui -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.5.0</version>
		</dependency>

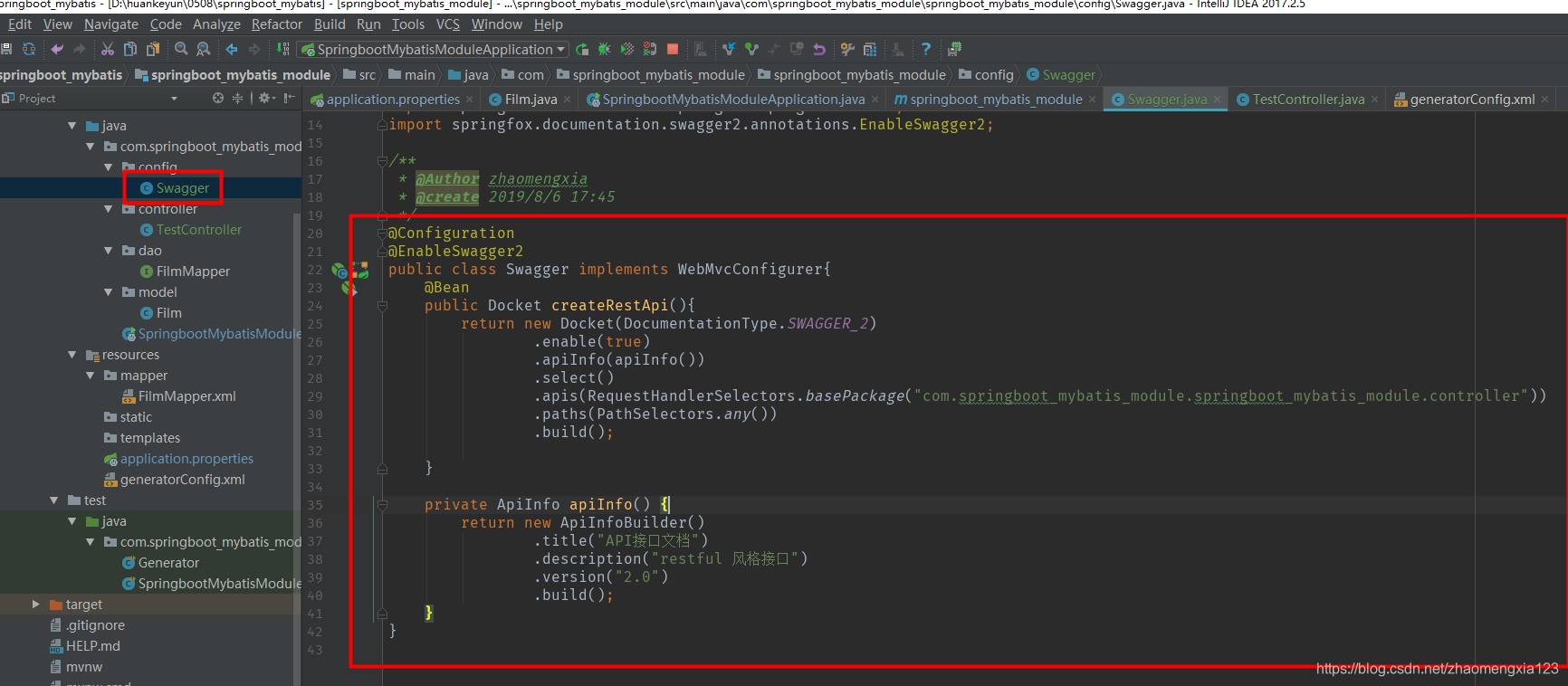

创建config配置文件

@Configuration
@EnableSwagger2
public class Swagger implements WebMvcConfigurer{
    @Bean
    public Docket createRestApi(){
        return new Docket(DocumentationType.SWAGGER_2)
                .enable(true)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.springboot_mybatis_module.springboot_mybatis_module.controller"))
                .paths(PathSelectors.any())
                .build();

    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("API接口文档")
                .description("restful 风格接口")
                .version("2.0")
                .build();
    }
}

启动类，在该启动类之前pom.xml文件添加

<!-- https://mvnrepository.com/artifact/cn.hutool/hutool-all -->
		<dependency>
			<groupId>cn.hutool</groupId>
			<artifactId>hutool-all</artifactId>
			<version>4.0.12</version>
		</dependency>

application.properties文件添加

 之后启动类改为

package com.springboot_mybatis_module.springboot_mybatis_module;

import cn.hutool.log.Log;
import cn.hutool.log.LogFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.Environment;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@SpringBootApplication
@EnableSwagger2
public class SpringbootMybatisModuleApplication {

	private static Log logger = LogFactory.get();
	public static void main(String[] args) {
		ConfigurableApplicationContext application =SpringApplication.run(SpringbootMybatisModuleApplication.class, args);
		Environment env = application.getEnvironment();

		logger.info("\n----------------------------------------------------------\n\t" +
						"SpringbootMybatisModuleApplication  is running! Access URLs:\n\t" +
						"Doc: \thttp://localhost:{}/swagger-ui.html#\n" +
						"----------------------------------------------------------",

				env.getProperty("server.port"));
	}

}

再之后编写测试接口

 启动成功之后为



二.springboot集成spring data jpa，mysql







pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.7.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.springboot_springdatajpa</groupId>
	<artifactId>springdatajpa</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>springdatajpa</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
       <!-- 新加的lombok依赖-->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.16.20</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

 application.properties文件添加

#开发配置
spring.datasource.driverClassName = com.mysql.cj.jdbc.Driver
spring.datasource.url = jdbc:mysql://127.0.0.1:3306/zmx?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT
spring.datasource.username = root
spring.datasource.password = root
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2
spring.jpa.show-sql= true
spring.jpa.hibernate.ddl-auto=update
spring.jpa.hibernate.dialect=org.hibernate.dialect.MySQL5Dialect
spring.jackson.serialization.indent_output=false

新创建TestModel.java

package com.springboot_springdatajpa.springdatajpa.model;

import lombok.Data;
import org.springframework.data.annotation.Id;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Table;
import java.io.Serializable;

/**
 * @Author zhaomengxia
 * @create 2019/8/6 20:48
 */
@Table(name = "test_model")
@Entity
@Data
public class TestModel implements Serializable {
    @Id
    @javax.persistence.Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private long id;
    private String name;
    private String code;
    private long age;
    private String gender;
    private String gradution;
}

启动成功之后

 数据库生成新表如下

三、springboot+spring security+mysql就不在这里一步步展示了，在项目中的位置如下，源代码链接在本文下面

四、springboot+jpa+mongodb就不在这里一步步展示了，在项目中的位置如下，源代码链接在本文最下面

五、springboot+springcloud就不在这里一步步展示了，在项目中的位置如下，具体代码及具体解释也都在下面的源代码里

完整代码

https://github.com/zhaomengxia/springboot_mybatis.git
