1加载AutoConfigurationImportSelector

2加载自动配置类

3过滤自动配置类

4实例化自动配置类

5ConfigurationClassParser类

6条件注解

1加载AutoConfigurationImportSelector

自动化配置的逻辑，入口为refresh()中：

public void refresh() throws BeansException, IllegalStateException {
        //...
        invokeBeanFactoryPostProcessors(beanFactory);
        //...
    }

@SpringBootApplication含有@EnableAutoConfiguration，

@EnableAutoConfiguration含有@Import(AutoConfigurationImportSelector.class)，

会在

invokeBeanFactoryPostProcessors(beanFactory);

时被ConfigurationClassParser的processImports加载到容器。

2加载自动配置类

在ConfigurationClassParser类的parse()方法中，执行

this.deferredImportSelectorHandler.process();

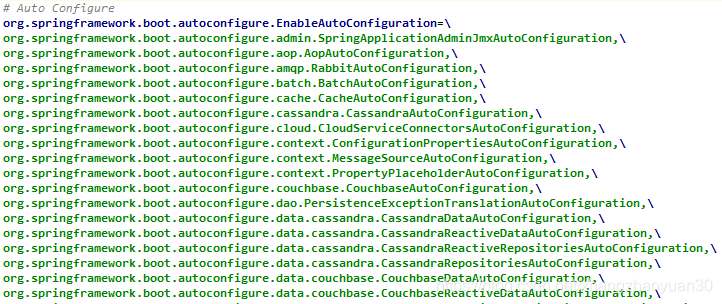

最终解析spring.factories文件：

@Override
		public void process(AnnotationMetadata annotationMetadata,
				DeferredImportSelector deferredImportSelector) {
			Assert.state(
					deferredImportSelector instanceof AutoConfigurationImportSelector,
					() -> String.format("Only %s implementations are supported, got %s",
							AutoConfigurationImportSelector.class.getSimpleName(),
							deferredImportSelector.getClass().getName()));
			AutoConfigurationEntry autoConfigurationEntry = ((AutoConfigurationImportSelector) deferredImportSelector)
					.getAutoConfigurationEntry(getAutoConfigurationMetadata(),
							annotationMetadata);
			this.autoConfigurationEntries.add(autoConfigurationEntry);
			for (String importClassName : autoConfigurationEntry.getConfigurations()) {
				this.entries.putIfAbsent(importClassName, annotationMetadata);
			}
		}

protected AutoConfigurationEntry getAutoConfigurationEntry(
			AutoConfigurationMetadata autoConfigurationMetadata,
			AnnotationMetadata annotationMetadata) {
		if (!isEnabled(annotationMetadata)) {
			return EMPTY_ENTRY;
		}
		AnnotationAttributes attributes = getAttributes(annotationMetadata);
		List<String> configurations = getCandidateConfigurations(annotationMetadata,
				attributes);
		configurations = removeDuplicates(configurations);
		Set<String> exclusions = getExclusions(annotationMetadata, attributes);
		checkExcludedClasses(configurations, exclusions);
		configurations.removeAll(exclusions);
		configurations = filter(configurations, autoConfigurationMetadata);
		fireAutoConfigurationImportEvents(configurations, exclusions);
		return new AutoConfigurationEntry(configurations, exclusions);
	}

3过滤自动配置类

private List<String> filter(List<String> configurations,
	...
		for (AutoConfigurationImportFilter filter : getAutoConfigurationImportFilters()) {
			invokeAwareMethods(filter);
			boolean[] match = filter.match(candidates, autoConfigurationMetadata);
			for (int i = 0; i < match.length; i++) {
				if (!match[i]) {
					skip[i] = true;
					candidates[i] = null;
					skipped = true;
				}
			}
		}
	...
	}

getAutoConfigurationImportFilters()从spring.factoris中加载

protected List<AutoConfigurationImportFilter> getAutoConfigurationImportFilters() {
		return SpringFactoriesLoader.loadFactories(AutoConfigurationImportFilter.class,
				this.beanClassLoader);
	}

4实例化自动配置类

和所有单例bean一起在refresh()方法的

finishBeanFactoryInitialization(beanFactory);

中进行实例化

5ConfigurationClassParser类

protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
			throws IOException {

		if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
			// Recursively process any member (nested) classes first
			processMemberClasses(configClass, sourceClass);
		}

		// Process any @PropertySource annotations
		for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
				sourceClass.getMetadata(), PropertySources.class,
				org.springframework.context.annotation.PropertySource.class)) {
			if (this.environment instanceof ConfigurableEnvironment) {
				processPropertySource(propertySource);
			}
			else {
				logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
						"]. Reason: Environment must implement ConfigurableEnvironment");
			}
		}

		// Process any @ComponentScan annotations
		Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
				sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
		if (!componentScans.isEmpty() &&
				!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
			for (AnnotationAttributes componentScan : componentScans) {
				// The config class is annotated with @ComponentScan -> perform the scan immediately
				Set<BeanDefinitionHolder> scannedBeanDefinitions =
						this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
				// Check the set of scanned definitions for any further config classes and parse recursively if needed
				for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
					BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
					if (bdCand == null) {
						bdCand = holder.getBeanDefinition();
					}
					if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
						parse(bdCand.getBeanClassName(), holder.getBeanName());
					}
				}
			}
		}

		// Process any @Import annotations
		processImports(configClass, sourceClass, getImports(sourceClass), true);

		// Process any @ImportResource annotations
		AnnotationAttributes importResource =
				AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
		if (importResource != null) {
			String[] resources = importResource.getStringArray("locations");
			Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
			for (String resource : resources) {
				String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
				configClass.addImportedResource(resolvedResource, readerClass);
			}
		}

		// Process individual @Bean methods
		Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
		for (MethodMetadata methodMetadata : beanMethods) {
			configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
		}

		// Process default methods on interfaces
		processInterfaces(configClass, sourceClass);

		// Process superclass, if any
		if (sourceClass.getMetadata().hasSuperClass()) {
			String superclass = sourceClass.getMetadata().getSuperClassName();
			if (superclass != null && !superclass.startsWith("java") &&
					!this.knownSuperclasses.containsKey(superclass)) {
				this.knownSuperclasses.put(superclass, configClass);
				// Superclass found, return its annotation metadata and recurse
				return sourceClass.getSuperClass();
			}
		}

		// No superclass -> processing is complete
		return null;
	}

这个方法的入口在refresh的

invokeBeanFactoryPostProcessors(beanFactory);

该方法的作用是

解析基于注解的Configuration类，获取beanDefinition，并注册进了容器，等待实例化。

参考：spring容器加载分析三Configuration类解析

6条件注解

@ConditionalOnBean（仅仅在当前上下文中存在某个对象时，才会实例化一个Bean）
@ConditionalOnClass（某个class位于类路径上，才会实例化一个Bean）
@ConditionalOnExpression（当表达式为true的时候，才会实例化一个Bean）
@ConditionalOnMissingBean（仅仅在当前上下文中不存在某个对象时，才会实例化一个Bean）
@ConditionalOnMissingClass（某个class类路径上不存在的时候，才会实例化一个Bean）
@ConditionalOnNotWebApplication（不是web应用）
