思科模拟器配置 ripv2

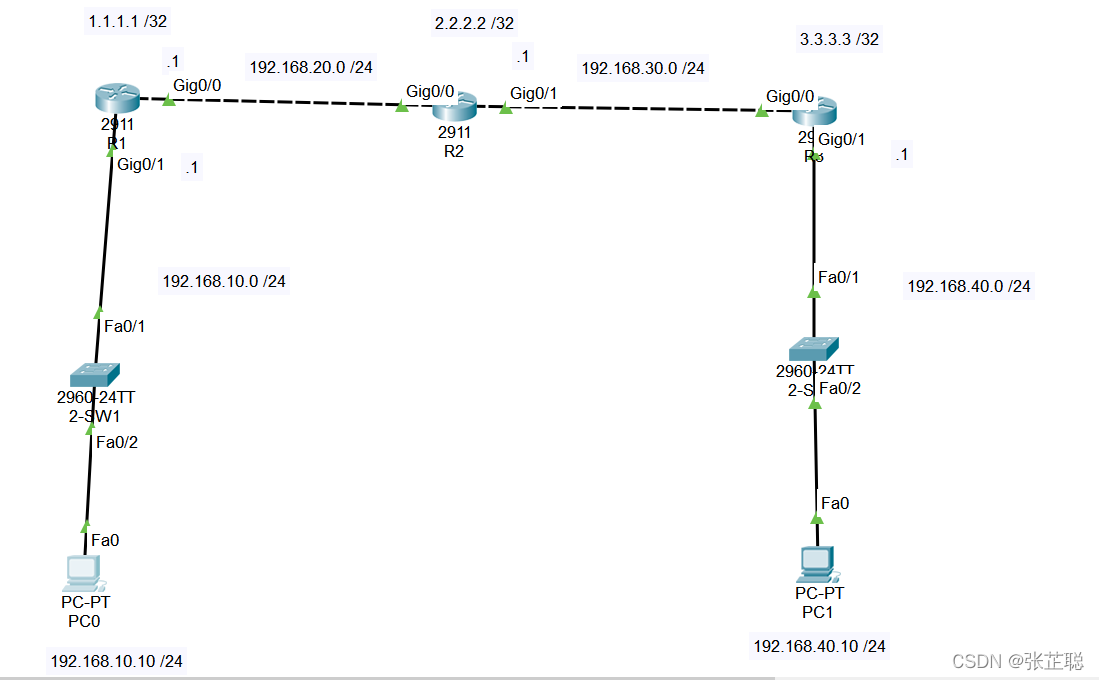

 目的：PC0 ping通 PC1

R1：

interface GigabitEthernet0/1

ip address 192.168.10.1 255.255.255.0

no shutdown                                              #开启接口

interface GigabitEthernet0/0

ip address 192.168.20.1 255.255.255.0

no shutdown

interface Loopback0 #进入环回接口

ip address 1.1.1.1 255.255.255.255 #配置环回地址

router rip                            #进入rip

version 2                           #rip版本为2

network 192.168.10.0      #宣告直连网段

network 192.168.20.0      #宣告直连网段

no auto-summary             #关闭路由自动汇总

R2:

interface Loopback0

ip address 2.2.2.2 255.255.255.255

#其余接口配置ip这里省略

router rip

version 2

network 192.168.20.0

network 192.168.30.0

no auto-summary

R3：

interface Loopback0

ip address 3.3.3.3 255.255.255.255

#其余接口配置ip这里省略

router rip

version 2

network 192.168.0.0

network 192.168.30.0

network 192.168.40.0

no auto-summary

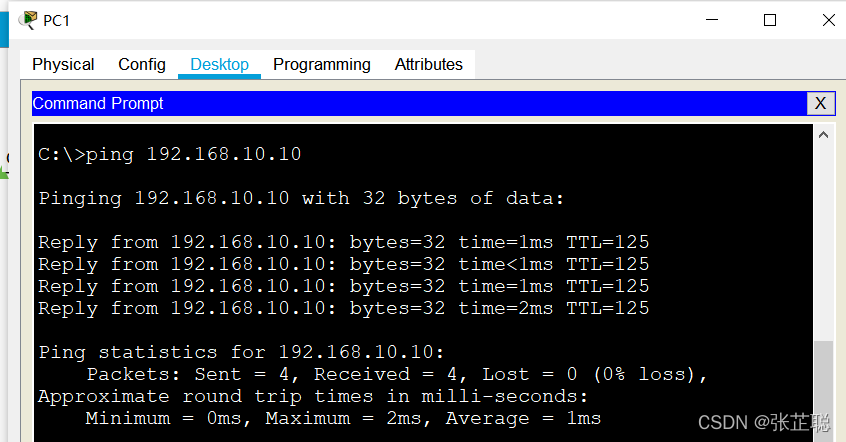

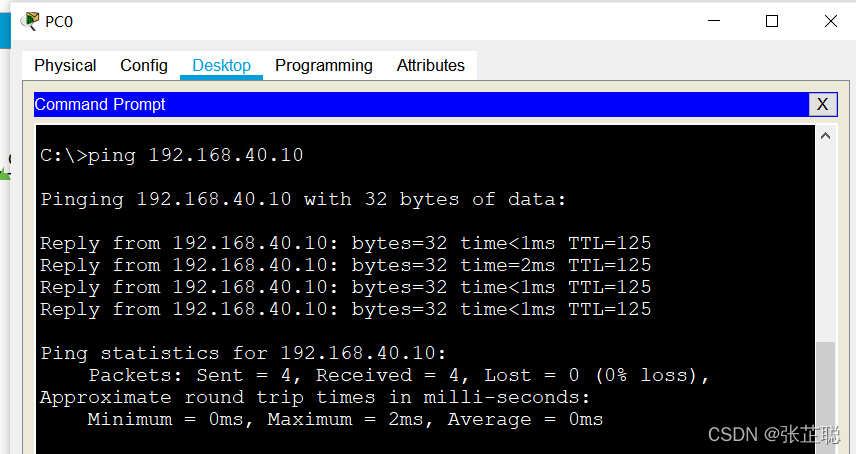

效果：
