Context与ContextImpl

本文详细解析了Android中Context的重要性及其实现原理,探讨了Context如何贯穿整个Android MVC框架,介绍了Context类的主要方法,包括启动Activity、Service,发送广播,获取资源和系统服务等,并深入分析了Activity和Application的创建过程。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

Context在Android应用开发中占据了绝对重要的地位,不管是Framework提供给我们的四大组件还是应用级别的Application,还是负责View展现层的View相关类,甚至连我们很多时候创建的实体类都会需要一个Context的引用,在Android Framework中,Context贯穿了整个Android MVC框架,它的应用很普遍。尽管如此,Context本质上还是一个普通的抽象类,我们在上面的装饰模式中提到Context类中的startActivity方法,实质上除了startActivity方法,Context还定义了大量相当牛的方法,这些方法不但与我们上面提到的四大组件密切相关,还与资源文件、文件管理、包管理、类加载、权限管理、系统服务获取等各式各样的功能相切合。





/**
 * Interface to global information about an application environment.  This is
 * an abstract class whose implementation is provided by
 * the Android system.  It
 * allows access to application-specific resources and classes, as well as
 * up-calls for application-level operations such as launching activities,
 * broadcasting and receiving intents, etc.
 */
public abstract class Context {

 /**
     * Same as {@link #startActivity(Intent, Bundle)} with no options
     * specified.
     *
     * @param intent The description of the activity to start.
     *
     * @throws ActivityNotFoundException
     *`
     * @see #startActivity(Intent, Bundle)
     * @see PackageManager#resolveActivity
     */
   //启动一个Activity
    public abstract void startActivity(@RequiresPermission Intent intent);



   /**
     * Same as {@link #startActivity(Intent, Bundle)} with no options
     * specified.
     *
     * @param intent The description of the activity to start.
     *
     * @throws ActivityNotFoundException
     *`
     * @see #startActivity(Intent, Bundle)
     * @see PackageManager#resolveActivity
     */
   //启动一个Activity
    public abstract void startActivity(@RequiresPermission Intent intent);



    /**
     * Same as {@link #startActivities(Intent[], Bundle)} with no options
     * specified.
     *
     * @param intents An array of Intents to be started.
     *
     * @throws ActivityNotFoundException
     *
     * @see #startActivities(Intent[], Bundle)
     * @see PackageManager#resolveActivity
     */
   //启动多个Activity
    public abstract void startActivities(@RequiresPermission Intent[] intents);

    /**
     * Launch multiple new activities.  This is generally the same as calling
     * {@link #startActivity(Intent)} for the first Intent in the array,
     * that activity during its creation calling {@link #startActivity(Intent)}
     * for the second entry, etc.  Note that unlike that approach, generally
     * none of the activities except the last in the array will be created
     * at this point, but rather will be created when the user first visits
     * them (due to pressing back from the activity on top).
     *
     * <p>This method throws {@link ActivityNotFoundException}
     * if there was no Activity found for <em>any</em> given Intent.  In this
     * case the state of the activity stack is undefined (some Intents in the
     * list may be on it, some not), so you probably want to avoid such situations.
     *
     * @param intents An array of Intents to be started.
     * @param options Additional options for how the Activity should be started.
     * See {@link android.content.Context#startActivity(Intent, Bundle)}
     * Context.startActivity(Intent, Bundle)} for more details.
     *
     * @throws ActivityNotFoundException &nbsp;
     *
     * @see #startActivities(Intent[])
     * @see PackageManager#resolveActivity
     */
   //启动多个Activity
    public abstract void startActivities(@RequiresPermission Intent[] intents, Bundle options);


 /** Return the full application info for this context's package. */
    //获取应用程序信息
    public abstract ApplicationInfo getApplicationInfo();



  /**
     * Request that a given application service be started.  The Intent
     * should either contain the complete class name of a specific service
     * implementation to start, or a specific package name to target.  If the
     * Intent is less specified, it logs a warning about this.  In this case any of the
     * multiple matching services may be used.  If this service
     * is not already running, it will be instantiated and started (creating a
     * process for it if needed); if it is running then it remains running.
     *
     * <p>Every call to this method will result in a corresponding call to
     * the target service's {@link android.app.Service#onStartCommand} method,
     * with the <var>intent</var> given here.  This provides a convenient way
     * to submit jobs to a service without having to bind and call on to its
     * interface.
     *
     * <p>Using startService() overrides the default service lifetime that is
     * managed by {@link #bindService}: it requires the service to remain
     * running until {@link #stopService} is called, regardless of whether
     * any clients are connected to it.  Note that calls to startService()
     * do not nest: no matter how many times you call startService(),
     * a single call to {@link #stopService} will stop it.
     *
     * <p>The system attempts to keep running services around as much as
     * possible.  The only time they should be stopped is if the current
     * foreground application is using so many resources that the service needs
     * to be killed.  If any errors happen in the service's process, it will
     * automatically be restarted.
     *
     * <p>This function will throw {@link SecurityException} if you do not
     * have permission to start the given service.
     *
     * <p class="note"><strong>Note:</strong> Each call to startService()
     * results in significant work done by the system to manage service
     * lifecycle surrounding the processing of the intent, which can take
     * multiple milliseconds of CPU time. Due to this cost, startService()
     * should not be used for frequent intent delivery to a service, and only
     * for scheduling significant work. Use {@link #bindService bound services}
     * for high frequency calls.
     * </p>
     *
     * @param service Identifies the service to be started.  The Intent must be
     *      fully explicit (supplying a component name).  Additional values
     *      may be included in the Intent extras to supply arguments along with
     *      this specific start call.
     *
     * @return If the service is being started or is already running, the
     * {@link ComponentName} of the actual service that was started is
     * returned; else if the service does not exist null is returned.
     *
     * @throws SecurityException If the caller does not have permission to access the service
     * or the service can not be found.
     * @throws IllegalStateException If the application is in a state where the service
     * can not be started (such as not in the foreground in a state when services are allowed).
     *
     * @see #stopService
     * @see #bindService
     */
    //启动一个Service
    @Nullable
    public abstract ComponentName startService(Intent service);

 /**
     * Request that a given application service be stopped.  If the service is
     * not running, nothing happens.  Otherwise it is stopped.  Note that calls
     * to startService() are not counted -- this stops the service no matter
     * how many times it was started.
     *
     * <p>Note that if a stopped service still has {@link ServiceConnection}
     * objects bound to it with the {@link #BIND_AUTO_CREATE} set, it will
     * not be destroyed until all of these bindings are removed.  See
     * the {@link android.app.Service} documentation for more details on a
     * service's lifecycle.
     *
     * <p>This function will throw {@link SecurityException} if you do not
     * have permission to stop the given service.
     *
     * @param service Description of the service to be stopped.  The Intent must be either
     *      fully explicit (supplying a component name) or specify a specific package
     *      name it is targetted to.
     *
     * @return If there is a service matching the given Intent that is already
     * running, then it is stopped and {@code true} is returned; else {@code false} is returned.
     *
     * @throws SecurityException If the caller does not have permission to access the service
     * or the service can not be found.
     * @throws IllegalStateException If the application is in a state where the service
     * can not be started (such as not in the foreground in a state when services are allowed).
     *
     * @see #startService
     */
   //停止一个Service
    public abstract boolean stopService(Intent service);


 /**
     * Connect to an application service, creating it if needed.  This defines
     * a dependency between your application and the service.  The given
     * <var>conn</var> will receive the service object when it is created and be
     * told if it dies and restarts.  The service will be considered required
     * by the system only for as long as the calling context exists.  For
     * example, if this Context is an Activity that is stopped, the service will
     * not be required to continue running until the Activity is resumed.
     *
     * <p>This function will throw {@link SecurityException} if you do not
     * have permission to bind to the given service.
     *
     * <p class="note">Note: this method <em>can not be called from a
     * {@link BroadcastReceiver} component</em>.  A pattern you can use to
     * communicate from a BroadcastReceiver to a Service is to call
     * {@link #startService} with the arguments containing the command to be
     * sent, with the service calling its
     * {@link android.app.Service#stopSelf(int)} method when done executing
     * that command.  See the API demo App/Service/Service Start Arguments
     * Controller for an illustration of this.  It is okay, however, to use
     * this method from a BroadcastReceiver that has been registered with
     * {@link #registerReceiver}, since the lifetime of this BroadcastReceiver
     * is tied to another object (the one that registered it).</p>
     *
     * @param service Identifies the service to connect to.  The Intent must
     *      specify an explicit component name.
     * @param conn Receives information as the service is started and stopped.
     *      This must be a valid ServiceConnection object; it must not be null.
     * @param flags Operation options for the binding.  May be 0,
     *          {@link #BIND_AUTO_CREATE}, {@link #BIND_DEBUG_UNBIND},
     *          {@link #BIND_NOT_FOREGROUND}, {@link #BIND_ABOVE_CLIENT},
     *          {@link #BIND_ALLOW_OOM_MANAGEMENT}, or
     *          {@link #BIND_WAIVE_PRIORITY}.
     * @return If you have successfully bound to the service, {@code true} is returned;
     *         {@code false} is returned if the connection is not made so you will not
     *         receive the service object. However, you should still call
     *         {@link #unbindService} to release the connection.
     *
     * @throws SecurityException If the caller does not have permission to access the service
     * or the service can not be found.
     *
     * @see #unbindService
     * @see #startService
     * @see #BIND_AUTO_CREATE
     * @see #BIND_DEBUG_UNBIND
     * @see #BIND_NOT_FOREGROUND
     */
    //绑定一个Service到Activity
    public abstract boolean bindService(@RequiresPermission Intent service,
            @NonNull ServiceConnection conn, @BindServiceFlags int flags);



    /**
     * Disconnect from an application service.  You will no longer receive
     * calls as the service is restarted, and the service is now allowed to
     * stop at any time.
     *
     * @param conn The connection interface previously supplied to
     *             bindService().  This parameter must not be null.
     *
     * @see #bindService
     */
//解绑一个Service到Activity
    public abstract void unbindService(@NonNull ServiceConnection conn);



  /**
     * Broadcast the given intent to all interested BroadcastReceivers.  This
     * call is asynchronous; it returns immediately, and you will continue
     * executing while the receivers are run.  No results are propagated from
     * receivers and receivers can not abort the broadcast. If you want
     * to allow receivers to propagate results or abort the broadcast, you must
     * send an ordered broadcast using
     * {@link #sendOrderedBroadcast(Intent, String)}.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     *               Intent will receive the broadcast.
     *
     * @see android.content.BroadcastReceiver
     * @see #registerReceiver
     * @see #sendBroadcast(Intent, String)
     * @see #sendOrderedBroadcast(Intent, String)
     * @see #sendOrderedBroadcast(Intent, String, BroadcastReceiver, Handler, int, String, Bundle)
     */
   //发送一个广播
    public abstract void sendBroadcast(@RequiresPermission Intent intent);


   /**
     * Broadcast the given intent to all interested BroadcastReceivers, allowing
     * an optional required permission to be enforced.  This
     * call is asynchronous; it returns immediately, and you will continue
     * executing while the receivers are run.  No results are propagated from
     * receivers and receivers can not abort the broadcast. If you want
     * to allow receivers to propagate results or abort the broadcast, you must
     * send an ordered broadcast using
     * {@link #sendOrderedBroadcast(Intent, String)}.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     *               Intent will receive the broadcast.
     * @param receiverPermission (optional) String naming a permission that
     *               a receiver must hold in order to receive your broadcast.
     *               If null, no permission is required.
     *
     * @see android.content.BroadcastReceiver
     * @see #registerReceiver
     * @see #sendBroadcast(Intent)
     * @see #sendOrderedBroadcast(Intent, String)
     * @see #sendOrderedBroadcast(Intent, String, BroadcastReceiver, Handler, int, String, Bundle)
     */
   //发送一个广播
    public abstract void sendBroadcast(@RequiresPermission Intent intent,
            @Nullable String receiverPermission);




    /**
     * Like {@link #sendBroadcast(Intent, String)}, but also allows specification
     * of an associated app op as per {@link android.app.AppOpsManager}.
     * @hide
     */
    public abstract void sendBroadcast(Intent intent,
            String receiverPermission, int appOp);

    /**
     * Broadcast the given intent to all interested BroadcastReceivers, delivering
     * them one at a time to allow more preferred receivers to consume the
     * broadcast before it is delivered to less preferred receivers.  This
     * call is asynchronous; it returns immediately, and you will continue
     * executing while the receivers are run.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     *               Intent will receive the broadcast.
     * @param receiverPermission (optional) String naming a permissions that
     *               a receiver must hold in order to receive your broadcast.
     *               If null, no permission is required.
     *
     * @see android.content.BroadcastReceiver
     * @see #registerReceiver
     * @see #sendBroadcast(Intent)
     * @see #sendOrderedBroadcast(Intent, String, BroadcastReceiver, Handler, int, String, Bundle)
     */
   //发送一个有序广播
    public abstract void sendOrderedBroadcast(@RequiresPermission Intent intent,
            @Nullable String receiverPermission);



 /**
     * Version of {@link #sendBroadcast(Intent)} that allows you to
     * receive data back from the broadcast.  This is accomplished by
     * supplying your own BroadcastReceiver when calling, which will be
     * treated as a final receiver at the end of the broadcast -- its
     * {@link BroadcastReceiver#onReceive} method will be called with
     * the result values collected from the other receivers.  The broadcast will
     * be serialized in the same way as calling
     * {@link #sendOrderedBroadcast(Intent, String)}.
     *
     * <p>Like {@link #sendBroadcast(Intent)}, this method is
     * asynchronous; it will return before
     * resultReceiver.onReceive() is called.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     *               Intent will receive the broadcast.
     * @param receiverPermission String naming a permissions that
     *               a receiver must hold in order to receive your broadcast.
     *               If null, no permission is required.
     * @param resultReceiver Your own BroadcastReceiver to treat as the final
     *                       receiver of the broadcast.
     * @param scheduler A custom Handler with which to schedule the
     *                  resultReceiver callback; if null it will be
     *                  scheduled in the Context's main thread.
     * @param initialCode An initial value for the result code.  Often
     *                    Activity.RESULT_OK.
     * @param initialData An initial value for the result data.  Often
     *                    null.
     * @param initialExtras An initial value for the result extras.  Often
     *                      null.
     *
     * @see #sendBroadcast(Intent)
     * @see #sendBroadcast(Intent, String)
     * @see #sendOrderedBroadcast(Intent, String)
     * @see android.content.BroadcastReceiver
     * @see #registerReceiver
     * @see android.app.Activity#RESULT_OK
     */
   //发送一个有序广播
    public abstract void sendOrderedBroadcast(@RequiresPermission @NonNull Intent intent,
            @Nullable String receiverPermission, @Nullable BroadcastReceiver resultReceiver,
            @Nullable Handler scheduler, int initialCode, @Nullable String initialData,
            @Nullable Bundle initialExtras);


    /**
     * <p>Perform a {@link #sendBroadcast(Intent)} that is "sticky," meaning the
     * Intent you are sending stays around after the broadcast is complete,
     * so that others can quickly retrieve that data through the return
     * value of {@link #registerReceiver(BroadcastReceiver, IntentFilter)}.  In
     * all other ways, this behaves the same as
     * {@link #sendBroadcast(Intent)}.
     *
     * @deprecated Sticky broadcasts should not be used.  They provide no security (anyone
     * can access them), no protection (anyone can modify them), and many other problems.
     * The recommended pattern is to use a non-sticky broadcast to report that <em>something</em>
     * has changed, with another mechanism for apps to retrieve the current value whenever
     * desired.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     * Intent will receive the broadcast, and the Intent will be held to
     * be re-broadcast to future receivers.
     *
     * @see #sendBroadcast(Intent)
     * @see #sendStickyOrderedBroadcast(Intent, BroadcastReceiver, Handler, int, String, Bundle)
     */
   //发送一个会滞留的广播
    @Deprecated
    @RequiresPermission(android.Manifest.permission.BROADCAST_STICKY)
    public abstract void sendStickyBroadcast(@RequiresPermission Intent intent);

    /**
     * <p>Version of {@link #sendStickyBroadcast} that allows you to
     * receive data back from the broadcast.  This is accomplished by
     * supplying your own BroadcastReceiver when calling, which will be
     * treated as a final receiver at the end of the broadcast -- its
     * {@link BroadcastReceiver#onReceive} method will be called with
     * the result values collected from the other receivers.  The broadcast will
     * be serialized in the same way as calling
     * {@link #sendOrderedBroadcast(Intent, String)}.
     *
     * <p>Like {@link #sendBroadcast(Intent)}, this method is
     * asynchronous; it will return before
     * resultReceiver.onReceive() is called.  Note that the sticky data
     * stored is only the data you initially supply to the broadcast, not
     * the result of any changes made by the receivers.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * @deprecated Sticky broadcasts should not be used.  They provide no security (anyone
     * can access them), no protection (anyone can modify them), and many other problems.
     * The recommended pattern is to use a non-sticky broadcast to report that <em>something</em>
     * has changed, with another mechanism for apps to retrieve the current value whenever
     * desired.
     *
     * @param intent The Intent to broadcast; all receivers matching this
     *               Intent will receive the broadcast.
     * @param resultReceiver Your own BroadcastReceiver to treat as the final
     *                       receiver of the broadcast.
     * @param scheduler A custom Handler with which to schedule the
     *                  resultReceiver callback; if null it will be
     *                  scheduled in the Context's main thread.
     * @param initialCode An initial value for the result code.  Often
     *                    Activity.RESULT_OK.
     * @param initialData An initial value for the result data.  Often
     *                    null.
     * @param initialExtras An initial value for the result extras.  Often
     *                      null.
     *
     * @see #sendBroadcast(Intent)
     * @see #sendBroadcast(Intent, String)
     * @see #sendOrderedBroadcast(Intent, String)
     * @see #sendStickyBroadcast(Intent)
     * @see android.content.BroadcastReceiver
     * @see #registerReceiver
     * @see android.app.Activity#RESULT_OK
     */
   //发送一个会滞留的广播
    @Deprecated
    @RequiresPermission(android.Manifest.permission.BROADCAST_STICKY)
    public abstract void sendStickyOrderedBroadcast(@RequiresPermission Intent intent,
            BroadcastReceiver resultReceiver,
            @Nullable Handler scheduler, int initialCode, @Nullable String initialData,
            @Nullable Bundle initialExtras);



 /**
     * Register a BroadcastReceiver to be run in the main activity thread.  The
     * <var>receiver</var> will be called with any broadcast Intent that
     * matches <var>filter</var>, in the main application thread.
     *
     * <p>The system may broadcast Intents that are "sticky" -- these stay
     * around after the broadcast has finished, to be sent to any later
     * registrations. If your IntentFilter matches one of these sticky
     * Intents, that Intent will be returned by this function
     * <strong>and</strong> sent to your <var>receiver</var> as if it had just
     * been broadcast.
     *
     * <p>There may be multiple sticky Intents that match <var>filter</var>,
     * in which case each of these will be sent to <var>receiver</var>.  In
     * this case, only one of these can be returned directly by the function;
     * which of these that is returned is arbitrarily decided by the system.
     *
     * <p>If you know the Intent your are registering for is sticky, you can
     * supply null for your <var>receiver</var>.  In this case, no receiver is
     * registered -- the function simply returns the sticky Intent that
     * matches <var>filter</var>.  In the case of multiple matches, the same
     * rules as described above apply.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * <p>As of {@link android.os.Build.VERSION_CODES#ICE_CREAM_SANDWICH}, receivers
     * registered with this method will correctly respect the
     * {@link Intent#setPackage(String)} specified for an Intent being broadcast.
     * Prior to that, it would be ignored and delivered to all matching registered
     * receivers.  Be careful if using this for security.</p>
     *
     * <p class="note">Note: this method <em>cannot be called from a
     * {@link BroadcastReceiver} component;</em> that is, from a BroadcastReceiver
     * that is declared in an application's manifest.  It is okay, however, to call
     * this method from another BroadcastReceiver that has itself been registered
     * at run time with {@link #registerReceiver}, since the lifetime of such a
     * registered BroadcastReceiver is tied to the object that registered it.</p>
     *
     * @param receiver The BroadcastReceiver to handle the broadcast.
     * @param filter Selects the Intent broadcasts to be received.
     *
     * @return The first sticky intent found that matches <var>filter</var>,
     *         or null if there are none.
     *
     * @see #registerReceiver(BroadcastReceiver, IntentFilter, String, Handler)
     * @see #sendBroadcast
     * @see #unregisterReceiver
     */
 //注册一个广播接收者
    @Nullable
    public abstract Intent registerReceiver(@Nullable BroadcastReceiver receiver,
                                            IntentFilter filter);

   /**
     * Register to receive intent broadcasts, to run in the context of
     * <var>scheduler</var>.  See
     * {@link #registerReceiver(BroadcastReceiver, IntentFilter)} for more
     * information.  This allows you to enforce permissions on who can
     * broadcast intents to your receiver, or have the receiver run in
     * a different thread than the main application thread.
     *
     * <p>See {@link BroadcastReceiver} for more information on Intent broadcasts.
     *
     * <p>As of {@link android.os.Build.VERSION_CODES#ICE_CREAM_SANDWICH}, receivers
     * registered with this method will correctly respect the
     * {@link Intent#setPackage(String)} specified for an Intent being broadcast.
     * Prior to that, it would be ignored and delivered to all matching registered
     * receivers.  Be careful if using this for security.</p>
     *
     * @param receiver The BroadcastReceiver to handle the broadcast.
     * @param filter Selects the Intent broadcasts to be received.
     * @param broadcastPermission String naming a permissions that a
     *      broadcaster must hold in order to send an Intent to you.  If null,
     *      no permission is required.
     * @param scheduler Handler identifying the thread that will receive
     *      the Intent.  If null, the main thread of the process will be used.
     *
     * @return The first sticky intent found that matches <var>filter</var>,
     *         or null if there are none.
     *
     * @see #registerReceiver(BroadcastReceiver, IntentFilter)
     * @see #sendBroadcast
     * @see #unregisterReceiver
     */
//注册一个广播接收者
    @Nullable
    public abstract Intent registerReceiver(BroadcastReceiver receiver,
            IntentFilter filter, @Nullable String broadcastPermission,
            @Nullable Handler scheduler);






    /**
     * Unregister a previously registered BroadcastReceiver.  <em>All</em>
     * filters that have been registered for this BroadcastReceiver will be
     * removed.
     *
     * @param receiver The BroadcastReceiver to unregister.
     *
     * @see #registerReceiver
     */
    //取消注册一个广播接收者
    public abstract void unregisterReceiver(BroadcastReceiver receiver);

  /** Return a ContentResolver instance for your application's package. */
   //获取一个ContentResolver对象
    public abstract ContentResolver getContentResolver();


    /**
     * Return the Looper for the main thread of the current process.  This is
     * the thread used to dispatch calls to application components (activities,
     * services, etc).
     * <p>
     * By definition, this method returns the same result as would be obtained
     * by calling {@link Looper#getMainLooper() Looper.getMainLooper()}.
     * </p>
     *
     * @return The main looper.
     */
   // 获取主线程中的looper
    public abstract Looper getMainLooper();


 /**
     * Return the context of the single, global Application object of the
     * current process.  This generally should only be used if you need a
     * Context whose lifecycle is separate from the current context, that is
     * tied to the lifetime of the process rather than the current component.
     *
     * <p>Consider for example how this interacts with
     * {@link #registerReceiver(BroadcastReceiver, IntentFilter)}:
     * <ul>
     * <li> <p>If used from an Activity context, the receiver is being registered
     * within that activity.  This means that you are expected to unregister
     * before the activity is done being destroyed; in fact if you do not do
     * so, the framework will clean up your leaked registration as it removes
     * the activity and log an error.  Thus, if you use the Activity context
     * to register a receiver that is static (global to the process, not
     * associated with an Activity instance) then that registration will be
     * removed on you at whatever point the activity you used is destroyed.
     * <li> <p>If used from the Context returned here, the receiver is being
     * registered with the global state associated with your application.  Thus
     * it will never be unregistered for you.  This is necessary if the receiver
     * is associated with static data, not a particular component.  However
     * using the ApplicationContext elsewhere can easily lead to serious leaks
     * if you forget to unregister, unbind, etc.
     * </ul>
     */
   // 获取应用级别的Context对象
    public abstract Context getApplicationContext();

  /**
 * Return the handle to a system-level service by name. The class of the
 * returned object varies by the requested name. Currently available names
 * are:
 *
 * <dl>
 *  <dt> {@link #WINDOW_SERVICE} ("window")
 *  <dd> The top-level window manager in which you can place custom
 *  windows.  The returned object is a {@link android.view.WindowManager}.
 *  <dt> {@link #LAYOUT_INFLATER_SERVICE} ("layout_inflater")
 *  <dd> A {@link android.view.LayoutInflater} for inflating layout resources
 *  in this context.
 *  <dt> {@link #ACTIVITY_SERVICE} ("activity")
 *  <dd> A {@link android.app.ActivityManager} for interacting with the
 *  global activity state of the system.
 *  <dt> {@link #POWER_SERVICE} ("power")
 *  <dd> A {@link android.os.PowerManager} for controlling power
 *  management.
 *  <dt> {@link #ALARM_SERVICE} ("alarm")
 *  <dd> A {@link android.app.AlarmManager} for receiving intents at the
 *  time of your choosing.
 *  <dt> {@link #NOTIFICATION_SERVICE} ("notification")
 *  <dd> A {@link android.app.NotificationManager} for informing the user
 *   of background events.
 *  <dt> {@link #KEYGUARD_SERVICE} ("keyguard")
 *  <dd> A {@link android.app.KeyguardManager} for controlling keyguard.
 *  <dt> {@link #LOCATION_SERVICE} ("location")
 *  <dd> A {@link android.location.LocationManager} for controlling location
 *   (e.g., GPS) updates.
 *  <dt> {@link #SEARCH_SERVICE} ("search")
 *  <dd> A {@link android.app.SearchManager} for handling search.
 *  <dt> {@link #VIBRATOR_SERVICE} ("vibrator")
 *  <dd> A {@link android.os.Vibrator} for interacting with the vibrator
 *  hardware.
 *  <dt> {@link #CONNECTIVITY_SERVICE} ("connection")
 *  <dd> A {@link android.net.ConnectivityManager ConnectivityManager} for
 *  handling management of network connections.
 *  <dt> {@link #WIFI_SERVICE} ("wifi")
 *  <dd> A {@link android.net.wifi.WifiManager WifiManager} for management of Wi-Fi
 *  connectivity.  On releases before NYC, it should only be obtained from an application
 *  context, and not from any other derived context to avoid memory leaks within the calling
 *  process.
 *  <dt> {@link #WIFI_AWARE_SERVICE} ("wifiaware")
 *  <dd> A {@link android.net.wifi.aware.WifiAwareManager WifiAwareManager} for management of
 * Wi-Fi Aware discovery and connectivity.
 *  <dt> {@link #WIFI_P2P_SERVICE} ("wifip2p")
 *  <dd> A {@link android.net.wifi.p2p.WifiP2pManager WifiP2pManager} for management of
 * Wi-Fi Direct connectivity.
 * <dt> {@link #INPUT_METHOD_SERVICE} ("input_method")
 * <dd> An {@link android.view.inputmethod.InputMethodManager InputMethodManager}
 * for management of input methods.
 * <dt> {@link #UI_MODE_SERVICE} ("uimode")
 * <dd> An {@link android.app.UiModeManager} for controlling UI modes.
 * <dt> {@link #DOWNLOAD_SERVICE} ("download")
 * <dd> A {@link android.app.DownloadManager} for requesting HTTP downloads
 * <dt> {@link #BATTERY_SERVICE} ("batterymanager")
 * <dd> A {@link android.os.BatteryManager} for managing battery state
 * <dt> {@link #JOB_SCHEDULER_SERVICE} ("taskmanager")
 * <dd>  A {@link android.app.job.JobScheduler} for managing scheduled tasks
 * <dt> {@link #NETWORK_STATS_SERVICE} ("netstats")
 * <dd> A {@link android.app.usage.NetworkStatsManager NetworkStatsManager} for querying network
 * usage statistics.
 * <dt> {@link #HARDWARE_PROPERTIES_SERVICE} ("hardware_properties")
 * <dd> A {@link android.os.HardwarePropertiesManager} for accessing hardware properties.
 * </dl>
 *
 * <p>Note:  System services obtained via this API may be closely associated with
 * the Context in which they are obtained from.  In general, do not share the
 * service objects between various different contexts (Activities, Applications,
 * Services, Providers, etc.)
 *
 * @param name The name of the desired service.
 *
 * @return The service or null if the name does not exist.
 *
 * @see #WINDOW_SERVICE
 * @see android.view.WindowManager
 * @see #LAYOUT_INFLATER_SERVICE
 * @see android.view.LayoutInflater
 * @see #ACTIVITY_SERVICE
 * @see android.app.ActivityManager
 * @see #POWER_SERVICE
 * @see android.os.PowerManager
 * @see #ALARM_SERVICE
 * @see android.app.AlarmManager
 * @see #NOTIFICATION_SERVICE
 * @see android.app.NotificationManager
 * @see #KEYGUARD_SERVICE
 * @see android.app.KeyguardManager
 * @see #LOCATION_SERVICE
 * @see android.location.LocationManager
 * @see #SEARCH_SERVICE
 * @see android.app.SearchManager
 * @see #SENSOR_SERVICE
 * @see android.hardware.SensorManager
 * @see #STORAGE_SERVICE
 * @see android.os.storage.StorageManager
 * @see #VIBRATOR_SERVICE
 * @see android.os.Vibrator
 * @see #CONNECTIVITY_SERVICE
 * @see android.net.ConnectivityManager
 * @see #WIFI_SERVICE
 * @see android.net.wifi.WifiManager
 * @see #AUDIO_SERVICE
 * @see android.media.AudioManager
 * @see #MEDIA_ROUTER_SERVICE
 * @see android.media.MediaRouter
 * @see #TELEPHONY_SERVICE
 * @see android.telephony.TelephonyManager
 * @see #TELEPHONY_SUBSCRIPTION_SERVICE
 * @see android.telephony.SubscriptionManager
 * @see #CARRIER_CONFIG_SERVICE
 * @see android.telephony.CarrierConfigManager
 * @see #INPUT_METHOD_SERVICE
 * @see android.view.inputmethod.InputMethodManager
 * @see #UI_MODE_SERVICE
 * @see android.app.UiModeManager
 * @see #DOWNLOAD_SERVICE
 * @see android.app.DownloadManager
 * @see #BATTERY_SERVICE
 * @see android.os.BatteryManager
 * @see #JOB_SCHEDULER_SERVICE
 * @see android.app.job.JobScheduler
 * @see #NETWORK_STATS_SERVICE
 * @see android.app.usage.NetworkStatsManager
 * @see android.os.HardwarePropertiesManager
 * @see #HARDWARE_PROPERTIES_SERVICE
 */
 //获取应用的系统服务
public abstract @Nullable Object getSystemService(@ServiceName @NonNull String name);

  /**
     * Returns a Resources instance for the application's package.
     * <p>
     * <strong>Note:</strong> Implementations of this method should return
     * a Resources instance that is consistent with the AssetManager instance
     * returned by {@link #getAssets()}. For example, they should share the
     * same {@link Configuration} object.
     *
     * @return a Resources instance for the application's package
     * @see #getAssets()
     */
    //获取Resource对象处理资源文件
    public abstract Resources getResources();



    /**
     * Retrieve and hold the contents of the preferences file 'name', returning
     * a SharedPreferences through which you can retrieve and modify its
     * values.  Only one instance of the SharedPreferences object is returned
     * to any callers for the same name, meaning they will see each other's
     * edits as soon as they are made.
     *
     * @param name Desired preferences file. If a preferences file by this name
     * does not exist, it will be created when you retrieve an
     * editor (SharedPreferences.edit()) and then commit changes (Editor.commit()).
     * @param mode Operating mode.
     *
     * @return The single {@link SharedPreferences} instance that can be used
     *         to retrieve and modify the preference values.
     *
     * @see #MODE_PRIVATE
     */
      //获取SharedPreferences对象
    public abstract SharedPreferences getSharedPreferences(String name, @PreferencesMode int mode);







    /**
     * Returns the absolute path to the directory on the primary shared/external
     * storage device where the application can place persistent files it owns.
     * These files are internal to the applications, and not typically visible
     * to the user as media.
     * <p>
     * This is like {@link #getFilesDir()} in that these files will be deleted
     * when the application is uninstalled, however there are some important
     * differences:
     * <ul>
     * <li>Shared storage may not always be available, since removable media can
     * be ejected by the user. Media state can be checked using
     * {@link Environment#getExternalStorageState(File)}.
     * <li>There is no security enforced with these files. For example, any
     * application holding
     * {@link android.Manifest.permission#WRITE_EXTERNAL_STORAGE} can write to
     * these files.
     * </ul>
     * <p>
     * If a shared storage device is emulated (as determined by
     * {@link Environment#isExternalStorageEmulated(File)}), it's contents are
     * backed by a private user data partition, which means there is little
     * benefit to storing data here instead of the private directories returned
     * by {@link #getFilesDir()}, etc.
     * <p>
     * Starting in {@link android.os.Build.VERSION_CODES#KITKAT}, no permissions
     * are required to read or write to the returned path; it's always
     * accessible to the calling app. This only applies to paths generated for
     * package name of the calling application. To access paths belonging to
     * other packages,
     * {@link android.Manifest.permission#WRITE_EXTERNAL_STORAGE} and/or
     * {@link android.Manifest.permission#READ_EXTERNAL_STORAGE} are required.
     * <p>
     * On devices with multiple users (as described by {@link UserManager}),
     * each user has their own isolated shared storage. Applications only have
     * access to the shared storage for the user they're running as.
     * <p>
     * The returned path may change over time if different shared storage media
     * is inserted, so only relative paths should be persisted.
     * <p>
     * Here is an example of typical code to manipulate a file in an
     * application's shared storage:
     * </p>
     * {@sample development/samples/ApiDemos/src/com/example/android/apis/content/ExternalStorage.java
     * private_file}
     * <p>
     * If you supply a non-null <var>type</var> to this function, the returned
     * file will be a path to a sub-directory of the given type. Though these
     * files are not automatically scanned by the media scanner, you can
     * explicitly add them to the media database with
     * {@link android.media.MediaScannerConnection#scanFile(Context, String[], String[], android.media.MediaScannerConnection.OnScanCompletedListener)
     * MediaScannerConnection.scanFile}. Note that this is not the same as
     * {@link android.os.Environment#getExternalStoragePublicDirectory
     * Environment.getExternalStoragePublicDirectory()}, which provides
     * directories of media shared by all applications. The directories returned
     * here are owned by the application, and their contents will be removed
     * when the application is uninstalled. Unlike
     * {@link android.os.Environment#getExternalStoragePublicDirectory
     * Environment.getExternalStoragePublicDirectory()}, the directory returned
     * here will be automatically created for you.
     * <p>
     * Here is an example of typical code to manipulate a picture in an
     * application's shared storage and add it to the media database:
     * </p>
     * {@sample development/samples/ApiDemos/src/com/example/android/apis/content/ExternalStorage.java
     * private_picture}
     *
     * @param type The type of files directory to return. May be {@code null}
     *            for the root of the files directory or one of the following
     *            constants for a subdirectory:
     *            {@link android.os.Environment#DIRECTORY_MUSIC},
     *            {@link android.os.Environment#DIRECTORY_PODCASTS},
     *            {@link android.os.Environment#DIRECTORY_RINGTONES},
     *            {@link android.os.Environment#DIRECTORY_ALARMS},
     *            {@link android.os.Environment#DIRECTORY_NOTIFICATIONS},
     *            {@link android.os.Environment#DIRECTORY_PICTURES}, or
     *            {@link android.os.Environment#DIRECTORY_MOVIES}.
     * @return the absolute path to application-specific directory. May return
     *         {@code null} if shared storage is not currently available.
     * @see #getFilesDir
     * @see #getExternalFilesDirs(String)
     * @see Environment#getExternalStorageState(File)
     * @see Environment#isExternalStorageEmulated(File)
     * @see Environment#isExternalStorageRemovable(File)
     */
//获取外部文件存储目录
    @Nullable
    public abstract File getExternalFilesDir(@Nullable String type);


 /**
     * Returns absolute paths to application-specific directories on all
     * shared/external storage devices where the application can place
     * persistent files it owns. These files are internal to the application,
     * and not typically visible to the user as media.
     * <p>
     * This is like {@link #getFilesDir()} in that these files will be deleted
     * when the application is uninstalled, however there are some important
     * differences:
     * <ul>
     * <li>Shared storage may not always be available, since removable media can
     * be ejected by the user. Media state can be checked using
     * {@link Environment#getExternalStorageState(File)}.
     * <li>There is no security enforced with these files. For example, any
     * application holding
     * {@link android.Manifest.permission#WRITE_EXTERNAL_STORAGE} can write to
     * these files.
     * </ul>
     * <p>
     * If a shared storage device is emulated (as determined by
     * {@link Environment#isExternalStorageEmulated(File)}), it's contents are
     * backed by a private user data partition, which means there is little
     * benefit to storing data here instead of the private directories returned
     * by {@link #getFilesDir()}, etc.
     * <p>
     * Shared storage devices returned here are considered a stable part of the
     * device, including physical media slots under a protective cover. The
     * returned paths do not include transient devices, such as USB flash drives
     * connected to handheld devices.
     * <p>
     * An application may store data on any or all of the returned devices. For
     * example, an app may choose to store large files on the device with the
     * most available space, as measured by {@link StatFs}.
     * <p>
     * No additional permissions are required for the calling app to read or
     * write files under the returned path. Write access outside of these paths
     * on secondary external storage devices is not available.
     * <p>
     * The returned path may change over time if different shared storage media
     * is inserted, so only relative paths should be persisted.
     *
     * @param type The type of files directory to return. May be {@code null}
     *            for the root of the files directory or one of the following
     *            constants for a subdirectory:
     *            {@link android.os.Environment#DIRECTORY_MUSIC},
     *            {@link android.os.Environment#DIRECTORY_PODCASTS},
     *            {@link android.os.Environment#DIRECTORY_RINGTONES},
     *            {@link android.os.Environment#DIRECTORY_ALARMS},
     *            {@link android.os.Environment#DIRECTORY_NOTIFICATIONS},
     *            {@link android.os.Environment#DIRECTORY_PICTURES}, or
     *            {@link android.os.Environment#DIRECTORY_MOVIES}.
     * @return the absolute paths to application-specific directories. Some
     *         individual paths may be {@code null} if that shared storage is
     *         not currently available. The first path returned is the same as
     *         {@link #getExternalFilesDir(String)}.
     * @see #getExternalFilesDir(String)
     * @see Environment#getExternalStorageState(File)
     * @see Environment#isExternalStorageEmulated(File)
     * @see Environment#isExternalStorageRemovable(File)
     */
   //获取多个(如果有的话)外部文件存储目录
    public abstract File[] getExternalFilesDirs(String type);

}



以上这些方法我们在开发中经常用到,当然这里仅仅是定义一个声明,如上面装饰模式源码分析所说,Context中方法的所有实现均由ContextImpl类承担,具体相关方法的实现这里就不再多说了。

Android应用开发中我们从来都是从一个Activity的onCreate方法开始的,从未接触过类似main一样的程序入口方法,但是main方法确实存在,在ActivityThread类中。

/**
 * This manages the execution of the main thread in an
 * application process, scheduling and executing activities,
 * broadcasts, and other operations on it as the activity
 * manager requests.
 *
 * {@hide}
 */
public final class ActivityThread {

}


public static void main(String[] args) {
        Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ActivityThreadMain");

        // CloseGuard defaults to true and can be quite spammy.  We
        // disable it here, but selectively enable it later (via
        // StrictMode) on debug builds, but using DropBox, not logs.
       //暂时关闭CloseGuard检测,稍后会打开
        CloseGuard.setEnabled(false);

        //当前用户初始化环境参数
        Environment.initForCurrentUser();

        // Set the reporter for event logging in libcore
       //配置EventLogger
        EventLogger.setReporter(new EventLoggingReporter());

        // Make sure TrustedCertificateStore looks in the right place for CA certificates
         //获取并确保信用凭证在目录中
        final File configDir = Environment.getUserConfigDirectory(UserHandle.myUserId());
        TrustedCertificateStore.setDefaultUserDirectory(configDir);
//设置启动标识值,标识主循环准备初始化
        Process.setArgV0("<pre-initialized>");
       //准备循环主线程(也就是当前线程)中的Looper
        Looper.prepareMainLooper();

       //构造ActivityThread对象并attach
        ActivityThread thread = new ActivityThread();
        thread.attach(false);

//获取主线程handler
        if (sMainThreadHandler == null) {
            sMainThreadHandler = thread.getHandler();
        }

     //该代码用于调试
        if (false) {
            Looper.myLooper().setMessageLogging(new
                    LogPrinter(Log.DEBUG, "ActivityThread"));
        }

        // End of event ActivityThreadMain.
        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
        /// M: ANR Debug Mechanism
        mAnrAppManager.setMessageLogger(Looper.myLooper());

       //调用Looper的loop方法使主线程中消息循环
        Looper.loop();

       //如果代码执行到这里说明主线程消息循环出现异常,这时则抛出异常终止系统运行
        throw new RuntimeException("Main thread loop unexpectedly exited");
    }





ActivityThread中的main方法逻辑并不多,大多复杂的逻辑被封装到了ActivityThread类中,而这里我们也主要只关注ActivityThread类,在上面的main方法中构造了一个ActivityThread对象,随后又为sMainThreadHandler这个handler引用赋值,sMainThreadHandler为ActivityThread的类变量,这里sMainThreadHandler指向的对象是由ActivityThread的getHandler方法获取,该方法只是单纯返回一个H类型的对象。

#ActivityThread

final H mH = new H();

    final Handler getHandler() {
        return mH;
    }



H是ActivityThread的一个私有内部类,继承于Handler,其作用很简单,处理消息以及将消息压入队列,,在H的handleMessage方法中可以得到一段处理Activity启动的逻辑。

#ActivityThread

private class H extends Handler {
   public void handleMessage(Message msg) {
            if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what));
            switch (msg.what) {
                case LAUNCH_ACTIVITY: {
                    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
                   //获取记录Activity状态等相关信息的ActivityClientRecord对象
                    final ActivityClientRecord r = (ActivityClientRecord) msg.obj;

     //获取PackageInfo
                    r.packageInfo = getPackageInfoNoCheck(
                            r.activityInfo.applicationInfo, r.compatInfo);

                 //启动Activity
                    handleLaunchActivity(r, null, "LAUNCH_ACTIVITY");
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                } break;
                ... ...
}
}



在处理启动Activity的这段分支代码中,主要是调用了handleLaunchActivity方法来处理启动的具体逻辑,在handleLaunchActivity方法中又会调用performLaunchActivity方法来获取一个Activity实例。

#ActivityThread

  private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent, String reason) {
   ... ...
    Activity a = performLaunchActivity(r, customIntent);
    ... ...
}





而这个performLanchActivity方法才是正真处理Activity启动的关键所在,其中对大量Activity相关参数进行初始化。

private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
        // System.out.println("##### [" + System.currentTimeMillis() + "] ActivityThread.performLaunchActivity(" + r + ")");

        //获取ActivityInfo信息
        ActivityInfo aInfo = r.activityInfo;
        if (r.packageInfo == null) {
            r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
                    Context.CONTEXT_INCLUDE_CODE);
        }

       //获取要启动的Activity的组件信息
        ComponentName component = r.intent.getComponent();
        if (component == null) {
            component = r.intent.resolveActivity(
                mInitialApplication.getPackageManager());
            r.intent.setComponent(component);
        }

      //根据相关信息构建组件对象
        if (r.activityInfo.targetActivity != null) {
            component = new ComponentName(r.activityInfo.packageName,
                    r.activityInfo.targetActivity);
        }

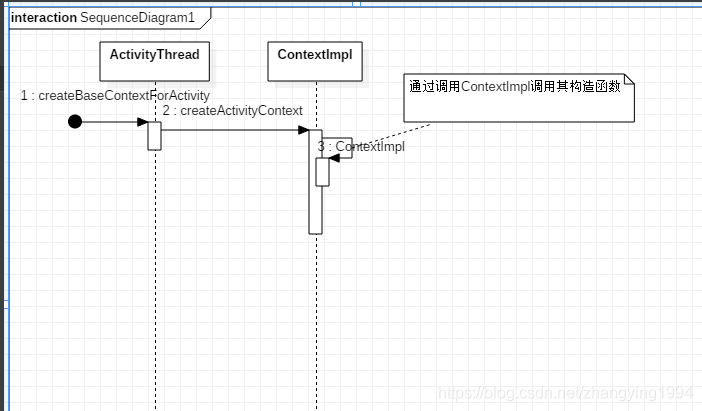

       //获取Context对象
        ContextImpl appContext = createBaseContextForActivity(r);
       //这里开始构造具体的Activity对象
        Activity activity = null;
        try {
           //获取PackageInfo所描述的类加载器
            java.lang.ClassLoader cl = appContext.getClassLoader();
           //通过Instrumentation对象获取一个Activity对象
            activity = mInstrumentation.newActivity(
                    cl, component.getClassName(), r.intent);
            StrictMode.incrementExpectedActivityCount(activity.getClass());
           //设置相关参数准备初始化Activity
            r.intent.setExtrasClassLoader(cl);
            r.intent.prepareToEnterProcess();
            if (r.state != null) {
                r.state.setClassLoader(cl);
            }
        } catch (Exception e) {
            if (!mInstrumentation.onException(activity, e)) {
                throw new RuntimeException(
                    "Unable to instantiate activity " + component
                    + ": " + e.toString(), e);
            }
        }

        try {

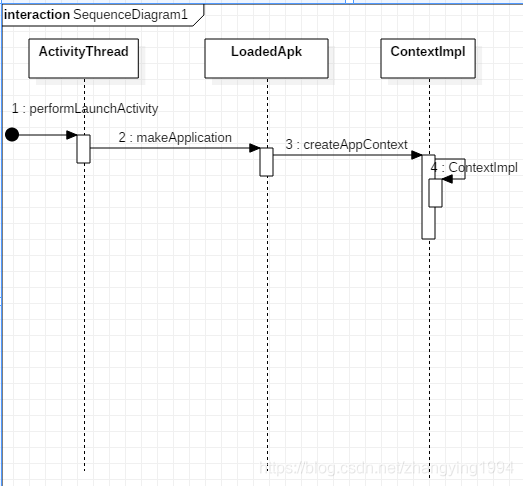

           //获取Application对象
            Application app = r.packageInfo.makeApplication(false, mInstrumentation);

            if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
            if (localLOGV) Slog.v(
                    TAG, r + ": app=" + app
                    + ", appName=" + app.getPackageName()
                    + ", pkg=" + r.packageInfo.getPackageName()
                    + ", comp=" + r.intent.getComponent().toShortString()
                    + ", dir=" + r.packageInfo.getAppDir());

            if (activity != null) {
                CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
              //构造Configuration 对象
                Configuration config = new Configuration(mCompatConfiguration);
                if (r.overrideConfig != null) {
                    config.updateFrom(r.overrideConfig);
                }
                if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
                        + r.activityInfo.name + " with config " + config);
                Window window = null;
                if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
                    window = r.mPendingRemoveWindow;
                    r.mPendingRemoveWindow = null;
                    r.mPendingRemoveWindowManager = null;
                }
                appContext.setOuterContext(activity);
               //通过attach方法将上述信息保存到activity内部
                activity.attach(appContext, this, getInstrumentation(), r.token,
                        r.ident, app, r.intent, r.activityInfo, title, r.parent,
                        r.embeddedID, r.lastNonConfigurationInstances, config,
                        r.referrer, r.voiceInteractor, window, r.configCallback);

                if (customIntent != null) {
                    activity.mIntent = customIntent;
                }
                r.lastNonConfigurationInstances = null;
                checkAndBlockForNetworkAccess();
                activity.mStartedActivity = false;
                //设置主题
                int theme = r.activityInfo.getThemeResource();
                if (theme != 0) {
                    activity.setTheme(theme);
                }

                activity.mCalled = false;

              //根据是否需要持久化调用callActivityOnCreate方法通知Activity已被创建和启动
                if (r.isPersistable()) {
                    mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
                } else {
                    mInstrumentation.callActivityOnCreate(activity, r.state);
                }
                if (!activity.mCalled) {
                    throw new SuperNotCalledException(
                        "Activity " + r.intent.getComponent().toShortString() +
                        " did not call through to super.onCreate()");
                }
                r.activity = activity;
                r.stopped = true;
                if (!r.activity.mFinished) {
                    activity.performStart();
                    r.stopped = false;
                }
                if (!r.activity.mFinished) {
                    if (r.isPersistable()) {
                        if (r.state != null || r.persistentState != null) {
                            mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state,
                                    r.persistentState);
                        }
                    } else if (r.state != null) {
                        mInstrumentation.callActivityOnRestoreInstanceState(activity, r.state);
                    }
                }
                if (!r.activity.mFinished) {
                    activity.mCalled = false;
                    if (r.isPersistable()) {
                        mInstrumentation.callActivityOnPostCreate(activity, r.state,
                                r.persistentState);
                    } else {
                        mInstrumentation.callActivityOnPostCreate(activity, r.state);
                    }
                    if (!activity.mCalled) {
                        throw new SuperNotCalledException(
                            "Activity " + r.intent.getComponent().toShortString() +
                            " did not call through to super.onPostCreate()");
                    }
                }
            }
            r.paused = true;

            mActivities.put(r.token, r);

        } catch (SuperNotCalledException e) {
            throw e;

        } catch (Exception e) {
            if (!mInstrumentation.onException(activity, e)) {
                throw new RuntimeException(
                    "Unable to start activity " + component
                    + ": " + e.toString(), e);
            }
        }

        return activity;
    }

Activity所需要的Context对象构造过程:

#ActivityThread
    private ContextImpl createBaseContextForActivity(ActivityClientRecord r) {
        final int displayId;
        try {
            displayId = ActivityManager.getService().getActivityDisplayId(r.token);
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }

        ContextImpl appContext = ContextImpl.createActivityContext(
                this, r.packageInfo, r.activityInfo, r.token, displayId, r.overrideConfig);

        final DisplayManagerGlobal dm = DisplayManagerGlobal.getInstance();
        // For debugging purposes, if the activity's package name contains the value of
        // the "debug.use-second-display" system property as a substring, then show
        // its content on a secondary display if there is one.
        String pkgName = SystemProperties.get("debug.second-display.pkg");
        if (pkgName != null && !pkgName.isEmpty()
                && r.packageInfo.mPackageName.contains(pkgName)) {
            for (int id : dm.getDisplayIds()) {
                if (id != Display.DEFAULT_DISPLAY) {
                    Display display =
                            dm.getCompatibleDisplay(id, appContext.getResources());
                    appContext = (ContextImpl) appContext.createDisplayContext(display);
                    break;
                }
            }
        }
        return appContext;
    }

 在createBaseContextForActivity中 , 通过ContextImpl的静态方法createActivityContext获得一个ContextImpl的实例对象。并通过 appContext.setOuterContext(activity);方法将两者进行关联。

Applicaition创建过程:



#ActivityThread.H.handleMesage方法
case BIND_APPLICATION:
                    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "bindApplication");
                    AppBindData data = (AppBindData)msg.obj;
                    handleBindApplication(data);
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                    break;



#ActivityThread
 private void handleBindApplication(AppBindData data) {
.......
  Application app;
        final StrictMode.ThreadPolicy savedPolicy = StrictMode.allowThreadDiskWrites();
        final StrictMode.ThreadPolicy writesAllowedPolicy = StrictMode.getThreadPolicy();
        try {
            // If the app is being launched for full backup or restore, bring it up in
            // a restricted environment with the base application class.
            app = data.info.makeApplication(data.restrictedBackupMode, null);
            mInitialApplication = app;
......
  }

handleBindApplication中调用makeApplication方法生成一个Application对象。

#LoadedApk
public Application makeApplication(boolean forceDefaultAppClass,
            Instrumentation instrumentation) {
       //相对成员变量mApplication做非空判断避免重复构造
        if (mApplication != null) {
            return mApplication;
        }

        Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "makeApplication");

        Application app = null;

        String appClass = mApplicationInfo.className;
        if (forceDefaultAppClass || (appClass == null)) {
            appClass = "android.app.Application";
        }

        try {
            java.lang.ClassLoader cl = getClassLoader();
            if (!mPackageName.equals("android")) {
                Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER,
                        "initializeJavaContextClassLoader");
                initializeJavaContextClassLoader();
                Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
            }
           //获取一个ContextImpl对象
            ContextImpl appContext = ContextImpl.createAppContext(mActivityThread, this);
           //获取一个Application对象
            app = mActivityThread.mInstrumentation.newApplication(
                    cl, appClass, appContext);
           //将Application与得到的ContextImpl进行关联
            appContext.setOuterContext(app);
        } catch (Exception e) {
            if (!mActivityThread.mInstrumentation.onException(app, e)) {
                Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                throw new RuntimeException(
                    "Unable to instantiate application " + appClass
                    + ": " + e.toString(), e);
            }
        }
        mActivityThread.mAllApplications.add(app);
        mApplication = app;

        if (instrumentation != null) {
            try {
                instrumentation.callApplicationOnCreate(app);
            } catch (Exception e) {
                if (!instrumentation.onException(app, e)) {
                    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
                    throw new RuntimeException(
                        "Unable to create application " + app.getClass().getName()
                        + ": " + e.toString(), e);
                }
            }
        }

        // Rewrite the R 'constants' for all library apks.
        SparseArray<String> packageIdentifiers = getAssets().getAssignedPackageIdentifiers();
        final int N = packageIdentifiers.size();
        for (int i = 0; i < N; i++) {
            final int id = packageIdentifiers.keyAt(i);
            if (id == 0x01 || id == 0x7f) {
                continue;
            }

            rewriteRValues(getClassLoader(), packageIdentifiers.valueAt(i), id);
        }

        Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);

        return app;
    }





这里可以看到,虽然具体代码不尽相同,但是创建Applcation和Context以及将两者关联的套路基本是与Activity一致,当然还有Service,具体不说了。



参考《Android源码设计模式》











评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
