本文详细梳理了Android Camera Framework客户端的工作流程，包括通过getSystemService获取CameraManager，CameraManager的openCamera，CameraDevice的创建及StateCallback，CaptureSession的建立与请求设置，以及CaptureRequest和CaptureResult的使用。在创建CaptureSession时，讨论了SurfaceTexture和ImageReader的配置，同时解释了如何通过CaptureRequest控制预览和拍照。最后，文章对整个流程进行了总结。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

目录

一、getSystemService

二、CameraManager

1.openCamera

三、CameraDevice

1.CameraDeviceImpl

2.StateCallback

3.createCaptureSession

4.createCaptureRequest

四、CaptureSession

1.StateCallback

2.setRepeatingRequest

3.capture

五、CaptureRequest

六、CaptureResult

总结

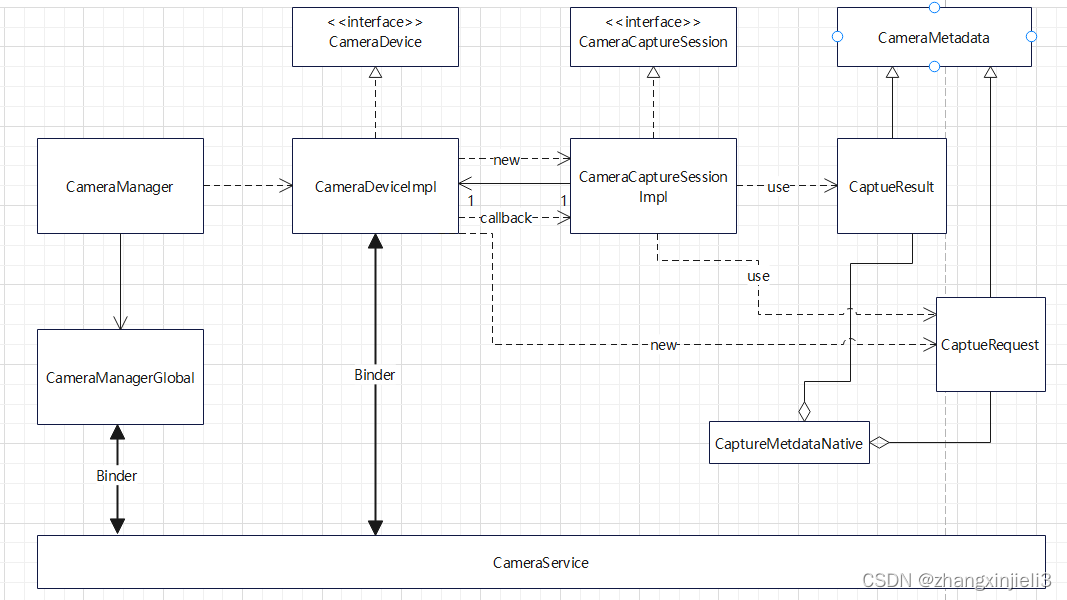

本文主要一起看下之前一篇app demo涉及的一些接口函数，主要涉及代码位置camera2

一、getSystemService

首先通过getSystemService接口获取camera的服务

mCamManager = (CameraManager)getSystemService(Context.CAMERA_SERVICE);

其实它就是直接获取之前SystemServiceRegistry已经创建好的CameraManager

registerService(Context.CAMERA_SERVICE, CameraManager.class,
        new CachedServiceFetcher<CameraManager>() {
    @Override
    public CameraManager createService(ContextImpl ctx) {
        return new CameraManager(ctx);
    }});

二、CameraManager

CameraManager负责detect、connect device，创建本地的CameraDevice实例来控制sevice端的device

1.openCamera

这里面connectDevice就是真正去openCamera

openCamera(String cameraId, final CameraDevice.StateCallback callback, Handler handler)
    openCameraForUid(String cameraId, final CameraDevice.StateCallback callback,
                     Executor executor, int clientUid)
        openCameraDeviceUserAsync(String cameraId, CameraDevice.StateCallback callback,
                                  xecutor executor, final int uid)
            android.hardware.camera2.impl.CameraDeviceImpl deviceImpl =
                        new android.hardware.camera2.impl.CameraDeviceImpl(
                           cameraId, callback, executor, characteristics,
                           mContext.getApplicationInfo().targetSdkVersion);
            cameraUser = cameraService.connectDevice(callbacks, cameraId,
                                                     mContext.getOpPackageName(), uid);
            deviceImpl.setRemoteDevice(cameraUser);

三、CameraDevice

1.CameraDeviceImpl

CameraDevice的具体实现，里面重要的是包含了从service那获取的

ICameraDeviceUser cameraUser

2.StateCallback

public abstract void onOpened(@NonNull CameraDevice camera); // Must implement

这是必须实现的回调函数，在connectDevice成功之后，deviceImpl.setRemoteDevice里被调用

3.createCaptureSession

SurfaceTexture mSurfaceTexture = mTextureView.getSurfaceTexture();
// 设置TextureView 用于显示的缓冲区大小
mSurfaceTexture.setDefaultBufferSize(mPreviewSize.getWidth(), mPreviewSize.getHeight());
mPreviewSurface = new Surface(mSurfaceTexture);
ImageReader mImageReader;
mCamDevice.createCaptureSession(Arrays.asList(mPreviewSurface, mImageReader.getSurface()),
                                new CameraCaptureSession.StateCallback())
    createCaptureSessionInternal
        configureStreamsChecked
            mRemoteDevice.beginConfigure();
            mRemoteDevice.createStream(outConfig);
            mRemoteDevice.endConfigure(operatingMode, null);

通过 SurfceTexture、ImageReader两种surface构造CaptureSession，session创建成功之后会回调CaptureSession.StateCallback的onConfigured接口。关于ImageReader的surface的格式映射在其构造函数里有映射，比如RAW_SENSOR映射到的是RAW16

         // retrieve hal Format and hal dataspace from imageFormat
