c++遍历图像三种方式以及耗时比较

1. 指针方式
2. at方式
3. 迭代器方式

#include <iostream>
#include <opencv2/core.hpp>
#include <opencv2/highgui.hpp>

using namespace std;
using namespace cv;

void ptr_cost(Mat img) {

	for (int i = 0; i < img.rows; ++i)
	{
		Vec3b* p =img.ptr<Vec3b>(i);
		for (int j = 0; j < img.cols; ++j)
		{
			p[j][0] = i % 255;      //Blue
			p[j][1] = j % 255;      //Gree
			p[j][2] = 0;            //Red
		}
	}

}

void iterate_cost(Mat img) {
	MatIterator_<Vec3b> colorit, colorend;
	for (colorit =img.begin<Vec3b>(), colorend = img.end<Vec3b>(); colorit != colorend; ++colorit)
	{
		(*colorit)[0] = rand() % 255;       //Blue
		(*colorit)[1] = rand() % 255;       //Green
		(*colorit)[2] = rand() % 255;       //Red
	}
}
void  at_cost(Mat img) {
	for (int i = 0; i < img.rows; ++i)         //遍历行
		for (int j = 0; j < img.cols; ++j)     //遍历列
		{
			Vec3b pixel;            //定义三通道像素值变量
			pixel[0] = i % 255;     //Blue
			pixel[1] = j % 255;     //Green
			pixel[2] = 0;           //Red

			img.at<Vec3b>(i, j) = pixel;
		}

}


int main()
{
	Mat image = cv::imread("./002.jpg");

	double ptrtimeConsume = static_cast<double>(getTickCount());
	ptr_cost(image);
	ptrtimeConsume = ((double)getTickCount() - ptrtimeConsume) / getTickFrequency();
	cout << "ptr_cost： " << ptrtimeConsume << endl;

	double attimeConsume = static_cast<double>(getTickCount());
	at_cost(image);
	attimeConsume = ((double)getTickCount() - attimeConsume) / getTickFrequency();
	cout << "at_cost： " << attimeConsume << endl;

	double itertimeConsume = static_cast<double>(getTickCount());
	iterate_cost(image);
	itertimeConsume = ((double)getTickCount() - itertimeConsume) / getTickFrequency();
	cout << "iterate_cost： " << itertimeConsume << endl;


	namedWindow("Image", WINDOW_AUTOSIZE);
	imshow("Image", image);

	waitKey(0);

	return 0;
}



测试图片

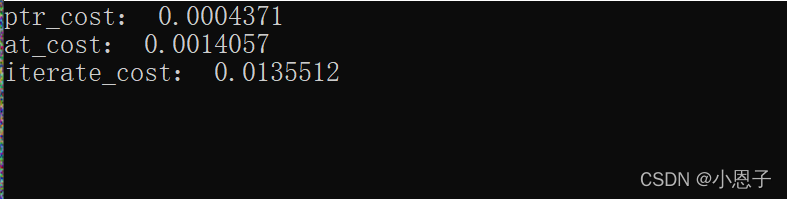

耗时打印

小结：

1、工程化时建议使用指针方式遍历图像。
