springboot集成elasticsearch6.8.23设置密码xpack连接，及遇到的None of the configured nodes are available

遇到一个 None of the configured nodes are available 的坑

一、背景：

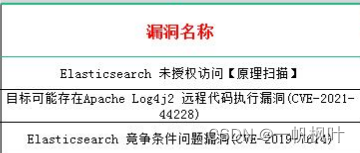

因现网扫描出来几个漏洞，目前版本使用的springboot2.1.17.RELEASE + elasticsearch6.4.3。

所以需要改造升级：

1、把es升级为elasticsearch6.8.23；

2、给es添加密码；

二、查询资料：

1、ElasticSearch6.8.13解决Log4j CVE-2021-44228漏洞_wwnaitang的博客-优快云博客

2、springboot集成elasticsearch6.81设置密码xpack连接_小栋哟的博客-优快云博客_springboot配置es密码

3、运维(14) docker-compose部署Elasticsearch并设置账号密码_郑清的博客-优快云博客

三、环境：

1、使用docker-compose部署elasticsearch6.8.23

docker-compose.yml文件

version: '3'
services:
  elasticsearch:
    image: docker.io/elasticsearch:6.8.23
    container_name: elasticsearch
    restart: always
    environment:
      - cluster.name=elasticsearch-cluster
      - bootstrap.memory_lock=true
      - http.cors.enabled=true
      - http.cors.allow-origin=*
      - discovery.type=single-node
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    volumes:
      - /data/elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
      - /data/elasticsearch/data:/usr/share/elasticsearch/data
      - /data/elasticsearch/logs:/user/share/elasticsearch/logs
    ports:
      - 9200:9200
      - 9300:9300

elasticsearch.yml文件（很多报None of the configured nodes are available的坑就在这里，结尾特殊说明）

cluster.name: "elasticsearch-cluster"
network.host: 0.0.0.0
http.port: 9200
http.cors.enabled: true
http.cors.allow-origin: "*"
http.cors.allow-headers: Authorization
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true

docker-compose启动elasticsearch会报错，因为没加权限，所以加下elasticsearch文件夹的权限

chmod 777 -R elasticsearch/

elasticsearch6.8.23部署成功，开始设置密码

# 进入容器
docker exec -it elasticsearch /bin/bash

# 设置密码-随机生成密码
# elasticsearch-setup-passwords auto
# 设置密码-手动设置密码
elasticsearch-setup-passwords interactive

# 选择Y 一直输入123456（当然自定义了）

# 最后测试访问
curl 127.0.0.1:9200 -u elastic:123456


# 修改elastic密码为123456 (注：执行命令时会让认证之前账号密码)
curl -H "Content-Type:application/json" -XPOST -u elastic 'http://127.0.0.1:9200/_xpack/security/user/elastic/_password' -d '{ "password" : "123456" }'

四、代码

1、Spring Data Elasticsearch有版本要求，参考 Spring Data Elasticsearch - Reference Documentation

因此升级elasticsearch6.8.23时顺带把springboot也升级为了2.2.13.RELEASE

2、升级maven包

    <properties>
        <java.version>1.8</java.version>
        <elasticsearch.version>6.8.23</elasticsearch.version>
        <spring-boot.version>2.2.13.RELEASE</spring-boot.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <!--把es版本管理起来，因为springboot2.2.13中使用的es是6.8.13-->
            <dependency>
                <groupId>org.elasticsearch</groupId>
                <artifactId>elasticsearch</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.plugin</groupId>
                <artifactId>transport-netty4-client</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.client</groupId>
                <artifactId>transport</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.client</groupId>
                <artifactId>x-pack-transport</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.client</groupId>
                <artifactId>elasticsearch-rest-client</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.client</groupId>
                <artifactId>elasticsearch-rest-high-level-client</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!-- es相关 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.elasticsearch.client</groupId>
                    <artifactId>transport</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.plugin</groupId>
            <artifactId>transport-netty4-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>transport</artifactId>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>x-pack-transport</artifactId>
        </dependency>
    </dependencies>

3、配置

删除原来的elasticsearch配置
spring:
  data:
    elasticsearch:
      cluster-name: elasticsearch-cluster
      cluster-nodes: 10.10.10.10:9300,11.11.11.11:9300
      repositories:
        enabled: true

新增自定义elasticsearch配置
elasticsearch:
  cluster-nodes: 10.10.10.10:9300,11.11.11.11:9300
  cluster-name: elasticsearch-cluster
  cluster-password: elastic:123456

4、ElasticsearchConfig.class代码

import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.elasticsearch.client.transport.TransportClient;
import org.elasticsearch.common.settings.Settings;
import org.elasticsearch.common.transport.TransportAddress;
import org.elasticsearch.xpack.client.PreBuiltXPackTransportClient;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.net.InetAddress;
import java.net.UnknownHostException;

/**
 * Created by feng on 2022/9/2.
 */
@Slf4j
@Configuration
@ConfigurationProperties(prefix = "elasticsearch")
@Data
public class ElasticsearchConfig {
    private String clusterName;
    private String clusterNodes;
    private String clusterPassword;

    /**
     * elasticsearch客户端注入（配置）
     *
     * @return
     * @throws UnknownHostException
     */
    @Bean
    public TransportClient transportClient() throws UnknownHostException {
        TransportClient client = new PreBuiltXPackTransportClient(Settings.builder()
                .put("cluster.name", clusterName)
                .put("xpack.security.user", clusterPassword)
                //增加嗅探机制，找到ES集群,非集群置为false，设置为true时会自动嗅探整个集群的状态，把集群中其他ES节点的ip添加到本地的客户端列表
                .put("client.transport.sniff", false)
                .build());
                //单个IP
                //.addTransportAddress(new TransportAddress(InetAddress.getByName("10.10.10.10"), 9300));
        //多个IP
        String[] hostNamesPort = clusterNodes.split(",");
        String host;
        int port;
        String[] temp;
        if (0 != hostNamesPort.length) {
            for (String hostPort : hostNamesPort) {
                try {
                    temp = hostPort.split(":");
                    host = temp[0].trim();
                    port = Integer.parseInt(temp[1].trim());
                    client.addTransportAddress(new TransportAddress(InetAddress.getByName(host), port));
                } catch (UnknownHostException e) {
                    e.printStackTrace();
                }
            }
        }
        log.info("初始化ElasticsearchTemplate成功");
        return client;
    }
}

5、启动运行，报NoNodeAvailableException[None of the configured nodes are available: [{#transport#-1}{Hqhw6raLSIGlpNeHyzxyrA}{xx.xx.xx.xx}{xx.xx.xx.xx:9300}]]

度娘了None of the configured nodes are available的几种可能的原因：

• 查看配置的ip和端口号是否正确，端口号需要配置tcp端口9300
• 查看cluster name是否正确
• 使用的es client版本需要与ES Server版本一致
• 如果集群开启了访问鉴权，将用户名，密码传入
• client.transport.sniff设置成false，ip:port通过addTransportAddress传入
• netty包冲突，直接引入es client用的netty包版本
• springboot和elasticsearch版本不匹配

等等，检查了都没发现问题，后面看了一下elasticsearch的日志，发现报not an SSL/TLS record

[WARN ][o.e.x.s.t.n.SecurityNetty4ServerTransport] [wqbVDEq] exception caught on transport layer [NettyTcpChannel{localAddress=0.0.0.0/0.0.0.0:9300, remoteAddress=/127.0.0.1:37168}],
closing connection
io.netty.handler.codec.DecoderException:
io.netty.handler.ssl.NotSslRecordException:
not an SSL/TLS record: 455300000027000000000000000908004d3603000016696e7465726e616c3a7463702f68616e647368616b6500

Elasticsearch有2种，一种是仅设置密码，没有秘钥证书的，另外一种是设置密码也设置了秘钥证书，我只需要第一种仅设置密码。所以日志可以看出我们把Elasticsearch配置成了需要ssl证书了。

所以改下elasticsearch.yml文件

cluster.name: "elasticsearch-cluster"
network.host: 0.0.0.0
http.port: 9200
http.cors.enabled: true
http.cors.allow-origin: "*"
http.cors.allow-headers: Authorization
#开启设置密码
xpack.security.enabled: true
#是否开启ssl证书秘钥
xpack.security.transport.ssl.enabled: false

关闭xpack.security.transport.ssl.enabled: false 后重新部署elasticsearch

启动项目测试成功。

五、后续

but，but，but，后续联调发现这2个参数都要设置ture，不然es就设置不了密码，上面关闭xpack.security.transport.ssl.enabled: false的方式时灵时不灵的。

xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true

设置为true后，还是没有绕过None of the configured nodes are available问题。有知道的大神可以留言给后面的同行。

-------------------------------------------------------我是虚线--------------------------------------------------------------

最后还是死心了，放弃transport模式，拥抱High-Level Rest吧。

maven如下：

    <properties>
        <java.version>1.8</java.version>
        <elasticsearch.version>6.8.23</elasticsearch.version>
        <spring-boot.version>2.2.13.RELEASE</spring-boot.version>
    </properties>
    <dependencyManagement>
        <dependencies>
            <!--把es版本管理起来，因为springboot2.2.13中使用的es是6.8.13-->
            <dependency>
                <groupId>org.elasticsearch</groupId>
                <artifactId>elasticsearch</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
            <dependency>
                <groupId>org.elasticsearch.client</groupId>
                <artifactId>elasticsearch-rest-high-level-client</artifactId>
                <version>${elasticsearch.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <dependencies>
        <!-- es相关 干掉 spring-boot-starter-data-elasticsearch -->
        <dependency>
            <groupId>org.elasticsearch</groupId>
            <artifactId>elasticsearch</artifactId>
        </dependency>
        <dependency>
            <groupId>org.elasticsearch.client</groupId>
            <artifactId>elasticsearch-rest-high-level-client</artifactId>
        </dependency>
    </dependencies>

 配置如下：（9300改为了9200）

elasticsearch:
  cluster-nodes: 10.10.10.10:9200
  cluster-user-name: elastic
  cluster-password: 123456
  cluster-scheme: http

ElasticsearchConfig.class代码

import lombok.Data;
import lombok.extern.slf4j.Slf4j;
import org.apache.http.HttpHost;
import org.apache.http.auth.AuthScope;
import org.apache.http.auth.UsernamePasswordCredentials;
import org.apache.http.client.CredentialsProvider;
import org.apache.http.impl.client.BasicCredentialsProvider;
import org.elasticsearch.client.RestClient;
import org.elasticsearch.client.RestClientBuilder;
import org.elasticsearch.client.RestHighLevelClient;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.ArrayList;
import java.util.List;

import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * Created by feng on 2022/9/2.
 */
@Slf4j
@Configuration
@ConfigurationProperties(prefix = "elasticsearch")
@Data
public class ElasticsearchConfig {

    private String clusterNodes;
    private String clusterUserName;
    private String clusterPassword;
    private String clusterScheme;

    private HttpHost[] getHttpHosts() {
        List<HttpHost> hostList = new ArrayList<>();
        String[] addressArray = clusterNodes.split(",");
        for (String address : addressArray) {
            String host = address.split(":")[0];
            Integer port = Integer.parseInt(address.split(":")[1]);
            hostList.add(new HttpHost(host, port, clusterScheme));
        }
        return hostList.toArray(new HttpHost[]{});
    }

    /**
     * 创建带HTTP Basic Auth认证rest客户端
     */
    @Bean(name = "client")
    public RestHighLevelClient restHighLevelClient() {
        RestClientBuilder builder = RestClient.builder(getHttpHosts());

        //设置账号密码
        final CredentialsProvider credentialsProvider = new BasicCredentialsProvider();
        credentialsProvider.setCredentials(AuthScope.ANY,
                new UsernamePasswordCredentials(clusterUserName, clusterPassword));

        builder.setHttpClientConfigCallback(httpClientBuilder -> {
            httpClientBuilder.setDefaultCredentialsProvider(credentialsProvider);
            return httpClientBuilder;
        });

        return new RestHighLevelClient(builder);
    }
}
