9024复习

Binary Search

BinarySearch(v, a, lo, hi)
	input value v
		array a[lo...hi] of values
	output true if v in a[lo...hi]
		false otherwise

	mid = (lo + hi)/2
	if lo > hi return false
	if a[mid] = v return true
	else if a[mid] < v
		return BinarySearch(v, a, mid + 1, hi)
	else
		return BinarySearch(v, a, lo, mid - 1)

Computing ploynomial

The ploynomial can be recursively computed as
$$p_0=a_n$$
$$p_{i+1}=p_{i}x+a_i$$

Algorithm computingPloynomial(x, n , A[])
	p = A[n]
	for(i = 1; i < n+1; i++){
		p = p*x + A[n -1]
	}
	return p;

Tree

Computing Depths

O(n)

Algorithm computingDepths(v, d)
{
	v.depth = d;
	if v has no child
		return;
	else
		for each child v' of v do
			computingDepths(v', d+1);
	return;
}

Preorder Traversal

Algorithm preOrder(v){
	visit(v);
	for each child w of v
		preorder(w);
}

Algorithm preOrder(v)
	if v = null;
		return;
	Create an empty stack S;
	S.push(v);

	while S is not empty
		v = S.pop()
		visit(v)
		if hsaRight(v)
			S.push(right(v))
		if hasLeft(v)
			S.push(left(v));


Postordert Traversal

Algorithm postOrder(v):
{
	for each child w of v
		postOrder(w);
	visit(v);
}

Algorithm postOrd3erTraversal(v)
	Create an empty stack S;
	lastNodeVisited = null;
	while S is not empty or v != null
		if v != null		//push v and each left descendant onto the stack
			s.push(v)
			v = left(v)
		else
			topNode = S.top();
			//if topNode has a right child not visited before then move to the right child of topNode
			if topNode.right != null and lastNodeVisited != topNode.right
				v = topNode.right
			else		//both left and right subtree of topNode has been traversed
				visit(topNode);
				lastNodeVisited = S.pop();

Inordert Traversal

only for Binary tree

Algorithm inOrder(v)
{
	if v has a left child
		inOrder(v.left)
	visit(v)
	if v has a right child
		inOrder(v.right)
}

An inorder traversal of a binary search trees visits the keys in non-decreasing order

Algorithm inOrderTraversal(v)
	Create an empty stack S;
	while S is not empty or v != null
		if v != NULL		//keep going left until v = null
			S.push(v);
			v = left(v);
		else
			v = S.pop()		//v has no left child, so visit it
			visit(v);
			v = right(v) 	//go to the tight child

Inorder predecessor(v)

Algorithm inOrderPredecessor(v)
	if v= null
		return null
	if left(v) != null 	//V has a left child
		v = left(v)
		while right(v) != null
			v = right(v);
		return v;
	else
		if v is root
			return null;
		while parent(v) != null
			if right(parent(v)) = v 	//v is the right child of its parent
				return parent(v);
			else
				v = parent(v)
		return null; 		//no inorder predecessor

Evaluate Arithmetic Expressions

Specialization of a postororder traversal

Algorithm evalExpr(v)
{
	if v is a left node
		return v.element
	else
		x = evalExpr(v.left);
		y = evalExpr(v.right);
		operator = operator stored at v,
		return x <operator> y;

}

BST

Search

Time complexity O(n) , 最坏情况：链表（极度不平衡）

TreeSearch(v, k)
	Input v(node), k(key)
	output the node

	if v is null or v.key = k
		return v;
	if k<v.key
		return TreeSeach(v.left, k);
	else
		return TreeSearch(v.right, k);

Insert

be careful: insert equal keys in the left subtree

Time complexity: O(n), 最坏情况：链表（极度不平衡）

TreeInsert(v, k)
	input v(node), k(key)
	output none

	if root = null	//empty tree
		root = CreateNode(k)	//create a root to store k
	else if k < v.key	//insert the duplicate keys in the left subtree
		if v.left = null
			v.left = CreateNode(k);	//insert a new node as left child of v
		else
			TreeInsert(v.left, k);
	else if k > v.key
		if k > v.key
			if v.right = null
				v.left = CreateNode(k);
			else
				TreeInsert(v..right, k);


Deletion

Find all entries with key k

Algorithm findAll(k)
	Input The search key k, the root v of the binary search tree T
	Output: A list L containing all the entries with the key k
	while(v != NULL)
		if v.key = k
			findAllEntries(v, L)
			return L;l
		else
			if v.key > k
				v = v.left
			else
				v = v.right
		return L;

Algorithm findAllEntries(v, L)
	Input: A node v with the key k and a List L
	Output: All the entries with the key k in the subtree rooted at v

	//recursive pre-order traversal to find all entries
	if v.key = k
		Add v to L;
		if v.left != NULL
			FindAllEntries(v.left, L)
		if v.right != NULL
			FindAllEntries(v.right, L)
	return;

Time complexity:

1. Finding the first node with the key k takes O(h) time.
2. Since at 2s nodes are visited by findAllEntries(), traversing the subtree rooted at the first node takes O(s) times

Total is O(h + s)

AVL TREE

AVL tree is a binary search tree
AVL trees are balanced

height of an AVL tree storing n keys is O(log(n))

• a single restructure is O(1)
• find is O(log(n))
• Insert is O(log(n))
• delete is O(log(n))

Splay Tree

• is binary tree
• node is splayed after it is accessed
• splay cost O(h)
  • O(h) worst-case is still O(n)

(2, 4)Tree

A (2, 4) tree storing n items has height O(log(n))

Overflow and Split

Insert

Algorithm insert(k, o)
	search for key k to locate the insertion node vi	//lO(og(n))
	add the new entry (k, o) at node vi  	//lO(1)

	while (overflow(v)){		//lO(og(n))
		if (isRoot(v))
			create a new empty root above vi
		v = split(v);
	}

Deletion

• visit O(log(n)) nodes
• each fusion and transfer takes O(1) time
• handle an underflow with a series of O(log(n))

deleting an item from a (2, 4)tree takes O(log(n)) time

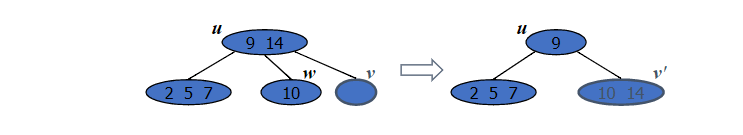

underflow and Fusion

the adjacent sibling of v are 2-nodes

Fusion operation: merge adjacent sibing and move an entry from parent to the merged node

after a fusion, the under flow may propagate to the parent node

underflow and Transfer

an adjacent sibling is a 3-node or a 4-node
Transfer operation
1. move an item from u to v
2. move an item from w to u
after a transfer, no underfolw occurs

Priority Queue Sorting

Algorithm PQ-Sort(S)
	Input sequence S
	Output sequence S sorted in non-decreasing order
	{
		Create an empty priority queue P

		while(! IsEmpty(S)){
			e = RemoveFirst(S);
			Insert(P, e);
		}

		while (! IsEmpty(P)){
			e = RemoveMin(P);
			InsertLast(S, e);
		}
	}

updating the key of an item in a priority queue

Assume the priority queue is based on a min-heap

Algorithm updateKey(v)
	Input: a node v containing the item
	Output: the heap with the key updated

	//upheap bubbling
	while(v != NULL && v.key  < parent. key)
		swap the item of v and its parent
		v = v.parent

	//dowmheap bubbling
	while(v != NULL && v.key > min (v.left.key , v.right.key))
		let u be the child of v with the smaller key;
		swap the item of v and u;
		v = u;

Time complexity analysis:

• each while loop take O(1)
• each loop is no more than h
• h is O(log(n))
  total time complexity is O(log(n))

compute all the items in heap with key less or equal to k

Algorithm lessThanOrEqualToKEntries(H, v)
	input:A heap H and a node v
	output: A node list L than contains all the entries with keys less than k
	if v.key <= k
		L.add((v.key, v.value));	//add the entry v to the list L
		if v.leftchild != null
			LessThanOrEqualToKentires(H, v.leftchild);
		if v.rightchild != null
			LessThanOrEqualToKEntries(H, v.rightchild)

this algorithm takes O(n) times where n is the number of entries returned.

Flyers upgrade coupon(base on miles accumulated)

Algorithm TopKFlyers(A)
	Input: A list A of n flyers
	Output: An array B of the top log n flyers

	Construct a heap H storing all the n flyers, where the key of each flyer Pi is 1/mi
	for(i = 0; i < log n; i++)
		B[i] = H.removeMin();
	return B

Heap merge(Binary trees)

Algorithm treeUnion(T1, T2)
	Input: Two trees T1 and T2 that satisfy the heap-order property
	Output: A tree T that is the union of T1 and T2 and also satisfies the heap-order property

	v = T1.removeMIN();	//O(h1)
	let v be the root of T;
	leftchild(v) = the root of T1
	rightchild(v) = the root of T2
	apply the down heap bulling to the tree T;	//O(h2)

The complexity is O(h1 + h2)

String

Brute-Force Pattern Matching

time complexity is O(nm)

Algorithm BruteForceMatch(T, P)
	Input text T of size n and pattern
		P of size m
	Output starting index of a substring of T equal to P
		or -1 if no such substring exists
	for(i = 0; i < n-m+1; i++){
		j = 0;
		while(j<m && T[i+j] = p[j])
			j = j+1
		if(j = m)
			return i;	//match at i
	return -1;	//no match anywhere
	}

Boyer-Moore Heuristics

Last-Occurrence Function
define as

• the largest index i such that P[i] = c or
• -1 if no such index exists

The last-occurence function can be computed in time O(m+s), where m is the size of P and s is the size of alphabeta

//Boyer-Moore Algorithm
Algorithm BoyerMooreMatch(T, P, D){
	L = lastOccurenceFunction(P, D)	//O(m+n)
	i = m-1;
	j = m -1

	repeat
		if T[i] = P[i]		//run m-1 times in worst case, before character-jump
			if j = 0
				return i;	//match at i
			else
				i = i - 1;
				j = j -1;

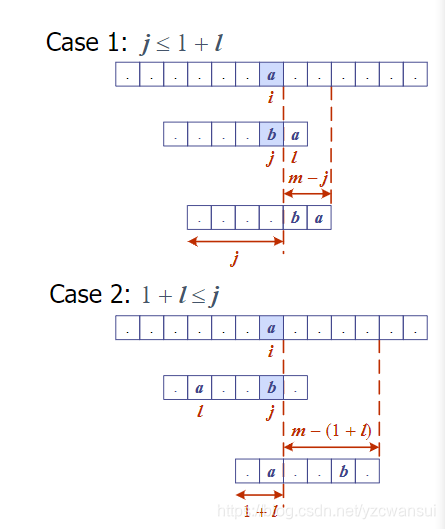

		else	//character-jump, run 1 times every m times in worst case
			l = L[T[i]];
			i = i + m - min(j, 1 + l);
			j = m - 1;
	until i > n - 1	//run n times in worst case
	return -1 //no match

}

Boyer-Moore’s algorithm runs in time O(nm + s)

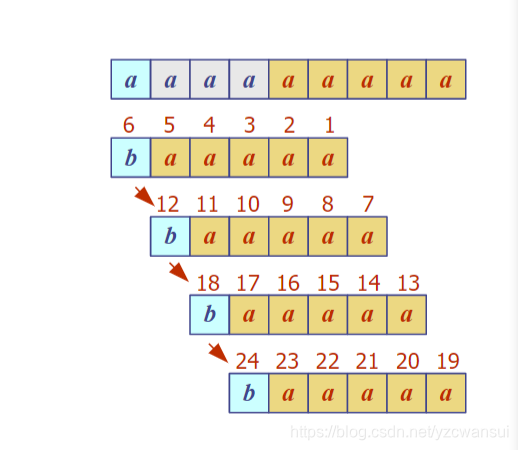

The worst case

KMP Algorithm

Preprocessing Pattern

KMP failure Function

preprocesses the pattern to find matches of prefixes of the pattern.

The failure function can be represented by an array and can be computed in O(m) time

Algorithm failure Function(P)
	F[0] = 0;
	i = 1;
	j = 0;
	while i < m
		if P[i] = P[j]	//matched j + 1 char
			F[i] = j + 1;
			i = i + 1；
			j = j + 1;
		else if j >0	//use failure function to shift P
			j = F[j - 1];
		else	//no match
			F[i] = 0;
			i = i + 1；




The KMP algorithm

The KMP’s algorithm runs in optimal time O(m+n)

Algorithm KMPMatch(T, P)
	F = failureFuncion(P);
	i = 0;
	j = 0;

	while i < n
		if T[i] = P[j]	//char match
			if j = m - 1	//match
				return i - j;
			else
				i = i + 1;
				j = j + 1;
		else		//failure to match
			if j > 0
				j = F[j - 1]
			else
				i = i + 1
		return -1; 	//no match

Preprocessing Text

If the text is large, immutable and searched for often, proprocessing the text instead of the pattern

Standard Tries

• O(n) space and support searches
• O(dm) insertion
• O(dm) deletion

n is total size of the string in S
m size of the string parameter of the operation
d size of the alphabet

Compressed Tries

Graph

A graph is a pair (V, E) where

• V is a set of nodes, called vertices
• E is a collection of pairs of vertices, called edges
• Vertices and edges are positions and store elements

Edge type:

1. Directed edge(ordered pair of vertices)
2. Undiected edge(unordered pair of vertices)

Properties

1. ${\sum }_v=2m$
2. In an undirected graph with no self-loops and no multiple edges $m\le n(n-1)/2$

Graph Representations

Adjacency matrix

Advantages

• easily implemented as 2-dimensional asrray
• can represent graph, digraphs and weighted graphs

Disadvantages

• if few edges(sparse) => memory-inefficient

Space complexity is $O(n^2)$

Graph Initialization

$O(n^2)$

newGraph(n)
	input number of nodes n
	Output new empty graph
		g.nV = n;
		g.nE =0;
		allocate memory to g.edges[][]

		for all i, j = 0 ... n-1 do
			g.edges[i][j] = 0;
		return g;

Edge Insertion

$O(1)$

insertEdge(g,  (v, w))
	input : graph g, edge(v, w)
	if (g.edges[v][w] = 0)
		g.edges[v][w] = 1;
		g.edges[v][w] = 1;
		g.nE = g.nE + 1;

Edge Removal

$O(1)$

RemoveEdge(g, (v, w))
	Input graph g, edge(v, w)
	if g.edges[v][w]  = 0
		g.edge[v][w] = 0;
		g.edge[w][v] = 0;
		g.nE = g.nE - 1;

Adjacency lists

Advantages

• relatively easy to implement
• memory efficient if E:V relatively small

Disadvantages:

• one graph has many possible representations unless lists are ordered by same criterion.

space complexity is $O(n+m)$

Graph Initialization

$O(n)$

newGraph(n)
	Input number of nodes n
	Output new empty graph
	g.nV = n;
	g.nE = 0;
	allocate memory for g.edges[]
	for all i = 0...n-1 do
		g.edges[i] = NULL
	return g

Edge Insertion

$O(1)$ if don’t check for duplicates

insertEdge(g, (v, w))
	Input: graph g, edge (v, w)
	if inLL(g.edges[v], w)
		insertLL(g.edges[v], w)
		insertLL(g.edges[w], v)
		g.nE = g.nE + 1;

Edge Removal

$O(m)$

removeEdge(g, (v, w))
	Input graph g, edge (v, w)
	if inLL(g.edges[v], w)
		delete(g.edges[v], w);
		delete(g.edges[w], v);
		g.nE = g.nE - 1;

DSGs and Topogical Ordering

A digraph admits a topological ordering if and only if it is a DAG

Algorithm TopologicalSort(G)
	G1 = G.copy()
	seq_num = n // assume n is the number of vertices
	while (G1 is not empty)
		for each vertex v without outgoing edges
			v.seq = seq_num
			seq--
			removeFrom(G, v)


BFS

vertex

• unexplored verrtex
• visited vertex

edge

• unexplored edge
• discovery edge
• cross edge

Property

1. BFS visits all the vertices and edges
2. discovery edges labeled form a spanning tree

Algorithm BFS(G)
	for v in G.vertexes:
		v.label= UNEXPLORED
	for e in G.edges
		e.label = UNEXPLORED
	for v in G vertexes:
		if v.label = UNEXPLORED
		BFS(G, v)

Algorithm BFS(G, v)
	Queue Q
	v.label = VISITED

	Q.add(v)
	while(Q is not empty)
		v = Q.dequeue()
		for e in incidentEdges(v)
			if e = UNEXPLORED
				w = opposite(v, e)
				if w = UNEXPLORED
					w.label = VISITED
					e.label = DISCOVERY
					Q.enqueue(w)
				else
					e.label = CROSS

Shortest path(unweighted graph)

O(m+n)

Algorithm BFS(G, v)
	Queue Q
	for i in G.v
		create an empty list L[i] for i

	v.label = VISITED
	Q.enqueue(v)

	while( Q is not empty)
		v = Q.dequeue()
		for e in incidentEdge(v)
			if e = UNEXPLORED
				w = opposite(v, e)
				if w = UNEXPLORED
					w.label = VISITED
					e.label = DISCOVERY
					Q.enqueue(w)
					L[w] = L[v] + {v, w}
				else
					e.label = CROSS

DFS

vertex

• unexplored vertex

• visited vertex
  edge

• unexplored edge

• discovery edge

• back edge

Property

1. DFS visits all the vertices and edges in the connected component of v
2. The discoivery edges labeled by DFS(G, v) form a spanning tree of the connected component of v

DFS （recursive version）
O(m+n)
incidentEdges Function is called

Algorithm DFS(G)
	for v in G.v
		v.label = UNEXPLORED
	for e in G.v
		e.label = UNEXPLORED

	for v in G.v
		if v = UNEXPLORED
			DFS(G, V)

Algorithm DFS(G, v)
	v.label = VISITED
	for e in v.edges
		if e.label = UNEXPLORED
			w = opposite(v, e)
			if w.label = UNEXPLORED
				w.label = VISITED
				e.label = DISCOVERY
				DFS(G, v)
			else
				e.label = BACK

Path Finding

Algorithm pathDFS(G, v, z)
	Stack S
	v.label = VISITED
	if v = z
		return S.element()
	for e in incidentEdges(v)
		if e.label = UNEXPLORED
			w = opposite(v, e)
			if w = UNEXPLORED
				S.push(e)
				e.label = DISCOVERY
				pathDFS(G, w, z)
				S.pop()
			else
				e.label = BACK





Cycle Finding

Dijkstra

Dijkstra(G, s)
	for each v in G
		if v = s
			D[v] = 0;
		else
			D[v] = inf
	Create priority queue Q, which cantain all the vertex of G using D labels as key

	While Q is not empty
		u = Q.removeMin()
		for w in AdjacentNodes(u)
			if D[w] > D[u] + {u, w}	//relax
				D[w] = D[u] + {u, w}
				w.from = u
				Q.update(w)
return the label D[u]



Bellford

O(mn)

Algorithm Bellford(G, s)
	for each vertex v  in G
		if v = s
			D[v] = 0
		else
			D[v] = inf
	for (i = 1; i < n - 1; i++)
		u = G.origin(e)
		z = G.opposite(u, e)
		r =  D[u] + weight
		if D[z] > r
			z.from = u
			D[z] = r

Kruskal’s

for each vertexs create a cloud of {v}
create a priority queue Q and insert all edges using their weight as the key
T = empty
while Q is not empty
	e = Q.removeMin()
	u, v = the endpoint of e
	if cloud(u) != cloud(v)
		add e to T
		merge cloud(u) and cloud(v)
return T

Prim

Algorithm PrimJarnikMST(G)
	Pick any vertices v of G
		D[v]= 0
	for each u in G.vertices with u != v
		D[u] = inf

	Create a priority queue Q with an entry	((u, null), D[u])
	D[u] is the k
		while Q is not empty
			（u， e） = Q.removeMin();
			  T.add(e)
			  for v in AdjacentNode(u)
			  	D[v] = weight(u, z)
			  	update all element  (z, (u, z))
			  	Change D[z]
	return T



LCS

Algorithm LCS(x, y)
	Array L[x.len + 1][y.len + 1] = {0}
	for i in range( x.len)
		for j in range( y.len)
			if x[i] = y[j]
				L[i][j] = L[i - 1][j - 1] + 1
			else
				L[i][j] = max(L[i - 1][j], L[i][j - 1])
	return L
