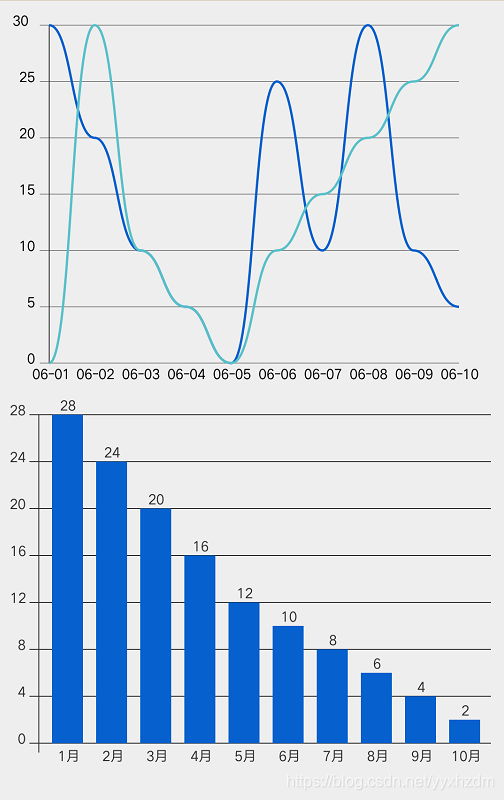

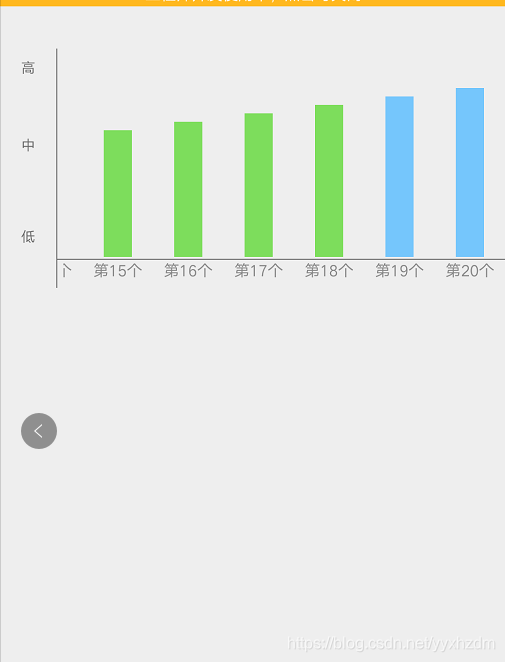

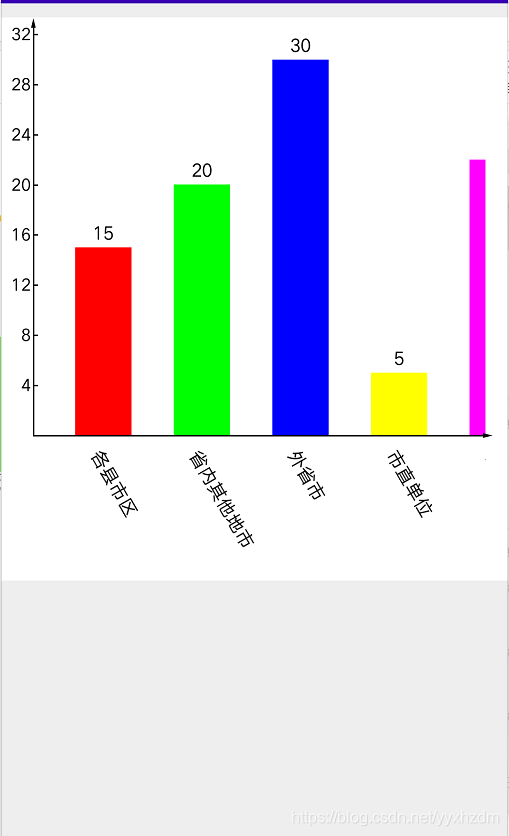

啥都不说，先上效果图：
1.总共三个小demo，先说图1
一、自定义曲线与柱状图的类
（1）.BarChartView 柱状
public class BarChartView extends View {
private Context mContext;
private Paint mPaintBar;
private Paint mPaintLline;
private Paint mPaintText;
//柱状条对应的颜色数组
private int[] colors;
private int keduTextSpace = 10;//刻度与文字之间的间距
private int keduWidth = 20; //坐标轴上横向标识线宽度(X、Y轴交叉底部延伸的宽度)
private int keduSpace = 100; //每个刻度之间的间距 px(Y轴上刻度的距离)
private int itemSpace = 20;//柱状条之间的间距
private int itemWidth = 60;//柱状条的宽度
//刻度递增的值
private int valueSpace = 5;
//绘制柱形图的坐标起点
private int startX;
private int startY;
private int mTextSize = 30;
private int mMaxTextWidth;
private int mMaxTextHeight;
private Rect mXMaxTextRect;
private Rect mYMaxTextRect;
//是否要展示柱状条对应的值
private boolean isShowValueText = true;
//数据值
private List<Integer> mData = new ArrayList<>();
private List<Integer> yAxisList = new ArrayList<>();
private List<String> xAxisList = new ArrayList<>();
public BarChartView(Context context) {
this(context, null);
}
public BarChartView(Context context, @Nullable AttributeSet attrs) {
this(context, attrs, 0);
}
public BarChartView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.mContext = context;
// colors = new int[]{ContextCompat.getColor(context, R.color.color_07f2ab),
// ContextCompat.getColor(context, R.color.color_79d4d8),
// ContextCompat.getColor(context, R.color.color_4388bc),
// ContextCompat.getColor(context, R.color.color_07f2ab),
// ContextCompat.getColor(context, R.color.color_4388bc)};
init(context, false);
}
private void init(Context context, boolean isUpdate) {
if (!isUpdate) {
initData();
}
//设置边缘特殊效果
BlurMaskFilter PaintBGBlur = new BlurMaskFilter(
1, BlurMaskFilter.Blur.INNER);
//绘制柱状图的画笔
mPaintBar = new Paint();
mPaintBar.setStyle(Paint.Style.FILL);
mPaintBar.setStrokeWidth(4);
mPaintBar.setMaskFilter(PaintBGBlur);
//绘制直线的画笔
mPaintLline = new Paint();
mPaintLline.setColor(ContextCompat.getColor(context, R.color.color_xy));
mPaintLline.setAntiAlias(true);
mPaintLline.setStrokeWidth(2);
//绘制文字的画笔
mPaintText = new Paint();
mPaintText.setTextSize(mTextSize);
mPaintText.setColor(ContextCompat.getColor(context, R.color.color_xy));
mPaintText.setAntiAlias(true);
mPaintText.setStrokeWidth(1);
mYMaxTextRect = new Rect();
mXMaxTextRect = new Rect();
mPaintText.getTextBounds(Integer.toString(yAxisList.get(yAxisList.size() - 1)), 0, Integer.toString(yAxisList.get(yAxisList.size() - 1)).length(), mYMaxTextRect);
mPaintText.getTextBounds(xAxisList.get(xAxisList.size() - 1), 0, xAxisList.get(xAxisList.size() - 1).length(), mXMaxTextRect);
//绘制的刻度文字的最大值所占的宽高
mMaxTextWidth = mYMaxTextRect.width() > mXMaxTextRect.width() ? mYMaxTextRect.width() : mXMaxTextRect.width();
mMaxTextHeight = mYMaxTextRect.height() > mXMaxTextRect.height() ? mYMaxTextRect.height() : mXMaxTextRect.height();
if (yAxisList.size() >= 2) {
valueSpace = yAxisList.get(1) - yAxisList.get(0);
}
//文字+刻度宽度+文字与刻度之间间距
startX = mMaxTextWidth + keduWidth + keduTextSpace;
//坐标原点 y轴起点
startY = keduSpace * (yAxisList.size() - 1) + mMaxTextHeight + (isShowValueText ? keduTextSpace : 0);
}
/**
* 初始化数据
*/
private void initData() {
int[] dataY = {0, 4, 8, 12, 16, 20, 24, 28};
for (int i = 0; i < dataY.length; i++) {
yAxisList.add(dataY[i]);
}
int[] data = {28, 24, 20, 16, 12};
for (int i = 0; i < data.length; i++) {
mData.add(data[i]);
}
String[] xAxis = {"1月", "2月", "3月", "4月", "5月"};
for (int i = 0; i < mData.size(); i++) {
xAxisList.add(xAxis[i]);
}
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
Log.e("TAG", "onMeasure()");
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (heightMode == MeasureSpec.AT_MOST) {
if (keduWidth > mMaxTextHeight + keduTextSpace) {
heightSize = (yAxisList.size() - 1) * keduSpace + keduWidth + mMaxTextHeight;
} else {
heightSize = (yAxisList.size() - 1) * keduSpace + (mMaxTextHeight + keduTextSpace) + mMaxTextHeight;
}
heightSize = heightSize + keduTextSpace + (isShowValueText ? keduTextSpace : 0);//x轴刻度对应的文字距离底部的padding:keduTextSpace
}
if (widthMode == MeasureSpec.AT_MOST) {
widthSize = startX + mData.size() * itemWidth + (mData.size() + 1) * itemSpace;
}
Log.e("TAG", "heightSize=" + heightSize + "widthSize=" + widthSize);
//保存测量结果
setMeasuredDimension(widthSize, heightSize);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
Log.e("TAG", "onDraw()");
//从下往上绘制Y 轴
canvas.drawLine(startX, startY + keduWidth, startX, startY - (yAxisList.size() - 1) * keduSpace, mPaintLline);
for (int i = 0; i < yAxisList.size(); i++) {
//绘制Y轴的文字
Rect textRect = new Rect();
mPaintText.getTextBounds(Integer.toString(yAxisList.get(i)), 0, Integer.toString(yAxisList.get(i)).length(), textRect);
canvas.drawText(Integer.toString(yAxisList.get(i)), (startX - keduWidth) - textRect.width() - keduTextSpace, startY - (i + 1) * keduSpace + keduSpace, mPaintText);
//画X轴及上方横向的刻度线
canvas.drawLine(startX - keduWidth, startY - keduSpace * i, startX + mData.size() * itemWidth + itemSpace * (mData.size() + 1), startY - keduSpace * i, mPaintLline);
}
for (int j = 0; j < xAxisList.size(); j++) {
//绘制X轴的文字
Rect rect = new Rect();
mPaintText.getTextBounds(xAxisList.get(j), 0, xAxisList.get(j).length(), rect);
canvas.drawText(xAxisList.get(j), startX + itemSpace * (j + 1) + itemWidth * j + itemWidth / 2 - rect.width() / 2, startY + rect.height() + keduTextSpace, mPaintText);
if (isShowValueText) {
Rect rectText = new Rect();
mPaintText.getTextBounds(mData.get(j) + "", 0, (mData.get(j) + "").length(), rectText);
//绘制柱状条上的值
canvas.drawText(mData.get(j) + "", startX + itemSpace * (j + 1) + itemWidth * j + itemWidth / 2 - rectText.width() / 2, (float) (startY - keduTextSpace - (mData.get(j) * (keduSpace * 1.0 / valueSpace))), mPaintText);
}
//绘制柱状条
// mPaintBar.setColor(colors[j]); //可以每个柱状图颜色不同
mPaintBar.setColor(ContextCompat.getColor(mContext, R.color.color_true));
//(mData.get(j) * (keduSpace * 1.0 / valueSpace))：为每个柱状条所占的高度值px
int initx = startX + itemSpace * (j + 1) + j * itemWidth;
canvas.drawRect(initx, (float) (startY - (mData.get(j) * (keduSpace * 1.0 / valueSpace))), initx + itemWidth, startY, mPaintBar);
}
}
/**
* 根据真实的数据刷新界面
*
* @param datas
* @param xList
* @param yList
* private int itemSpace = 20;//柱状条之间的间距
* private int itemWidth = 60;//柱状条的宽度
*/
public void updateValueData( List<Integer> datas, List<String> xList, List<Integer> yList , int itemSpace ,int itemWidth) {
this.itemSpace = itemSpace;
this.itemWidth = itemWidth;
this.mData = datas;
this.xAxisList = xList;
this.yAxisList = yList;
init(mContext, true);
invalidate();
}
public void updateValueData( List<Integer> datas, List<String> xList, List<Integer> yList) {
this.mData = datas;
this.xAxisList = xList;
this.yAxisList = yList;
init(mContext, true);
invalidate();
}
}
（2）.LineChartView 曲线
public class LineChartView extends View {
private Context mContext;
//绘制坐标轴的画笔
private Paint mAxisPaint;
//绘制曲线的画笔
private Paint mPaint;
private Paint mPaint2;
//绘制X轴上方的画笔
private Paint mXAxisLinePaint;
private Paint mPaintText;
//向上的曲线图的绘制起点(px)
private int startX;
private int startY;
//向下的曲线图的绘制起点(px)
private int downStartX;
private int downStartY;
//上方Y轴每单位刻度所占的像素值
private float YAxisUpUnitValue;
//下方Y轴每单位刻度所占的像素值
private float YAxisDownUnitValue;
//根据具体传入的数据，在坐标轴上绘制点
private Point[] mPoints;
private Point[] mPoints2;
//传入的数据，决定绘制的纵坐标值
private List<Integer> mDatas = new ArrayList<>();
private List<Integer> mDatas2 = new ArrayList<>();
//Y轴刻度集合
private List<Integer> mYAxisList = new ArrayList<>();
//X轴刻度集合
private List<String> mXAxisList = new ArrayList<>();
//X轴的绘制距离
private int mXAxisMaxValue;
//Y轴的绘制距离
private int mYAxisMaxValue;
//Y轴刻度间距(px)
private int yAxisSpace = 120;
//X轴刻度间距(px)
private int xAxisSpace = 100;
//Y轴刻度线宽度
private int mKeduWidth = 20;
//X Y轴字体的大小
private float keduTextSize = 30;
//刻度值距离坐标的padding距离
private int textPadinng = 10;
//Y轴递增的实际值
private int yIncreaseValue;
//true：绘制曲线 false：折线
private boolean isCurve = true;
private Rect mYMaxTextRect;
private Rect mXMaxTextRect;
private int mMaxTextHeight;
private int mMaxTextWidth;
public LineChartView(Context context) {
this(context, null);
}
public LineChartView(Context context, @Nullable AttributeSet attrs) {
this(context, attrs, 0);
}
public LineChartView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.mContext = context;
initData();
initView();
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int widthMode = MeasureSpec.getMode(widthMeasureSpec);
int heightMode = MeasureSpec.getMode(heightMeasureSpec);
int widthSize = MeasureSpec.getSize(widthMeasureSpec);
int heightSize = MeasureSpec.getSize(heightMeasureSpec);
if (heightMode == MeasureSpec.AT_MOST) {
heightSize = (mYAxisList.size() - 1) * yAxisSpace + mMaxTextHeight * 2 + textPadinng * 2;
}
if (widthMode == MeasureSpec.AT_MOST) {
widthSize = startX + (mDatas.size() - 1) * xAxisSpace + mMaxTextWidth;
}
//保存测量结果
setMeasuredDimension(widthSize, heightSize);
}
private void initView() {
//初始化画笔
mPaint = new Paint();
mPaint.setColor(ContextCompat.getColor(mContext, R.color.color_true));
mPaint.setStrokeWidth(5);
mPaint.setAntiAlias(true);
mPaint.setStyle(Paint.Style.STROKE);
mPaint2 = new Paint();
mPaint2.setColor(ContextCompat.getColor(mContext, R.color.color_yuyue));
mPaint2.setStrokeWidth(5);
mPaint2.setAntiAlias(true);
mPaint2.setStyle(Paint.Style.STROKE);
//绘制X,Y轴坐标的画笔
mAxisPaint = new Paint();
mAxisPaint.setColor(ContextCompat.getColor(mContext, R.color.color_xy));
mAxisPaint.setStrokeWidth(2);
mAxisPaint.setAntiAlias(true);
mAxisPaint.setStyle(Paint.Style.STROKE);
//绘制坐标轴上方的横线的画笔
mXAxisLinePaint = new Paint();
mXAxisLinePaint.setColor(ContextCompat.getColor(mContext, R.color.color_xy));
mXAxisLinePaint.setStrokeWidth(1);
mXAxisLinePaint.setAntiAlias(true);
mXAxisLinePaint.setStyle(Paint.Style.STROKE);
//绘制刻度值文字的画笔
mPaintText = new Paint();
mPaintText.setTextSize(keduTextSize);
mPaintText.setColor(ContextCompat.getColor(mContext, R.color.color_black));
mPaintText.setAntiAlias(true);
mPaintText.setStrokeWidth(5);
mYMaxTextRect = new Rect();
mXMaxTextRect = new Rect();
mPaintText.getTextBounds(Integer.toString(mYAxisList.get(mYAxisList.size() - 1)), 0, Integer.toString(mYAxisList.get(mYAxisList.size() - 1)).length(), mYMaxTextRect);
mPaintText.getTextBounds(mXAxisList.get(mXAxisList.size() - 1), 0, mXAxisList.get(mXAxisList.size() - 1).length(), mXMaxTextRect);
//绘制的刻度文字的最大值所占的宽高
mMaxTextWidth = mYMaxTextRect.width() > mXMaxTextRect.width() ? mYMaxTextRect.width() : mXMaxTextRect.width();
mMaxTextHeight = mYMaxTextRect.height() > mXMaxTextRect.height() ? mYMaxTextRect.height() : mXMaxTextRect.height();
//指定绘制的起始位置
startX = mMaxTextWidth + textPadinng + mKeduWidth;
//坐标原点Y的位置（+1的原因：X轴画笔的宽度为2 ; +DP2PX.dip2px(mContext, 5)原因：为刻度文字所占的超出的高度 ）——>解决曲线画到最大刻度值时，显示高度不够，曲线显示扁扁的问题
startY = yAxisSpace * (mYAxisList.size() - 1) + mMaxTextHeight;
if (mYAxisList.size() >= 2) {
yIncreaseValue = mYAxisList.get(1) - mYAxisList.get(0);
}
//X轴绘制距离
mXAxisMaxValue = (mDatas.size() - 1) * xAxisSpace;
//Y轴绘制距离
mYAxisMaxValue = (mYAxisList.size() - 1) * yAxisSpace;
//坐标起始点Y轴高度=(startY+mKeduWidth) 下方文字所占高度= DP2PX.dip2px(mContext, keduTextSize)
// int viewHeight = startY + 2 * mKeduWidth + DP2PX.dip2px(mContext, keduTextSize);
int viewHeight = startY + 2 * mKeduWidth + (int)keduTextSize;
//viewHeight=121
Log.e("TAG", "viewHeight=" + viewHeight);
}
/**
* 根据传入的数据，确定绘制的点
*
* @return
*/
private Point[] initPoint() {
Point[] points = new Point[mDatas.size()];
for (int i = 0; i < mDatas.size(); i++) {
Integer ybean = mDatas.get(i);
int drawHeight = (int) (startY * 1.0 - (ybean * yAxisSpace * 1.0 / yIncreaseValue));
int startx = startX + xAxisSpace * i;
points[i] = new Point(startx, drawHeight);
}
Log.e("TAG", "startX=" + startX + "---startY=" + startY);
return points;
}
private Point[] initPoint2() {
Point[] points = new Point[mDatas2.size()];
for (int i = 0; i < mDatas2.size(); i++) {
Integer ybean = mDatas2.get(i);
int drawHeight = (int) (startY * 1.0 - (ybean * yAxisSpace * 1.0 / yIncreaseValue));
int startx = startX + xAxisSpace * i;
points[i] = new Point(startx, drawHeight);
}
Log.e("TAG", "startX=" + startX + "---startY=" + startY);
return points;
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
mPoints = initPoint();
mPoints2 = initPoint2();
for (int i = 0; i < mYAxisList.size(); i++) {
//Y轴方向递增的高度
int yAxisHeight = startY - yAxisSpace * i;
//绘制X轴和上方横线
canvas.drawLine(startX - mKeduWidth, yAxisHeight, startX + (mDatas.size() - 1) * xAxisSpace, yAxisHeight, mXAxisLinePaint);
//绘制左边Y轴刻度线
// canvas.drawLine(startX, yAxisHeight, startX - mKeduWidth, yAxisHeight, mAxisPaint);
//绘制文字时,Y轴方向递增的高度
int yTextHeight = startY - yAxisSpace * i;
//绘制Y轴刻度旁边的刻度文字值,10为刻度线与文字的间距
mPaintText.setTextAlign(Paint.Align.RIGHT);
if (i == ( mYAxisList.size()-1)){
canvas.drawText(mYAxisList.get(i) + " ", (startX - mKeduWidth) - textPadinng, yTextHeight, mPaintText);
}else {
canvas.drawText(mYAxisList.get(i) + "", (startX - mKeduWidth) - textPadinng, yTextHeight, mPaintText);
}
}
//绘制Y轴
canvas.drawLine(startX, startY, startX, startY - mYAxisMaxValue, mAxisPaint);
//连接所有的数据点,画曲线
if (isCurve) {
//画曲线
drawScrollLine(canvas);
drawScrollLine2(canvas);
} else {
//画折线
drawLine(canvas);
}
//绘制X轴下面显示的文字
for (int i = 0; i < mXAxisList.size(); i++) {
int xTextWidth = startX + xAxisSpace * i - mKeduWidth;
//设置从起点位置的左边对齐绘制文字
mPaintText.setTextAlign(Paint.Align.LEFT);
Rect rect = new Rect();
mPaintText.getTextBounds(mXAxisList.get(i), 0, mXAxisList.get(i).length(), rect);
canvas.drawText(mXAxisList.get(i), startX - rect.width() / 2 + xAxisSpace * i, startY + rect.height() + textPadinng, mPaintText);
}
}
/**
* 绘制曲线-曲线图
*
* @param canvas
*/
private void drawScrollLine(Canvas canvas) {
Point startp;
Point endp;
for (int i = 0; i < mPoints.length - 1; i++) {
startp = mPoints[i];
endp = mPoints[i + 1];
int wt = (startp.x + endp.x) / 2;
Point p3 = new Point();
Point p4 = new Point();
p3.y = startp.y;
p3.x = wt;
p4.y = endp.y;
p4.x = wt;
Path path = new Path();
path.moveTo(startp.x, startp.y);
path.cubicTo(p3.x, p3.y, p4.x, p4.y, endp.x, endp.y);
canvas.drawPath(path, mPaint);
}
}
private void drawScrollLine2(Canvas canvas) {
Point startp;
Point endp;
for (int i = 0; i < mPoints2.length - 1; i++) {
startp = mPoints2[i];
endp = mPoints2[i + 1];
int wt = (startp.x + endp.x) / 2;
Point p3 = new Point();
Point p4 = new Point();
p3.y = startp.y;
p3.x = wt;
p4.y = endp.y;
p4.x = wt;
Path path = new Path();
path.moveTo(startp.x, startp.y);
path.cubicTo(p3.x, p3.y, p4.x, p4.y, endp.x, endp.y);
canvas.drawPath(path, mPaint2);
}
}
/**
* 绘制直线-折线图
*
* @param canvas
*/
private void drawLine(Canvas canvas) {
Point startp;
Point endp;
for (int i = 0; i < mPoints.length - 1; i++) {
startp = mPoints[i];
endp = mPoints[i + 1];
canvas.drawLine(startp.x, startp.y, endp.x, endp.y, mPaint);
}
}
private void initData() {
//外界传入的数据，即为绘制曲线的每个点
mDatas.add(0);
mDatas.add(10);
mDatas.add(5);
mDatas.add(20);
mDatas.add(15);
mDatas2.add(10);
mDatas2.add(5);
mDatas2.add(0);
mDatas2.add(10);
mDatas2.add(20);
int[] mYAxisData = new int[]{0, 5, 10, 15, 20 ,25 ,30};
for (int i = 0; i < mYAxisData.length; i++) {
mYAxisList.add(mYAxisData[i]);
}
//X轴数据
mXAxisList.add("06-01");
mXAxisList.add("06-02");
mXAxisList.add("06-03");
mXAxisList.add("06-04");
mXAxisList.add("06-05");
}
/**
* 传入数据，重新绘制图表
*
* @param datas
* @param yAxisData
*/
public void updateData(List<Integer> datas,List<Integer> datas2, List<String> xAxisData, List<Integer> yAxisData ,int xAxisSpace) {
this.xAxisSpace = xAxisSpace;
this.mDatas = datas;
this.mDatas2 = datas2;
this.mXAxisList = xAxisData;
this.mYAxisList = yAxisData;
initView();
postInvalidate();
}
}
3.布局 activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"
android:layout_marginRight="10dp"
android:orientation="vertical">
<com.zdmtech.tongjiquxiandemo.LineChartView
android:id="@+id/lineChartView"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
<com.zdmtech.tongjiquxiandemo.BarChartView
android:id="@+id/barChartView"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginTop="10dp"/>
</LinearLayout>
</RelativeLayout>
4.Activity 代码
public class MainActivity extends AppCompatActivity {
private Activity activity;
private LineChartView lineChartView ;
private BarChartView barChartView ;
/**
* 线形图
* */
//传入的数据，决定绘制的纵坐标值
private List<Integer> mDatas = new ArrayList<>();
private List<Integer> mDatas2 = new ArrayList<>();
//Y轴刻度集合
private List<Integer> mYAxisList = new ArrayList<>();
//X轴刻度集合
private List<String> mXAxisList = new ArrayList<>();
/**
* 柱状图
* */
//柱状体数据 集合
private List<Integer> mData = new ArrayList<>();
//Y轴刻度集合（相差大小一定）
private List<Integer> yAxisList = new ArrayList<>();
//X轴刻度集合
private List<String> xAxisList = new ArrayList<>();
private int width_bar = 0 ;
private int width_chart = 0 ;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
activity = this;
initData();
initDataBar();
lineChartView = findViewById(R.id.lineChartView);
barChartView = findViewById(R.id.barChartView);
/**
* 获取控件宽高
* 线性
* */
ViewTreeObserver vto = lineChartView.getViewTreeObserver();
vto.addOnGlobalLayoutListener(new ViewTreeObserver.OnGlobalLayoutListener() {
@Override
public void onGlobalLayout() {
lineChartView.getViewTreeObserver().removeGlobalOnLayoutListener(this);
/**
* 线形图更新数据
* */
width_chart = lineChartView.getWidth();
Log.e("++++++" ,"width_chart = "+width_chart);
int chartWidth = (width_chart-80)/mDatas.size();
Log.e("++++++" ,"chartWidth = "+chartWidth);
lineChartView.updateData(mDatas ,mDatas2 ,mXAxisList ,mYAxisList ,chartWidth);
}
});
/**
* 获取控件宽高
* 柱状
* */
ViewTreeObserver vto2 = barChartView.getViewTreeObserver();
vto2.addOnGlobalLayoutListener(new ViewTreeObserver.OnGlobalLayoutListener() {
@Override
public void onGlobalLayout() {
barChartView.getViewTreeObserver().removeGlobalOnLayoutListener(this);
/**
* 柱状图更新数据
* */
width_bar = barChartView.getWidth();
Log.e("++++++" ,"width_bar = "+width_bar);
int barWidth = width_bar/(mData.size()+1);
int itemSpace = (barWidth*3)/10;
int itemWidth = (barWidth*7)/10;
Log.e("++++++" ,"itemSpace = "+itemSpace);
Log.e("++++++" ,"itemWidth = "+itemWidth);
Log.e("++++++" ,"xAxisList = "+xAxisList.size());
barChartView.updateValueData(mData, xAxisList , yAxisList ,itemSpace ,itemWidth);
// barChartView.updateValueData(mData, xAxisList , yAxisList);
}
});
}
private void initData() {
//外界传入的数据，即为绘制曲线的每个点
mDatas.add(30);
mDatas.add(20);
mDatas.add(10);
mDatas.add(5);
mDatas.add(0);
mDatas.add(25);
mDatas.add(10);
mDatas.add(30);
mDatas.add(10);
mDatas.add(5);
mDatas2.add(0);
mDatas2.add(30);
mDatas2.add(10);
mDatas2.add(5);
mDatas2.add(0);
mDatas2.add(10);
mDatas2.add(15);
mDatas2.add(20);
mDatas2.add(25);
mDatas2.add(30);
int[] mYAxisData = new int[]{0, 5, 10, 15, 20 ,25 ,30};
for (int i = 0; i < mYAxisData.length; i++) {
mYAxisList.add(mYAxisData[i]);
}
//X轴数据
mXAxisList.add("06-01");
mXAxisList.add("06-02");
mXAxisList.add("06-03");
mXAxisList.add("06-04");
mXAxisList.add("06-05");
mXAxisList.add("06-06");
mXAxisList.add("06-07");
mXAxisList.add("06-08");
mXAxisList.add("06-09");
mXAxisList.add("06-10");
}
/**
* 初始化数据
*/
private void initDataBar() {
int[] dataY = {0, 4, 8, 12, 16, 20, 24, 28};
for (int i = 0; i < dataY.length; i++) {
yAxisList.add(dataY[i]);
}
int[] data = {28, 24, 20, 16, 12, 10, 8, 6, 4, 2};
for (int i = 0; i < data.length; i++) {
mData.add(data[i]);
}
String[] xAxis = {"1月", "2月", "3月", "4月", "5月", "6月", "7月", "8月", "9月", "10月"};
for (int i = 0; i < mData.size(); i++) {
xAxisList.add(xAxis[i]);
}
}
}
5.Demo下载地址 https://download.youkuaiyun.com/download/yyxhzdm/15365958
后期会添加XY轴根据数据的长短与大小来自动适配XY轴数据
二、利用RecycleView来实现柱状统计图
1.布局类 bar_chart_layout
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/chart"
android:layout_width="match_parent"
android:layout_height="200dp">
<View
android:id="@+id/view_y"
android:layout_width="0.5dp"
android:layout_height="match_parent"
android:layout_marginLeft="40dp"
android:layout_marginTop="30dp"
android:background="#666" />
<View
android:id="@+id/view_x"
android:layout_width="match_parent"
android:layout_height="0.5dp"
android:layout_alignBottom="@+id/view_y"
android:layout_marginLeft="40dp"
android:layout_marginBottom="20dp"
android:background="#666" />
<TextView
android:id="@+id/text_low"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_marginLeft="5dp"
android:layout_marginBottom="30dp"
android:drawablePadding="2dp"
android:gravity="right"
android:minWidth="20dp"
android:text="低"
android:textSize="10sp" />
<TextView
android:id="@+id/text_mid"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_marginLeft="5dp"
android:layout_marginBottom="95dp"
android:drawablePadding="2dp"
android:gravity="right"
android:minWidth="20dp"
android:text="中"
android:textSize="10sp" />
<TextView
android:id="@+id/text_hi"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_marginLeft="5dp"
android:layout_marginBottom="150dp"
android:drawablePadding="2dp"
android:gravity="right"
android:minWidth="20dp"
android:text="高"
android:textSize="10sp" />
<androidx.recyclerview.widget.RecyclerView
android:id="@+id/rcv"
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:layout_alignParentBottom="true"
android:layout_marginLeft="45dp"/>
</RelativeLayout>
（2）.item 的布局bar_chart_item
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="vertical"
android:layout_width="50dp"
android:id="@+id/rl_chart_item"
android:layout_height="match_parent">
<TextView
android:id="@+id/name"
android:layout_width="wrap_content"
android:layout_height="20dp"
android:textSize="11sp"
android:layout_alignParentBottom="true"
android:layout_centerHorizontal="true"
android:singleLine="true"
android:maxLines="1"
android:ellipsize="end"
android:text=""
android:textColor="#999"
tools:text = "name"/>
<ProgressBar
android:id="@+id/pb_vertical"
android:layout_width="20dp"
android:layout_height="150dp"
android:indeterminateOnly="false"
android:layout_above="@+id/name"
android:max="100"
android:progress="60"
android:layout_centerHorizontal="true"
android:layout_marginBottom="2dp"
android:progressDrawable="@drawable/progress_normal" />
</RelativeLayout>
2.adapter
public class BarAdapter extends RecyclerView.Adapter<RecyclerView.ViewHolder> {
private final LayoutInflater mLayoutInflater;
private List<ChartData> mDatas;
private float mLowStandard;
private float mHighStandard;
private Context mContext;
private int indexSelected = -1;
public BarAdapter(Context context, float lowStandard, float highStandard,List<ChartData> mDatas) {
mLayoutInflater = LayoutInflater.from(context);
mContext = context;
mLowStandard = lowStandard;
mHighStandard = highStandard;
this.mDatas=mDatas;
}
@Override
public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
ViewHolder holder = new ViewHolder(mLayoutInflater.inflate(R.layout.bar_chart_item, parent, false));
return holder;
}
@Override
public void onBindViewHolder(RecyclerView.ViewHolder holder, int position) {
final ChartData data = mDatas.get(position);
TextView tv_name = ((ViewHolder) holder).getView(R.id.name);
if(position == indexSelected){ //当用户选中时改变文字颜色
tv_name.setTextColor(Color.RED);
} else {
tv_name.setTextColor(Color.GRAY);
}
ProgressBar progressBar = ((ViewHolder) holder).getView(R.id.pb_vertical);
float pro = data.getProgress();
progressBar.setVisibility(View.VISIBLE);
if (pro > mHighStandard) {//大于“高”时使用一种颜色的Drawable
progressBar.setProgressDrawable(ContextCompat.getDrawable(mContext, R.drawable.progress_high));
} else if (pro < mLowStandard) {
progressBar.setProgressDrawable(ContextCompat.getDrawable(mContext, R.drawable.progress_low));
} else {//小于“低”时使用一种颜色的Drawable
progressBar.setProgressDrawable(ContextCompat.getDrawable(mContext, R.drawable.progress_normal));
}
progressBar.setProgress(Math.round(pro));
tv_name.setText(data.getName());
}
@Override
public int getItemCount() {
if (mDatas == null) {
return 0;
}
return mDatas.size();
}
public void setSelected(int position) {
if(indexSelected == -1){
indexSelected = position;
notifyItemChanged(indexSelected);
} else {
int a = indexSelected;
indexSelected = position;
notifyItemChanged(indexSelected);
notifyItemChanged(a);
}
}
public class ViewHolder extends RecyclerView.ViewHolder {
public ViewHolder(View view) {
super(view);
}
public void setText(int viewId, String text){
TextView tv = (TextView) itemView.findViewById(viewId);
tv.setText(text);
}
public <T extends View> T getView(int viewId){
return (T) itemView.findViewById(viewId);
}
}
}
3.Activity
public class MainActivity extends AppCompatActivity {
protected View viewY;
protected View viewX;
protected TextView textLow;
protected TextView textMid;
protected TextView textHi;
protected RecyclerView rcv;
protected RelativeLayout chart;
BarAdapter mdapter;
List<ChartData> mDatas=new ArrayList<>();
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
super.setContentView(R.layout.activity_main);
initView();
initData();
initAdapter();
}
private void initView() {
viewY = (View) findViewById(R.id.view_y);
viewX = (View) findViewById(R.id.view_x);
textLow = (TextView) findViewById(R.id.text_low);
textMid = (TextView) findViewById(R.id.text_mid);
textHi = (TextView) findViewById(R.id.text_hi);
rcv = (RecyclerView) findViewById(R.id.rcv);
LinearLayoutManager linearLayoutManager = new LinearLayoutManager(this);
linearLayoutManager.setOrientation(LinearLayoutManager.HORIZONTAL);
rcv.setHasFixedSize(true);
rcv.setLayoutManager(linearLayoutManager);
chart = (RelativeLayout) findViewById(R.id.chart);
}
private void initData(){
for (int i=1;i<=25;i++){
ChartData item=new ChartData();
item.setName("第"+i+"个");
item.setProgress(i*4);
mDatas.add(item);
}
}
private void initAdapter(){
mdapter = new BarAdapter(this, 25, 75,mDatas);
rcv.setAdapter(mdapter);
mdapter.notifyDataSetChanged();
}
}
4.demo下载地址 https://download.youkuaiyun.com/download/yyxhzdm/15365449
三、自定义底部斜体字的柱状图
1.自定义柱状图类 ： BarChartView
package com.example.mybarchartrecycleviewtwo;
import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.Rect;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import androidx.annotation.NonNull;
import androidx.appcompat.app.ActionBar;
import java.util.List;
/**
* 自定义组件：条形统计图
* Created by hanj on 14-12-30.
*/
public class BarChartView extends View {
private int screenW, screenH;
private List<BarChartItemBean> mItems;
//max value in mItems.
private float maxValue;
//max height of the bar
private int maxHeight;
private int[] mBarColors = new int[]{Color.RED, Color.GREEN, Color.BLUE, Color.YELLOW, Color.MAGENTA, Color.CYAN};
private Paint barPaint, linePaint, textPaint;
private Rect barRect, leftWhiteRect, rightWhiteRect;
private Path textPath;
private int leftMargin, topMargin, smallMargin;
//the width of one bar item
private int barItemWidth;
//the spacing between two bar items.
private int barSpace;
//the width of the line.
private int lineStrokeWidth;
/**
* The x-position of y-index and the y-position of the x-index..
*/
private float x_index_startY, y_index_startX;
private Bitmap arrowBmp;
private Rect x_index_arrowRect, y_index_arrowRect;
private static final int BG_COLOR = Color.parseColor("#FFFFFF"); //整体背景
public BarChartView(Context context, AttributeSet attrs) {
super(context, attrs);
init(context);
}
private void init(Context context) {
screenW = ScreenUtils.getScreenW(context);
// screenH = (int) (ScreenUtils.getScreenH(context)*2/3);
// Log.e("OkHttp" ,"screenH2222 = "+screenH);
screenH = 1080;
leftMargin = ScreenUtils.dp2px(context, 16);
topMargin = ScreenUtils.dp2px(context, 15);
smallMargin = ScreenUtils.dp2px(context, 6);
barPaint = new Paint();
barPaint.setColor(mBarColors[0]);
linePaint = new Paint();
lineStrokeWidth = ScreenUtils.dp2px(context, 1);
linePaint.setStrokeWidth(lineStrokeWidth);
textPaint = new Paint();
textPaint.setAntiAlias(true);
barRect = new Rect(0, 0, 0, 0);
textPath = new Path();
leftWhiteRect = new Rect(0, 0, 0, screenH);
rightWhiteRect = new Rect(screenW - leftMargin, 0, screenW, screenH);
arrowBmp = BitmapFactory.decodeResource(context.getResources(), R.drawable.arrow_up);
}
//标记是否已经获取过状态拉的高度
private boolean statusHeightHasGet;
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
if (!statusHeightHasGet) {
subStatusBarHeight();
statusHeightHasGet = true;
}
//draw background
canvas.drawColor(BG_COLOR);
//bounds
checkLeftMoving();
textPaint.setTextSize(ScreenUtils.dp2px(getContext(), 13));
for (int i = 0; i < mItems.size(); i++) {
//draw bar rect
barRect.left = (int) y_index_startX + barItemWidth * i + barSpace * (i + 1) - (int) leftMoving;
barRect.top = topMargin * 2 + (int) (maxHeight * (1.0f - mItems.get(i).getItemValue() / maxValue));
barRect.right = barRect.left + barItemWidth;
barPaint.setColor(mBarColors[i % mBarColors.length]);
canvas.drawRect(barRect, barPaint);
//draw type text
String typeText = mItems.get(i).getItemType();
float textPathStartX = barRect.left + barItemWidth / 2 -
(float) (Math.sin(Math.PI / 6)) * textPaint.measureText("好") / 2;
float textPathStartY = barRect.bottom;
textPath.reset();
textPath.moveTo(textPathStartX, textPathStartY);
textPath.lineTo(textPathStartX + (float) (1000 * Math.tan(Math.PI / 6)), textPathStartY + 1000);
canvas.drawTextOnPath(typeText, textPath, smallMargin * 1.5f, smallMargin * 2, textPaint);
//draw value text
String valueText = String.valueOf(mItems.get(i).getItemValue());
canvas.drawText(valueText, barRect.left - (textPaint.measureText(valueText) - barItemWidth) / 2,
barRect.top - smallMargin, textPaint);
}
//draw left white space and right white space
int c = barPaint.getColor();
barPaint.setColor(BG_COLOR);
leftWhiteRect.right = (int) y_index_startX;
canvas.drawRect(leftWhiteRect, barPaint);
canvas.drawRect(rightWhiteRect, barPaint);
barPaint.setColor(c);
//draw x-index line.
canvas.drawLine(
y_index_startX - lineStrokeWidth / 2,
x_index_startY,
screenW - leftMargin,
x_index_startY,
linePaint);
//draw y-index line.
canvas.drawLine(
y_index_startX,
x_index_startY + lineStrokeWidth / 2,
y_index_startX,
topMargin / 2,
linePaint);
canvas.drawBitmap(arrowBmp, null, y_index_arrowRect, null);
canvas.save();
canvas.rotate(90, (x_index_arrowRect.left + x_index_arrowRect.right) / 2, (x_index_arrowRect.top + x_index_arrowRect.bottom) / 2);
canvas.drawBitmap(arrowBmp, null, x_index_arrowRect, null);
canvas.restore();
//draw division value
int maxDivisionValueHeight = (int) (maxHeight * 1.0f / maxValue * maxDivisionValue);
textPaint.setTextSize(ScreenUtils.dp2px(getContext(), 12)); //Y轴字体大小
for (int i = 1; i <= 10; i++) {
float startY = barRect.bottom - maxDivisionValueHeight * 0.1f * i;
if (startY < topMargin / 2) {
break;
}
canvas.drawLine(y_index_startX, startY, y_index_startX + 10, startY, linePaint);
String text = String.valueOf((int) (maxDivisionValue * 0.1 * i));
canvas.drawText(text,
y_index_startX - textPaint.measureText(text) - 5,
startY + textPaint.measureText("0") / 2,
textPaint);
}
}
private float leftMoving;
private float lastPointX;
private float movingLeftThisTime = 0.0f;
@Override
public boolean onTouchEvent(@NonNull MotionEvent event) {
int type = event.getAction();
switch (type) {
case MotionEvent.ACTION_DOWN:
lastPointX = event.getRawX();
break;
case MotionEvent.ACTION_MOVE:
float x = event.getRawX();
movingLeftThisTime = lastPointX - x;
leftMoving += movingLeftThisTime;
lastPointX = x;
invalidate();
break;
case MotionEvent.ACTION_UP:
//smooth scroll
new Thread(new SmoothScrollThread(movingLeftThisTime)).start();
break;
default:
return super.onTouchEvent(event);
}
return true;
}
/**
* Check the value of leftMoving to ensure that the view is not out of the screen.
*/
private void checkLeftMoving() {
if (leftMoving < 0) {
leftMoving = 0;
}
if (leftMoving > (maxRight - minRight)) {
leftMoving = maxRight - minRight;
}
}
public List<BarChartItemBean> getItems() {
return mItems;
}
public void setItems(List<BarChartItemBean> items) {
if (items == null) {
throw new RuntimeException("BarChartView.setItems(): the param items cannot be null.");
}
if (items.size() == 0) {
return;
}
this.mItems = items;
//Calculate the max value.
maxValue = mItems.get(0).getItemValue();
for (BarChartItemBean bean : items) {
if (bean.getItemValue() > maxValue) {
maxValue = bean.getItemValue();
}
}
//Calculate the max division value.
getRange(maxValue, 0);
//Get the width of each bar.
getBarItemWidth(screenW, items.size());
//Refresh the view.
invalidate();
}
private int maxRight, minRight;
/**
* Get the width of each bar which is depended on the screenW and item count.
*/
private void getBarItemWidth(int screenW, int itemCount) {
//The min width of the bar is 50dp.
int minBarWidth = ScreenUtils.dp2px(getContext(), 40);
//The min width of spacing.
int minBarSpacing = ScreenUtils.dp2px(getContext(), 30);
barItemWidth = (screenW - leftMargin * 2) / (itemCount + 3);
barSpace = (screenW - leftMargin * 2 - barItemWidth * itemCount) / (itemCount + 1);
if (barItemWidth < minBarWidth || barSpace < minBarSpacing) {
barItemWidth = minBarWidth;
barSpace = minBarSpacing;
}
maxRight = (int) y_index_startX + lineStrokeWidth + (barSpace + barItemWidth) * mItems.size();
minRight = screenW - leftMargin - barSpace;
}
/**
* Sub the height of status bar and action bar to get the accurate height of screen.
*/
private void subStatusBarHeight() {
//The height of the status bar
int statusHeight = ScreenUtils.getStatusBarHeight((Activity) getContext());
//The height of the actionBar
ActionBar ab = ((MainActivity) getContext()).getSupportActionBar();
int abHeight = ab == null ? 0 : ab.getHeight();
screenH -= (statusHeight + abHeight);
barRect.top = topMargin * 2;
barRect.bottom = screenH - topMargin * 3;
maxHeight = barRect.bottom - barRect.top;
x_index_startY = barRect.bottom;
x_index_arrowRect = new Rect(screenW - leftMargin, (int) (x_index_startY - 10),
screenW - leftMargin + 10, (int) (x_index_startY + 10));
}
//The max and min division value.
private float maxDivisionValue, minDivisionValue;
//Get the max and min division value by the max and min value in mItems.
private void getRange(float maxValue, float minValue) {
//max
int scale = Utility.getScale(maxValue);
float unscaledValue = (float) (maxValue / Math.pow(10, scale));
maxDivisionValue = (float) (getRangeTop(unscaledValue) * Math.pow(10, scale));
y_index_startX = getDivisionTextMaxWidth(maxDivisionValue) + 10;
y_index_arrowRect = new Rect((int) (y_index_startX - 5), topMargin / 2 - 20,
(int) (y_index_startX + 5), topMargin / 2);
}
private float getRangeTop(float value) {
//value: [1,10)
if (value < 1.2) {
return 1.2f;
}
if (value < 1.5) {
return 1.5f;
}
if (value < 2.0) {
return 2.0f;
}
if (value < 3.0) {
return 3.0f;
}
if (value < 4.0) {
return 4.0f;
}
if (value < 5.0) {
return 5.0f;
}
if (value < 6.0) {
return 6.0f;
}
if (value < 8.0) {
return 8.0f;
}
return 10.0f;
}
/**
* Get the max width of the division value text.
*/
private float getDivisionTextMaxWidth(float maxDivisionValue) {
Paint textPaint = new Paint();
textPaint.setTextSize(ScreenUtils.dp2px(getContext(), 10));
float max = textPaint.measureText(String.valueOf(maxDivisionValue * 0.1f));
for (int i = 2; i <= 10; i++) {
float w = textPaint.measureText(String.valueOf(maxDivisionValue * 0.1f * i));
if (w > max) {
max = w;
}
}
return max;
}
/**
* Use this thread to create a smooth scroll after ACTION_UP.
*/
private class SmoothScrollThread implements Runnable {
float lastMoving;
boolean scrolling = true;
private SmoothScrollThread(float lastMoving) {
this.lastMoving = lastMoving;
scrolling = true;
}
@Override
public void run() {
while (scrolling) {
long start = System.currentTimeMillis();
lastMoving = (int) (0.9f * lastMoving);
leftMoving += lastMoving;
checkLeftMoving();
postInvalidate();
if (Math.abs(lastMoving) < 5) {
scrolling = false;
}
long end = System.currentTimeMillis();
if (end - start < 20) {
try {
Thread.sleep(20 - (end - start));
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
}
}
}
2.布局xml activity_main
<com.example.mybarchartrecycleviewtwo.BarChartView
android:layout_marginTop="10dp"
android:id="@+id/bar_chart"
android:layout_width="match_parent"
android:layout_height="400dp"
android:background="#FFFFFF"/>
3.下载地址：https://download.youkuaiyun.com/download/yyxhzdm/15365417
扫一扫
2849
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
