有问题or坑 可以加我vx:Logout-y

结构规划

角色ip组件
k8s-master0110.255.32.21etcd kube-apiserver kube-controller-manager kube-scheduler kube-proxy
k8s-master0210.255.32.22etcd kube-apiserver kube-controller-manager kube-scheduler kube-proxy
k8s-node0110.255.32.23etcd kubelet kube-proxy
k8s-node0210.255.32.24kubelet kube-proxy

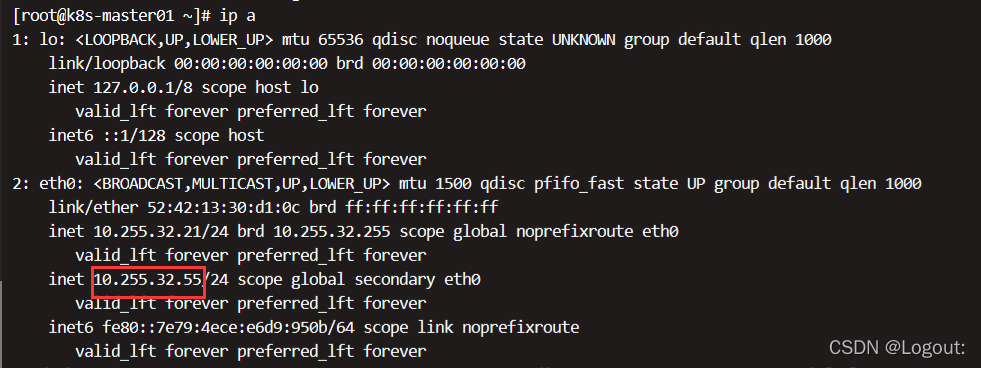

VIP10.255.32.55keepalived

操作系统初始化配置

# 1、关闭防火墙
systemctl stop firewalld
systemctl disable firewalld

# 2、关闭selinux
sed -i 's/enforcing/disabled/' /etc/selinux/config  # 永久
setenforce 0  # 临时

# 3、关闭swap
swapoff -a  # 临时
sed -ri 's/.*swap.*/#&/' /etc/fstab    # 永久

# 4、在master添加hosts
cat >> /etc/hosts << EOF
10.255.32.21 k8s-master01
10.255.32.22 k8s-master02
10.255.32.23 k8s-node01
10.255.32.24 k8s-node02
EOF

# 5、将桥接的IPv4流量传递到iptables的链
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system  # 生效

# 6、时间同步
yum install ntpdate -y
ntpdate time.windows.com

# 7、 安装docker
yum install -y docker
sed -i s#systemd#cgroupfs#g /usr/lib/systemd/system/docker.service
systemctl daemon-reload
systemctl restart docker

1. 部署etcd集群

节点名称IP
etcd-0110.255.32.21
etcd-0210.255.32.22
etcd-0310.255.32.23
1.1 准备cfssl证书生成工具
mkdir cfssl && cd cfssl/
wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
chmod +x cfssl_linux-amd64 cfssljson_linux-amd64 cfssl-certinfo_linux-amd64
mv cfssl_linux-amd64 /usr/local/bin/cfssl
mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
mv cfssl-certinfo_linux-amd64 /usr/bin/cfssl-certinfo
1.2 生成etcd证书
1.2.1 自签证书颁发机构（CA）

# 1、创建工作目录
mkdir -p ~/TLS/{etcd,k8s} && cd ~/TLS/etcd

# 2、自签CA
cat > ca-config.json << EOF
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "www": {
         "expiry": "876000h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF

cat > ca-csr.json << EOF
{
    "CN": "etcd CA",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing"
        }
    ],
    "ca": {
      "expiry": "876000h"
    }
}
EOF

# 3、生成证书：会生成ca.pem和ca-key.pem文件
cfssl gencert -initca ca-csr.json | cfssljson -bare ca -
1.2.2 使用自签CA签发Etcd Https证书
# 创建证书请求文件
cat > server-csr.json << EOF
{
    "CN": "etcd",
    "hosts": [
    "10.255.32.21",
    "10.255.32.22",
    "10.255.32.23"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing"
        }
    ]
}
EOF

#生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | cfssljson -bare server
1.3 部署etcd集群
1.3.1 下载压缩包并解压
wget https://github.com/etcd-io/etcd/releases/download/v3.4.9/etcd-v3.4.9-linux-amd64.tar.gz
mkdir /opt/etcd/{bin,cfg,ssl} -p
tar zxvf etcd-v3.4.9-linux-amd64.tar.gz
mv etcd-v3.4.9-linux-amd64/{etcd,etcdctl} /opt/etcd/bin/
1.3.2 创建etcd配置文件
cat > /opt/etcd/cfg/etcd.conf << EOF
#[Member]
ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://10.255.32.21:2380"
ETCD_LISTEN_CLIENT_URLS="https://10.255.32.21:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://10.255.32.21:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://10.255.32.21:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://10.255.32.21:2380,etcd-2=https://10.255.32.22:2380,etcd-3=https://10.255.32.23:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

配置文件说明：ETCD_NAME：节点名称，集群中唯一
ETCD_DATA_DIR：数据目录
ETCD_LISTEN_PEER_URLS：集群通信监听地址
ETCD_LISTEN_CLIENT_URLS：客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEERURLS：集群通告地址
ETCD_ADVERTISE_CLIENT_URLS：客户端通告地址
ETCD_INITIAL_CLUSTER：集群节点地址
ETCD_INITIALCLUSTER_TOKEN：集群Token
ETCD_INITIALCLUSTER_STATE：加入集群的当前状态，new是新集群，existing表示加入已有集群
1.3.3 systemd管理etcd
cat > /usr/lib/systemd/system/etcd.service << EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
EnvironmentFile=/opt/etcd/cfg/etcd.conf
ExecStart=/opt/etcd/bin/etcd \
--cert-file=/opt/etcd/ssl/server.pem \
--key-file=/opt/etcd/ssl/server-key.pem \
--peer-cert-file=/opt/etcd/ssl/server.pem \
--peer-key-file=/opt/etcd/ssl/server-key.pem \
--trusted-ca-file=/opt/etcd/ssl/ca.pem \
--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem \
--logger=zap
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF
1.3.4 拷贝证书
cp ~/TLS/etcd/ca*pem ~/TLS/etcd/server*pem /opt/etcd/ssl/
1.3.4 拷贝证书到另外两台服务器
scp -r /opt/etcd/ root@10.255.32.22:/opt/
scp /usr/lib/systemd/system/etcd.service root@10.255.32.22:/usr/lib/systemd/system/
scp -r /opt/etcd/ root@10.255.32.23:/opt/
scp /usr/lib/systemd/system/etcd.service root@10.255.32.23:/usr/lib/systemd/system/
1.3.5 修改etcd.conf中的ip,节点名称
vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-1" #修改成etcd-2 etcd-3
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://10.255.32.22:2380" # 本机ip
ETCD_LISTEN_CLIENT_URLS="https://10.255.32.22:2379" # 本机ip

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://10.255.32.22:2380" # 本机ip
ETCD_ADVERTISE_CLIENT_URLS="https://10.255.32.22:2379"  # 本机ip
ETCD_INITIAL_CLUSTER="etcd-1=https://10.255.32.21:2380,etcd-2=https://10.255.32.22:2380,etcd-3=https://10.255.32.23:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
1.3.6 启动etcd并设置开机启动
# 3台都启动
systemctl daemon-reload
systemctl start etcd
systemctl enable etcd
1.3.7 查看集群状态
ETCDCTL_API=3 /opt/etcd/bin/etcdctl --cacert=/opt/etcd/ssl/ca.pem --cert=/opt/etcd/ssl/server.pem --key=/opt/etcd/ssl/server-key.pem --endpoints="https://10.255.32.21:2379,https://10.255.32.22:2379,https://10.255.32.23:2379" endpoint health --write-out=table

+---------------------------+--------+-------------+-------+
|         ENDPOINT          | HEALTH |    TOOK     | ERROR |
+---------------------------+--------+-------------+-------+
| https://10.255.32.21:2379 |   true | 23.512194ms |       |
| https://10.255.32.22:2379 |   true | 27.815236ms |       |
| https://10.255.32.23:2379 |   true | 34.938155ms |       |
+---------------------------+--------+-------------+-------+

2. k8s集群部署

单Master集群:(后续扩容)

角色ip
k8s-master0110.255.32.21
k8s-node0110.255.32.23
k8s-node0210.255.32.24

2.1 Master部署

2.1.1 kube-apiserver

自签证书签发机构（CA）
cd ~/TLS/k8s
cat > ca-config.json << EOF
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
         "expiry": "876000h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF
cat > ca-csr.json << EOF
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing",
            "O": "k8s",
            "OU": "System"
        }
    ],
    "ca": {
      "expiry": "876000h"
    }
}
EOF

# 生成证书：生成ca.pem和ca-key.pem文件
cfssl gencert -initca ca-csr.json | cfssljson -bare ca -
用自签CA签发kube-apiserver HTTPS证书

注意：以下件hosts字段中IP为所有Master/LB/VIP IP，一个都不能少！为了方便后期扩容可以多写几个预留的IP

# 创建证书请求文件
cat > server-csr.json << EOF
{
    "CN": "kubernetes",
    "hosts": [
      "10.0.0.1", #这个ip必须留着!!!!
      "127.0.0.1",
      "10.255.32.21",
      "10.255.32.22",
      "10.255.32.23",
      "10.255.32.24",
      "10.255.32.55",
      "kubernetes",
      "kubernetes.default",
      "kubernetes.default.svc",
      "kubernetes.default.svc.cluster",
      "kubernetes.default.svc.cluster.local"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing",
            "O": "k8s",
            "OU": "System"
        }
    ]
}
EOF

# 生成证书，生成server.pem和server-key.pem
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | cfssljson -bare server
部署kube-apiserver

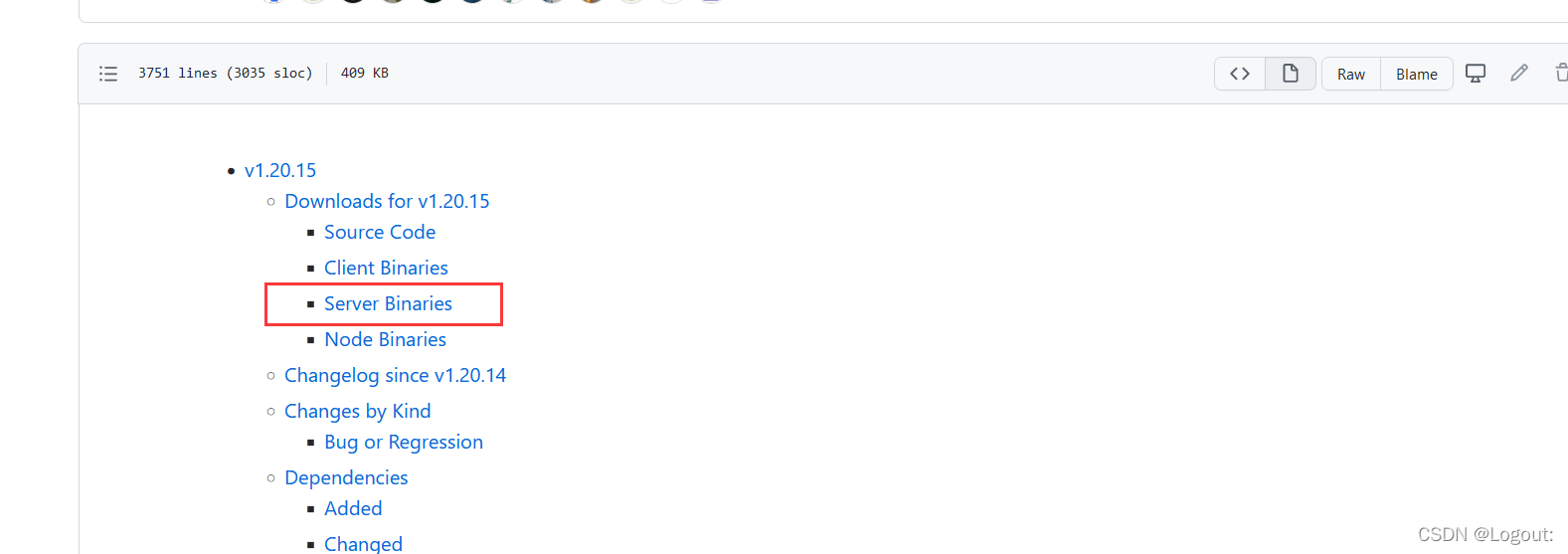

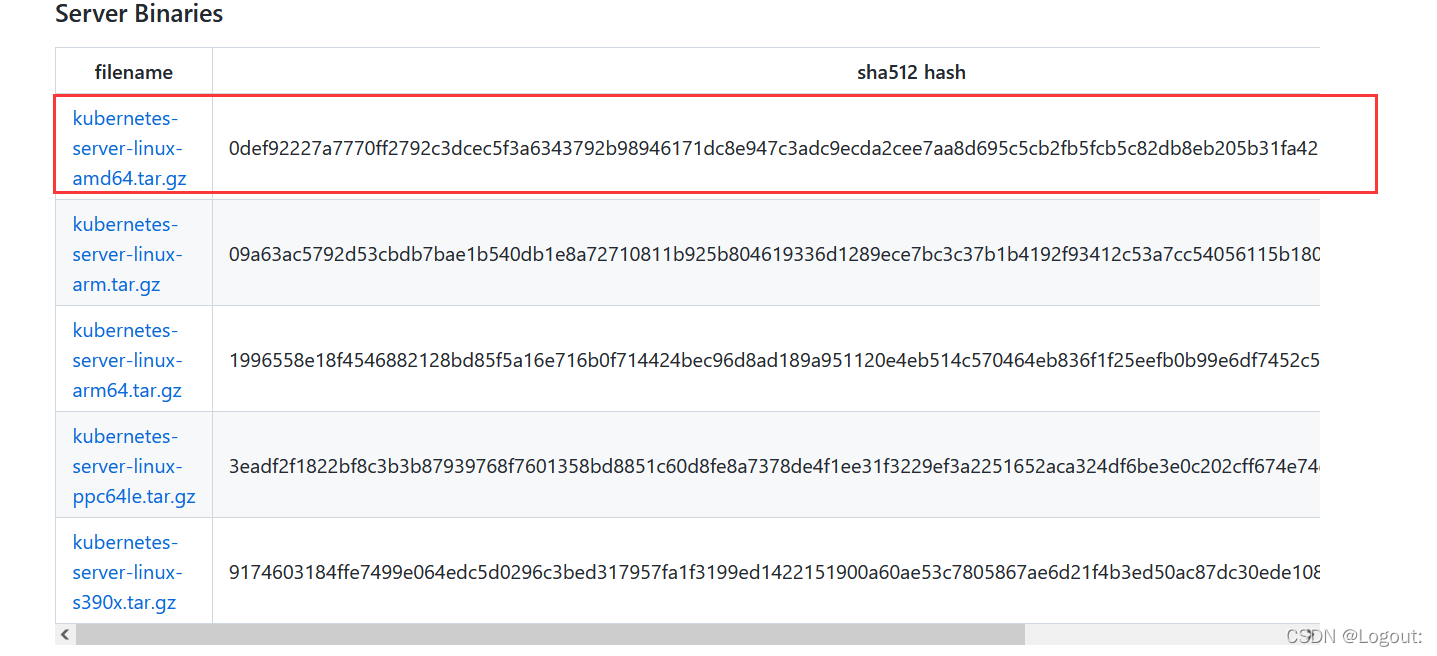

1. 下载kube-apiserver server包即可在这里插入图片描述在这里插入图片描述
2. 解压二进制软件包
mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
tar zxvf kubernetes-server-linux-amd64.tar.gz
cd kubernetes/server/bin
cp kube-apiserver kube-scheduler kube-controller-manager /opt/kubernetes/bin
cp kubectl /usr/bin/
3. 创建配置文件
cat > /opt/kubernetes/cfg/kube-apiserver.conf << EOF
KUBE_APISERVER_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--etcd-servers=https://10.255.32.21:2379,https://10.255.32.22:2379,https://10.255.32.23:2379 \\
--bind-address=10.255.32.21 \\
--secure-port=6443 \\
--advertise-address=10.255.32.21 \\
--allow-privileged=true \\
--service-cluster-ip-range=10.0.0.0/24 \\
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \\
--authorization-mode=RBAC,Node \\
--enable-bootstrap-token-auth=true \\
--token-auth-file=/opt/kubernetes/cfg/token.csv \\
--service-node-port-range=30000-32767 \\
--kubelet-client-certificate=/opt/kubernetes/ssl/server.pem \\
--kubelet-client-key=/opt/kubernetes/ssl/server-key.pem \\
--tls-cert-file=/opt/kubernetes/ssl/server.pem  \\
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \\
--client-ca-file=/opt/kubernetes/ssl/ca.pem \\
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \\
--service-account-issuer=api \\
--service-account-signing-key-file=/opt/kubernetes/ssl/server-key.pem \\
--etcd-cafile=/opt/etcd/ssl/ca.pem \\
--etcd-certfile=/opt/etcd/ssl/server.pem \\
--etcd-keyfile=/opt/etcd/ssl/server-key.pem \\
--requestheader-client-ca-file=/opt/kubernetes/ssl/ca.pem \\
--proxy-client-cert-file=/opt/kubernetes/ssl/server.pem \\
--proxy-client-key-file=/opt/kubernetes/ssl/server-key.pem \\
--requestheader-allowed-names=kubernetes \\
--requestheader-extra-headers-prefix=X-Remote-Extra- \\
--requestheader-group-headers=X-Remote-Group \\
--requestheader-username-headers=X-Remote-User \\
--enable-aggregator-routing=true \\
--audit-log-maxage=30 \\
--audit-log-maxbackup=3 \\
--audit-log-maxsize=100 \\
--audit-log-path=/opt/kubernetes/logs/k8s-audit.log"
EOF

注：上面两个\ \ 第一个是转义符，第二个是换行符，使用转义符是为了使用EOF保留换行符参数说明：
--logtostderr：启用日志
--v：日志等级
--log-dir：日志目录
--etcd-servers：etcd集群地址
--bind-address：监听地址
--secure-port：https安全端口
--advertise-address：集群通告地址
--allow-privileged：启用授权
--service-cluster-ip-range：Service虚拟IP地址段
--enable-admission-plugins：准入控制模块
--authorization-mode：认证授权，启用RBAC授权和节点自管理
--enable-bootstrap-token-auth：启用TLS bootstrap机制
--token-auth-file：bootstrap token文件
--service-node-port-range：Service nodeport类型默认分配端口范围
--kubelet-client-xxx：apiserver访问kubelet客户端证书
--tls-xxx-file：apiserver https证书1.20版本必须加的参数：--service-account-issuer，--service-account-signing-key-file
--etcd-xxxfile：连接Etcd集群证书
--audit-log-xxx：审计日志启动聚合层相关配置：--requestheader-client-ca-file，--proxy-client-cert-file，--proxy-client-key-file，--requestheader-allowed-names，--requestheader-extra-headers-prefix，--requestheader-group-headers，--requestheader-username-headers，--enable-aggregator-routing
4. 拷贝生成的证书
# 把刚才生成的证书拷贝到配置文件中的路径
cp ~/TLS/k8s/ca*pem ~/TLS/k8s/server*pem /opt/kubernetes/ssl/
5. 启用 TLS Bootstrapping 机制
TLS Bootstraping：Master apiserver启用TLS认证后，Node节点kubelet和kube-proxy要与kube-apiserver进行通信，必须使用CA签发的有效证书才可以，当Node节点很多时，这种客户端证书颁发需要大量工作，同样也会增加集群扩展复杂度。为了简化流程，Kubernetes引入了TLS bootstraping机制来自动颁发客户端证书，kubelet会以一个低权限用户自动向apiserver申请证书，kubelet的证书由apiserver动态签署。所以强烈建议在Node上使用这种方式，目前主要用于kubelet，kube-proxy还是由我们统一颁发一个证书。
6. 创建token文件
# 随机获取token
head -c 16 /dev/urandom | od -An -t x | tr -d ' '
ffdc3282190b9766703a8c0e762e6824

# 创建token文件 (格式：token，用户名，UID，用户组)
cat > /opt/kubernetes/cfg/token.csv << EOF
ffdc3282190b9766703a8c0e762e6824,kubelet-bootstrap,10001,"system:node-bootstrapper"
EOF
7. systemd管理apiserver
cat > /usr/lib/systemd/system/kube-apiserver.service << EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-apiserver.conf
ExecStart=/opt/kubernetes/bin/kube-apiserver \$KUBE_APISERVER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF
8. 启动并设置开机启动
systemctl daemon-reload
systemctl start kube-apiserver
systemctl enable kube-apiserver

2.1.2 部署kube-controller-manager

1.创建配置文件
cat > /opt/kubernetes/cfg/kube-controller-manager.conf << EOF
KUBE_CONTROLLER_MANAGER_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--leader-elect=true \\
--kubeconfig=/opt/kubernetes/cfg/kube-controller-manager.kubeconfig \\
--bind-address=127.0.0.1 \\
--allocate-node-cidrs=true \\
--cluster-cidr=10.244.0.0/16 \\
--service-cluster-ip-range=10.0.0.0/24 \\
--cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \\
--cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem  \\
--root-ca-file=/opt/kubernetes/ssl/ca.pem \\
--service-account-private-key-file=/opt/kubernetes/ssl/ca-key.pem \\
--cluster-signing-duration=87600h0m0s"
EOF


# 配置说明：
--kubeconfig：连接apiserver配置文件
--leader-elect：当该组件启动多个时，自动选举（HA）
--cluster-signing-cert-file/--cluster-signing-key-file：自动为kubelet颁发证书的CA，与apiserver保持一致
2. 生成kubeconfig文件

生成kube-controller-manager证书：

 # 切换工作目录
 cd ~/TLS/k8s

# 创建证书请求文件
cat > kube-controller-manager-csr.json << EOF
{
  "CN": "system:kube-controller-manager",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}
EOF

# 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager

生成kubeconfig文件（以下是shell命令，直接在终端执行）：

KUBE_CONFIG="/opt/kubernetes/cfg/kube-controller-manager.kubeconfig"
KUBE_APISERVER="https://10.255.32.21:6443"
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials kube-controller-manager \
  --client-certificate=./kube-controller-manager.pem \
  --client-key=./kube-controller-manager-key.pem \
  --embed-certs=true \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-controller-manager \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}
3. systemd管理controller-manager
cat > /usr/lib/systemd/system/kube-controller-manager.service << EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-controller-manager.conf
ExecStart=/opt/kubernetes/bin/kube-controller-manager \$KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF
4. 启动并设置开机启动
systemctl daemon-reload
systemctl start kube-controller-manager
systemctl enable kube-controller-manager

2.1.3 部署kube-scheduler

1. 创建配置文件
cat > /opt/kubernetes/cfg/kube-scheduler.conf << EOF
KUBE_SCHEDULER_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--leader-elect \\
--kubeconfig=/opt/kubernetes/cfg/kube-scheduler.kubeconfig \\
--bind-address=127.0.0.1"
EOF


参数说明：
--kubeconfig：连接apiserver配置文件
--leader-elect：当该组件启动多个时，自动选举（HA）
2. 生成kubeconfig文件

生成kube-scheduler证书：

# 切换工作目录
cd ~/TLS/k8s

# 创建证书请求文件
cat > kube-scheduler-csr.json << EOF
{
  "CN": "system:kube-scheduler",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}
EOF

# 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler

生成kubeconfig文件（以下是shell命令，直接在终端执行）：

KUBE_CONFIG="/opt/kubernetes/cfg/kube-scheduler.kubeconfig"
KUBE_APISERVER="https://10.255.32.21:6443"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials kube-scheduler \
  --client-certificate=./kube-scheduler.pem \
  --client-key=./kube-scheduler-key.pem \
  --embed-certs=true \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-scheduler \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}
3.systemd管理scheduler
cat > /usr/lib/systemd/system/kube-scheduler.service << EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-scheduler.conf
ExecStart=/opt/kubernetes/bin/kube-scheduler \$KUBE_SCHEDULER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF
4. 启动并设置开机启动
systemctl daemon-reload
systemctl start kube-scheduler
systemctl enable kube-scheduler
5. 查看集群状态

生成kubectl连接集群的证书：

cat > admin-csr.json <<EOF
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes admin-csr.json | cfssljson -bare admin

生成kubeconfig文件：

mkdir /root/.kube

KUBE_CONFIG="/root/.kube/config"
KUBE_APISERVER="https://10.255.32.21:6443"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials cluster-admin \
  --client-certificate=./admin.pem \
  --client-key=./admin-key.pem \
  --embed-certs=true \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user=cluster-admin \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}

通过kubectl工具查看当前集群组件状态：

kubectl get cs

# 如下输出说明Master节点组件运行正常
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-2               Healthy   {"health":"true"}
etcd-1               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}
6. 授权kubelet-bootstrap用户允许请求证书
kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap
7. 补全命令
yum install bash-completion -y
source /usr/share/bash-completion/bash_completion
source <(kubectl completion bash)
kubectl completion bash >/etc/bash_completion.d/kubectl

2.2 node节点

由于机器有限master也为node,还是在master上面操作

2.2.1 创建工作目录并拷贝二进制文件

# 在所有worker node创建工作目录（master已创建，新加入节点需要创建）
mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}

# 从解压的k8s server压缩包中拷贝文件
cd /root/kubernetes/server/bin
cp kubelet kube-proxy /opt/kubernetes/bin

2.2.2 部署kubelet

1. 创建配置文件
cat > /opt/kubernetes/cfg/kubelet.conf << EOF
KUBELET_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--hostname-override=k8s-master01 \\
--network-plugin=cni \\
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \\
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \\
--config=/opt/kubernetes/cfg/kubelet-config.yml \\
--cert-dir=/opt/kubernetes/ssl \\
--pod-infra-container-image=rancher/pause-amd64:3.0"
EOF

参数说明：
--hostname-override：显示名称，集群中唯一
--network-plugin：启用CNI
--kubeconfig：空路径，会自动生成，后面用于连接apiserver
--bootstrap-kubeconfig：首次启动向apiserver申请证书
--config：配置参数文件
--cert-dir：kubelet证书生成目录
--pod-infra-container-image：管理Pod网络容器的镜像
2. 配置参数文件
cat > /opt/kubernetes/cfg/kubelet-config.yml << EOF
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: cgroupfs
clusterDNS:
- 10.0.0.2
clusterDomain: cluster.local
failSwapOn: false
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /opt/kubernetes/ssl/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
maxOpenFiles: 1000000
maxPods: 110
EOF
3. 生成kubelet初次加入集群引导kubeconfig文件
KUBE_CONFIG="/opt/kubernetes/cfg/bootstrap.kubeconfig"
KUBE_APISERVER="https://10.255.32.21:6443" # apiserver IP:PORT
TOKEN="5f6edcf8dde1f4f7f312213c5545c0bf" # 与token.csv里保持一致

# 生成 kubelet bootstrap kubeconfig 配置文件
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials "kubelet-bootstrap" \
  --token=${TOKEN} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user="kubelet-bootstrap" \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}
kubectl create clusterrolebinding kubelet-bootstrap --clusterrole=system:node-bootstrapper --user=kubelet-bootstrap
4. systemd管理kubelet
cat > /usr/lib/systemd/system/kubelet.service << EOF
[Unit]
Description=Kubernetes Kubelet
After=docker.service

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kubelet.conf
ExecStart=/opt/kubernetes/bin/kubelet \$KUBELET_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF
5. 启动并设置开机启动
systemctl daemon-reload
systemctl start kubelet
systemctl enable kubelet
6. 批准kubelet证书申请并加入集群
#查看证书申请
[root@k8s-master01 ~]# kubectl get csr
NAME                                                   AGE   SIGNERNAME                                    REQUESTOR           CONDITION
node-csr-CAu0vQBFLE-5xD8tDcHaI3sVIcZfoBAgsXwAngmWhA0   26m   kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   Approved,Issued

# 批准申请
[root@k8s-master01 ~]# kubectl certificate approve  node-csr-CAu0vQBFLE-5xD8tDcHaI3sVIcZfoBAgsXwAngmWhA0

# 查看节点（由于网络插件还没有部署，节点会没有准备就绪 NotReady
[root@k8s-master01 ~]# kubectl get nodes
NAME                STATUS     ROLES      AGE   VERSION
k8s-master01   NotReady    <none>   20s   v1.20.9

2.2.3 部署kube-proxy

1.创建配置文件
cat > /opt/kubernetes/cfg/kube-proxy.conf << EOF
KUBE_PROXY_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF
2. 配置参数文件
cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 0.0.0.0:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-master01
clusterCIDR: 10.0.0.0/24
EOF
3. 生成kube-proxy.kubeconfig文件

生成kube-proxy证书：

# 切换工作目录
cd ~/TLS/k8s

# 创建证书请求文件
cat > kube-proxy-csr.json << EOF
{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF

# 生成证书
cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

生成kubeconfig文件：

KUBE_CONFIG="/opt/kubernetes/cfg/kube-proxy.kubeconfig"
KUBE_APISERVER="https://10.255.32.21:6443"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-credentials kube-proxy \
  --client-certificate=./kube-proxy.pem \
  --client-key=./kube-proxy-key.pem \
  --embed-certs=true \
  --kubeconfig=${KUBE_CONFIG}
kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-proxy \
  --kubeconfig=${KUBE_CONFIG}
kubectl config use-context default --kubeconfig=${KUBE_CONFIG}
4. systemd管理kube-proxy
cat > /usr/lib/systemd/system/kube-proxy.service << EOF
[Unit]
Description=Kubernetes Proxy
After=network.target

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-proxy.conf
ExecStart=/opt/kubernetes/bin/kube-proxy \$KUBE_PROXY_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF
5. 启动并设置开机启动
systemctl daemon-reload
systemctl start kube-proxy
systemctl enable kube-proxy

2.2.4 部署网络组件Flannel/Calico

1.Flannel
1.1 获取压缩包并解压
 mkdir -p  /opt/cni/bin &&  cd /opt/cni
wget https://github.com/containernetworking/plugins/releases/download/v0.8.6/cni-plugins-linux-amd64-v0.8.6.tgz
tar xf cni-plugins-linux-amd64-v0.8.6.tgz -C /opt/cni/bin
1.2 部署CNI网络

注:如果获取不到kube-flannel.yml,可以去我有道云上复制粘贴即可
https://note.youdao.com/s/NQwpevUg

#获取地址 https://github.com/flannel-io/flannel/blob/master/Documentation/kube-flannel.yml

kubectl apply -f kube-flannel.yml
[root@k8s-master01 ~]# kubectl get nodes
NAME                STATUS    ROLES    AGE   VERSION
k8s-master01     Ready    <none>   20m   v1.20.9
2.Calico
# 下载地址
https://docs.projectcalico.org/

# 运行即可
kubectl apply -f calico.yaml

2.2.5 授权apiserver访问kubelet

应用场景：例如kubectl logs

cd /opt/cni/

cat > apiserver-to-kubelet-rbac.yaml << EOF
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
      - pods/log
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kubernetes
EOF

#创建
kubectl apply -f apiserver-to-kubelet-rbac.yaml

2.2.6 新增node节点

1.拷贝已部署好的Node相关文件到新节点
# 在Master节点将Worker Node涉及文件拷贝到新节点10.255.32.23/24
scp -r /opt/kubernetes root@10.255.32.23:/opt/
scp -r /opt/cni root@10.255.32.23:/opt/
scp -r /usr/lib/systemd/system/{kubelet,kube-proxy}.service root@10.255.32.23:/usr/lib/systemd/system
scp /opt/kubernetes/ssl/ca.pem root@10.255.32.23:/opt/kubernetes/ssl
2. 删除kubelet证书和kubeconfig文件
rm -f /opt/kubernetes/cfg/kubelet.kubeconfig
rm -f /opt/kubernetes/ssl/kubelet*
3. 修改配置文件中的主机名
vim /opt/kubernetes/cfg/kubelet.conf
--hostname-override=k8s-node01

vim /opt/kubernetes/cfg/kube-proxy-config.yml
hostnameOverride: k8s-node01
4. 启动并设置开机启动
systemctl daemon-reload
systemctl start kubelet kube-proxy
systemctl enable kubelet kube-proxy
5. 在Master上批准新Node kubelet证书申请
# 查看证书请求
[root@k8s-master01 ~]# kubectl get csr
NAME                                                   AGE     SIGNERNAME                                    REQUESTOR           CONDITION
node-csr-BBiZR8U5DYj0I7SyceOHQpV2VUNpyCbIGMzGG21bwsE   86m     kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   Approved,Issued
node-csr-NT_Ffl2L2vmvzbBkwIi5509LZA9qHFnlqGoKKoDHpQ0   3m32s   kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   Pending
node-csr-ShbH7nW5VGNq7n75jfg3htx40-PjU2TYCQJKeXQBvaw   3m24s   kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   Pending

# 同意授权请求
kubectl certificate approve  node-csr-NT_Ffl2L2vmvzbBkwIi5509LZA9qHFnlqGoKKoDHpQ0
6. 查看Node状态
[root@k8s-master01 ~]# kubectl get nodes
NAME           STATUS     ROLES    AGE   VERSION
k8s-master01   Ready    <none>   55m   v1.20.9
k8s-node01     Ready   <none>   55s   v1.20.9
k8s-node02     Ready   <none>   44s   v1.20.9

3. 部署coreDNS

CoreDNS用于集群内部Service名称解析
coredns.yaml

[root@k8s-master01 cni]# kubectl create -f coredns.yaml

[root@k8s-master01 cni]# kubectl get pod -A
NAMESPACE     NAME                       READY   STATUS    RESTARTS   AGE
kube-system   coredns-6cc56c94bd-kj9v9   1/1     Running   0          2m11s
kube-system   kube-flannel-ds-5v24c      1/1     Running   0          19m
kube-system   kube-flannel-ds-c6kc5      1/1     Running   0          12m
kube-system   kube-flannel-ds-klk5h      1/1     Running   0          12m

DNS解析测试：

[root@k8s-master01 cni]# kubectl run -it --rm dns-test --image=busybox:1.28.4 sh
If you don't see a command prompt, try pressing enter.
/ # nslookup kubernetes
Server:    10.0.0.2
Address 1: 10.0.0.2 kube-dns.kube-system.svc.cluster.local

Name:      kubernetes
Address 1: 10.0.0.1 kubernetes.default.svc.cluster.local

4. 扩容多master(高可用架构)

角色ip
k8s-master0110.255.32.21
k8s-master0210.255.32.22(新增master节点)
k8s-node0110.255.32.23
k8s-node0210.255.32.24
vip(两个master上)10.255.32.55

4.1 部署Master02 节点

将Master1所有K8s文件拷贝过来，再修改下服务器IP和主机名启动即可

1. 拷贝master01上文件到master02
# 注: 这里由于我的etcd在master-02上面也有部署 所以不需要拷贝etcd证书,如果新增master节点不属于etcd集群,需要拷贝etcd证书文件,目录为:/opt/etcd/ssl

scp -r /opt/kubernetes root@10.255.32.22:/opt
scp -r /opt/cni root@10.255.32.22:/opt/cni
scp /usr/lib/systemd/system/kube* root@10.255.32.22:/usr/lib/systemd/system
scp /usr/bin/kubectl  root@10.255.32.22:/usr/bin
scp -r ~/.kube root@10.255.32.22:~
2.删除证书文件
# 删除kubelet证书和kubeconfig文件
rm -f /opt/kubernetes/cfg/kubelet.kubeconfig
rm -f /opt/kubernetes/ssl/kubelet*
3. 修改配置文件IP和主机名
# 修改apiserver、kubelet和kube-proxy配置文件为本地IP
vim /opt/kubernetes/cfg/kube-apiserver.conf
...
--bind-address=10.255.32.22 \
--advertise-address=10.255.32.22 \
...

vim /opt/kubernetes/cfg/kubelet.conf
--hostname-override=k8s-master02

vim /opt/kubernetes/cfg/kube-proxy-config.yml
hostnameOverride: k8s-master02
5. 启动并设置开机启动
systemctl daemon-reload
systemctl start kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy
systemctl enable kube-apiserver kube-controller-manager kube-scheduler kubelet kube-proxy
6. 查看集群状态
# 修改连接master为本机IP
vim ~/.kube/config
...
server: https://10.255.32.22:6443

kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE             ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-2               Healthy   {"health":"true"}
etcd-1               Healthy   {"health":"true"}
etcd-0               Healthy   {"health":"true"}
7. 批准kubelet证书申请

# 查看证书请求
 kubectl get csr
NAME                            AGE     SIGNERNAME                REQUESTOR           CONDITION
node-csr-L_AJOkQRqDzdvAVZ24zQXTEjeZeryRWXU4DRS2kwVw0   14m   kubernetes.io/kube-apiserver-client-kubelet   kubelet-bootstrap   Pending

# 授权请求
kubectl certificate approve  node-csr-L_AJOkQRqDzdvAVZ24zQXTEjeZeryRWXU4DRS2kwVw0

# 查看Node
kubectl get node
NAME        STATUS   ROLES    AGE   VERSION
k8s-master1    Ready    <none>   34h   v1.20.9
k8s-master2    Ready    <none>   2m   v1.20.9
k8s-node1     Ready    <none>   33h   v1.20.9
k8s-node2     Ready    <none>   33h   v1.20.9

4.2 部署Nginx+Keepalived高可用负载均衡器(haproxy也可)

注: 为了节省机器，这里与K8s Master节点机器复用。也可以独立于k8s集群之外部署，只要nginx与apiserver能通信就行

1. 安装软件包（主/备）
yum install epel-release -y
yum install nginx keepalived -y
2. Nginx配置文件（主备一样）
cat > /etc/nginx/nginx.conf << EOF
user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;

include /usr/share/nginx/modules/*.conf;

events {
    worker_connections 1024;
}

# 四层负载均衡，为两台Master apiserver组件提供负载均衡
stream {

    log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';

    access_log  /var/log/nginx/k8s-access.log  main;

    upstream k8s-apiserver {
       server 10.255.32.21:6443;   # Master1 APISERVER IP:PORT
       server 10.255.32.22:6443;   # Master2 APISERVER IP:PORT
    }

    server {
       listen 16443; # 由于nginx与master节点复用，这个监听端口不能是6443，否则会冲突
       proxy_pass k8s-apiserver;
    }
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 2048;

    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;

    server {
        listen       80 default_server;
        server_name  _;

        location / {
        }
    }
}
EOF

# 启动并设置开机启动
systemctl daemon-reload
systemctl start nginx
systemctl enable nginx

#如果报错,需要安装stream模块
nginx: [emerg] unknown directive "stream" in /etc/nginx/nginx.conf:13

 yum install nginx-mod-stream -y
3. keepalived配置文件
#主从需要修改的地方为,其他配置一样
router_id NGINX_MASTER  #备服务器将这里修改为NGINX_BACKUP
state MASTER  # 备服务器修改为BACKUP
priority 100    #备服务器设置 90

cat > /etc/keepalived/keepalived.conf << EOF
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id NGINX_MASTER  #备服务器将这里修改为NGINX_BACKUP
}

vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
}

vrrp_instance VI_1 {
    state MASTER  # 备服务器修改为BACKUP
    interface eth0 # 修改为实际网卡名
    virtual_router_id 51 # VRRP 路由 ID实例，每个实例是唯一的
    priority 100    # 优先级，备服务器设置 90
    advert_int 1    # 指定VRRP 心跳包通告间隔时间，默认1秒
    authentication {
        auth_type PASS
        auth_pass test
    }
    # 虚拟IP
    virtual_ipaddress {
        10.255.32.55/24
    }
    track_script {
        check_nginx
    }
}
EOF

准备上述配置文件中检查nginx运行状态的脚本：(主从都要)
注：keepalived根据脚本返回状态码（0为工作正常，非0不正常）判断是否故障转移

cat > /etc/keepalived/check_nginx.sh  << EOF
#!/bin/bash
count=$(ss -antp |grep 16443 |egrep -cv "grep|$$")

if [ "$count" -eq 0 ];then
    exit 1
else
    exit 0
fi
EOF
chmod +x /etc/keepalived/check_nginx.sh
4. 启动并设置开机启动
systemctl daemon-reload
systemctl start keepalived
systemctl enable keepalived
5. 查看keepalived工作状态

在这里插入图片描述

6. Nginx+Keepalived高可用测试

关闭主节点Nginx，测试VIP是否漂移到备节点服务器。在Nginx Master执行systemctl stop nginx;在Nginx Backup，ip addr命令查看已成功绑定VIP

7. 访问负载均衡器测试

找K8s集群中任意一个节点，使用curl查看K8s版本测试，使用VIP访问:

[root@k8s-node02 ~]# curl -k https://10.255.32.55:16443/version
{
  "major": "1",
  "minor": "20",
  "gitVersion": "v1.20.9",
  "gitCommit": "7a576bc3935a6b555e33346fd73ad77c925e9e4a",
  "gitTreeState": "clean",
  "buildDate": "2021-07-15T20:56:38Z",
  "goVersion": "go1.15.14",
  "compiler": "gc",
  "platform": "linux/amd64"
}

可以正确获取到K8s版本信息，说明负载均衡器搭建正常。该请求数据流程：curl -> vip(nginx) -> apiserver

8. 修改所有节点连接vip

在所有节点执行(包括master)

sed -i 's#10.255.32.21:6443#10.255.32.55:16443#' /opt/kubernetes/cfg/*
systemctl restart kubelet kube-proxy

检查节点状态：kubectl get node

NAME           STATUS   ROLES    AGE     VERSION
k8s-master02   Ready    <none>   26m     v1.20.9
k8s-master1    Ready    <none>   3h21m   v1.20.9
k8s-node01     Ready    <none>   172m    v1.20.9
k8s-node02     Ready    <none>   167m    v1.20.9
K8S二进制部署详解，一文教会你部署高可用K8S集群
景天科技苑
02-07 5123
虽然kubeadm方式搭建K8S比较简单，但是对里面的原理都不清楚的话，生产中使用功能可能不便于排查故障。二进制方式部署的k8s集群比较稳定。 二进制方式搭建：在官网下载相关组件的二进制包，如果手动安装，对kubernetes理解也会更全面。 Kubeadm和二进制都适合生产环境，在生产环境运行都很稳定，具体如何选择，可以根据实际项目进行评估。
K8s高可用集群二进制部署-V1.20
架构师小吴的博客
06-24 1445
Kubeadm是一个K8s部署工具，提供kubeadm init和kubeadm join，用于快速部署Kubernetes集群。
二进制部署k8s高可用集群（二进制-V1.20）.docx
06-29
说明：二进制部署k8s高可用集群，内容真实有效！
部署一套完整的K8s高可用集群（二进制-V1.20）部署文档.docx
08-26
1、kubernete二进制离线安装 2、二进制方式详细安装步骤
K8S高可用集群-小白学习之二进制部署（ansible+shell）
最新发布
凡心所向,素履以往,生如逆旅,一苇以航
03-06 1490
序言：本文从一个小白的视角进行K8S的研究和部署，采用二进制的方式是为了更清楚了分解部署流程及了解这个集群是怎么运作的，加上ansible+shell是方便在这个过程中，遇到了问题，我们可以不断的快速重复部署来测试和研究问题的所在点，本文的架构图是由博主绘制，但是可能不是完全正确，有问题可以留言指出，大家一起学习进步~
二进制方式部署K8s高可用集群
qq_63652578的博客
09-08 1966
kube-apiserver.service是kube-apiserver守护进程的systemd服务单元。当你新增或修改了某个单位文件（如.service文件、.socket文件等），需要运行该命令来刷新systemd对该文件的配置。当你新增或修改了某个单位文件（如.service文件、.socket文件等），需要运行该命令来刷新systemd对该文件的配置。当你新增或修改了某个单位文件（如.service文件、.socket文件等），需要运行该命令来刷新systemd对该文件的配置。
k8s二进制部署(版本1.20)
屈帅波的技术博客
03-09 1629
一 基础优化 # 关闭防火墙 systemctl stop firewalld systemctl disable firewalld # 关闭selinux sed -i 's/enforcing/disabled/' /etc/selinux/config # 永久 setenforce 0 # 临时 # 关闭swap swapoff -a # 临时 sed -ri 's/.*swap.*/#&/' /etc/fstab # 永久 cat > /etc/sysct
K8S1.20二进制部署
weixin_45767577的博客
09-27 1462
1.20 二进制部署 环境 192.168.202.191 sxy-k8sB-master01 # 2C2G 40G 192.168.202.192 sxy-k8sB-master02 # 2C2G 40G 192.168.202.193sxy-k8sB-master03 # 2C2G 40G # VIP 虚IP不占用机器资源 192.168.202.199 k8s-master-lb # #如果不是高可用集群，该IP为Master01的IP 192.168.202.194 sxy-k8sB-nod
二进制部署k8s高可用集群
qq_43010289的博客
08-18 2449
二进制部署k8s
二进制部署高可用k8s集群
xxxxxxx
06-09 1410
通过二进制方式在三台centos7服务器上部署k8s高可用集群。
k8s v1.20二进制部署
wys_jj的博客
05-13 1046
即etcd默认使用2379端口对外为客户端提供通讯，使用端口2380来进行服务器间内部通讯。CFSSL 使用配置文件生成证书，因此自签之前，需要生成它识别的 json 格式的配置文件，CFSSL 提供了方便的命令行生成配置文件。，服务端连接客户端时携带的证书，用于客户端验证服务端身份，如 kube-apiserver 访问 etcd；，客户端连接服务端时携带的证书，用于服务端验证客户端身份，如 etcd 对外提供服务；，相互之间连接时使用的证书，如 etcd 节点之间进行验证和通信。
一套完整的K8s高可用集群二进制部署（-V1.20）
10-17
Kubernetes 高可用集群二进制部署指南 本文档将指导您部署一套完整的 Kubernetes 高可用集群，我们将从基础知识点开始，介绍 Kubernetes 集群的两种部署方式，然后详细介绍如何准备环境、部署 Etcd 集群、安装 ...
部署一套完整的K8s高可用集群（二进制-V1.18）.zip
07-11
从github下载发行版的二进制包，手动部署每个组件，组成Kubernetes集群。 Kubeadm降低部署门槛，但屏蔽了很多细节，遇到问题很难排查。如果想更容易可控，推荐使用二进 制包部署Kubernetes集群，虽然手动部署麻烦点，期间可以学习很多工作原理，也利于后期维护。
k8sv1.20二进制高可用集群部署
scdn_fm的博客
05-08 1230
一，环境准备 1.1 服务器规划 角色 IP 组件 k8s-master1 192.168.131.128 kube-apiserver，kube-controller-manager，kube-scheduler，etcd，keepalived k8s-master2 192.168.131.131 kube-apiserver，kube-controller-manager，kube-scheduler，etcd，keepalived k8s-node1 192.168.131.
29.手把手系列之二进制部署高可用k8s集群
LQ的博客
11-02 470
29.手把手系列之二进制部署高可用k8s集群 二进制部署高可用k8s集群 本章节采用纯二进制文件方式部署https（证书有效期为10年）高可用k8s集群，所有涉及的配置文件和镜像均已提供。 另外，默认集群规模可支撑254个节点。 如果需要调整，请自行修改/etc/kubernetes/controller-manager中的–node-cidr-mask-size=24字段。 本章节目录： 1>生产环境高可用设计原则 2>生产环境高可用架构 3>基础环境准备 4>Docker环境准
Kubernetes CKA认证运维工程师笔记-Kubernetes部署一套完整的K8S高可用集群（二进制-V1.20）
苦难带不走梦想
12-28 903
Kubernetes CKA认证运维工程师笔记-Kubernetes部署一套完整的K8S高可用集群（二进制-V1.20）一、前置知识点1.1 生产环境部署K8s集群的两种方式1.2 准备环境1.3 操作系统初始化配置二、部署Etcd集群2.1 准备cfssl证书生成工具2.2 生成Etcd证书2.2.1 自签证书颁发机构（CA）2.2.2 使用自签CA签发Etcd HTTPS证书2.3 从Github下载二进制文件2.4 部署Etcd集群2.4.1 创建工作目录并解压二进制包2.4.2 创建etcd配置文件
Kubernetes：（二）K8Sv1.20二进制部署
yangye2424637628的博客
10-24 1175
1.准备ca证书和私钥文件，ca证书签发服务端证书和私钥文件2.使用ca证书，服务端证书和私钥文件加上Etcd集群的配置文件去启动Etcd服务3.复制Etcd工作目录和管理文件到另外几个节点上，修改Etcd集群配置文件并且启动Etcd服务4.使用V3版本的接口执行Etcdctl和证书选项查看Etcd集群和节点状态。
K8Sv1.20 二进制部署
FYR1018的博客
09-23 1150
1 常见的 K8S 按照部署方式2 K8Sv1.20 二进制部署（单 Master 集群架构）2.1 所有操作系统初始化配置2.2 部署 etcd 集群2.3 部署 docker 引擎2.4 部署 Master 组件2.5 部署 Worker Node 组件2.6 部署 CNI 网络组件（两种方法）2.6.1 部署 flannel2.6.2 部署 Calico2.7 部署 CoreDNS3 K8Sv1.20 二进制部署（多 Master 集群架构）负载均衡部署部署 nginx 服务
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
