css 属性 strokeDasharray

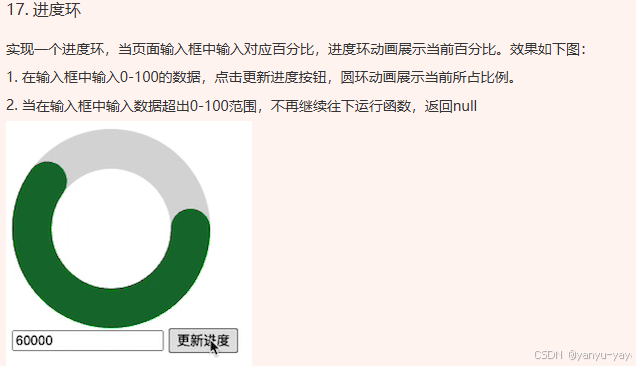

实现功能：
在这里插入图片描述
代码如下：

<!DOCTYPE html>
<html>
<head>
  <style>
    .progress-ring {
      width: 200px;
      height: 200px;
      position: relative;
    }

    .progress-ring .circle {
      fill: none;
      stroke: #ddd;
      stroke-width: 20;
    }

    .progress-ring .progress {
      fill: none;
      stroke: #0d7137;
      stroke-width: 20;
      stroke-dasharray: 0, 1000;
      stroke-linecap: round;
      transition: stroke-dasharray 0.5s ease-in-out;
    }
  </style>
</head>
<body>
  <div class="progress-ring">
    <svg viewBox="0 0 100 100">
      <circle class="circle" cx="50" cy="50" r="40">22</circle>
      <circle class="progress" cx="50" cy="50" r="40"></circle>
    </svg>
  </div>
  <input type="number" id="percentageInput" placeholder="输入百分比（0-100）">
  <button onclick="updateProgress()">更新进度</button>

  <script>
    function updateProgress() {
      const percentageInput = document.getElementById('percentageInput');
      const percentage = parseInt(percentageInput.value, 10);
      /*--1. 补全代码，当输入的数据不是数字，或者超出【0,100】,当前函数返回null-----*/
        if(typeof percentage !=="number"||percentage<0||percentage>100){
            return null
            }

      const progressRing = document.querySelector('.progress-ring');
      const progressCircle = progressRing.querySelector('.progress');
        /*--2. 补全代码，计算圆周长-*/
      const circumference = 2 * Math.PI * 40;


       /*--3. 补全代码，根据输入的百分比设置圆环样式-----*/
      const offset =  percentage/100*circumference
      progressCircle.style.strokeDasharray = `${offset} ${circumference}`;
    }
  </script>
</body>
</html>
