语义分割系列9-EncNet（pytorch实现）

EncNet全名Context Encoding Network，收录于CVPR2018。

原文地址：EncNet。

EncNet主要思想参考于作者的另一篇文章，Deep TEN: Texture Encoding Network。关于这篇文章的介绍可以参考纹理识别--(Deep TEN)Deep TEN: Texture Encoding Network。

关于EncNet的介绍可以参考语义分割--(EncNet)Context Encoding for Semantic Segmentation。

本文以复现EncNet为主。

EncNet思想

1. 论文引入了Context Encoding Module（上下文编码模块）来捕捉全局信息的上下文信息，尤其是与场景相关联的类别信息。参考了CAnet，实现了一个通道注意力机制，预测一组特征图的放缩因子作为循环用于突出需要强调的类别。

2.引入了SE loss来实现对场景内类别的关注，相当于给模型一个先验知识，比如先告诉模型这张图片的背景是卧室，卧室里面只会存在床、枕头、桌子等，而不会出现飞机、汽车，强制模型去学习某个场景内包含的类别。

EncNet模型

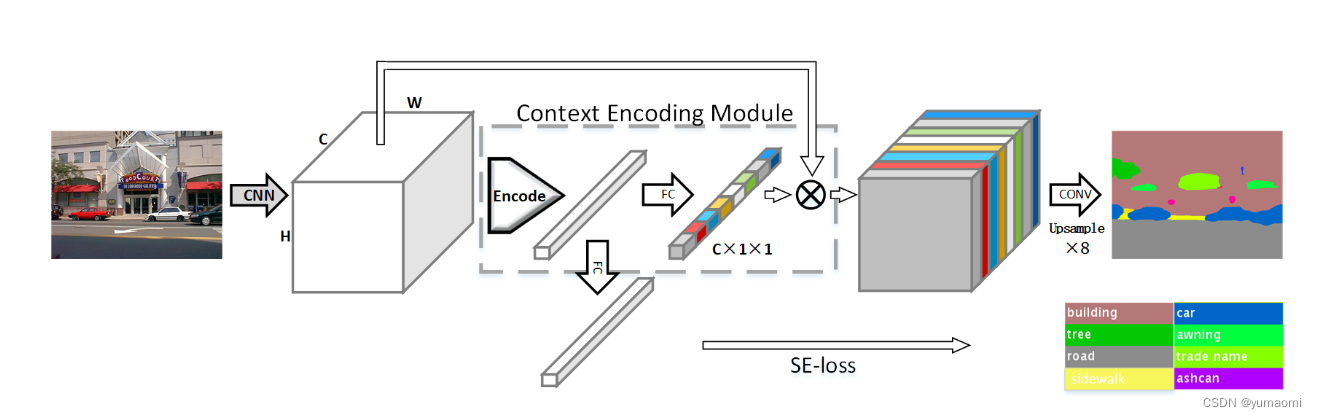

图1 EncNet结构

个人的理解是，EncNet通过通道注意力和SE loss两个trick来增加模型对上下文语义的理解。

1.通过计算每个通道的缩放因子，来突出类别和类别相关的特征图，实现一个类似于通道注意力的机制。

2.SE loss迫使模型学习每个场景内可能会出现的类别，为模型提供一个先验知识。同时，文章中提到，SE loss对于不同大小的物体目标的计算方式是等同的，不同于像素级别的损失，SE loss根据个体的类别来计算，这就使大物体和小物体在loss的贡献上相同，这种loss有利于小目标的分割。

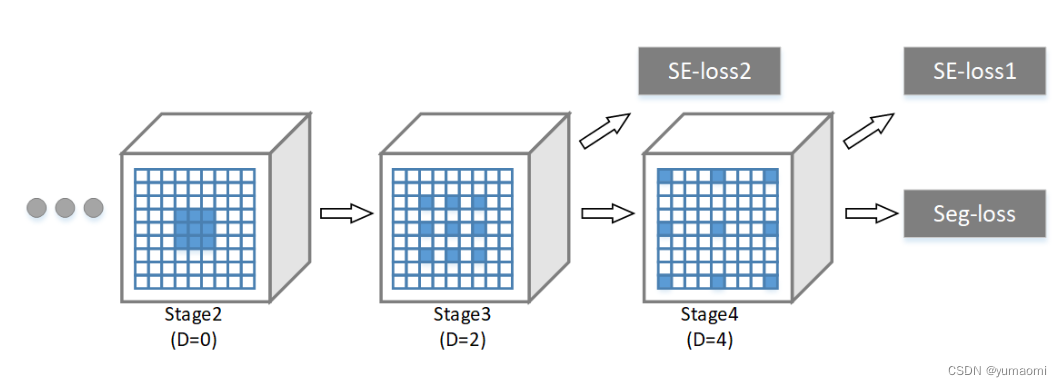

图2

文章中还对backbone网络做了一部分改动，将backbone的最后两层网络的空洞卷积速率设为2和4。在第三层和第四层均可以输出一个SE loss。

模型复现

backbone-resnet50

import torch
import torch.nn as nn

class BasicBlock(nn.Module):
    expansion: int = 4
    def __init__(self, inplanes, planes, stride = 1, downsample = None, groups = 1,
        base_width = 64, dilation = 1, norm_layer = None):

        super(BasicBlock, self).__init__()
        if norm_layer is None:
            norm_layer = nn.BatchNorm2d
        if groups != 1 or base_width != 64:
            raise ValueError("BasicBlock only supports groups=1 and base_width=64")
        if dilation > 1:
            raise NotImplementedError("Dilation > 1 not supported in BasicBlock")
        # Both self.conv1 and self.downsample layers downsample the input when stride != 1
        self.conv1 = nn.Conv2d(inplanes, planes ,kernel_size=3, stride=stride,
                               padding=dilation,groups=groups, bias=False,dilation=dilation)

        self.bn1 = norm_layer(planes)
        self.relu = nn.ReLU(inplace=True)
        self.conv2 = nn.Conv2d(planes, planes ,kernel_size=3, stride=stride,
                               padding=dilation,groups=groups, bias=False,dilation=dilation)

        self.bn2 = norm_layer(planes)
        self.downsample = downsample
        self.stride = stride

    def forward(self, x):
        identity = x

        out = self.conv1(x)
        out = self.bn1(out)
        out = self.relu(out)

        out = self.conv2(out)
        out = self.bn2(out)

        if self.downsample is not None:
            identity = self.downsample(x)

        out += identity
        out = self.relu(out)

        return out


class Bottleneck(nn.Module):
    expansion = 4

    def __init__(self, inplanes, planes, stride=1, downsample= None,
        groups = 1, base_width = 64, dilation = 1, norm_layer = None,):
        super(Bottleneck, self).__init__()
        if norm_layer is None:
            norm_layer = nn.BatchNorm2d
        width = int(planes * (base_width / 64.0)) * groups
        # Both self.conv2 and self.downsample layers downsample the input when stride != 1
        self.conv1 = nn.Conv2d(inplanes, width, kernel_size=1, stride=1, bias=False)
        self.bn1 = norm_layer(width)
        self.conv2 = nn.Conv2d(width, width, kernel_size=3, stride=stride, bias=False, padding=dilation, dilation=dilation)
        self.bn2 = norm_layer(width)
        self.conv3 = nn.Conv2d(width, planes * self.expansion, kernel_size=1, stride=1, bias=False)
        self.bn3 = norm_layer(planes * self.expansion)
        self.relu = nn.ReLU(inplace=True)
        self.downsample = downsample
        self.stride = stride

    def forward(self, x):
        identity = x

        out = self.conv1(x)
        out = self.bn1(out)
        out = self.relu(out)

        out = self.conv2(out)
        out = self.bn2(out)
        out = self.relu(out)

        out = self.conv3(out)
        out = self.bn3(out)

        if self.downsample is not None:
            identity = self.downsample(x)

        out += identity
        out = self.relu(out)
        return out


class ResNet(nn.Module):
    def __init__(
        self,block, layers,num_classes = 1000, zero_init_residual = False, groups = 1,
        width_per_group = 64, replace_stride_with_dilation = None, norm_layer = None):
        super(ResNet, self).__init__()
        if norm_layer is None:
            norm_layer = nn.BatchNorm2d
        self._norm_layer = norm_layer
        self.inplanes = 64
        self.dilation = 1
        if replace_stride_with_dilation is None:
            # each element in the tuple indicates if we should replace
            # the 2x2 stride with a dilated convolution instead
            replace_stride_with_dilation = [False, False, False]

        if len(replace_stride_with_dilation) != 3:
            raise ValueError(
                "replace_stride_with_dilation should be None "
                f"or a 3-element tuple, got {replace_stride_with_dilation}"
            )
        self.groups = groups
        self.base_width = width_per_group
        self.conv1 = nn.Conv2d(3, self.inplanes, kernel_size=7, stride=2, padding=3, bias=False)
        self.bn1 = norm_layer(self.inplanes)
        self.relu = nn.ReLU(inplace=True)
        self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
        self.layer1 = self._make_layer(block, 64, layers[0])
        self.layer2 = self._make_layer(block, 128, layers[1], stride=1, dilate=replace_stride_with_dilation[0])
        self.layer3 = self._make_layer(block, 256, layers[2], stride=2, dilate=replace_stride_with_dilation[1])
        self.layer4 = self._make_layer(block, 512, layers[3], stride=1, dilate=replace_stride_with_dilation[2])
        self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
        self.fc = nn.Linear(512 * block.expansion, num_classes)

        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_normal_(m.weight, mode="fan_out", nonlinearity="relu")
            elif isinstance(m, (nn.BatchNorm2d, nn.GroupNorm)):
                nn.init.constant_(m.weight, 1)
                nn.init.constant_(m.bias, 0)

        # Zero-initialize the last BN in each residual branch,
        # so that the residual branch starts with zeros, and each residual block behaves like an identity.
        # This improves the model by 0.2~0.3% according to https://arxiv.org/abs/1706.02677
        if zero_init_residual:
            for m in self.modules():
                if isinstance(m, Bottleneck):
                    nn.init.constant_(m.bn3.weight, 0)  # type: ignore[arg-type]
                elif isinstance(m, BasicBlock):
                    nn.init.constant_(m.bn2.weight, 0)  # type: ignore[arg-type]

    def _make_layer(
        self,
        block,
        planes,
        blocks,
        stride = 1,
        dilate = False,
    ):
        norm_layer = self._norm_layer
        downsample = None
        previous_dilation = self.dilation
        if dilate:
            self.dilation *= stride
            stride = stride

        if stride != 1 or self.inplanes != planes * block.expansion:
            downsample = nn.Sequential(
                nn.Conv2d(self.inplanes,  planes * block.expansion, kernel_size=1, stride=stride, bias=False),
                norm_layer(planes * block.expansion))

        layers = []
        layers.append(
            block(
                self.inplanes, planes, stride, downsample, self.groups, self.base_width, previous_dilation, norm_layer
            )
        )
        self.inplanes = planes * block.expansion
        for _ in range(1, blocks):
            layers.append(
                block(
                    self.inplanes,
                    planes,
                    groups=self.groups,
                    base_width=self.base_width,
                    dilation=self.dilation,
                    norm_layer=norm_layer,
                )
            )
        return nn.Sequential(*layers)

    def _forward_impl(self, x):
        outs = []
        x = self.conv1(x)
        x = self.bn1(x)
        x = self.relu(x)
        x = self.maxpool(x)
        x = self.layer1(x)
        outs.append(x)
        x = self.layer2(x)
        outs.append(x)
        x = self.layer3(x)
        outs.append(x)
        x = self.layer4(x)
        outs.append(x)
        return outs

    def forward(self, x) :
        return self._forward_impl(x)
    def _resnet(block, layers, pretrained_path = None, **kwargs,):
        model = ResNet(block, layers, **kwargs)
        if pretrained_path is not None:
            model.load_state_dict(torch.load(pretrained_path),  strict=False)
        return model

    def resnet50(pretrained_path=None, **kwargs):
        return ResNet._resnet(Bottleneck, [3, 4, 6, 3],pretrained_path,**kwargs)

    def resnet101(pretrained_path=None, **kwargs):
        return ResNet._resnet(Bottleneck, [3, 4, 23, 3],pretrained_path,**kwargs)

EncNet

Encoding层

import torch
from torch import nn as nn
from torch.nn import functional as F

class Encoding(nn.Module):

    def __init__(self, channels, num_codes):
        super(Encoding, self).__init__()
        # init codewords and smoothing factor
        self.channels, self.num_codes = channels, num_codes
        std = 1. / ((num_codes * channels)**0.5)
        # [num_codes, channels]
        self.codewords = nn.Parameter(
            torch.empty(num_codes, channels,
                        dtype=torch.float).uniform_(-std, std),
            requires_grad=True)
        # [num_codes]
        self.scale = nn.Parameter(
            torch.empty(num_codes, dtype=torch.float).uniform_(-1, 0),
            requires_grad=True)

    def scaled_l2(self, x, codewords, scale):
        num_codes, channels = codewords.size()
        batch_size = x.size(0)
        reshaped_scale = scale.view((1, 1, num_codes))
        expanded_x = x.unsqueeze(2).expand(
            (batch_size, x.size(1), num_codes, channels))
        reshaped_codewords = codewords.view((1, 1, num_codes, channels))

        scaled_l2_norm = reshaped_scale * (
            expanded_x - reshaped_codewords).pow(2).sum(dim=3)
        return scaled_l2_norm


    def aggregate(self, assigment_weights, x, codewords):
        num_codes, channels = codewords.size()
        reshaped_codewords = codewords.view((1, 1, num_codes, channels))
        batch_size = x.size(0)

        expanded_x = x.unsqueeze(2).expand(
            (batch_size, x.size(1), num_codes, channels))
        encoded_feat = (assigment_weights.unsqueeze(3) *
                        (expanded_x - reshaped_codewords)).sum(dim=1)
        return encoded_feat

    def forward(self, x):
        assert x.dim() == 4 and x.size(1) == self.channels
        # [batch_size, channels, height, width]
        batch_size = x.size(0)
        # [batch_size, height x width, channels]
        x = x.view(batch_size, self.channels, -1).transpose(1, 2).contiguous()

        # assignment_weights: [batch_size, channels, num_codes]
        assigment_weights = F.softmax(self.scaled_l2(x, self.codewords, self.scale), dim=2)
        # aggregate
        #print("assigment_weights:",assigment_weights.shape)
        encoded_feat = self.aggregate(assigment_weights, x, self.codewords)
        #print("encoded_feat1:",encoded_feat.shape)
        return encoded_feat

    def __repr__(self):
        repr_str = self.__class__.__name__
        repr_str += f'(Nx{self.channels}xHxW =>Nx{self.num_codes}' \
                    f'x{self.channels})'
        return repr_str

EncNet部分

import torch
import torch.nn as nn
import torch.nn.functional as F

class EncModule(nn.Module):
    def __init__(self, in_channels, num_codes):
        super(EncModule, self).__init__()
        self.encoding_project = nn.Conv2d(
            in_channels,
            in_channels,
            1,
            )
        # TODO: resolve this hack
        # change to 1d
        self.encoding = nn.Sequential(
            Encoding(channels=in_channels, num_codes=num_codes),
            nn.BatchNorm1d(num_codes),
            nn.ReLU(inplace=True))
        self.fc = nn.Sequential(
            nn.Linear(in_channels, in_channels), nn.Sigmoid())

    def forward(self, x):
        """Forward function."""
        encoding_projection = self.encoding_project(x)
        encoding_feat = self.encoding(encoding_projection).mean(dim=1)

        #print("encoding_feat2: ",encoding_feat.shape)

        batch_size, channels, _, _ = x.size()
        gamma = self.fc(encoding_feat)
        y = gamma.view(batch_size, channels, 1, 1)
        output = F.relu_(x + x * y)
        return encoding_feat, output



class EncHead(nn.Module):

    def __init__(self,num_classes=33,
                 num_codes=32,
                 use_se_loss=True,
                 add_lateral=False,
                 **kwargs):
        super(EncHead, self).__init__()
        self.use_se_loss = use_se_loss
        self.add_lateral = add_lateral
        self.num_codes = num_codes
        self.in_channels = [256, 512, 1024, 2048]
        self.channels = 512
        self.num_classes = num_classes
        self.bottleneck = nn.Conv2d(
            self.in_channels[-1],
            self.channels,
            3,
            padding=1,
            )

        if add_lateral:
            self.lateral_convs = nn.ModuleList()
            for in_channels in self.in_channels[:-1]:  # skip the last one
                self.lateral_convs.append(
                    nn.Conv2d(
                        in_channels,
                        self.channels,
                        1,
                        ))
            self.fusion = nn.Conv2d(
                len(self.in_channels) * self.channels,
                self.channels,
                3,
                padding=1,
                )

        self.enc_module = EncModule(
            self.channels,
            num_codes=num_codes,
        )
        self.cls_seg = nn.Sequential(
            nn.Conv2d(512, 256, 3, padding=1),
            nn.BatchNorm2d(256),
            nn.ReLU(),
            nn.Conv2d(256, 33, 3, padding=1)
        )

        if self.use_se_loss:
            self.se_layer = nn.Linear(self.channels, self.num_classes)

    def forward(self, inputs):
        """Forward function."""
        feat = self.bottleneck(inputs[-1])
        if self.add_lateral:
            laterals = [
                nn.functional.interpolate(input=lateral_conv(inputs[i]),size=feat.shape[2:],
                    mode='bilinear')
                for i, lateral_conv in enumerate(self.lateral_convs)
            ]
            feat = self.fusion(torch.cat([feat, *laterals], 1))
        encode_feat, output = self.enc_module(feat)
        output = nn.functional.interpolate(input = output, scale_factor=8, mode="bilinear")
        output = self.cls_seg(output)
        if self.use_se_loss:
            se_output = self.se_layer(encode_feat)
            return output, se_output
        else:
            return output

class ENCNet(nn.Module):
    def __init__(self, num_classes):
        super(ENCNet, self).__init__()
        self.num_classes = num_classes
        self.backbone = ResNet.resnet50()
        self.decoder = EncHead()

    def forward(self, x):
        x = self.backbone(x)
        x = self.decoder(x)
        return x

数据集-Camvid

数据集下载及使用教程见：语义分割数据集：CamVid数据集的创建和使用-pytorch

# 导入库
import os
os.environ['CUDA_VISIBLE_DEVICES'] = '0'

import torch
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
from torch import optim
from torch.utils.data import Dataset, DataLoader, random_split
from tqdm import tqdm
import warnings
warnings.filterwarnings("ignore")
import os.path as osp
import matplotlib.pyplot as plt
from PIL import Image
import numpy as np
import albumentations as A
from albumentations.pytorch.transforms import ToTensorV2
#用于做可视化, 暂时没用到
Cam_COLORMAP = [[0, 0, 0], [128, 0, 0], [0, 128, 0], [128, 128, 0],
                [0, 0, 128], [128, 0, 128], [0, 128, 128], [128, 128, 128],
                [64, 0, 0], [192, 0, 0], [64, 128, 0], [192, 128, 0],
                [64, 0, 128], [192, 0, 128], [64, 128, 128], [192, 128, 128],
                [0, 64, 0], [128, 64, 0], [0, 192, 0], [128, 192, 0],
                [0, 64, 128], [0, 32, 128],[0, 16, 128],[0, 64, 64],[0, 64, 32],
                [0, 64, 16],[64, 64, 128],[0, 32, 16],[32,32,32],[16,16,16],[32,16,128],
                [192,16,16],[32,32,196],[192,32,128], [25,15,125],[32,124,23],[111,222,113],
               ]

#32类
Cam_CLASSES = ['Animal','Archway','Bicyclist','Bridge','Building','Car','CartLuggagePram','Child',
               'Column_Pole','Fence','LaneMkgsDriv','LaneMkgsNonDriv','Misc_Text','MotorcycleScooter',
               'OtherMoving','ParkingBlock','Pedestrian','Road','RoadShoulder','Sidewalk','SignSymbol',
               'Sky', 'SUVPickupTruck','TrafficCone','TrafficLight', 'Train','Tree','Truck_Bus', 'Tunnel',
               'VegetationMisc', 'Void','Wall']


torch.manual_seed(17)
# 自定义数据集CamVidDataset
class CamVidDataset(torch.utils.data.Dataset):
    """CamVid Dataset. Read images, apply augmentation and preprocessing transformations.

    Args:
        images_dir (str): path to images folder
        masks_dir (str): path to segmentation masks folder
        class_values (list): values of classes to extract from segmentation mask
        augmentation (albumentations.Compose): data transfromation pipeline
            (e.g. flip, scale, etc.)
        preprocessing (albumentations.Compose): data preprocessing
            (e.g. noralization, shape manipulation, etc.)
    """

    def __init__(self, images_dir, masks_dir):
        self.transform = A.Compose([
            A.Resize(224, 224),
            A.HorizontalFlip(),
            A.VerticalFlip(),
            A.Normalize(),
            ToTensorV2(),
        ])
        self.ids = os.listdir(images_dir)
        self.images_fps = [os.path.join(images_dir, image_id) for image_id in self.ids]
        self.masks_fps = [os.path.join(masks_dir, image_id) for image_id in self.ids]


    def __getitem__(self, i):
        # read data
        image = np.array(Image.open(self.images_fps[i]).convert('RGB'))
        mask = np.array( Image.open(self.masks_fps[i]).convert('RGB'))
        image = self.transform(image=image,mask=mask)

        return image['image'], image['mask'][:,:,0]

    def __len__(self):
        return len(self.ids)


# 设置数据集路径
DATA_DIR = r'dataset\camvid' # 根据自己的路径来设置
x_train_dir = os.path.join(DATA_DIR, 'train_images')
y_train_dir = os.path.join(DATA_DIR, 'train_labels')
x_valid_dir = os.path.join(DATA_DIR, 'valid_images')
y_valid_dir = os.path.join(DATA_DIR, 'valid_labels')

train_dataset = CamVidDataset(
    x_train_dir,
    y_train_dir,
)
val_dataset = CamVidDataset(
    x_valid_dir,
    y_valid_dir,
)

train_loader = DataLoader(train_dataset, batch_size=8, shuffle=True,drop_last=True)
val_loader = DataLoader(val_dataset, batch_size=8, shuffle=True,drop_last=True)

训练函数

由于需要输出SE loss，这里对训练函数做了一部分改动

model = ENCNet(num_classes=33).cuda()
#model.load_state_dict(torch.load(r"checkpoints/resnet50-11ad3fa6.pth"),strict=False)

def train_batch_ch13(net, X, y, loss, trainer, devices):
    """Train for a minibatch with mutiple GPUs (defined in Chapter 13).

    Defined in :numref:`sec_image_augmentation`"""
    if isinstance(X, list):
        # Required for BERT fine-tuning (to be covered later)
        X = [x.to(devices[0]) for x in X]
    else:
        X = X.to(devices[0])
    y = y.to(devices[0])
    net.train()
    trainer.zero_grad()
    pred = net(X)[0]

    # 33是类别数, pred.shape[0]是batch_size的大小
    exist_class = torch.FloatTensor([[1 if c in y[i_batch] else 0 for c in range(33)]
                    for i_batch in range(pred.shape[0])])

    exist_class = exist_class.cuda()
    pred2 = net(X)[1]

    l = loss(pred, y)
    l1 = nn.functional.mse_loss(pred2, exist_class)

    l = l.sum()+ 0.2*l1
    l.backward()
    trainer.step()
    train_loss_sum = l.sum()
    train_acc_sum = d2l.accuracy(pred, y)
    return train_loss_sum, train_acc_sum

def evaluate_accuracy_gpu(net, data_iter, device=None):
    """Compute the accuracy for a model on a dataset using a GPU.

    Defined in :numref:`sec_lenet`"""
    if isinstance(net, nn.Module):
        net.eval()  # Set the model to evaluation mode
        if not device:
            device = next(iter(net.parameters())).device
    # No. of correct predictions, no. of predictions
    metric = d2l.Accumulator(2)

    with torch.no_grad():
        for X, y in data_iter:
            if isinstance(X, list):
                # Required for BERT Fine-tuning (to be covered later)
                X = [x.to(device) for x in X]
            else:
                X = X.to(device)
            y = y.to(device)
            metric.add(d2l.accuracy(net(X)[0], y), d2l.size(y))
    return metric[0] / metric[1]

from d2l import torch as d2l
from tqdm import tqdm
import pandas as pd
#损失函数选用多分类交叉熵损失函数
lossf = nn.CrossEntropyLoss(ignore_index=255)
#选用adam优化器来训练
optimizer = optim.SGD(model.parameters(),lr=0.1)
scheduler = torch.optim.lr_scheduler.StepLR(optimizer, step_size=50, gamma=0.1, last_epoch=-1)

#训练50轮
epochs_num = 50
def train_ch13(net, train_iter, test_iter, loss, trainer, num_epochs,scheduler,
               devices=d2l.try_all_gpus()):
    timer, num_batches = d2l.Timer(), len(train_iter)
    animator = d2l.Animator(xlabel='epoch', xlim=[1, num_epochs], ylim=[0, 1],
                            legend=['train loss', 'train acc', 'test acc'])
    net = nn.DataParallel(net, device_ids=devices).to(devices[0])

    loss_list = []
    train_acc_list = []
    test_acc_list = []
    epochs_list = []
    time_list = []
    for epoch in range(num_epochs):
        # Sum of training loss, sum of training accuracy, no. of examples,
        # no. of predictions
        metric = d2l.Accumulator(4)
        for i, (features, labels) in enumerate(train_iter):
            timer.start()
            l, acc = train_batch_ch13(
                net, features, labels.long(), loss, trainer, devices)

            metric.add(l, acc, labels.shape[0], labels.numel())
            timer.stop()
            if (i + 1) % (num_batches // 5) == 0 or i == num_batches - 1:
                animator.add(epoch + (i + 1) / num_batches,
                             (metric[0] / metric[2], metric[1] / metric[3],
                              None))
        test_acc = evaluate_accuracy_gpu(net, test_iter)
        animator.add(epoch + 1, (None, None, test_acc))
        scheduler.step()
        print(f"epoch {epoch+1} --- loss {metric[0] / metric[2]:.3f} ---  train acc {metric[1] / metric[3]:.3f} --- test acc {test_acc:.3f} --- cost time {timer.sum()}")

        #---------保存训练数据---------------
        df = pd.DataFrame()
        loss_list.append(metric[0] / metric[2])
        train_acc_list.append(metric[1] / metric[3])
        test_acc_list.append(test_acc)
        epochs_list.append(epoch+1)
        time_list.append(timer.sum())

        df['epoch'] = epochs_list
        df['loss'] = loss_list
        df['train_acc'] = train_acc_list
        df['test_acc'] = test_acc_list
        df['time'] = time_list
        df.to_excel("savefile/EncNet_camvid1.xlsx")
        #----------------保存模型-------------------
        if np.mod(epoch+1, 5) == 0:
            torch.save(model.state_dict(), f'checkpoints/EncNet_{epoch+1}.pth')

开始训练

train_ch13(model, train_loader, val_loader, lossf, optimizer, epochs_num,scheduler)

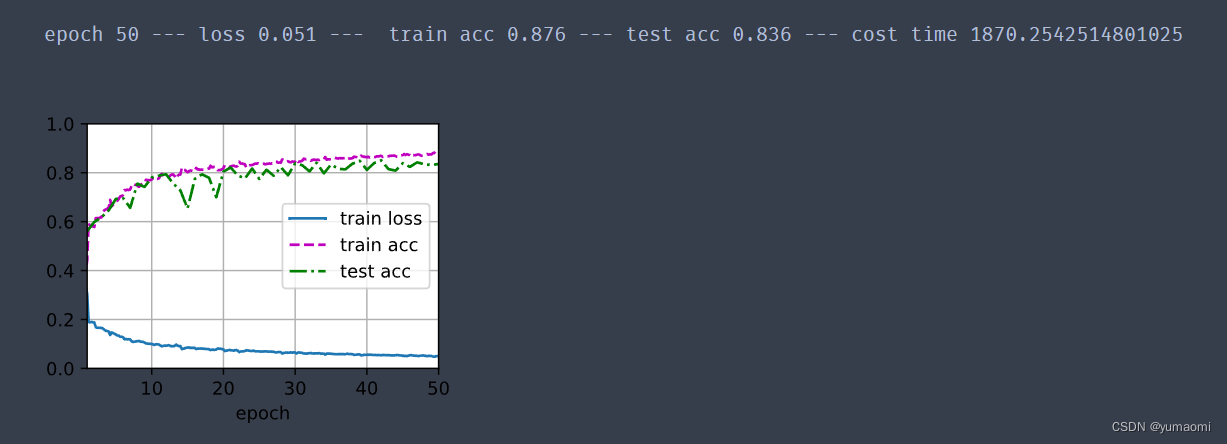

训练结果
