SpringCloud:Ribbon负载均衡,以及自定义算法

最新推荐文章于 2025-05-04 16:21:53 发布

原创最新推荐文章于 2025-05-04 16:21:53 发布 · 737 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#SpringCloud

SpringCloud 专栏收录该内容

13 篇文章

订阅专栏

本文详细介绍如何在Spring Cloud项目中使用Ribbon实现客户端负载均衡，包括必要的Maven依赖、YAML配置、自定义负载均衡策略及注解使用。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

https://github.com/Netflix/ribbon/wiki/Getting-Started

客户端的负载均衡：

80端口的模块pom.xml添加以下依赖

 <!-- Ribbon相关 -->
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-eureka</artifactId>
   </dependency>
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-ribbon</artifactId>
   </dependency>
   <dependency>
     <groupId>org.springframework.cloud</groupId>
     <artifactId>spring-cloud-starter-config</artifactId>
   </dependency>

完整的pom

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>

<parent>
<groupId>com.atguigu.springcloud</groupId>
<artifactId>microservicecloud</artifactId>
<version>0.0.1-SNAPSHOT</version>
</parent>

<artifactId>microservicecloud-consumer-dept-80</artifactId>
<description>部门微服务消费者</description>

<dependencies>
<dependency>
<groupId>com.atguigu.springcloud</groupId>
<artifactId>microservicecloud-api</artifactId>
<version>${project.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>org.springframework</groupId>
<artifactId>springloaded</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
</dependency>

<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-eureka</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-ribbon</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-config</artifactId>
</dependency>
</dependencies>
</project>

application.yml配置文件添加eureka注册信息

 server:
  port: 80

eureka:
  client:
    #register-with-eureka: false 将自己注册进入eureka server
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/
  instance:
    instance-id: ${spring.cloud.client.ipAddress}:${server.port}
spring:
  application:
    name: mircoservicecloud-consumer-dept-80

在自动配置的类中添加注解 @LoadBalanced

package com.atguigu.springcloud.cfgbeans;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ConfigBean
{
  @Bean
  @LoadBalanced
  public RestTemplate getRestTemplate()
  {
   return new RestTemplate();
  }
}

服务端provader配置三台集群，通过ribbion默认的轮循就可以访问不同的服务端数据

/**********************************************************************************************************/

https://github.com/Netflix/ribbon

修改80端口客户端

在启动该服务的时候就能去加载我们自定义Ribbon配置类，从而使配置生效，形如

@RibbonClient(value = "microservicecloud-provider-dept",configuration = MySelfRule.class)

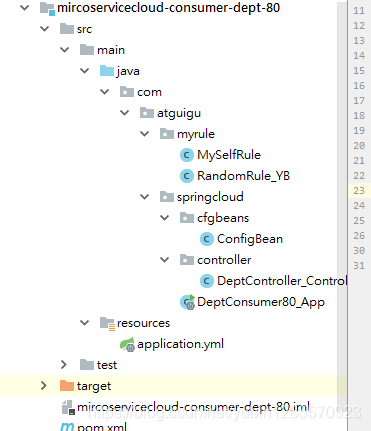

自定义的配置类不能跟@ConmpontScan注解的类相同包下及子包下面，所以需要新增新的包才可以。

package com.atguigu.myrule;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RandomRule;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class MySelfRule {

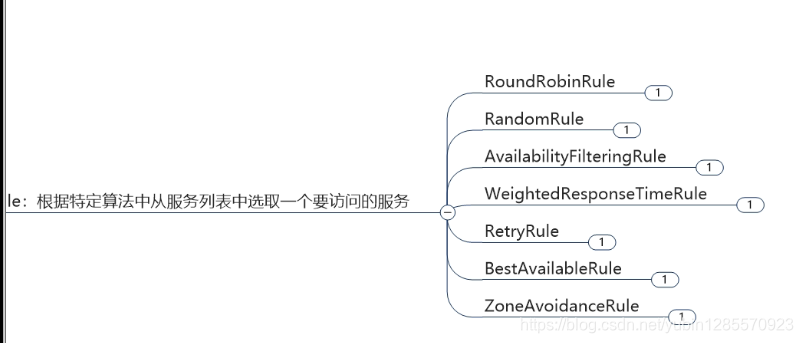

    //指定系统有的负载均衡算法
    @Bean
    public IRule myRule () {
//        return new RandomRule();
        return new RandomRule_YB();
    }

}

自己定义的规则

package com.atguigu.myrule;

import com.netflix.client.config.IClientConfig;
import com.netflix.loadbalancer.AbstractLoadBalancerRule;
import com.netflix.loadbalancer.ILoadBalancer;
import com.netflix.loadbalancer.RoundRobinRule;
import com.netflix.loadbalancer.Server;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.List;
import java.util.concurrent.atomic.AtomicInteger;

/**
 * Created by admin on 2019/1/30 19:32
 *
 * @Author: created by admin
 * @Date: created in 19:32 2019/1/30
 * @param: bindingResult
 * @param: result
 * @return:
 * @throws:
 * @Description:
 * @version:
 */

public class RandomRule_YB extends AbstractLoadBalancerRule {

    private AtomicInteger nextServerCyclicCounter;
    private static final boolean AVAILABLE_ONLY_SERVERS = true;
    private static final boolean ALL_SERVERS = false;

    private int total = 0;
    private int currentIndex = 0;

    private static Logger log = LoggerFactory.getLogger(RoundRobinRule.class);



    public Server choose(ILoadBalancer lb, Object key) {
        if (lb == null) {
            log.warn("no load balancer");
            return null;
        }

        Server server = null;
        int count = 0;
        while (server == null && count++ < 10) {
            List<Server> reachableServers = lb.getReachableServers();
            List<Server> allServers = lb.getAllServers();
            int upCount = reachableServers.size();
            int serverCount = allServers.size();

            if ((upCount == 0) || (serverCount == 0)) {
                log.warn("No up servers available from load balancer: " + lb);
                return null;
            }

//            int nextServerIndex = incrementAndGetModulo(serverCount);
//            server = allServers.get(nextServerIndex);

            if(total <5) {
                server = reachableServers.get(currentIndex);
                total ++;

            }else {
                total =0;
                currentIndex ++;
                if(currentIndex>=upCount) {
                    currentIndex =0;
                }
            }
            if (server == null) {
                /* Transient. */
                Thread.yield();
                continue;
            }

            if (server.isAlive() && (server.isReadyToServe())) {
                return (server);
            }

            // Next.
            server = null;
        }

        if (count >= 10) {
            log.warn("No available alive servers after 10 tries from load balancer: "
                    + lb);
        }
        return server;
    }

    /**
     * Inspired by the implementation of {@link AtomicInteger#incrementAndGet()}.
     *
     * @param modulo The modulo to bound the value of the counter.
     * @return The next value.
     */
    private int incrementAndGetModulo(int modulo) {
        for (;;) {
            int current = nextServerCyclicCounter.get();
            int next = (current + 1) % modulo;
            if (nextServerCyclicCounter.compareAndSet(current, next))
                return next;
        }
    }

    @Override
    public Server choose(Object key) {
        return choose(getLoadBalancer(), key);
    }

    @Override
    public void initWithNiwsConfig(IClientConfig clientConfig) {
    }
}
