全志H618，AndroidTV12添加自定红外遥控器

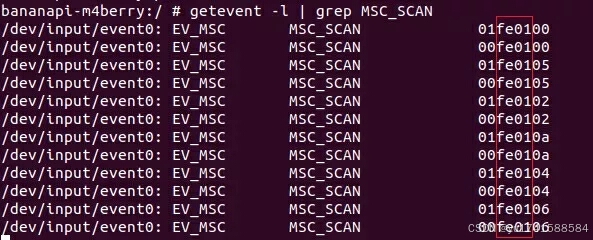

1. Execute getevent -l | grep MSC_SCAN in the serial port or adb shell, then press the corresponding button on the remote control to obtain the device ID and scancode.

The MSC_SCAN data is 32 bits.
Bits [31:24] represent the key press status, where 0 indicates release, and 1 indicates press.
Bits [23:8] represent the device ID. Use this ID to generate a keylayout file named customer_ir_xxxx.kl. For example, in this case, it would be customer_ir_fe01.kl.
Bits [7:0] represent the scancode.

2. Based on the results of step one, create a new file named customer_ir_xxxx.kl with the following content:

Map the scancodes in the second column to Android keycodes.

3.Use the adb command to push customer_ir_xxxx.kl to the system.

 $ adb root
 $ adb remount
 $ adb push customer_ir_xxxx.kl  /system/usr/keylayout/
 $ adb reboot

For source code porting, put the customer_ir_xxxx.kl to vendor/w/common/hardware/input/multi_ir/keylayout/ directory and build the source code.

详细步骤：
1.可不用添加adb工具到path：

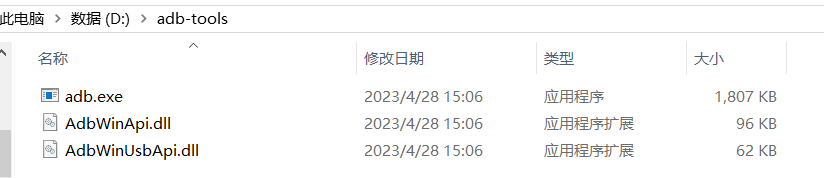

解压adb工具到英文目录：

开发板上电，并打开开发者模式中的USB调试，连接电脑
adb工具目录下打开powershell，执行命令

图示代表连接设备成功

输入命令退出

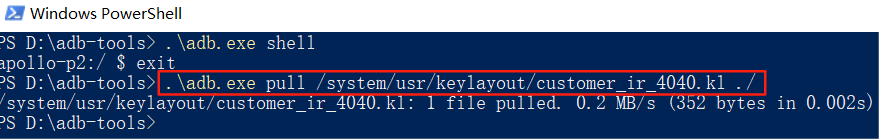

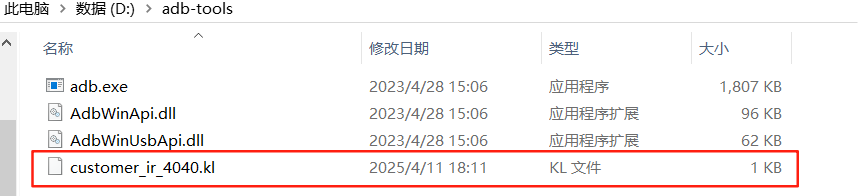

2.输入命令提取开发板中的文件，到adb所在的目录


3.解析遥控器中的按键值

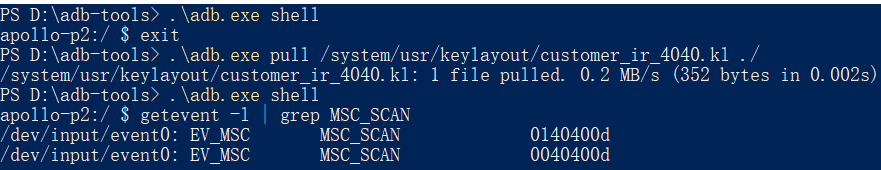

执行命令，并按下遥控器中的键，记录键值，改写customer_ir_4040.kl，4040要改成遥控器对应的值

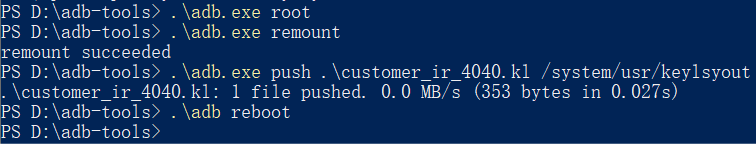

4.上传customer_ir_4040.kl

参考

wiki.banana-pi.org
