介绍
Handler机制的作用：实现线程间通信的
如何实现Handler机制：

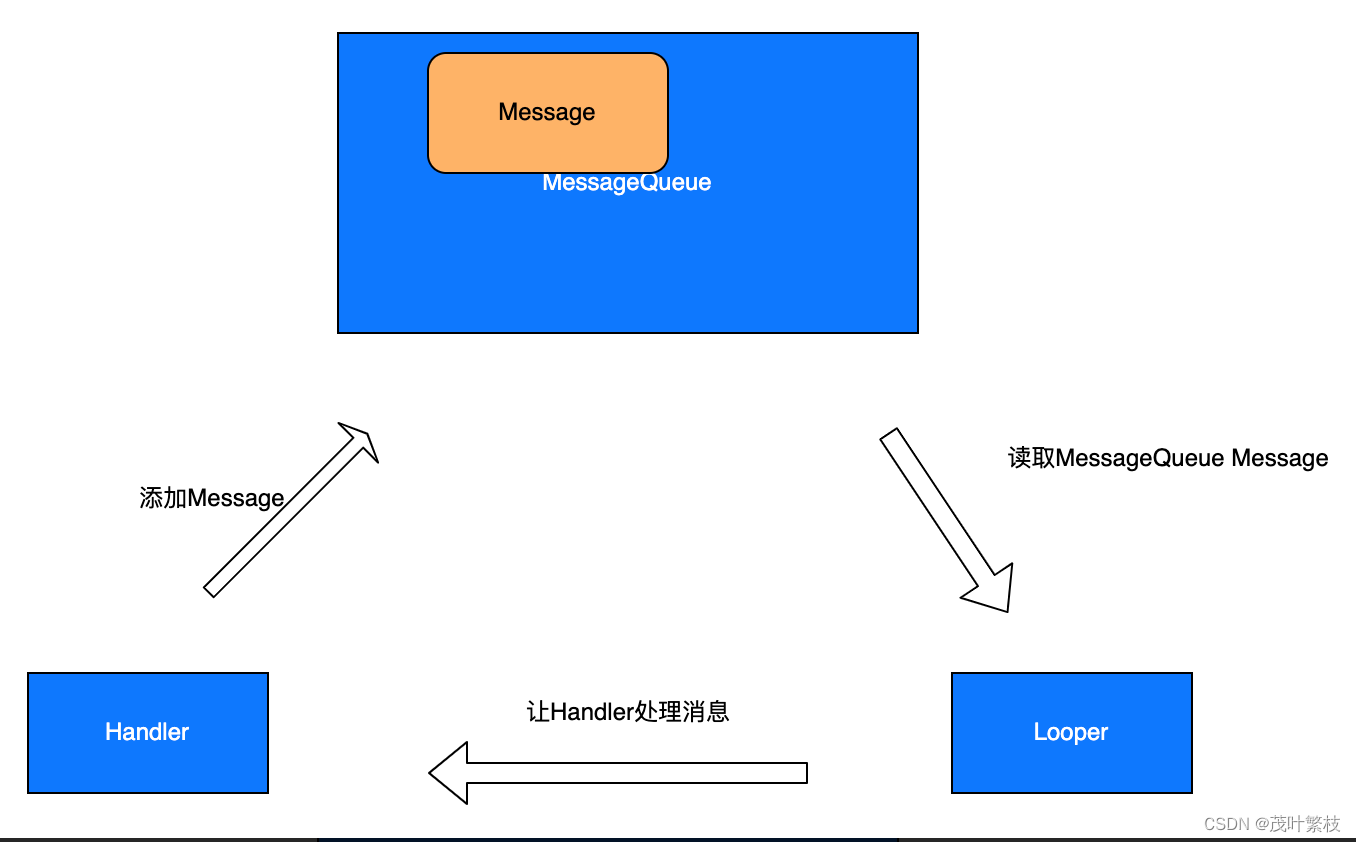

简单模型
在这里插入图片描述

Handler、Looper、MessageQueue、Message
Handler：消息的处理者或者消费者,持有Looper的引用
Looper：通过loop()不停的读取MessageQueue消息，让Message.target(Handler)进行处理消息
MessageQueue：由链表实现的消息队列，方便插入和删除
Message：关键字段

when:用作消息延时使用
mCallBack：消息回调监听
target：自定义其为消息来源，当为null表示屏障消息
What、arg1、arg2、obj等

消息类型

同步消息:按顺序执行的普通消息
屏障消息：开启屏障、关闭屏障，开始屏障：表明要优先执行异步消息了，取消屏障：继续执行普通消息
异步消息：优先执行的消息，如帧率更新ui

发送消息
非延时消息：when= 当前时间 +0
延时消息：when= 当前时间+延时时间

public final boolean sendMessageDelayed(Message msg, long delayMillis)
{
    if (delayMillis < 0) {
        delayMillis = 0;
    }
    return sendMessageAtTime(msg, SystemClock.uptimeMillis() + delayMillis);
}

入队列：消息插入到应该在的位置，如果队列正在阻塞中，唤醒队列

**boolean enqueueMessage(Message msg, long when) {
    if (msg.target == null) {
        throw new IllegalArgumentException("Message must have a target.");
    }
    if (msg.isInUse()) {
        throw new IllegalStateException(msg + " This message is already in use.");
    }
    synchronized (this) {
        if (mQuitting) {
            IllegalStateException e = new IllegalStateException(
                    msg.target + " sending message to a Handler on a dead thread");
            Log.w(TAG, e.getMessage(), e);
            msg.recycle();
            return false;
        }
        msg.markInUse();
        msg.when = when;
        Message p = mMessages;
        boolean needWake;
        if (p == null || when == 0 || when < p.when) {
            // New head, wake up the event queue if blocked.
            msg.next = p;
            mMessages = msg;
            needWake = mBlocked;
        } else {
            // Inserted within the middle of the queue.  Usually we don't have to wake
            // up the event queue unless there is a barrier at the head of the queue
            // and the message is the earliest asynchronous message in the queue.
            needWake = mBlocked && p.target == null && msg.isAsynchronous();
            Message prev;
            for (;;) {
                prev = p;
                p = p.next;
                if (p == null || when < p.when) {
                    break;
                }
                if (needWake && p.isAsynchronous()) {
                    needWake = false;
                }
            }
            msg.next = p; // invariant: p == prev.next
            prev.next = msg;
        }
        // We can assume mPtr != 0 because mQuitting is false.
        if (needWake) {
            nativeWake(mPtr);
        }
    }
    return true;
}

出队列：messageQueue.next()

普通消息：判断when和当前时间比，大于当前时间开始阻塞知道，时间到达，反之直接当条消息
屏障消息：target为null表示屏障消息，遍历出消息队列里吗的第一条异步消息执行
if (msg != null && msg.target == null) {
// Stalled by a barrier. Find the next asynchronous message in the queue.
do {
prevMsg = msg;
msg = msg.next;
} while (msg != null && !msg.isAsynchronous());
}**

分发消息
Looper的loop方法调用
message.target.dispatchMessage()

Handler的方法dispatchMessage()

public void dispatchMessage(Message msg) {
    if (msg.callback != null) {//当消息中有callback直接回调消息中的
        handleCallback(msg);
    } else {//反之
        if (mCallback != null) {//当前handler全局中有定义Callback
            if (mCallback.handleMessage(msg)) {
                return;
            }
        }
        handleMessage(msg);//回调该方法
    }
}

高级问题：
如何监听方法耗时，通过handler机制实现Printer接口

if (logging != null) {
    logging.println(">>>>> Dispatching to " + msg.target + " " +
            msg.callback + ": " + msg.what);
}
if (logging != null) {
    logging.println("<<<<< Finished to " + msg.target + " " + msg.callback);
}
