NC65自定义扩展按钮UAP65

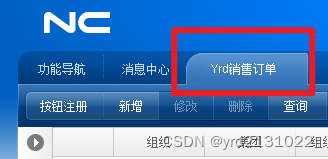

1.确定要新增按钮的界面，如：

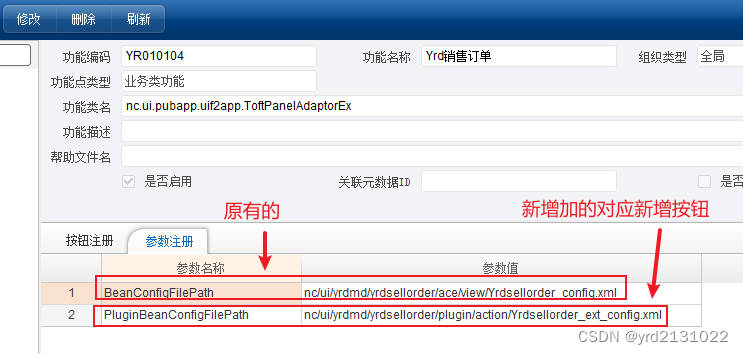

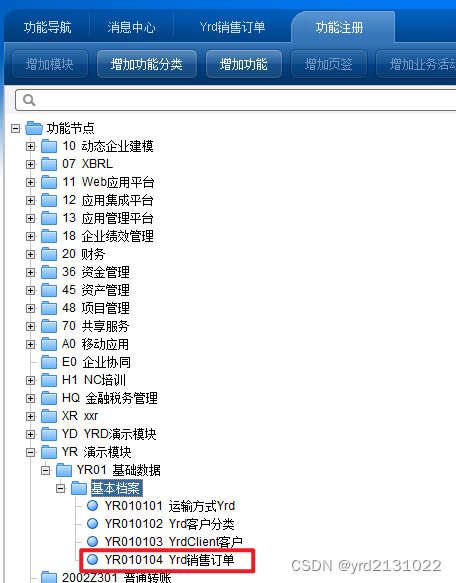

打开功能注册：

2.添加配置扩展文件

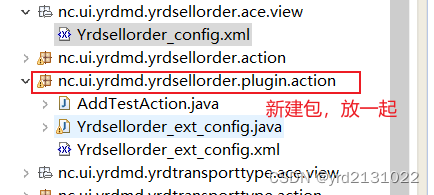

3写一个按钮类，继承 nc.ui.uif2.NCAction

package nc.ui.yrdmd.yrdsellorder.plugin.action;

import java.awt.event.ActionEvent;

import nc.ui.pub.beans.MessageDialog;
import nc.ui.pubapp.uif2app.view.BillForm;
import nc.ui.uif2.NCAction;
import nc.ui.uif2.UIState;
import nc.ui.uif2.model.BillManageModel;


@SuppressWarnings("serial")
public class AddTestAction extends NCAction {

	//根据节点xml中其他按钮bean选择model、editor的类型
	private BillForm editor;
	private BillManageModel model;


	public AddTestAction() {
		super.setBtnName("测试自制按钮");
	}

	@Override
	public void doAction(ActionEvent e) throws Exception {

		int i = MessageDialog.showOkCancelDlg(editor, "确认", "是否保存？");
		MessageDialog.showHintDlg(editor, "提示", i + "");
	}

	public BillForm getEditor() {
		return this.editor;
	}

	public BillManageModel getModel() {
		return this.model;
	}

	public void setEditor(BillForm editor) {
		this.editor = editor;
	}

	public void setModel(BillManageModel model) {
		this.model = model;
		model.addAppEventListener(this);
	}

	@Override
	protected boolean isActionEnable() {
		return this.model.getUiState() == UIState.NOT_EDIT;
	}

}

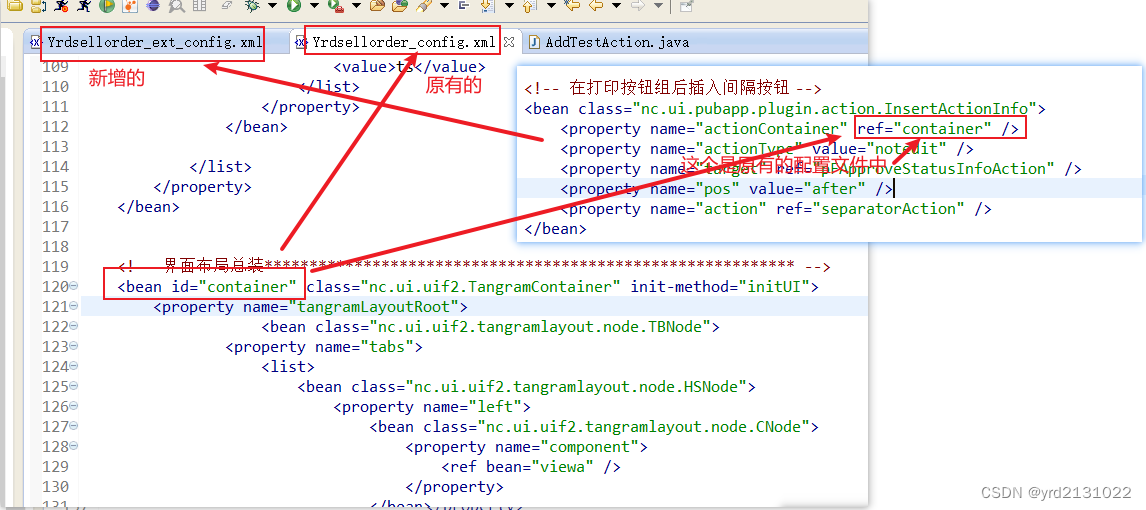

4.XML配置文件，路径要和你配置的一样，不然系统找不到

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN" "http://www.springframework.org/dtd/spring-beans.dtd">

<beans>

	<!-- 间隔按钮 -->
	<!--<bean id="separatorAction" class="nc.funcnode.ui.action.SeparatorAction" />-->

	<!-- 在打印按钮组后插入间隔按钮 -->
	<bean class="nc.ui.pubapp.plugin.action.InsertActionInfo">
		<property name="actionContainer" ref="container" />
		<property name="actionType" value="notedit" />
		<property name="target" ref="pFApproveStatusInfoAction" />
		<property name="pos" value="after" />
		<property name="action" ref="separatorAction" />
	</bean>

	<!-- 配置列表界面显示的按钮 actionsOfList-->
	<!-- 在间隔按钮后插入自己的按钮 -->
	<bean class="nc.ui.pubapp.plugin.action.InsertActionInfo">
		<property name="actionContainer" ref="container" />
		<property name="actionType" value="notedit" />
		<property name="target" ref="separatorAction" />
		<property name="pos" value="after" />
		<property name="action" ref="tidaiping" />
	</bean>

	<!-- 自己的按钮 -->
   	<bean id="tidaiping"  class="nc.ui.yrdmd.yrdsellorder.plugin.action.AddTestAction">
   		<!-- model、editor属性名与按钮类对应 -->
   		<property name="model" ref="bmModel" />
		<property name="editor" ref="billForm" />
		<!-- 必须属性（不加销售订单维护节点点不开后台报code为null） -->
		<property name="code" value="begin"/>

   	</bean>

</beans>

5.试一下右键这个xml文件，点击SpringxmlToJava能否生成java代码，一般是可以生成的，我用的是eclipse。如果生成成功，说明写的xml配置文件没问题，没生成成功就检查一下配置，实在检查不出问题就不用生成java文件了。

总结：
