saltstack进阶

vim /etc/salt/master:

[root@localhost pillar]# mkdir /srv/salt/base
[root@localhost pillar]# mkdir /srv/salt/test
[root@localhost pillar]# mkdir /srv/salt/prod

[root@localhost base]# salt '*' state.sls dns
192.168.240.130:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf updated
     Started: 07:03:37.898401
    Duration: 26.143 ms
     Changes:
              ----------
              diff:
                  ---
                  +++
                  @@ -1,3 +1,1 @@
                  -; generated by /sbin/dhclient-script
                  -search localdomain
                  -nameserver 223.5.5.5
                  +nameserver 10.0.0.2

Summary
------------
Succeeded: 1 (changed=1)
Failed:    0
------------
Total states run:     1
192.168.240.131:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf updated
     Started: 07:03:37.706662
    Duration: 77.298 ms
     Changes:
              ----------
              diff:
                  ---
                  +++
                  @@ -1,3 +1,1 @@
                  -; generated by /sbin/dhclient-script
                  -search localdomain
                  -nameserver 192.168.240.2
                  +nameserver 10.0.0.2

Summary
------------
Succeeded: 1 (changed=1)
Failed:    0
------------
Total states run:     1
[root@localhost base]# cat /etc/resolv.conf
nameserver 10.0.0.2

• YAML使用一个固定的缩进风格表示数据层结构关系
• Salt需要每个缩进级别由两个空格组成。

• 不要使用tabs

系统初始化

[root@localhost base]# pwd
/srv/salt/base
[root@localhost base]# tree
.
├── init
│   ├── audit.sls
│   ├── dns.sls
│   ├── env_init.sls
│   ├── files
│   │   └── resolv.conf
│   ├── history.sls
│   └── sysctl.sls
└── top.sls

2 directories, 7 files
[root@localhost base]# cat top.sls
base:
  '*':
    - init.env_init
[root@localhost base]# cat init/env_init.sls
include:
  - init.dns
  - init.history
  - init.audit
  - init.sysctl

[root@localhost base]# cat init/audit.sls
/etc/bashrc:
  file.append:
    - text:
      - export PROMPT_COMMAND='{ msg=$(history 1 | { read x y; echo $y; });logger "[euid=$(whoami)]":$(who am i):[`pwd`]"$msg";}'
[root@localhost base]# cat init/dns.sls
/etc/resolv.conf:
  file.managed:
    - source: salt://init/files/resolv.conf
    - user: root
    - group: root
    - mode: 644
[root@localhost base]# cat init/history.sls
/etc/profile:
  file.append:
    - text:
      - export HISTTIMEFORMAT="%F %T `whoami` "
[root@localhost base]# cat init/sysctl.sls
vm.swappiness:
  sysctl.present:
    - value: 0

net.ipv4.ip_local_port_range:
  sysctl.present:
    - value: 10000 65000

fs.file-max:
  sysctl.present:
    - value: 10000
[root@localhost base]# cat init/files/resolv.conf
nameserver 223.5.5.5
[root@localhost base]# salt '*' state.highstate test=True
// 执行
salt '*' state.highstate

功能模块

[root@localhost ~]# mkdir /srv/salt/prod/pkg
[root@localhost ~]# mkdir /srv/salt/prod/haproxy
[root@localhost ~]# mkdir /srv/salt/prod/haproxy/files
[root@localhost ~]# cd /srv/salt/prod/pkg/
[root@localhost pkg]# vim pkg-init.sls
[root@localhost pkg]# cat pkg-init.sls
pkg-init:
  pkg.installed:
    - names:
      - gcc
      - gcc-c++
      - glibc
      - make
      - autoconf
      - openssl
      - openssl-devel

状态模块:状态间关系

功能:条件判断,主要用于cmd状态模块

常用方法:

• onlyif:检查的命令,仅当"onlyif"选项指向的命令返回true时才执行name定义的命令
• unless:用于检查的命令,仅当"unless"选项指定的命令返回false时才执行name指向的命令


功能名称:requisites

功能:处理状态间关系

常用方法:

• require   我依赖某个状态
• require_in   我被某个状态依赖
• watch   我关注某个状态
• watch_in 我被某个状态关注


[root@localhost haproxy]# pwd
/srv/salt/prod/haproxy
[root@localhost haproxy]# cat install.sls
include:
  - pkg.pkg-init

haproxy-install:
  file.managed:
    - name: /usr/local/src/haproxy-1.6.2.tar.gz
    - source: salt://haproxy/files/haproxy-1.6.2.tar.gz
    - user: root
    - group: root
    - mode: 755
  cmd.run:
    - name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
    - unless: test -d /usr/local/haproxy
    - require:
      - pkg: pkg-init
      - file: haproxy-install

haproxy-init:
  file.managed:
    - name: /etc/init.d/haproxy
    - source: salt://haproxy/files/haproxy.init
    - user: root
    - group: root
    - mode: 755
    - require:
      - cmd: haproxy-install
  cmd.run:
    - name: chkconfig --add haproxy
    - unless: chkconfig --list | grep haproxy
    - require:
      - file: /etc/init.d/haproxy

net.ipv4.ip_nonlocal_bind:
  sysctl.present:
    - value: 1

haproxy-config-dir:
  file.directory:
    - name: /etc/haproxy
    - user: root
    - group: root
    - mode: 755

[root@localhost haproxy]# salt '192.168.240.130' state.sls haproxy.install env=prod
192.168.240.130:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc
      Result: True
     Comment: Package gcc is already installed.
     Started: 15:46:14.985990
    Duration: 1379.723 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: glibc
      Result: True
     Comment: Package glibc is already installed.
     Started: 15:46:16.367221
    Duration: 0.574 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl
      Result: True
     Comment: Package openssl is already installed.
     Started: 15:46:16.367894
    Duration: 0.757 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl-devel
      Result: True
     Comment: Package openssl-devel is already installed.
     Started: 15:46:16.368891
    Duration: 0.574 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: autoconf
      Result: True
     Comment: Package autoconf is already installed.
     Started: 15:46:16.369611
    Duration: 0.616 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc-c++
      Result: True
     Comment: Package gcc-c++ is already installed.
     Started: 15:46:16.370403
    Duration: 0.589 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: make
      Result: True
     Comment: Package make is already installed.
     Started: 15:46:16.371081
    Duration: 0.387 ms
     Changes:
----------
          ID: haproxy-install
    Function: file.managed
        Name: /usr/local/src/haproxy-1.6.2.tar.gz
      Result: True
     Comment: File /usr/local/src/haproxy-1.6.2.tar.gz updated
     Started: 15:46:16.429228
    Duration: 15.668 ms
     Changes:
              ----------
              mode:
                  0755
----------
          ID: haproxy-install
    Function: cmd.run
        Name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 15:46:16.456300
    Duration: 6.445 ms
     Changes:
----------
          ID: haproxy-init
    Function: file.managed
        Name: /etc/init.d/haproxy
      Result: True
     Comment: File /etc/init.d/haproxy updated
     Started: 15:46:16.463460
    Duration: 198.725 ms
     Changes:
              ----------
              diff:
                  New file
              mode:
                  0755
----------
          ID: haproxy-init
    Function: cmd.run
        Name: chkconfig --add haproxy
      Result: True
     Comment: Command "chkconfig --add haproxy" run
     Started: 15:46:16.663185
    Duration: 142.247 ms
     Changes:
              ----------
              pid:
                  4496
              retcode:
                  0
              stderr:
              stdout:
----------
          ID: net.ipv4.ip_nonlocal_bind
    Function: sysctl.present
      Result: True
     Comment: Updated sysctl value net.ipv4.ip_nonlocal_bind = 1
     Started: 15:46:16.807326
    Duration: 53.294 ms
     Changes:
              ----------
              net.ipv4.ip_nonlocal_bind:
                  1
----------
          ID: haproxy-config-dir
    Function: file.directory
        Name: /etc/haproxy
      Result: True
     Comment: Directory /etc/haproxy updated
     Started: 15:46:16.861046
    Duration: 2.699 ms
     Changes:
              ----------
              /etc/haproxy:
                  New Dir

Summary
-------------
Succeeded: 13 (changed=5)
Failed:     0
-------------
Total states run:     13

[root@localhost files]# pwd
/srv/salt/prod/cluster/files
[root@localhost files]# cat haproxy-outside.cfg
global
maxconn 100000
chroot /usr/local/haproxy
uid 99
gid 99
daemon
nbproc 1
pidfile /usr/local/haproxy/logs/haproxy.pid
log 127.0.0.1 local3 info

defaults
option http-keep-alive
maxconn 100000
mode http
timeout connect 5000ms
timeout client  50000ms

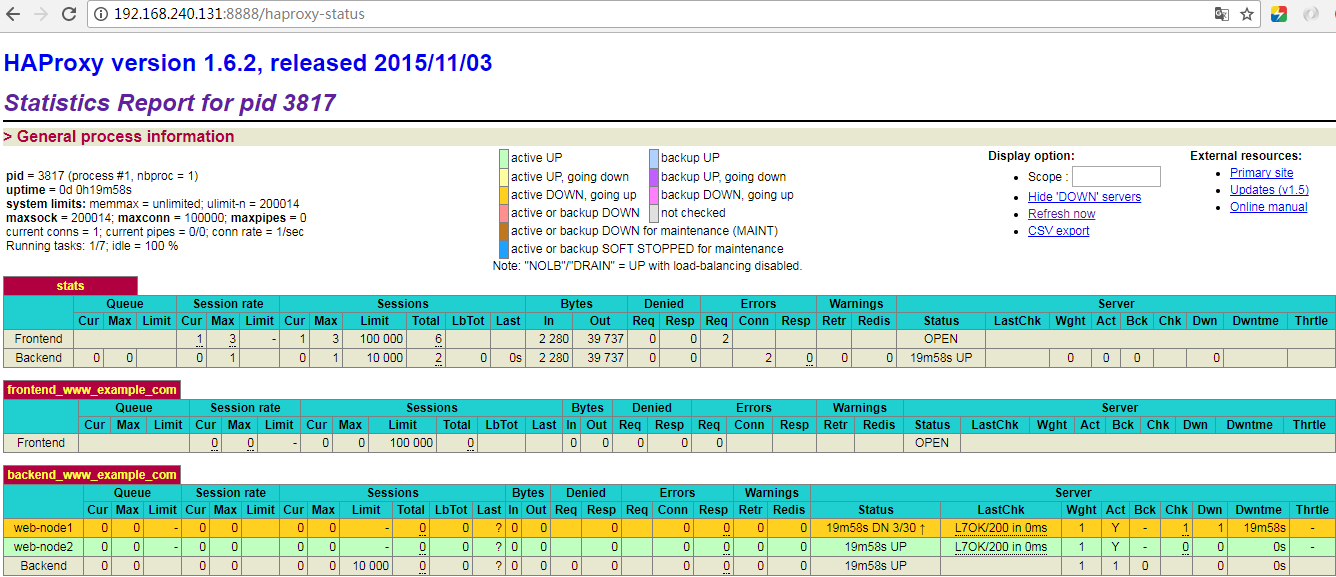

listen stats
mode http
bind 0.0.0.0:8888
stats enable
stats uri      /haproxy-status
stats auth     haproxy:saltstack

frontend frontend_www_example_com
bind 192.168.240.131:80
mode http
option httplog
log global
    default_backend backend_www_example_com

backend backend_www_example_com
option forwardfor header X-REAL-IP
option httpchk HEAD / HTTP/1.0
balance source
server web-node1 192.168.240.130:8080 check inter 2000 rise 30 fall 15
server web-node2 192.168.240.131:8080 check inter 2000 rise 30 fall 15

[root@localhost cluster]# pwd
/srv/salt/prod/cluster
[root@localhost cluster]# cat haproxy-outside.sls
include:
  - haproxy.install

haproxy-service:
  file.managed:
    - name: /etc/haproxy/haproxy.cfg
    - source: salt://cluster/files/haproxy-outside.cfg
    - user: root
    - group: root
    - mode: 644
  service.running:
    - name: haproxy
    - enable: True
    - reload: True
    - require:
      - cmd: haproxy-init
    - watch:
      - file: haproxy-service

[root@localhost base]# pwd
/srv/salt/base
[root@localhost base]# cat top.sls
base:
  '*':
    - init.env_init

prod:
  '192.168.240.130':
    - cluster.haproxy-outside
  '192.168.240.131':
    - cluster.haproxy-outside

 [root@localhost files]# cat haproxy.init
#!/bin/sh
#
# chkconfig: - 85 15
# description: HA-Proxy is a TCP/HTTP reverse proxy which is particularly suited \
#              for high availability environments.
# processname: haproxy
# config: /etc/haproxy/haproxy.cfg
# pidfile: /var/run/haproxy.pid

# Script Author: Simon Matter <simon.matter@invoca.ch>
# Version: 2004060600

# Source function library.
if [ -f /etc/init.d/functions ]; then
  . /etc/init.d/functions
elif [ -f /etc/rc.d/init.d/functions ] ; then
  . /etc/rc.d/init.d/functions
else
  exit 0
fi

# Source networking configuration.
. /etc/sysconfig/network

# Check that networking is up.
[ ${NETWORKING} = "no" ] && exit 0

# This is our service name
BASENAME=`basename $0`
if [ -L $0 ]; then
  BASENAME=`find $0 -name $BASENAME -printf %l`
  BASENAME=`basename $BASENAME`
fi

# 修改此处
BIN=/usr/local/haproxy/sbin/$BASENAME

CFG=/etc/$BASENAME/$BASENAME.cfg
[ -f $CFG ] || exit 1

PIDFILE=/var/run/$BASENAME.pid
LOCKFILE=/var/lock/subsys/$BASENAME

RETVAL=0

start() {
  quiet_check
  if [ $? -ne 0 ]; then
    echo "Errors found in configuration file, check it with '$BASENAME check'."
    return 1
  fi

  echo -n "Starting $BASENAME: "
  daemon $BIN -D -f $CFG -p $PIDFILE
  RETVAL=$?
  echo
  [ $RETVAL -eq 0 ] && touch $LOCKFILE
  return $RETVAL
}

stop() {
  echo -n "Shutting down $BASENAME: "
  killproc $BASENAME -USR1
  RETVAL=$?
  echo
  [ $RETVAL -eq 0 ] && rm -f $LOCKFILE
  [ $RETVAL -eq 0 ] && rm -f $PIDFILE
  return $RETVAL
}

restart() {
  quiet_check
  if [ $? -ne 0 ]; then
    echo "Errors found in configuration file, check it with '$BASENAME check'."
    return 1
  fi
  stop
  start
}

reload() {
  if ! [ -s $PIDFILE ]; then
    return 0
  fi

  quiet_check
  if [ $? -ne 0 ]; then
    echo "Errors found in configuration file, check it with '$BASENAME check'."
    return 1
  fi
  $BIN -D -f $CFG -p $PIDFILE -sf $(cat $PIDFILE)
}

check() {
  $BIN -c -q -V -f $CFG
}

quiet_check() {
  $BIN -c -q -f $CFG
}

rhstatus() {
  status $BASENAME
}

condrestart() {
  [ -e $LOCKFILE ] && restart || :
}

# See how we were called.
case "$1" in
  start)
    start
    ;;
  stop)
    stop
    ;;
  restart)
    restart
    ;;
  reload)
    reload
    ;;
  condrestart)
    condrestart
    ;;
  status)
    rhstatus
    ;;
  check)
    check
    ;;
  *)
    echo $"Usage: $BASENAME {start|stop|restart|reload|condrestart|status|check}"
    exit 1
esac

exit $?

[root@localhost ~]# salt '*' state.highstate test=True

[root@localhost files]# salt '*' state.highstate
192.168.240.130:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf is in the correct state
     Started: 16:35:03.443126
    Duration: 48.101 ms
     Changes:
----------
          ID: /etc/profile
    Function: file.append
      Result: True
     Comment: File /etc/profile is in correct state
     Started: 16:35:03.491434
    Duration: 4.796 ms
     Changes:
----------
          ID: /etc/bashrc
    Function: file.append
      Result: True
     Comment: File /etc/bashrc is in correct state
     Started: 16:35:03.496467
    Duration: 13.05 ms
     Changes:
----------
          ID: vm.swappiness
    Function: sysctl.present
      Result: True
     Comment: Sysctl value vm.swappiness = 0 is already set
     Started: 16:35:03.511323
    Duration: 77.236 ms
     Changes:
----------
          ID: net.ipv4.ip_local_port_range
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_local_port_range = 10000 65000 is already set
     Started: 16:35:03.588869
    Duration: 67.701 ms
     Changes:
----------
          ID: fs.file-max
    Function: sysctl.present
      Result: True
     Comment: Sysctl value fs.file-max = 10000 is already set
     Started: 16:35:03.656870
    Duration: 65.108 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc
      Result: True
     Comment: Package gcc is already installed.
     Started: 16:35:04.238573
    Duration: 647.308 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: glibc
      Result: True
     Comment: Package glibc is already installed.
     Started: 16:35:04.886188
    Duration: 1.064 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl
      Result: True
     Comment: Package openssl is already installed.
     Started: 16:35:04.887613
    Duration: 0.722 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl-devel
      Result: True
     Comment: Package openssl-devel is already installed.
     Started: 16:35:04.888447
    Duration: 0.557 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: autoconf
      Result: True
     Comment: Package autoconf is already installed.
     Started: 16:35:04.889158
    Duration: 0.463 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc-c++
      Result: True
     Comment: Package gcc-c++ is already installed.
     Started: 16:35:04.889704
    Duration: 0.648 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: make
      Result: True
     Comment: Package make is already installed.
     Started: 16:35:04.890510
    Duration: 0.684 ms
     Changes:
----------
          ID: haproxy-install
    Function: file.managed
        Name: /usr/local/src/haproxy-1.6.2.tar.gz
      Result: True
     Comment: File /usr/local/src/haproxy-1.6.2.tar.gz is in the correct state
     Started: 16:35:04.891378
    Duration: 13.058 ms
     Changes:
----------
          ID: haproxy-install
    Function: cmd.run
        Name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:35:04.906702
    Duration: 8.296 ms
     Changes:
----------
          ID: haproxy-init
    Function: file.managed
        Name: /etc/init.d/haproxy
      Result: True
     Comment: File /etc/init.d/haproxy is in the correct state
     Started: 16:35:04.915827
    Duration: 5.704 ms
     Changes:
----------
          ID: haproxy-init
    Function: cmd.run
        Name: chkconfig --add haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:35:04.922560
    Duration: 24.861 ms
     Changes:
----------
          ID: net.ipv4.ip_nonlocal_bind
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_nonlocal_bind = 1 is already set
     Started: 16:35:04.948053
    Duration: 32.289 ms
     Changes:
----------
          ID: haproxy-config-dir
    Function: file.directory
        Name: /etc/haproxy
      Result: True
     Comment: Directory /etc/haproxy is in the correct state
     Started: 16:35:04.980629
    Duration: 4.732 ms
     Changes:
----------
          ID: haproxy-service
    Function: file.managed
        Name: /etc/haproxy/haproxy.cfg
      Result: True
     Comment: File /etc/haproxy/haproxy.cfg is in the correct state
     Started: 16:35:04.985550
    Duration: 3.79 ms
     Changes:
----------
          ID: haproxy-service
    Function: service.running
        Name: haproxy
      Result: True
     Comment: Service haproxy is already enabled, and is in the desired state
     Started: 16:35:04.992417
    Duration: 52.617 ms
     Changes:

Summary
-------------
Succeeded: 21
Failed:     0
-------------
Total states run:     21
192.168.240.131:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf is in the correct state
     Started: 16:35:03.520359
    Duration: 47.809 ms
     Changes:
----------
          ID: /etc/profile
    Function: file.append
      Result: True
     Comment: File /etc/profile is in correct state
     Started: 16:35:03.568403
    Duration: 4.649 ms
     Changes:
----------
          ID: /etc/bashrc
    Function: file.append
      Result: True
     Comment: File /etc/bashrc is in correct state
     Started: 16:35:03.573241
    Duration: 6.758 ms
     Changes:
----------
          ID: vm.swappiness
    Function: sysctl.present
      Result: True
     Comment: Sysctl value vm.swappiness = 0 is already set
     Started: 16:35:03.581378
    Duration: 93.423 ms
     Changes:
----------
          ID: net.ipv4.ip_local_port_range
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_local_port_range = 10000 65000 is already set
     Started: 16:35:03.675126
    Duration: 84.678 ms
     Changes:
----------
          ID: fs.file-max
    Function: sysctl.present
      Result: True
     Comment: Sysctl value fs.file-max = 10000 is already set
     Started: 16:35:03.760214
    Duration: 55.399 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc
      Result: True
     Comment: Package gcc is already installed.
     Started: 16:35:04.331800
    Duration: 668.208 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: glibc
      Result: True
     Comment: Package glibc is already installed.
     Started: 16:35:05.000254
    Duration: 0.607 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl
      Result: True
     Comment: Package openssl is already installed.
     Started: 16:35:05.000970
    Duration: 0.363 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl-devel
      Result: True
     Comment: Package openssl-devel is already installed.
     Started: 16:35:05.001450
    Duration: 0.354 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: autoconf
      Result: True
     Comment: Package autoconf is already installed.
     Started: 16:35:05.001886
    Duration: 0.531 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc-c++
      Result: True
     Comment: Package gcc-c++ is already installed.
     Started: 16:35:05.002563
    Duration: 0.342 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: make
      Result: True
     Comment: Package make is already installed.
     Started: 16:35:05.003026
    Duration: 0.335 ms
     Changes:
----------
          ID: haproxy-install
    Function: file.managed
        Name: /usr/local/src/haproxy-1.6.2.tar.gz
      Result: True
     Comment: File /usr/local/src/haproxy-1.6.2.tar.gz is in the correct state
     Started: 16:35:05.003481
    Duration: 14.905 ms
     Changes:
----------
          ID: haproxy-install
    Function: cmd.run
        Name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:35:05.022058
    Duration: 9.325 ms
     Changes:
----------
          ID: haproxy-init
    Function: file.managed
        Name: /etc/init.d/haproxy
      Result: True
     Comment: File /etc/init.d/haproxy is in the correct state
     Started: 16:35:05.032195
    Duration: 4.525 ms
     Changes:
----------
          ID: haproxy-init
    Function: cmd.run
        Name: chkconfig --add haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:35:05.037914
    Duration: 25.515 ms
     Changes:
----------
          ID: net.ipv4.ip_nonlocal_bind
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_nonlocal_bind = 1 is already set
     Started: 16:35:05.063804
    Duration: 36.982 ms
     Changes:
----------
          ID: haproxy-config-dir
    Function: file.directory
        Name: /etc/haproxy
      Result: True
     Comment: Directory /etc/haproxy is in the correct state
     Started: 16:35:05.101099
    Duration: 1.133 ms
     Changes:
----------
          ID: haproxy-service
    Function: file.managed
        Name: /etc/haproxy/haproxy.cfg
      Result: True
     Comment: File /etc/haproxy/haproxy.cfg is in the correct state
     Started: 16:35:05.102335
    Duration: 3.273 ms
     Changes:
----------
          ID: haproxy-service
    Function: service.running
        Name: haproxy
      Result: True
     Comment: Service haproxy is already enabled, and is in the desired state
     Started: 16:35:05.107174
    Duration: 52.191 ms
     Changes:

Summary
-------------
Succeeded: 21
Failed:     0
-------------
Total states run:     21

[root@localhost files]# salt '*' state.highstate
192.168.240.130:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf is in the correct state
     Started: 16:49:26.242598
    Duration: 34.161 ms
     Changes:
----------
          ID: /etc/profile
    Function: file.append
      Result: True
     Comment: File /etc/profile is in correct state
     Started: 16:49:26.276902
    Duration: 7.06 ms
     Changes:
----------
          ID: /etc/bashrc
    Function: file.append
      Result: True
     Comment: File /etc/bashrc is in correct state
     Started: 16:49:26.284179
    Duration: 7.85 ms
     Changes:
----------
          ID: vm.swappiness
    Function: sysctl.present
      Result: True
     Comment: Sysctl value vm.swappiness = 0 is already set
     Started: 16:49:26.295710
    Duration: 79.619 ms
     Changes:
----------
          ID: net.ipv4.ip_local_port_range
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_local_port_range = 10000 65000 is already set
     Started: 16:49:26.375669
    Duration: 73.283 ms
     Changes:
----------
          ID: fs.file-max
    Function: sysctl.present
      Result: True
     Comment: Sysctl value fs.file-max = 10000 is already set
     Started: 16:49:26.449247
    Duration: 59.719 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc
      Result: True
     Comment: Package gcc is already installed.
     Started: 16:49:26.980957
    Duration: 635.706 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: glibc
      Result: True
     Comment: Package glibc is already installed.
     Started: 16:49:27.616998
    Duration: 0.935 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl
      Result: True
     Comment: Package openssl is already installed.
     Started: 16:49:27.618036
    Duration: 0.41 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl-devel
      Result: True
     Comment: Package openssl-devel is already installed.
     Started: 16:49:27.618537
    Duration: 0.374 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: autoconf
      Result: True
     Comment: Package autoconf is already installed.
     Started: 16:49:27.618996
    Duration: 0.452 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc-c++
      Result: True
     Comment: Package gcc-c++ is already installed.
     Started: 16:49:27.619570
    Duration: 0.469 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: make
      Result: True
     Comment: Package make is already installed.
     Started: 16:49:27.620128
    Duration: 0.574 ms
     Changes:
----------
          ID: haproxy-install
    Function: file.managed
        Name: /usr/local/src/haproxy-1.6.2.tar.gz
      Result: True
     Comment: File /usr/local/src/haproxy-1.6.2.tar.gz is in the correct state
     Started: 16:49:27.620893
    Duration: 12.929 ms
     Changes:
----------
          ID: haproxy-install
    Function: cmd.run
        Name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:49:27.636697
    Duration: 7.011 ms
     Changes:
----------
          ID: haproxy-init
    Function: file.managed
        Name: /etc/init.d/haproxy
      Result: True
     Comment: File /etc/init.d/haproxy is in the correct state
     Started: 16:49:27.644413
    Duration: 4.295 ms
     Changes:
----------
          ID: haproxy-init
    Function: cmd.run
        Name: chkconfig --add haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:49:27.649913
    Duration: 25.646 ms
     Changes:
----------
          ID: net.ipv4.ip_nonlocal_bind
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_nonlocal_bind = 1 is already set
     Started: 16:49:27.676179
    Duration: 38.169 ms
     Changes:
----------
          ID: haproxy-config-dir
    Function: file.directory
        Name: /etc/haproxy
      Result: True
     Comment: Directory /etc/haproxy is in the correct state
     Started: 16:49:27.714791
    Duration: 1.948 ms
     Changes:
----------
          ID: haproxy-service
    Function: file.managed
        Name: /etc/haproxy/haproxy.cfg
      Result: True
     Comment: File /etc/haproxy/haproxy.cfg updated
     Started: 16:49:27.716952
    Duration: 171.687 ms
     Changes:
              ----------
              diff:
                  ---
                  +++
                  @@ -17,7 +17,7 @@

                   listen stats
                   mode http
                  -bind 0.0.0.0:80
                  +bind 0.0.0.0:8888
                   stats enable
                   stats uri      /haproxy-status
                   stats auth     /haproxy:saltstack
----------
          ID: haproxy-service
    Function: service.running
        Name: haproxy
      Result: True
     Comment: Service reloaded
     Started: 16:49:27.940010
    Duration: 85.912 ms
     Changes:
              ----------
              haproxy:
                  True

Summary
-------------
Succeeded: 21 (changed=2)
Failed:     0
-------------
Total states run:     21
192.168.240.131:
----------
          ID: /etc/resolv.conf
    Function: file.managed
      Result: True
     Comment: File /etc/resolv.conf is in the correct state
     Started: 16:49:26.273403
    Duration: 34.759 ms
     Changes:
----------
          ID: /etc/profile
    Function: file.append
      Result: True
     Comment: File /etc/profile is in correct state
     Started: 16:49:26.308289
    Duration: 3.857 ms
     Changes:
----------
          ID: /etc/bashrc
    Function: file.append
      Result: True
     Comment: File /etc/bashrc is in correct state
     Started: 16:49:26.312369
    Duration: 6.498 ms
     Changes:
----------
          ID: vm.swappiness
    Function: sysctl.present
      Result: True
     Comment: Sysctl value vm.swappiness = 0 is already set
     Started: 16:49:26.320161
    Duration: 93.782 ms
     Changes:
----------
          ID: net.ipv4.ip_local_port_range
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_local_port_range = 10000 65000 is already set
     Started: 16:49:26.414267
    Duration: 80.238 ms
     Changes:
----------
          ID: fs.file-max
    Function: sysctl.present
      Result: True
     Comment: Sysctl value fs.file-max = 10000 is already set
     Started: 16:49:26.494800
    Duration: 65.963 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc
      Result: True
     Comment: Package gcc is already installed.
     Started: 16:49:27.058506
    Duration: 619.304 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: glibc
      Result: True
     Comment: Package glibc is already installed.
     Started: 16:49:27.678108
    Duration: 0.912 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl
      Result: True
     Comment: Package openssl is already installed.
     Started: 16:49:27.679150
    Duration: 0.509 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: openssl-devel
      Result: True
     Comment: Package openssl-devel is already installed.
     Started: 16:49:27.679800
    Duration: 0.368 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: autoconf
      Result: True
     Comment: Package autoconf is already installed.
     Started: 16:49:27.680273
    Duration: 0.366 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: gcc-c++
      Result: True
     Comment: Package gcc-c++ is already installed.
     Started: 16:49:27.680725
    Duration: 0.585 ms
     Changes:
----------
          ID: pkg-init
    Function: pkg.installed
        Name: make
      Result: True
     Comment: Package make is already installed.
     Started: 16:49:27.681453
    Duration: 0.556 ms
     Changes:
----------
          ID: haproxy-install
    Function: file.managed
        Name: /usr/local/src/haproxy-1.6.2.tar.gz
      Result: True
     Comment: File /usr/local/src/haproxy-1.6.2.tar.gz is in the correct state
     Started: 16:49:27.682149
    Duration: 13.432 ms
     Changes:
----------
          ID: haproxy-install
    Function: cmd.run
        Name: cd /usr/local/src && tar zxf haproxy-1.6.2.tar.gz && cd haproxy-1.6.2 && make TARGET=linux26 PREFIX=/usr/local/haproxy && make install PREFIX=/usr/local/haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:49:27.697904
    Duration: 9.342 ms
     Changes:
----------
          ID: haproxy-init
    Function: file.managed
        Name: /etc/init.d/haproxy
      Result: True
     Comment: File /etc/init.d/haproxy is in the correct state
     Started: 16:49:27.708171
    Duration: 5.761 ms
     Changes:
----------
          ID: haproxy-init
    Function: cmd.run
        Name: chkconfig --add haproxy
      Result: True
     Comment: unless execution succeeded
     Started: 16:49:27.715023
    Duration: 21.617 ms
     Changes:
----------
          ID: net.ipv4.ip_nonlocal_bind
    Function: sysctl.present
      Result: True
     Comment: Sysctl value net.ipv4.ip_nonlocal_bind = 1 is already set
     Started: 16:49:27.737044
    Duration: 43.922 ms
     Changes:
----------
          ID: haproxy-config-dir
    Function: file.directory
        Name: /etc/haproxy
      Result: True
     Comment: Directory /etc/haproxy is in the correct state
     Started: 16:49:27.781328
    Duration: 1.387 ms
     Changes:
----------
          ID: haproxy-service
    Function: file.managed
        Name: /etc/haproxy/haproxy.cfg
      Result: True
     Comment: File /etc/haproxy/haproxy.cfg updated
     Started: 16:49:27.782889
    Duration: 189.272 ms
     Changes:
              ----------
              diff:
                  ---
                  +++
                  @@ -17,7 +17,7 @@

                   listen stats
                   mode http
                  -bind 0.0.0.0:80
                  +bind 0.0.0.0:8888
                   stats enable
                   stats uri      /haproxy-status
                   stats auth     /haproxy:saltstack
----------
          ID: haproxy-service
    Function: service.running
        Name: haproxy
      Result: True
     Comment: Service reloaded
     Started: 16:49:28.044191
    Duration: 80.338 ms
     Changes:
              ----------
              haproxy:
                  True

Summary
-------------
Succeeded: 21 (changed=2)
Failed:     0
-------------
Total states run:     21

业务模块

[root@localhost src]# wget http://www.keepalived.org/software/keepalived-1.2.19.tar.gz

./configure --prefix=/usr/local/keepalived --disable-fwmark

[root@localhost etc]# pwd
/usr/local/src/keepalived-1.2.19/keepalived/etc
[root@localhost etc]# mkdir /srv/salt/prod/keepalived
[root@localhost etc]# mkdir /srv/salt/prod/keepalived/files
[root@localhost etc]# cp init.d/keepalived.init /srv/salt/prod/keepalived/files/
[root@localhost etc]# cp keepalived/keepalived.conf /srv/salt/prod/keepalived/files/

start() {
    echo -n $"Starting $prog: "
    daemon /usr/local/keepalived/sbin/keepalived ${KEEPALIVED_OPTIONS}
    RETVAL=$?
    echo
    [ $RETVAL -eq 0 ] && touch /var/lock/subsys/$prog
}

[root@localhost sysconfig]# pwd
/usr/local/keepalived/etc/sysconfig
[root@localhost sysconfig]# cp keepalived /srv/salt/prod/keepalived/files/keepalived.sysconfig

[root@localhost keepalived]# pwd
/srv/salt/prod/keepalived
[root@localhost keepalived]# cat install.sls
include:
  - pkg.pkg-init

keepalived-install:
  file.managed:
    - name: /usr/local/src/keepalived-1.2.19.tar.gz
    - source: salt://keepalived/files/keepalived-1.2.19.tar.gz
    - user: root
    - group: root
    - mode: 755
  cmd.run:
    - name: cd /usr/local/src/ && tar zxf keepalived-1.2.19.tar.gz && cd keepalived-1.2.19 && ./configure --prefix=/usr/local/keepalived --disable-fwmark && make && make install
    - unless: test -d /usr/local/keepalived
    - require:
      - pkg: pkg-init
      - file: keepalived-install
[root@localhost keepalived]# vim install.sls
[root@localhost keepalived]# ls
files  install.sls
[root@localhost keepalived]# cd files/
[root@localhost files]# ls
keepalived.conf  keepalived.init  keepalived.sysconfig
[root@localhost files]# cp /usr/local/src/keepalived-1.2.19.tar.gz .
[root@localhost files]# ls
keepalived-1.2.19.tar.gz  keepalived.conf  keepalived.init  keepalived.sysconfig
[root@localhost files]# cd ..
[root@localhost keepalived]# ls
files  install.sls
[root@localhost keepalived]# pwd
/srv/salt/prod/keepalived
[root@localhost keepalived]# cat install.sls
include:
  - pkg.pkg-init

keepalived-install:
  file.managed:
    - name: /usr/local/src/keepalived-1.2.19.tar.gz
    - source: salt://keepalived/files/keepalived-1.2.19.tar.gz
    - user: root
    - group: root
    - mode: 755
  cmd.run:
    - name: cd /usr/local/src/ && tar zxf keepalived-1.2.19.tar.gz && cd keepalived-1.2.19 && ./configure --prefix=/usr/local/keepalived --disable-fwmark && make && make install
    - unless: test -d /usr/local/keepalived
    - require:
      - pkg: pkg-init
      - file: keepalived-install

keepalived-init:
  file.managed:
    - name: /etc/init.d/keepalived
    - source: salt://keepalived/files/keepalived.init
    - user: root
    - group: root
    - mode: 755
  cmd.run:
    - name: chkconfig --add keepalived
    - unless: chkconfig --list | grep keepalived
    - require:
      - file: keepalived-init

/etc/sysconfig/keepalived:
  file.managed:
    - source: salt://keepalived/files/keepalived.sysconfig
    - user: root
    - group: root
    - mode: 644

/etc/keepalived:
  file.directory:
    - user: root
    - group: root
    - mode: 755
[root@localhost keepalived]# salt '*' state.sls keepalived.install env=prod

SaltStack配置管理-业务引用keepalived

[root@localhost files]# pwd
/srv/salt/prod/cluster/files
[root@localhost files]# cat haproxy-outside-keepalived.conf
! Configuration File for keepalived
global_defs {
  notification_email {
    saltstack@example.com
  }
  notification_email_from keepalived@example.com
  smtp_server 127.0.0.1
  smtp_connect_timeout 30
  router_id {{ROUTEID}}
}

vrrp_instance haproxy_ha {
state {{STATEID}}
interface eth0
    virtual_router_id 36
priority {{PRIORITYID}}
    advert_int 1
authentication {
auth_type PASS
    auth_pass 1111
}
virtual_ipaddress {
    192.168.240.131
}
}

[root@localhost cluster]# pwd
/srv/salt/prod/cluster
[root@localhost cluster]# cat haproxy-outside-keepalived.sls
include:
  - keepalived.install

keepalived-service:
  file.managed:
    - name: /etc/keepalived/keepalived.conf
    - source: salt://cluster/files/haproxy-outside-keepalived.conf
    - user: root
    - group: root
    - mode: 644
    - templates: jinja
    {% if grains['fqdn'] == '192.168.240.130' %}
    - ROUTEID: haproxy_ha
    - STATEID: MASTER
    - PRIORITYID: 150
    {% elif grains['fqdn'] == '192.168.240.131' %}
    - ROUTEID: haproxy_ha
    - STATEID: BACKUP
    - PRIORITYID: 100
    {% endif %}
  service.running:
    - name: keepalived
    - enable: True
    - watch:
      - file: keepalived-service
[root@localhost cluster]# salt '*' state.sls cluster.haproxy-outside-keepalived env=prod

[root@localhost base]# pwd
/srv/salt/base
[root@localhost base]# cat top.sls
base:
  '*':
    - init.env_init

prod:
  '192.168.240.130':
    - cluster.haproxy-outside
    - cluster.haproxy-outside-keepalived
  '192.168.240.131':
    - cluster.haproxy-outside
    - cluster.haproxy-outside-keepalived
[root@localhost base]# salt '*' state.highstate

saltstack增加zabbix

[root@localhost init]# pwd
/srv/salt/base/init
[root@localhost init]# cat zabbix_agent.sls
zabbix-agent-install:
  pkg.installed:
    - name: zabbix-agent

  file.managed:
    - name: /etc/zabbix_agentd.conf
    - source: salt://init/files/zabbix_agentd.conf
    - template: jinja
    - defaults:
      Server: {{ pillar['zabbix-agent']['Zabbix_Server'] }}
    -require:
      - pkg: zabbix-agent-install

  service.running:
    - name: zabbix-agent
    - enable: True
    - watch:
      - pkg: zabbix-agent-install
      - file: zabbix-agent-install

[root@localhost base]# pwd
/srv/pillar/base
[root@localhost base]# cat top.sls
base:
  '*':
    - zabbix


[root@localhost files]# pwd
/srv/salt/base/init/files
cp /etc/zabbix/zabbix_agentd.conf .
修改:Server={{ Server }}
[root@localhost init]# cat env_init.sls
include:
  - init.dns
  - init.history
  - init.audit
  - init.sysctl
  - init.zabbix_agent
[root@localhost init]# salt '*' state.highstate

源码: https://github.com/unixhot/saltbook-code
