saltstack进阶

masterless
- 应用场景
- masterless配置
salt-master高可用
- salt-master高可用配置
- salt-master高可用之数据同步
salt-syndic

masterless

应用场景

master 与 minion 网络不通或通信有延迟，即网络不稳定
想在 minion 端直接执行状态
传统的 SaltStack 是需要通过 master 来执行状态控制 minion 从而实现状态的管理，但是当网络不稳定的时候，当想在minion本地执行状态的时候，当在只有一台主机的时候，想执行状态该怎么办呢？这就需要用到 masterless 了。
有了masterless，即使你只有一台主机，也能玩saltstack，而不需要你有N台主机架构。

masterless配置

修改配置文件minion

注释master行
取消注释file_client并设其值为local
设置file_roots
设置pillar_roots

[root@localhost ~]# vim /etc/salt/minion
......
#master: salt				#注释此行
file_client: local			#取消此行注释并将值设为local
file_roots:					#设置file_roots的路径和环境，可有多套环境
  base:
    - /srv/salt/base
  prod:
    - /srv/salt/prod

pillar_roots:				#设置pillar_roots的路径和环境，可有多套环境
  base:
    - /srv/pillar/base
  prod:
    - /srv/pillar/prod

关闭salt-minion服务
使用 masterless 模式时不需要启动salt任何服务

[root@localhost ~]# systemctl status salt-minion
● salt-minion.service - The Salt Minion
   Loaded: loaded (/usr/lib/systemd/system/salt-minion.service; disabled; vendor preset: disabled)
   Active: inactive (dead)
     Docs: man:salt-minion(1)
           file:///usr/share/doc/salt/html/contents.html
           https://docs.saltproject.io/en/latest/contents.html

salt-call
masterless模式执行模块或状态时使用salt-call命令，而不再是salt或者salt-ssh。
$\color{HotPink}{注意：使用salt-call需要加–local选项}$

[root@localhost ~]# salt-call --local cmd.run 'date'
local:
    Mon Nov 29 18:33:09 CST 2021

[root@localhost ~]# salt-call --local cmd.run 'uptime'
local:
     18:34:17 up 42 min,  4 users,  load average: 0.13, 0.11, 0.09

[root@localhost ~]# salt-call --local cmd.run 'ls /root'
local:
    anaconda-ks.cfg
    grafana-enterprise-8.2.5-1.x86_64.rpm

salt-master高可用

salt-master高可用配置

我们需要用salt来管理公司的所有机器，那么salt的master就不能宕机，否则就会整个瘫痪，所以我们必须要对salt进行高可用。salt的高可用配置非常简单，只需要改一下minion配置文件，将master用列表的形式列出即可。

[root@minion ~]# vim /etc/salt/minion
....
master:
  - 192.168.129.134
  - 192.168.129.135
....

salt-master高可用之数据同步

涉及到高可用时，数据的同步是个永恒的话题，我们必须保证高可用的2个master间使用的数据是一致的，包括：

/etc/salt/master配置文件
/etc/salt/pki目录下的所有key
/srv/下的salt和pillar目录下的所有文件

保障这些数据同步的方案有：

nfs挂载
rsync同步
使用gitlab进行版本控制

安全相关：
为保证数据的同步与防止丢失，可将状态文件通过gitlab进行版本控制管理。

环境说明

主机IP	角色	安装的应用
192.168.129.134	master	salt-master
192.168.129.135	backup-master	salt-master
192.168.129.136	minion	salt-minion

需要安装前的yum源提前配置好

本次使用三台设备：master、backup-master、minion。其中backup-master作为备master，minion为minion端

salt-master高可用官方文档

minion端

minion端安装salt-minion

[root@minion ~]# ls /etc/yum.repos.d/
centos-8.repo  epel-8.repo  redhat.repo  salt-8.repo

[root@minion ~]# yum -y install salt-minion

修改minion端的配置文件，将master设为主控端的IP

[root@minion ~]# sed -i '/^#master:/a master: 192.168.129.134' /etc/salt/minion		#master的ip

启动

[root@minion ~]# systemctl enable --now salt-minion
Created symlink /etc/systemd/system/multi-user.target.wants/salt-minion.service → /usr/lib/systemd/system/salt-minion.service.

[root@minion ~]# tree /etc/salt/pki
/etc/salt/pki
├── master
└── minion
    ├── minion.pem
    └── minion.pub

在master端接收minion端key（注意防火墙）

[root@master ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
minion
Rejected Keys:

[root@master ~]# salt-key -ya minion
The following keys are going to be accepted:
Unaccepted Keys:
minion
Key for minion minion accepted.

[root@master ~]# salt-key -L
Accepted Keys:
minion
Denied Keys:
Unaccepted Keys:
Rejected Keys:

测试master端指定minion主机是否存活

[root@master ~]# salt 'minion' test.ping
minion:
    True

backup-master端

backup-master端安装salt-master

[root@backup-master ~]# ls /etc/yum.repos.d/
centos-8.repo  epel-8.repo  redhat.repo  salt-8.repo

[root@backup-master ~]# yum -y install salt-master

将master上的公钥与私钥拷贝到backup-master上去

[root@master ~]# tree /etc/salt/pki/master/
/etc/salt/pki/master/
├── master.pem
├── master.pub
├── minions
│   └── minion
├── minions_autosign
├── minions_denied
├── minions_pre
├── minions_rejected
└── ssh
    ├── salt-ssh.rsa
    └── salt-ssh.rsa.pub

[root@master ~]# scp /etc/salt/pki/master/master.p* 192.168.129.135:/etc/salt/pki/master/
root@192.168.129.135's password:
master.pem                                                         100% 1679     2.3MB/s   00:00
master.pub                                                         100%  451   281.6KB/s   00:00

//启动salt-master
[root@backup-master ~]# systemctl enable --now salt-master
Created symlink /etc/systemd/system/multi-user.target.wants/salt-master.service → /usr/lib/systemd/system/salt-master.service.

[root@backup-master ~]# tree /etc/salt/pki/master/
/etc/salt/pki/master/
├── master.pem
├── master.pub
├── minions
├── minions_autosign
├── minions_denied
├── minions_pre
└── minions_rejected

5 directories, 2 files

测试backup-master端指定minion主机是否存活

[root@minion ~]# vim /etc/salt/minion
......
# master: salt
master: 192.168.129.135		#backup-master端的ip

# Set http proxy information for the minion when doing requests
......

//重启
[root@minion ~]# systemctl restart salt-minion

在backup-master端接收minion主机的key（注意防火墙）

[root@backup-master ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
p1
Rejected Keys:

[root@backup-master ~]# salt-key -ya minion
The following keys are going to be accepted:
Unaccepted Keys:
minion
Key for minion minion accepted.

[root@backup-master ~]# salt-key -L
Accepted Keys:
p1
Denied Keys:
Unaccepted Keys:
Rejected Keys:

测试backup-master端指定minion主机是否存活

[root@backup-master ~]# salt 'minion' test.ping
p1:
    True

同步配置和数据

[root@master ~]# scp /etc/salt/master 192.168.129.135:/etc/salt/master
[root@master ~]# scp -r /etc/salt/pki 192.168.129.135:/etc/salt/
[root@master ~]# scp -r /srv/salt 192.168.129.135:/srv/

当两台master都能ping通之后，最后再进行高可用设置并重启服务

[root@minion ~]# vim /etc/salt/minion
......
# master: salt
master:
  - 192.168.129.134		#主master的ip
  - 192.168.129.135		#备master的ip
# Set http proxy information for the minion when doing requests
......
# beacons) without a master connection
master_type: failover		#取消注释并把str修改为failover（故障转移）

# Poll interval in seconds for checking if the master is still there.  Only
......
# of TCP connections, such as load balancers.)
master_alive_interval: 3		#取消注释并把30修改为3（当主节点挂了，3秒后接管）

# If the minion is in multi-master mode and the master_type configuration option
......

//重启
[root@minion ~]# systemctl restart salt-minion

此时两台salt-master都为开启状态

[root@master ~]# ss -anlt
State        Recv-Q       Send-Q             Local Address:Port              Peer Address:Port
LISTEN       0            128                      0.0.0.0:22                     0.0.0.0:*
LISTEN       0            128                      0.0.0.0:4505                   0.0.0.0:*
LISTEN       0            128                      0.0.0.0:4506                   0.0.0.0:*
LISTEN       0            128                         [::]:22                        [::]:*

[root@backup-master ~]# ss -anlt
State        Recv-Q       Send-Q             Local Address:Port              Peer Address:Port
LISTEN       0            128                      0.0.0.0:22                     0.0.0.0:*
LISTEN       0            128                      0.0.0.0:4505                   0.0.0.0:*
LISTEN       0            128                      0.0.0.0:4506                   0.0.0.0:*
LISTEN       0            128                         [::]:22                        [::]:*

测试,当在master可以ping通minion端，backup-master就ping不通

[root@master ~]# salt '*' test.ping
p1:
    True

[root@backup-master ~]# salt '*' test.ping
minion:
    Minion did not return. [No response]
    The minions may not have all finished running and any remaining minions will return upon completion. To look up the return data for this job later, run the following command:

    salt-run jobs.lookup_jid 20211129140956785275

当master与backup-master都在运行状态时，minion只能连接主master上

[root@minion ~]# systemctl status salt-minion
● salt-minion.service - The Salt Minion
   Loaded: loaded (/usr/lib/systemd/system/salt-minion.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2021-11-29 22:07:07 CST; 10min ago
     Docs: man:salt-minion(1)
           file:///usr/share/doc/salt/html/contents.html
           https://docs.saltproject.io/en/latest/contents.html
 Main PID: 134052 (salt-minion)
    Tasks: 6 (limit: 11300)
   Memory: 91.3M
   CGroup: /system.slice/salt-minion.service
           ├─134052 /usr/bin/python3.6 /usr/bin/salt-minion
           ├─134059 /usr/bin/python3.6 /usr/bin/salt-minion
           └─134061 /usr/bin/python3.6 /usr/bin/salt-minion

11月 29 22:07:07 minion systemd[1]: Stopped The Salt Minion.
11月 29 22:07:07 minion systemd[1]: Starting The Salt Minion...
11月 29 22:07:07 minion systemd[1]: Started The Salt Minion.
11月 29 22:07:18 minion salt-minion[134052]: [CRITICAL] 'master_type' set to 'failover' but 'retry_dns' >

停止master的服务，backup-master就能ping通

[root@master ~]# systemctl stop salt-master
[root@master ~]# ss -anlt
State        Recv-Q       Send-Q             Local Address:Port              Peer Address:Port
LISTEN       0            128                      0.0.0.0:22                     0.0.0.0:*
LISTEN       0            128                         [::]:22                        [::]:*

在backup-master主机上进行test.ping测试

[root@backup-master ~]# salt '*' test.ping
p1:
    True

此时minion端的状态文件是

[root@minion ~]# systemctl status salt-minion
● salt-minion.service - The Salt Minion
   Loaded: loaded (/usr/lib/systemd/system/salt-minion.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2021-11-29 22:07:07 CST; 15min ago
     Docs: man:salt-minion(1)
           file:///usr/share/doc/salt/html/contents.html
           https://docs.saltproject.io/en/latest/contents.html
 Main PID: 134052 (salt-minion)
    Tasks: 6 (limit: 11300)
   Memory: 92.4M
   CGroup: /system.slice/salt-minion.service
           ├─134052 /usr/bin/python3.6 /usr/bin/salt-minion
           ├─134059 /usr/bin/python3.6 /usr/bin/salt-minion
           └─134061 /usr/bin/python3.6 /usr/bin/salt-minion

11月 29 22:07:07 minion systemd[1]: Stopped The Salt Minion.
11月 29 22:07:07 minion systemd[1]: Starting The Salt Minion...
11月 29 22:07:07 minion systemd[1]: Started The Salt Minion.
11月 29 22:07:18 minion salt-minion[134052]: [CRITICAL] 'master_type' set to 'failover' but 'retry_dns' >
11月 29 22:20:36 minion salt-minion[134052]: [WARNING ] Master ip address changed from 192.168.129.134 t>
11月 29 22:20:36 minion salt-minion[134052]: [WARNING ] Master ip address changed from 192.168.129.134 t>

salt-syndic

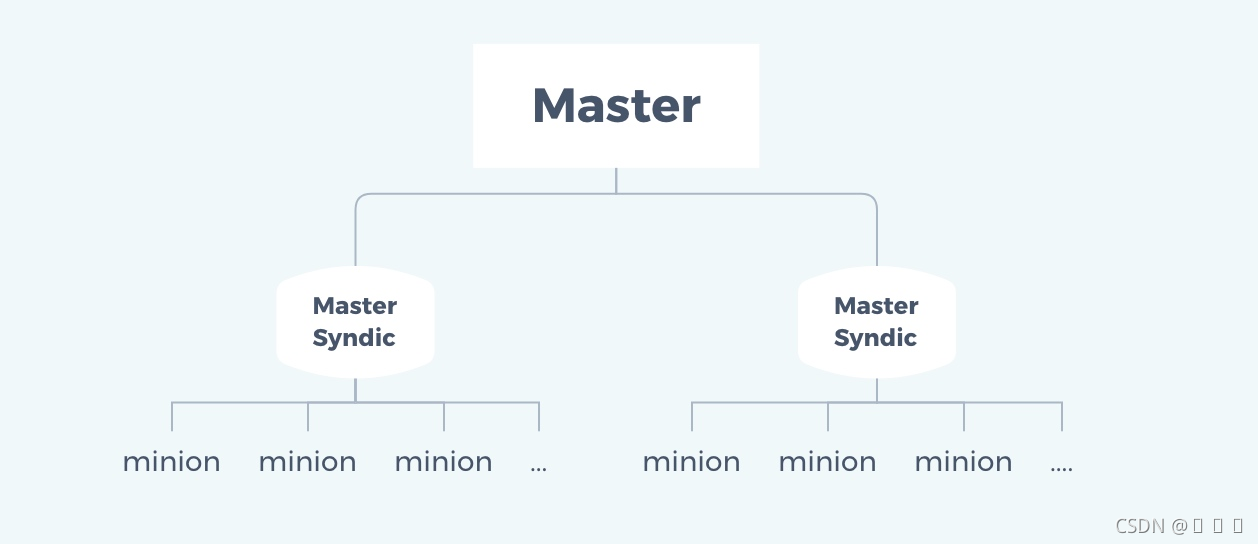

salt-syndic分布式架构图

在这里插入图片描述

salt-syndic的特点

可以通过syndic实现更复杂的salt架构
减轻master的负担
syndic的/srv目录下的salt和pillar目录内容要与最顶层的master下的一致，所以要进行数据同步，同步方案同salt-master高可用
最顶层的master不知道自己有几个syndic，它只知道自己有多少个minion，并不知道这些minion是由哪些syndic来管理的

salt-syndic部署

环境说明

主机ip	角色	主机名	安装应用
192.168.129.134	Master	master	salt-master
192.168.129.135	Syndic	syndic	salt-master salt-syndic
192.168.129.136	Minion	p1	salt-minion
192.168.129.137	Minion2	p2	salt-minion

提前配置好所需要的yum源

安装软件

//在master上安装salt-master
[root@master ~]# yum -y install salt-master
[root@master ~]# rpm -qa | grep salt
salt-master-3004-1.el8.noarch
salt-3004-1.el8.noarch

//在syndic上安装salt-master和salt-syndic
[root@syndic ~]# yum -y install salt-master salt-syndic
[root@sybdic ~]# rpm -qa | grep salt
salt-3004-1.el8.noarch
salt-syndic-3004-1.el8.noarch
salt-master-3004-1.el8.noarch

在p1上安装salt-minion
[root@p1 ~]# yum -y install salt-minion
[root@p1 yum.repos.d]# rpm -qa | grep salt
salt-3004-1.el8.noarch
salt-minion-3004-1.el8.noarch

在p2上安装salt-minion
[root@p2 ~]# yum -y install salt-minion
[root@p2 yum.repos.d]# rpm -qa | grep salt
salt-minion-3004-1.el8.noarch
salt-3004-1.el8.noarch

配置master端
在master的配置文件将order_master的值设为True

[root@master ~]# vim /etc/salt/master
.....
# masters' syndic interfaces.
order_masters: True

[root@master ~]# systemctl enable --now salt-master
[root@master ~]# systemctl restart salt-master

配置syndic端
在syndic的配置文件上将syndic_master的值设为master的IP

[root@syndic ~]# vim /etc/salt/master
.....此处省略N行
syndic_master: 192.168.129.134

[root@sybdic ~]# systemctl enable --now salt-master
Created symlink /etc/systemd/system/multi-user.target.wants/salt-master.service → /usr/lib/systemd/system/salt-master.service.
[root@sybdic ~]# systemctl enable --now salt-syndic
Created symlink /etc/systemd/system/multi-user.target.wants/salt-syndic.service → /usr/lib/systemd/system/salt-syndic.service.

[root@syndic ~]# systemctl restart salt-master
[root@syndic ~]# systemctl restart salt-syndic

//查看状态
[root@sybdic ~]# systemctl status salt-master
● salt-master.service - The Salt Master Server
   Loaded: loaded (/usr/lib/systemd/system/salt-master.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2021-11-29 23:49:32 CST; 1min 7s ago
     Docs: man:salt-master(1)
           file:///usr/share/doc/salt/html/contents.html
           https://docs.saltproject.io/en/latest/contents.html
 Main PID: 74084 (salt-master)
    Tasks: 32 (limit: 23789)
   Memory: 307.4M
   CGroup: /system.slice/salt-master.service
           ├─74084 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74111 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74113 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74116 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74117 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74118 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74119 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74120 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74121 /usr/bin/python3.6 /usr/bin/salt-master
           ├─74128 /usr/bin/python3.6 /usr/bin/salt-master

[root@sybdic ~]# systemctl status salt-syndic
● salt-syndic.service - The Salt Master Server
   Loaded: loaded (/usr/lib/systemd/system/salt-syndic.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2021-11-29 23:49:43 CST; 1min 3s ago
     Docs: man:salt-syndic(1)
           file:///usr/share/doc/salt/html/contents.html
           https://docs.saltproject.io/en/latest/contents.html
 Main PID: 76018 (salt-syndic)
    Tasks: 6 (limit: 23789)
   Memory: 78.6M
   CGroup: /system.slice/salt-syndic.service
           ├─76018 /usr/bin/python3.6 /usr/bin/salt-syndic
           └─76082 /usr/bin/python3.6 /usr/bin/salt-syndic

11月 29 23:49:43 sybdic systemd[1]: Starting The Salt Master Server...
11月 29 23:49:43 sybdic systemd[1]: Started The Salt Master Server.
11月 29 23:49:52 sybdic salt-syndic[76018]: [ERROR   ] The Salt Master has cached the public key for>
11月 29 23:50:02 sybdic salt-syndic[76018]: [ERROR   ] The Salt Master has cached the public key for>
11月 29 23:50:12 sybdic salt-syndic[76018]: [ERROR   ] The Salt Master has cached the public key for>
11月 29 23:50:22 sybdic salt-syndic[76018]: [ERROR   ] The Salt Master has cached the public key for>
11月 29 23:50:32 sybdic salt-syndic[76018]: [ERROR   ] The Salt Master has cached the public key for>
[root@sybdic ~]#

配置minion端
配置minion，将master指向syndic所在主机

[root@p1 ~]# vim /etc/salt/minion
......
# master: salt
master: 192.168.129.135
# Set http proxy information for the minion when doing requests
......

[root@p1 ~]# systemctl enable --now salt-minion
Created symlink /etc/systemd/system/multi-user.target.wants/salt-minion.service → /usr/lib/systemd/system/salt-minion.service.


[root@p2 ~]# vim /etc/salt/minion
......
# master: salt
master: 192.168.129.135
# Set http proxy information for the minion when doing requests
......

[root@p2 ~]# systemctl enable --now salt-minion
Created symlink /etc/systemd/system/multi-user.target.wants/salt-minion.service → /usr/lib/systemd/system/salt-minion.service.

[root@p1 ~]# tree /etc/salt/pki
/etc/salt/pki
├── master
└── minion
    ├── minion.pem
    └── minion.pub

[root@p2 ~]# tree /etc/salt/pki
/etc/salt/pki
├── master
└── minion
    ├── minion.pem
    └── minion.pub

在syndic上接受minion主机的key
顺序一定不要弄反，一定是先接受syndic，然后是master

[root@sybdic ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
p1
p2
Rejected Keys:

[root@sybdic ~]# salt-key -yA
The following keys are going to be accepted:
Unaccepted Keys:
p1
p2
Key for minion p1 accepted.
Key for minion p2 accepted.

master上接受syndic主机的key

[root@master ~]# salt-key -L
Accepted Keys:
Denied Keys:
Unaccepted Keys:
sybdic
Rejected Keys:

[root@master ~]# salt-key -yA
The following keys are going to be accepted:
Unaccepted Keys:
sybdic
Key for minion sybdic accepted.

[root@master ~]# salt-key -L
Accepted Keys:
sybdic
Denied Keys:
Unaccepted Keys:
Rejected Keys:

在master上执行模块或状态检验有几个minion应答

[root@master ~]# salt '*' test.ping
p1:
    True
p2:
    True

[root@master ~]# salt 'p1' cmd.run 'date'
p1:
    Tue Nov 30 00:34:57 CST 2021
p2:
    Tue Nov 30 00:35:11 CST 2021

[root@master ~]# salt 'p1' state.sls init.yum.main
p1:
    Data failed to compile:
----------
    No matching sls found for 'init.yum.main' in env 'base'
ERROR: Minions returned with non-zero exit code

syndic的/srv目录下的salt和pillar目录内容要与最顶层的master下的一致

[root@master ~]# scp -r /srv/* 192.168.129.135:/srv/

[root@syndic ~]# vim /etc/salt/master
...此处省略N行
file_roots:
  base:
    - /srv/salt/base
  test:
    - /srv/salt/test
  dev:
    - /srv/salt/dev
  prod:
    - /srv/salt/prod
...此处省略N行
# highstate format, and is generally just key/value pairs.
pillar_roots:
  base:
   - /srv/pillar/base
#ext_pillar:
......
[root@sybdic ~]# systemctl restart salt-master salt-syndic

测试

[root@master ~]# salt 'p1' test.ping
p1:
    True

执行

[root@master ~]# salt 'p1' state.sls init.yum.main
p1:
----------
          ID: /etc/yum.repos.d/centos-8.repo
    Function: file.managed
      Result: True
     Comment: File /etc/yum.repos.d/centos-8.repo is in the correct state
     Started: 00:33:16.927298
    Duration: 32.354 ms
     Changes:
----------
          ID: /etc/yum.repos.d/epel-8.repo
    Function: file.managed
      Result: True
     Comment: File /etc/yum.repos.d/epel-8.repo is in the correct state
     Started: 00:33:16.959822
    Duration: 15.09 ms
     Changes:
----------
          ID: /etc/yum.repos.d/salt-8.repo
    Function: file.managed
      Result: True
     Comment: File /etc/yum.repos.d/salt-8.repo is in the correct state
     Started: 00:33:16.975053
    Duration: 15.066 ms
     Changes:

Summary for p1
------------
Succeeded: 3
Failed:    0
------------
Total states run:     3
Total run time:  62.510 ms

[root@master ~]# salt 'p1' cmd.run 'ls /etc/yum.repos.d'
p1:
    centos-8.repo
    epel-8.repo
    redhat.repo
    salt-8.repo
