前言

最近项目上有虚拟化需求，想着熟悉一下开源虚拟化框架。网上搜索了一通，开源的Type1型虚拟化框架Xen映入眼帘，同时ARM也官方支持Xen，你懂得（不懂拉倒，我也不懂），那就先熟悉一下吧。

一、Xen优势

网上搜索了一堆，Xen的资料还真是乱。东扯西扯的就下面几个优势：

半虚拟化(Paravirtualized) peripheral sharing

- Displays

- Audio interfaces

- Touchscreens, keyboards, mice

- Network interfaces

- Disk drives

- USB

IMG GPU virtualization with up to eight guests supported
ARM TrustZone virtualization access supported with OP-TEE
Real-time scheduler support (RTDS, ARINC653-航空基的哦)
Full Android on Xen support
HALs for PV peripherals
OPTEE gatekeeper/keymaster
Sensors/GNSS/Vehicle data via VIS
Full open source support
Functional safety support - IEC 61508 route 3s

车载需求

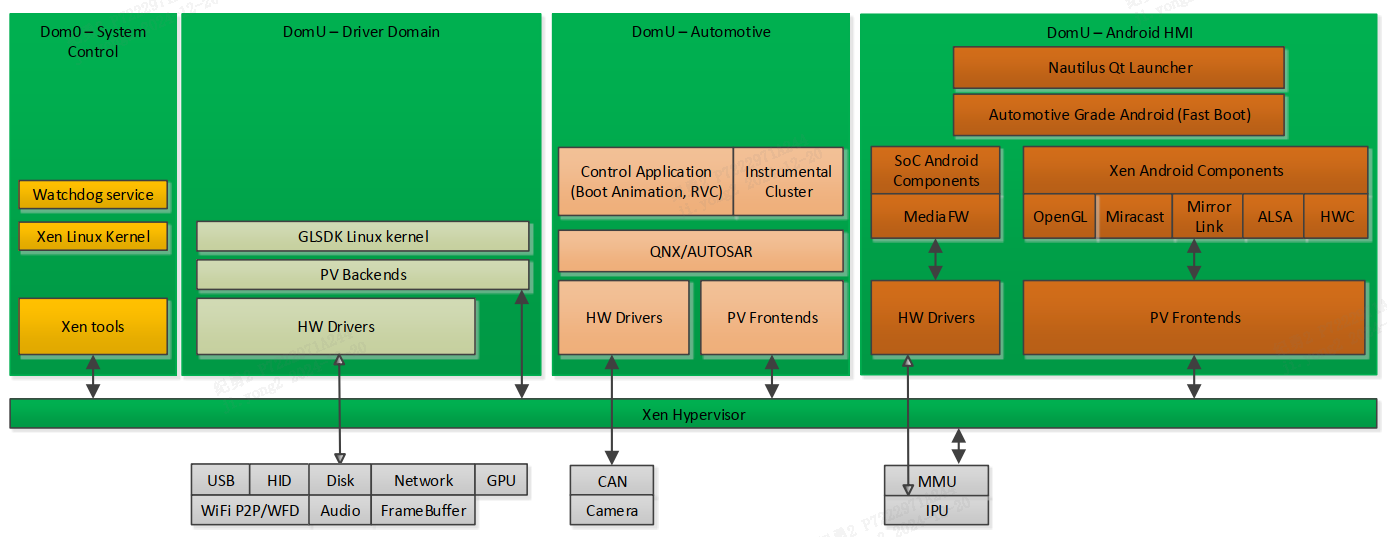

下面的表格是Genivi依据车载场景对Xen的能力提出的挑战：

Compute Requirements	Xen Project
Static resource partitioning and flexible on-demand resource allocation (CPU, RAM, GPU and IO)	Core functionality, multiple schedulers, GPU/co-processor sharing, memory ballooning, etc.
Memory/IO bus bandwidth allocation and rebalancing	WIP: Effort by several parties to enable Hard RT support on Xen
Peripherals Requirements	Xen Project
GPU and displays shall be shared between execution environments supporting both fixed(each one talks to its own display or to a specified area on a single display) and flexible configurations (shape, z-order, position and assignment of surfaces from different execution environments may change at run time)	Via GPU sharing (and WIP coprocessor sharing), PV Drivers (PV DRM)
Inputs shall be routed to one or multiple execution environments depending on current mode, display configuration (for touchscreens), active application (for jog dials & buttons), etc.	Via PV Drivers (PV KBDFRONT)
Audio shall be shared between execution environments. Sound complex mixing policies for multiple audio streams and routing of dynamic source/sink devices (BT profiles, USB，speakers or microphones, etc.) shall be supported.	Via PV Drivers (PV SOUND)
Network shall be shared between execution environments. Virtual networks with different security characteristics shall be supported (e.g., traffic filtering and security mechanisms)	Via PV Drivers & Disaggregation Xen Security Modules
Storage shall support static or shared allocation, together with routing of dynamic storage devices (USB mass storage)	Via PV Drivers
Security Requirements	Xen Project
Root of Trust and Secure boot shall be supported for all execution environments. x86: TPM 2.0, Intel TXT, AMD SVM	x86: TPM 2.0, Intel TXT, AMD SVM Arm: supported with OPTEE
Trusted Computing (discrete TPM, Arm TrustZone or similar) shall be available and configurable for all execution environments.	x86: in Xen; some extras in OpenXT Arm: OPTEE (WIP: up streaming)
Hardware isolation shall be supported (cache, interrupts, IOMMUs, firewalls, etc.)	Core functionality (except firewalls)
Safety Requirements	Xen Project
System monitoring shall be supported to attest and verify that the system is correctly running.	Can be implemented through VMI in Hypervisor, agents outside or through a hybrid
Restart shall be possible for each execution environment in case of failure.	Core Functionality
Redundancy shall be supported for the highest level of fault tolerance with fall-back solutions available to react in case of failure.	WIP: This has to be analysed in scope of "safety certification" initiative, as well as "dom0-less" Xen and "minimal" Kbuild
Real time support shall be guaranteed together with predictive reaction time.	Different scheduler options with different trade-offs. WIP: Benchmarks with recommendations and Hard RT support
Performance and Power Consumption Requirements	Xen Project
Virtualization performance overhead shall be minimal: 1-2% on CPU/memory benchmarks, up to 5% on GPU benchmarks.	Arm: fulfils requirements x86: not verified
Predictability shall be guaranteed. Minimal performance requirements shall be met in any condition (unexpected events, system overload, etc.).	different scheduler options with different trade-offs. Benchmarks with recommendations in progress. Possibly some code changes will be up streamed.
Execution environments fast boot: Less than 2 seconds for safety critical applications, less than 5 seconds for Instrument Cluster, and 10 seconds for IVI. Hibernate and Suspend to RAM shall be supported.	Arm: Proven by both GlobalLogic and EPAM
Execution environments startup order shall be predictable.	Core functionality
Advanced power management shall be implemented with flexible policies for each execution environment.	Arm: Partially implemented (not yet up-streamed). Further work by EPAM, XILINX and Aggios planned

二、Xen框架

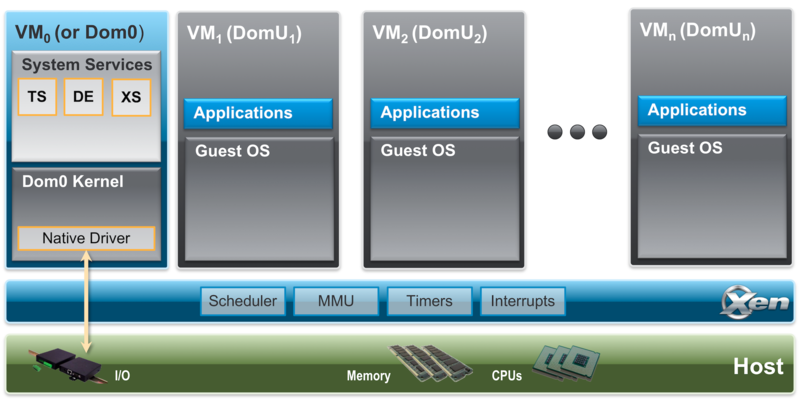

下图是Xen的框架模型，可以简单的分为三层：

底层为物理硬件，包括IO设备，内存，CPU等硬件；
中间层为Xen Hypervisor，也就是通常所说的VMM（Virtual Machine Manager），主要负责内存管理，CPU管理，中断处理以及人物调度等核心工作；
上层为Xen创建的虚拟机，包括特权虚拟机Dom0和非特权虚拟机DomU。

需要注意的：

底层的IO设备不是由Xen Hypervisor管理，而是由Dom0中的内核进行管理的。

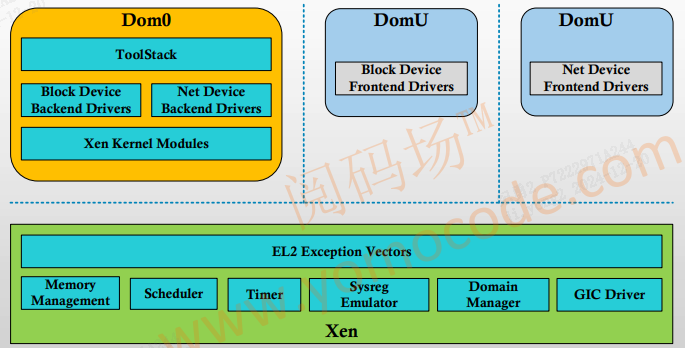

从下图较为详细的拆解中可以看到，Xen Hypervisor控制所有的系统资源：

内存管理模块
中断控制器驱动
系统时钟驱动
虚拟机调度器
特权寄存器模块

但对Linux生态依赖比较严重的设备驱动和工具链，Xen将其放置于Dom0中，简化系统的实现并提高兼容性。

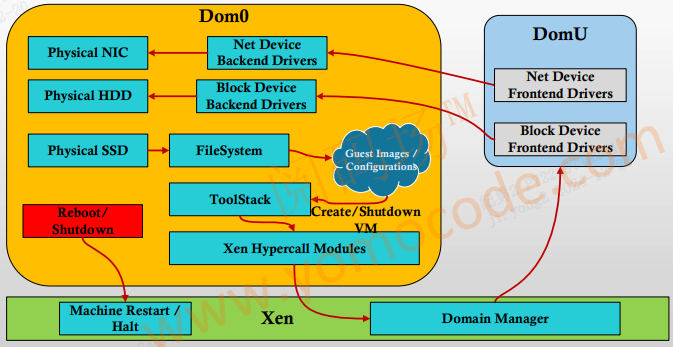

Domain0是Xen创建的一个拥有特殊权限的虚拟机：

它拥有大部分设备的访问权限，除非Xen做保留
它能够访问Xen提供的所有hypercall API，用于支持工具链
可以访问其它虚拟机的镜像和配置文件
可以创建和删除其它虚拟机
拥有重启和关闭整个物理主机的权限

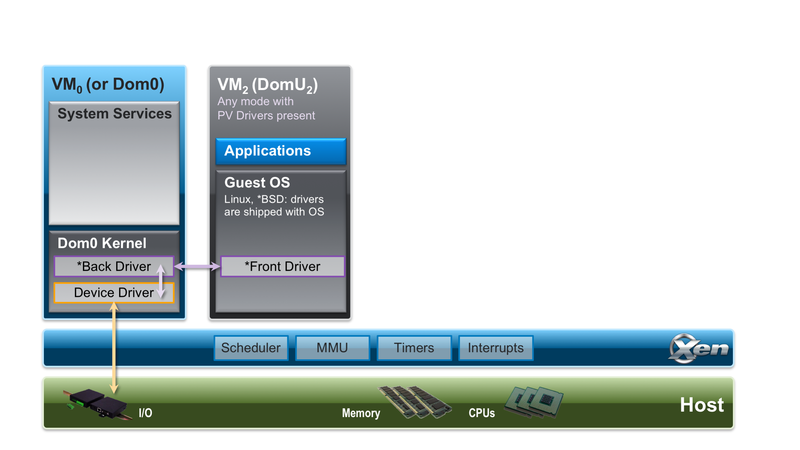

下图是Xen基于内核空间的Backend Driver实现的IO虚拟化。这种方式将DomU内核空间运行的Frontend Driver接收到的Guest OS的IO请求，通过环形缓冲提供给位于Dom0 Kernel中的Backend Driver，也就是所说的后半段，后半段与运行在内核空间的驱动程序交互完成底层IO硬件的访问。
