200 Meter HDMI Wireless Extender With Kvm Interface IR Signal Operating instruction

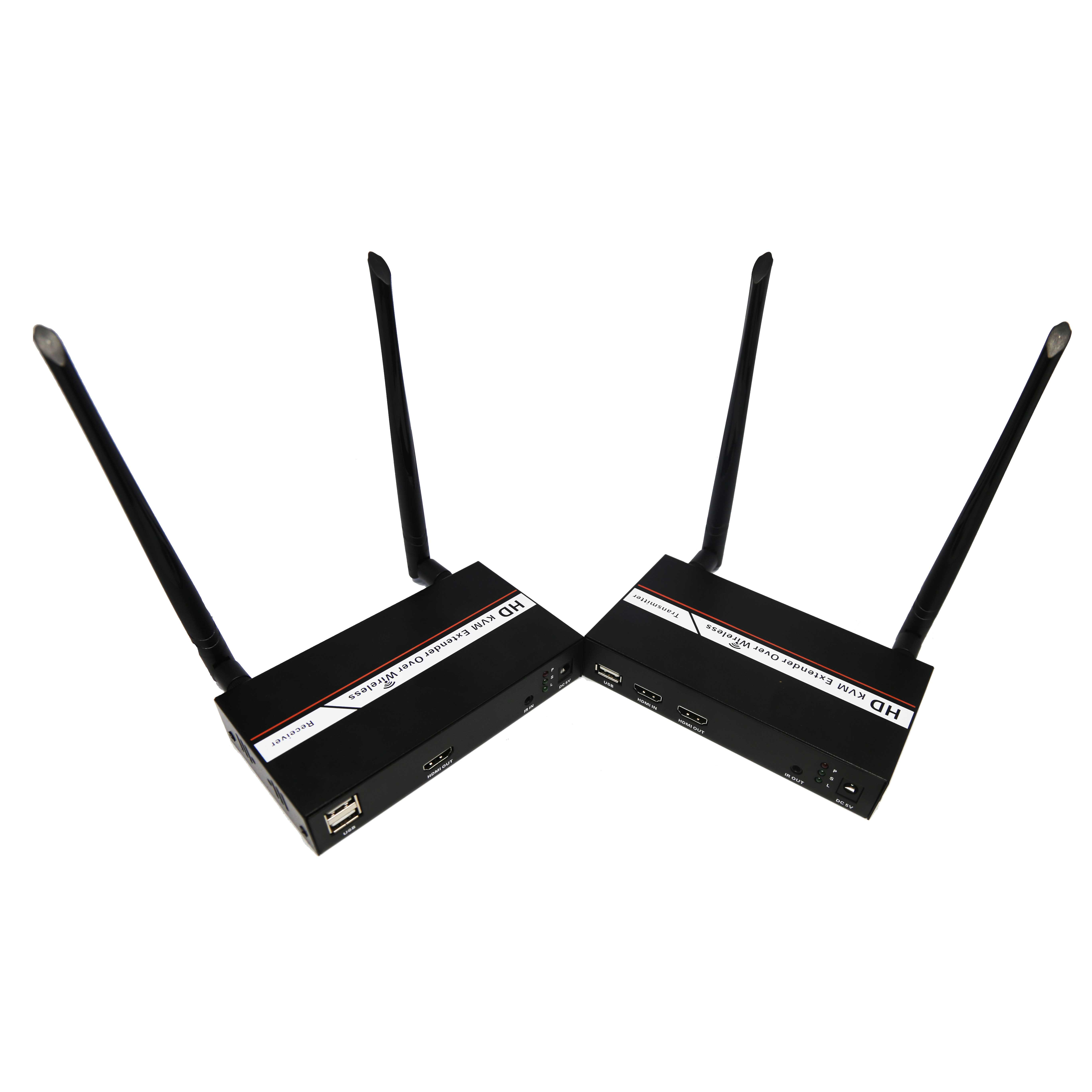

PRODUCT INTRODUCTION

                The 200 meter HDMI+IR wireless signal extender is composed of transmitter and receiver, and supports one to one or one to many receiving and transmission.This product supports audio and video of signal source (computer host, DVD, game console, set-top box, etc.) extended to the display end, where users can receive and hear images and sounds from the signal source in real time and use the signal source.This product supports real-time transmission of HDMI HD audio and video, with the highest resolution: 1080p@60Hz, and the resolution supports downward compatibility.Wireless transmission range up to 200 meters.The "adaptive synchronization" technology, which can dynamically control the updating rate of the display screen by the video output terminal, is added, so that the display screen can be updated completely with the instructions of the video output terminal.

               HDMI video transmitter adopts international standard H.264 format to compress and decompress video, low delay of HD image transmission, suitable for home theater, projector exhibition, multimedia classroom, video conference and other occasions requiring long distance transmission.

KEY PROPERTY

1. Hess H.264 professional compression chip, with independent IP
2. The product is composed of a transmitter and a receiver, which can transmit HD MI HD signals wirelessly from the sender to the receiver
3. Iron shell, small size, experience design, high - grade oil injection process, strong anti-interference ability;
4. The international general 5G IS M band wireless transmission signal, faster transmission speed, stronger anti-interference ability
5. External dual-gain antenna, ultra-long distance transmission, open transmission distance up to 200 meters (may be affected by the use of the environment)
6. Support broadband infrared remote control remote extension, can be remote control in the display end of the source terminal equipment
7. HDMI supports 4 80P ~ 1080P @50Hz, with a maximum of 1920*1080@60Hz
8. Support TX terminal HDMI audio and video local loop output
9. Support infrared signal return control
10. Support mouse and keyboard remote control
11. Supports one to one, one to many, one transmitter can be paired with multiple (up to 4) transporters
12. High compatibility, automatic matching of signal source and display device
13. At the same time support panel key Settings and Web configuration interface, simple and easy to use
14. Built-in automatic adjustment system, so that the image smooth, clear, stable
15. Built-in ESD electrostatic protection circuit, simple installation, pure hardware mode, plug and play, connected to the computer without installation drive
16. Applications: 1: N solutions (stores, restaurants, classrooms, monitors, projectors, security equipment)

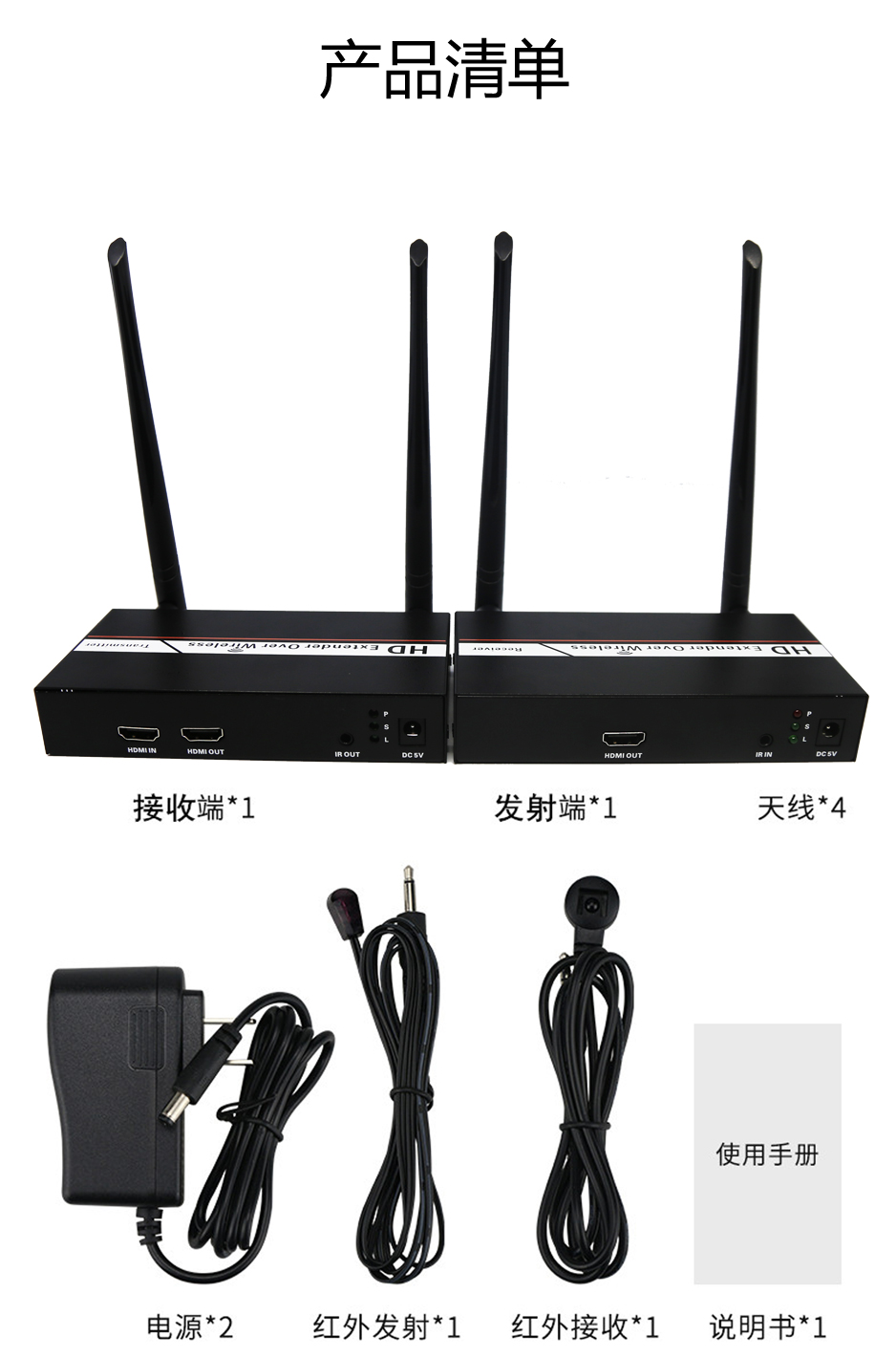

 STANDARD  EQUIPMWNT LIST

1. HDMI extender transmitter host………. 1 pcs
2. HDMI extender receiver hostr …………… 1 pcs
3. 2.4G/5G dual-frequency antenna …………… 2pcs
4. Power Adapte …………… 2 pcs
5. infrared ray remote control………………………. 2 pcs
6. instruction for use …………… 1 pcs

SPECIFICATION



Item	Specification
HDMI signal	Full compatible with HDCP
Transportationprotocol	H2 64
Support resolution	480i@60Hz480p@60Hz,576i@50Hz,576p@50Hz720p@50/60Hz,1080i@50/60Hz, 1 080p@50/60Hz
DDC signal voltage	1 2Vp-p(TTL)
TMDS bandw idth	1310nm
Central wave length	1310nm
Trans miss ion distance	200m
IR remote control	Support 38KHz IR remote control
Power supply	DC 5V/2A * 2pcs
Power consumption	TX<5W RX<5W
Working temperature	-20°C~ +80°C
Endlosure mate rial	Aluminum alloy
Product di mension	1 46* 75 * 27mm(WxDxH) *2pcs
Color	Black





PANEL DESCRIPTIONS

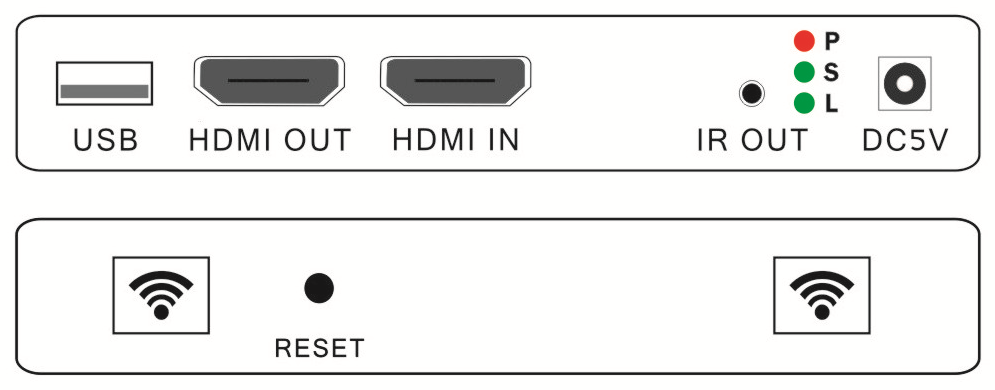

1. Rear panel of HDMI extender TX





①Status of signal connection

② HDMI output

③ HDMI input

④ USB port

⑤ IR-TX port

⑥ Reset button

⑦ Power input port

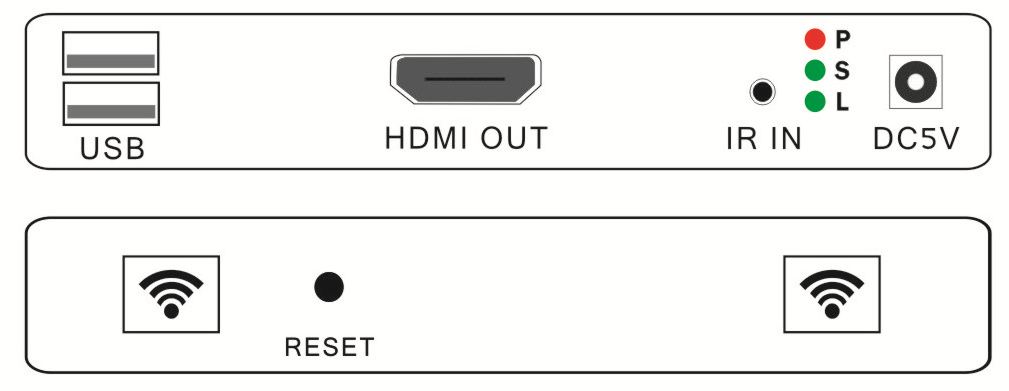

2. Rear panel of H DMI extender RX



① Status of signal connection

② HDMI output

③ USB port

④ IR-RX port

⑤ Reset button

⑥ Power input port



CONNECTING AND OPERATING

1) Connect the HDMI signal source (Such as DVD, STB etc) to HDMI Transmitter.

2) Connect the HDMI display (Such as HD-LCD, HD-DLP) into the Receiver.

3) Connect 5V power to the extender and supply power to the extender.

4) Connect the IR TX cable into IR TX port on the back panel and affix the emitter onto the source IR windows.

5) Connect IR-RX cable into IR-RX port on the receiver and affix the IR receiver in direct line of site with the handheld remote control. It is recommended to affix the receiver on the display frame /bezel or the display stand. Attention: Insert/Extract cables gently

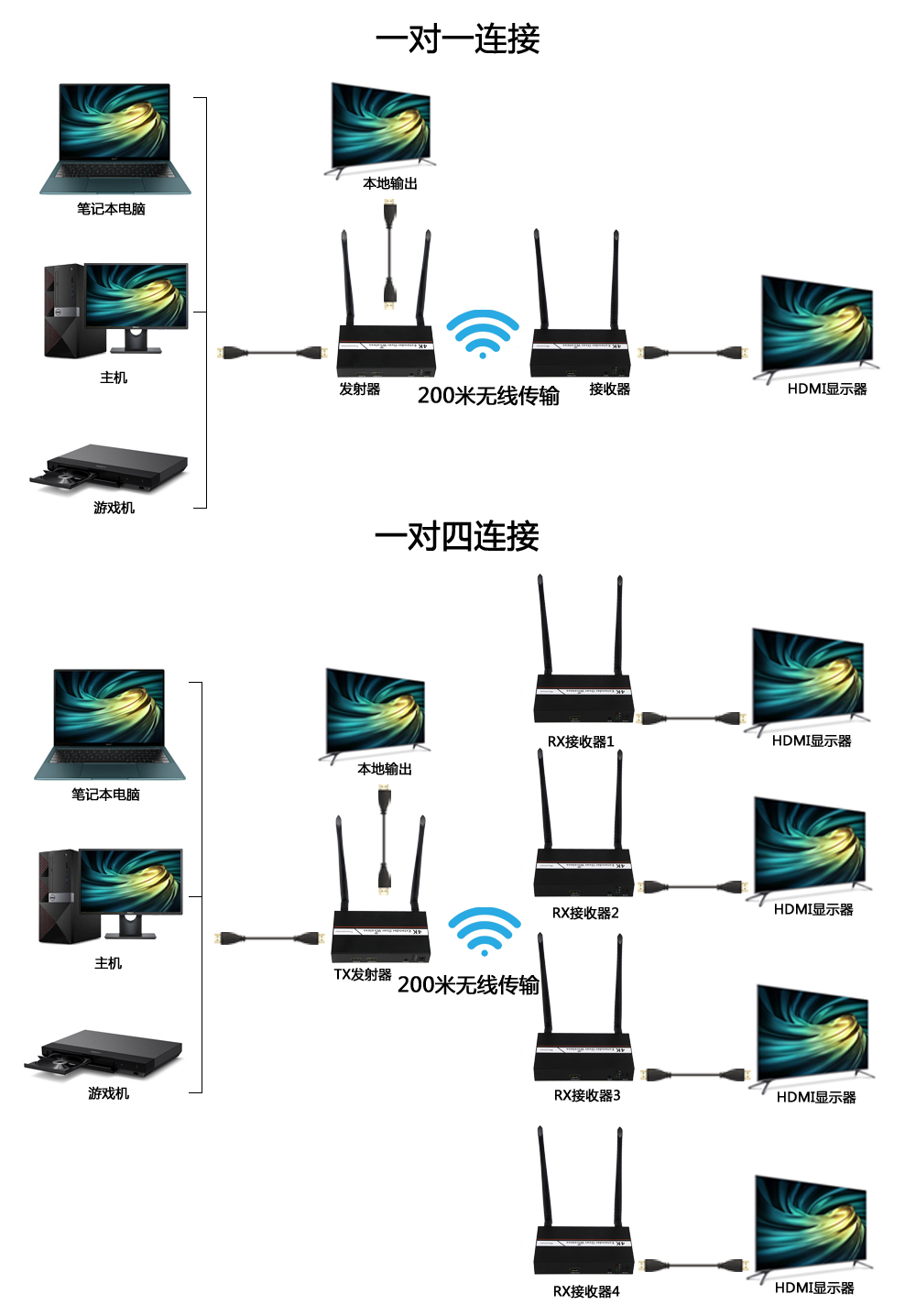

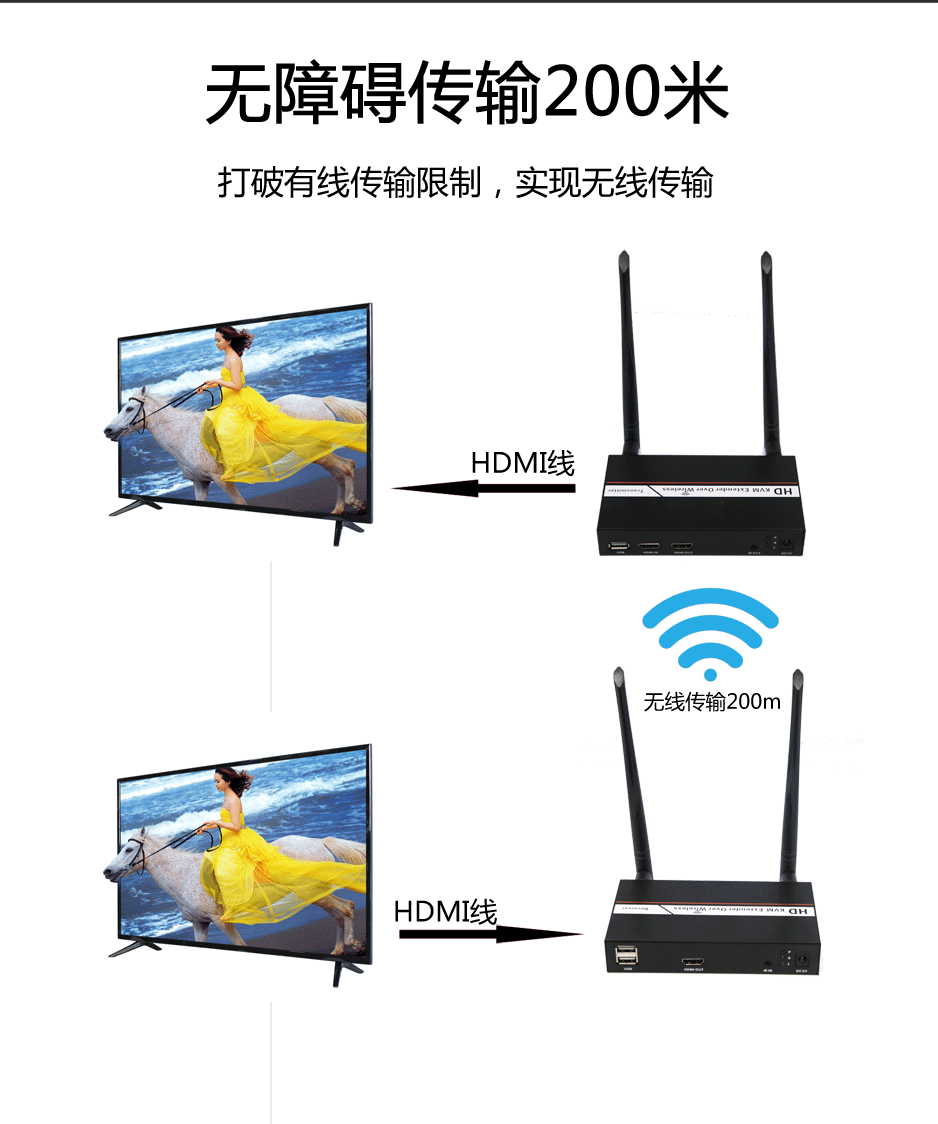

TYPICAL APPLICATION



1) One to One 2). One to many











MAINTENANCE

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.

PRODUCT SERVICE

1) Damage requiring service:

The unit should be serviced by qualified service personnel if:

(a) The DC power supply cord or AC adaptor has been damaged;

(b) Objects or liquids have gotten into the unit;

(c) The unit has been exposed to rain;

(d) The unit does not operate normally or exhibits a marked change in performance;

(e) The unit has been dropped or the cabinet damaged.

2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

WARRANTY

If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will be made by the

warrantor.

During the "Labor" Limited Warranty period there will be no charge for labor.

During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

 MAIL-IN SERVICE

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED

WARRANTY LIMITS AND EXCLUSIONS

1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God.

2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.)

3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
