分布式框架Celery七(Django-Celery-Flower实现异步和定时爬虫及其监控邮件告警)



• Django中集成方式

  • 安装模块

    pip installDjango==3.2.22
    pip install celery
    pip install redis
    pip install eventlet  #在windows环境下需要安装eventlet包
    -----------
    pip install django-celery-beat
    pip install django-celery-results
    pip install django-simpleui

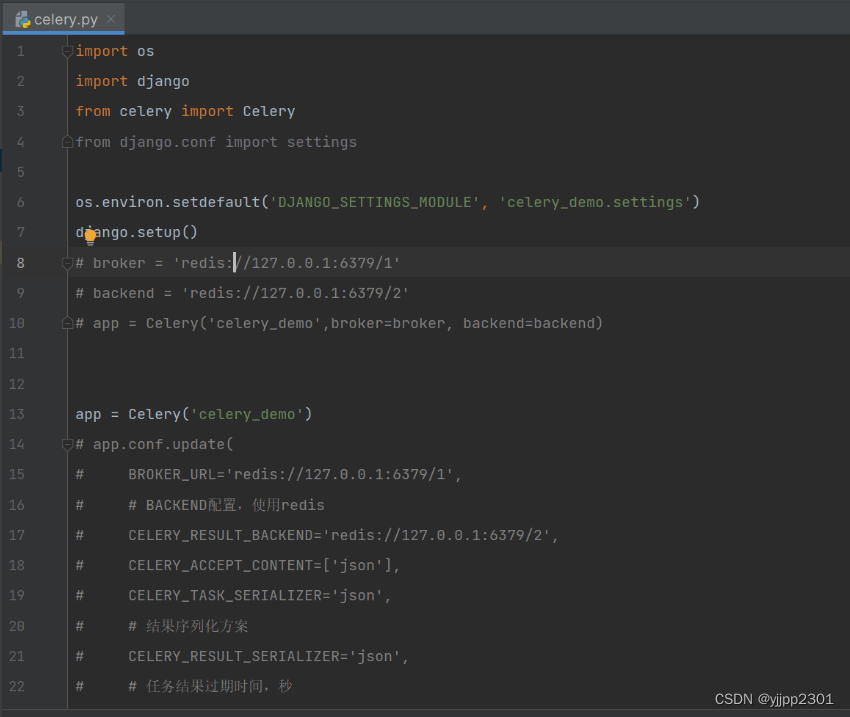

  • 在项目目录下新建celery.py

    import os
    import django
    from celery import Celery
    from django.conf import settings

    os.environ.setdefault('DJANGO_SETTINGS_MODULE', 'celery_demo.settings')
    django.setup()
    # broker = 'redis://127.0.0.1:6379/1'
    # backend = 'redis://127.0.0.1:6379/2'
    # app = Celery('celery_demo',broker=broker, backend=backend)


    app = Celery('celery_demo')
    # app.conf.update(
    #     BROKER_URL='redis://127.0.0.1:6379/1',
    #     # BACKEND配置，使用redis
    #     CELERY_RESULT_BACKEND='redis://127.0.0.1:6379/2',
    #     CELERY_ACCEPT_CONTENT=['json'],
    #     CELERY_TASK_SERIALIZER='json',
    #     # 结果序列化方案
    #     CELERY_RESULT_SERIALIZER='json',
    #     # 任务结果过期时间，秒
    #     CELERY_TASK_RESULT_EXPIRES=60 * 60 * 24,
    #     # 时区配置
    #     CELERY_TIMEZONE='Asia/Shanghai',
    # )

    app.config_from_object('django.conf:settings')

    app.autodiscover_tasks()
    # app.autodiscover_tasks(lambda: settings.INSTALLED_APPS)





  • 在django配置文件中加入

    # celery 配置
    ###----Celery redis 配置-----###
    # Broker配置，使用Redis作为消息中间件
    BROKER_URL = 'redis://127.0.0.1:6379/1'
    # BACKEND配置，使用redis
    CELERY_RESULT_BACKEND = 'redis://127.0.0.1:6379/2'
    CELERY_ACCEPT_CONTENT = ['json']
    CELERY_TASK_SERIALIZER = 'json'
    # 结果序列化方案
    CELERY_RESULT_SERIALIZER = 'json'
    # 任务结果过期时间，秒
    CELERY_TASK_RESULT_EXPIRES = 60 * 60 * 24
    # 时区配置
    CELERY_TIMEZONE = 'Asia/Shanghai'

  • 在主目录的init.py中添加如下代码

    from .celery import app as celery_app

    __all__ = ('celery_app',)

  • 在app下新建tasks.py(必须叫tasks.py)

    from celery import shared_task
    import time


    @shared_task()
    def add():
        time.sleep(1)
        print('结果是')
        return 10


    @shared_task()
    def send_email(mail):
        time.sleep(1)
        print(f'给{mail}发送邮件了')
        return '成功'


  • 实现异步views.py

    from django.shortcuts import render,HttpResponse

    # Create your views here.

    from .tasks import add
    def celery_add(request):
        res=add.delay()
        return HttpResponse(res)

  • 配置路由

    • 总路由urls.py

      from django.contrib import admin
      from django.urls import path,include

      urlpatterns = [
          path('admin/', admin.site.urls),
          path('app01/', include('app01.urls')),
      ]


    • app自己的路由urls.py

      from django.contrib import admin
      from django.urls import path
      from .views import celery_add

      urlpatterns = [
          path('celery_demo/', celery_add),
      ]


  • 启动celery

    celery -A celery_demo worker -l debug -P eventlet

  • 浏览器访问-添加任务 http://127.0.0.1:8000/app01/celery_demo/

  • 实现定时任务

    • settings.py加入

      # celery_beat
      CELERYBEAT_SCHEDULE = {
          'every_5_seconds': {
              # 任务路径
              'task': 'app01.tasks.add',
              # 每5秒执行一次
              'schedule': 200,
              'args': ()
          },
          # 'every_10_seconds': {
          #     # 任务路径
          #     'task': 'app01.tasks.send_email',
          #     # 每10秒执行一次,task1的参数是5
          #     'schedule': 10,
          #     'args': (['306334678@qq.com'])
          # }
      }

    • 启动worker和beat

      celery -A celery_demo worker -l debug -P eventlet
      celery -A celery_demo beat -l debug

  • 通过Admin配置定时任务

    通过settings.py的配置可以实现定时任务的配置，做为实际项目中可能还是不够实用，更加工程化的做法是将定时任务的配置放到数据库里通过界面来配置。
    Celery对此也提供了很好的支持，这需要安装django-celery-beat插件

    • 安装djiango-celery-beat

      pip install django-celery-beat

    • 在APP中注册djiango-celery-beat

      INSTALLED_APPS = [
      ....
      'django_celery_beat',
      ]

    • 在settings.py中设置调度器及时区

      CELERYBEAT_SCHEDULER = 'django_celery_beat.schedulers.DatabaseScheduler'

    • 设置时区

      LANGUAGE_CODE = 'zh-hans'
      TIME_ZONE = 'Asia/Shanghai'
      USE_I18N = True
      USE_TZ = False

    • 数据库迁移

      python manage.py migrate django_celery_beat

    • 启动woker和beat

      #在两个控制台分别启动woker和beta

      celery -A celery_demo worker -l debug -P eventlet
      celery -A celery_demo beat -l debug

    • 创建超级用户-访问admin的web管理端

      # 1 创建超级用户
      python manage.py createsuperuser

      # 2 访问admin
      http://127.0.0.1:8000/admin/login/

    • 美化admin

      # 1 开源地址
      https://gitee.com/tompeppa/simpleui
      # 2 文档地址
      https://newpanjing.github.io/simpleui_docs/config.html

      # 3 安装
      pip3 install django-simpleui

      # 4 配置app
        INSTALLED_APPS = [
            'simpleui',
            'django.contrib.admin',
            'django.contrib.auth',
            'django.contrib.contenttypes',
            'django.contrib.sessions',
            'django.contrib.messages',
            'django.contrib.staticfiles',
            ...
        ]

      # 5 重新打开admin


  • admin监控任务执行情况

    • 安装django-celery-results

      pip install django-celery-results

    • 配置settings.py，注册app

      INSTALLED_APPS = (
      ...,
      'django_celery_results',
      )

    • 修改backend配置，将Redis改为django-db

      # BACKEND配置，使用redis
      #CELERY_RESULT_BACKEND = 'redis://127.0.0.1:6379/1'

      # 使用使用django orm 作为结果存储
      CELERY_RESULT_BACKEND = 'django-db'  #使用django orm 作为结果存储

    • 迁移数据库

      python manage.py migrate django_celery_results
      # 可以看到创建了django_celery_results相关的表

    • admin 查看

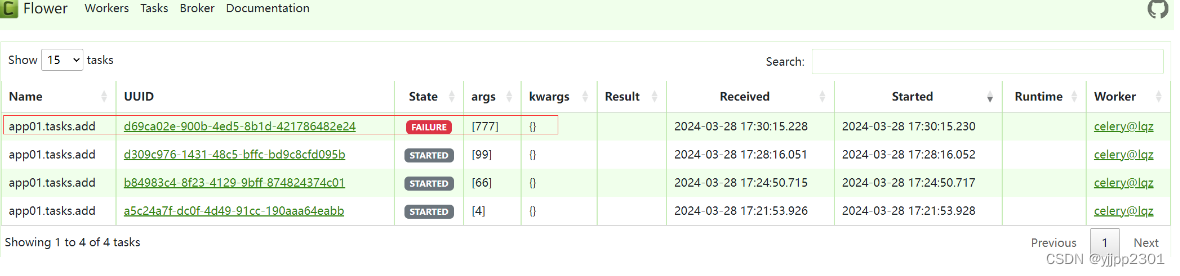

  • Flower监控任务执行情况

    • 安装和启动

      # 安装
      pip install flower

      # 启动
      # 方式一：
      celery -A celery_demo flower --port-5555
      #方式二
      celery --broker=redis://127.0.0.1:6379/1 flower


      # 浏览器访问：
      http://127.0.0.1:5555/

  • 任务异常自动告警

    • tasks.py中加入

      from celery import shared_task
      import time
      from celery import Task
      from django.core.mail import send_mail
      from django.conf import settings
      # 成功失败邮件告警
      class SendEmailTask(Task):
          def on_success(self, retval, task_id, args, kwargs):
              info = f'任务成功-- 任务id是:{task_id} , 参数是:{args} , 执行成功 !'
              send_mail('celery任务监控成功告警', info, settings.EMAIL_HOST_USER, ["616564099@qq.com",])

              print('------------成功')

          def on_failure(self, exc, task_id, args, kwargs, einfo):
              info = f'任务失败-- 任务id为:{task_id} , 参数为:{args} , 失败 ! 失败信息为: {exc}'
              send_mail('celery任务监控失败告警', info, settings.EMAIL_HOST_USER, ["616564099@qq.com",])
              print('------------失败')

          def on_retry(self, exc, task_id, args, kwargs, einfo):
              print(f'任务id位：:{task_id} , 参数为:{args} , 重试了 !  错误信息为: {exc}')


      @shared_task(base=SendEmailTask, bind=True)
      def add(a,b):
          time.sleep(1)
          return a+b


      @shared_task()
      def send_email(mail):
          print(f'给{mail}发送邮件了')
          return '成功'






      # celery -A celery_demo worker -l debug -P eventlet
      # celery -A celery_demo beat -l debug
      # celery -A celery_demo flower --port-5566


    • 重启服务

      # celery -A celery_demo worker -l debug -P eventlet

      # celery -A celery_demo beat -l debug

    • 验证效果

  • 爬取技术文章并告警

    • task.py

      import requests
      from bs4 import BeautifulSoup
      from redis import Redis
      from app01.models import Article
      @shared_task(base=SendEmailTask, bind=True)
      def crawl_cnblogs(self):
          # redis 链接
          conn = Redis(host='127.0.0.1', port='6379')
          res = requests.get('https://www.cnblogs.com/')
          soup = BeautifulSoup(res.text, 'html.parser')
          article_list = soup.find_all(name='article', class_='post-item')
          for article in article_list:
              title = article.find(name='a', class_='post-item-title').text
              author = article.find(name='a', class_='post-item-author').span.text
              url = article.find(name='a', class_='post-item-title').attrs.get('href')
              desc = article.find(name='p', class_='post-item-summary').text.strip()
              print(f'''
              文章标题：{title}
              文章作者:{author}
              文章地址：{url}
              文章摘要：{desc}
              ''')
              res = conn.sadd('urls', url)
              if res:
                  Article.objects.create(title=title, author=author, url=url, desc=desc)

    • models.py

      class Article(models.Model):
          title = models.CharField(max_length=64)
          author = models.CharField(max_length=64)
          url = models.CharField(max_length=64)
          desc = models.TextField()

    • 在admin中添加任务并查看结果

      #### 邮箱配置####
      EMAIL_HOST = 'smtp.qq.com'  # 如果是 163 改成 smtp.163.com
      EMAIL_PORT = 465
      EMAIL_HOST_USER = '306334678@qq.com'  # 帐号
      EMAIL_HOST_PASSWORD = 'nbjpdbazeeflbjej'  # 密码
      DEFAULT_FROM_EMAIL = EMAIL_HOST_USER
      #这样收到的邮件，收件人处就会这样显示
      #DEFAULT_FROM_EMAIL = 'lqz<'306334678@qq.com>'
      EMAIL_USE_SSL = True   #使用ssl
      #EMAIL_USE_TLS = False # 使用tls

      #EMAIL_USE_SSL 和 EMAIL_USE_TLS 是互斥的，即只能有一个为 True

    • 爬图片

      import os
      # 爬取图片
      @shared_task(base=SendEmailTask, bind=True)
      def crawl_photo(self,url):
          res = requests.get(url)
          res.encoding = 'gbk'
          # print(res.text)
          soup = BeautifulSoup(res.text, 'html.parser')
          ul = soup.find('ul', class_='clearfix')
          img_list = ul.find_all(name='img', src=True)
          for img in img_list:
              try:
                  url = img.attrs.get('src')
                  if not url.startswith('http'):
                      url = 'https://pic.netbian.com' + url
                  print(url)
                  res1 = requests.get(url)
                  name = url.split('-')[-1]
                  with open(os.path.join(settings.BASE_DIR,'img',name), 'wb') as f:
                      for line in res1.iter_content():
                          f.write(line)
              except Exception as e:
                  continue
