[网鼎杯 2020 青龙组]singal

题目出处：题目

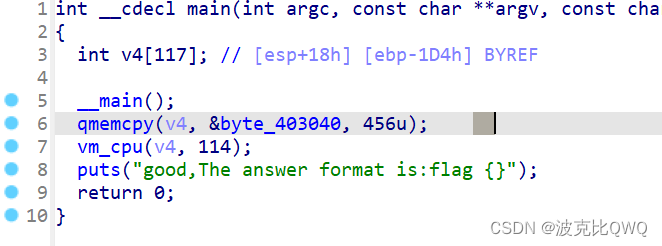

1. 进入到main函数，主函数的逻辑非常简单，一个copy函数将地址在 &byte_403040 处长度为456的数组付给v4，再调用一个vm_cpu函数，想必解题的关键就在vm_cpu函数：

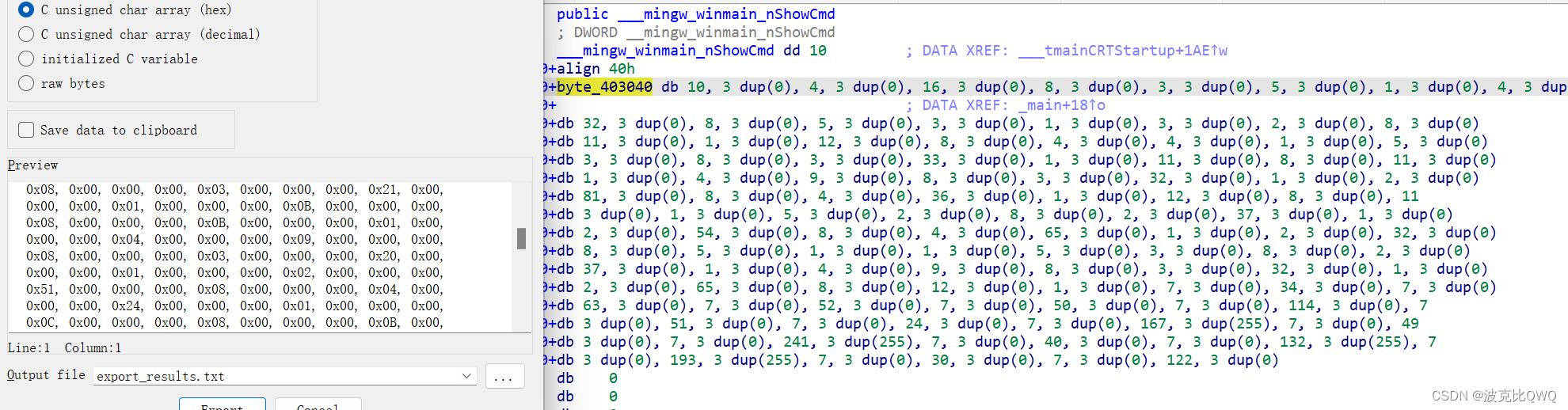

2. 观察vm_cpu函数的逻辑发现是一个取指令，然后执行相对应的函数，取指令的地址就在 &byte_403040 将该处的数组提取出来，再结合函数中对应的处理提取处指令（函数）的硬件码、长度、寄存器。

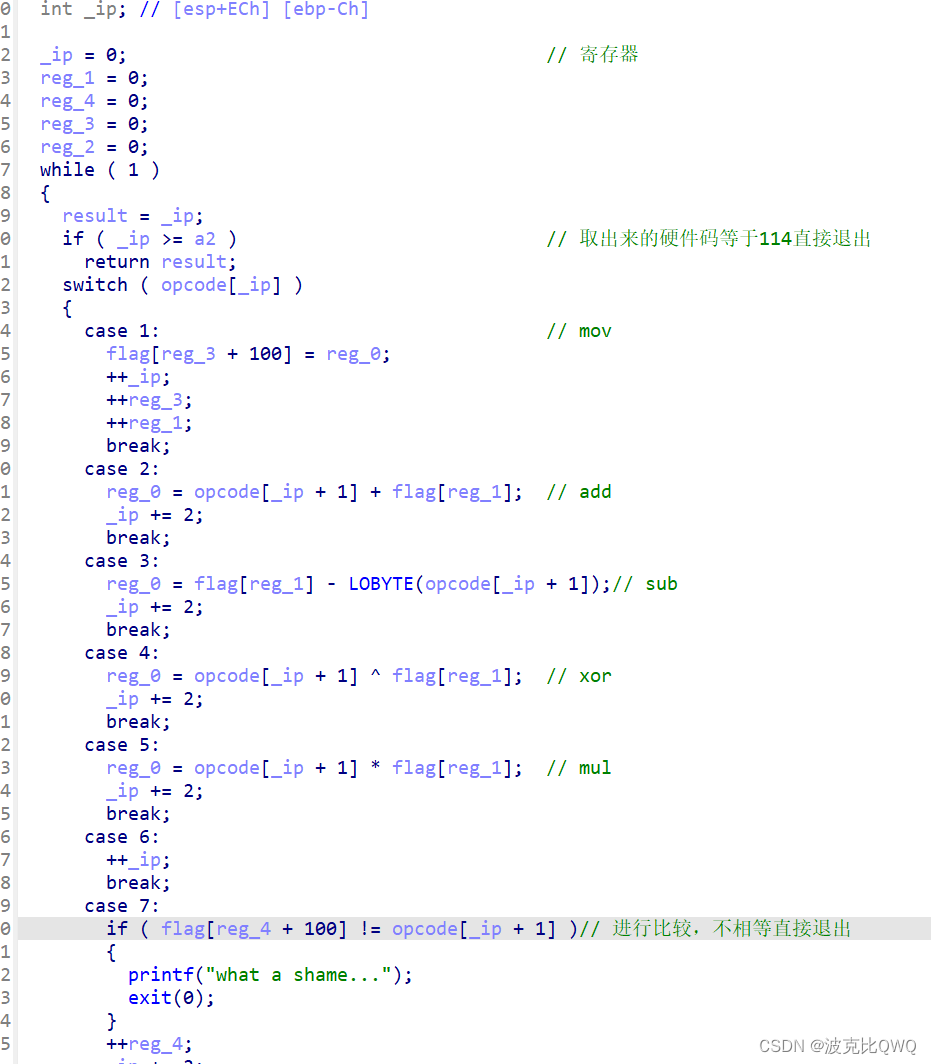

3. 分析完成vm_cpu函数后如下：
4. 编写脚本直接输出cpu实际执行的指令(伪指令)：

opcode=[10,
    4,  16,
    8,
    3, 5,
    1,
    4,   32,
    8,
    5,   3,
    1,
    3,   2,
    8,
    11,
    1,
    12,
    8,
    4,   4,
    1,
    5,
    3, 8,
    3,  33,
    1,
    11,
    8,
    11,
    1,
    4,   9,
    8,
    3,  32,
    1,
    2, 81,
    8,
    4,   36,
    1,
   12,
   8,
   11,
   1,
   5, 2,
   8,
   2,   37,
   1,
    2,  54,
    8,
    4,  65,
    1,
    2,  32,
    8,
    5, 1,
    1,
    5,    3,
    8,
    2,  37,
    1,
    4,   9,
    8,
    3,  32,
    1,
    2, 65,
    8,
    12,
    1,
    7,  34,
    7,  63,
    7,  52,
    7,  50,
    7,  114,
    7,  51,
    7,  24,
    7,  167,
    7,  49,
    7,  241,
    7,  40,
    7,  132,
    7,  193,
    7,  30,
    7,  122,
    114,200]
ip=0
print("mov reg_0,0")
print("mov reg_1,0")
print("mov reg_2,0")
print("mov reg_3,0")
print("mov reg_4,0")
while True:
    tmp=opcode[ip]
    if tmp>=114:
        break

    if tmp==1:
        print("(%d)"%(ip),end="")
        print("mov flag[reg_3 + 100],reg_0")
        print("inc reg_3")
        print("inc reg_1")
        ip+=1
    elif tmp==2:
        print("(%d)"%(ip),end="")
        print("reg_0 = %d + flag[reg_1]"%(opcode[ip + 1]))#为了避免来回繁琐的mov移动直接采取"="赋值，下同
        ip+=2
    elif tmp==3:
        print("(%d)"%(ip),end="")
        print("reg_0 = flag[reg_1] - %d"%(opcode[ip + 1]))
        ip+=2
    elif tmp==4:
        print("(%d)"%(ip),end="")
        print("reg_0 = %d ^ flag[reg_1]"%(opcode[ip + 1]))
        ip+=2
    elif tmp==5:
        print("(%d)"%(ip),end="")
        print("reg_0 = %d * flag[reg_1]"%(opcode[ip + 1]))
        ip+=2
    elif tmp==6:
        print("(%d)"%(ip),end="")
        ip+=1
    elif tmp==7:
        print("(%d)"%(ip),end="")
        print("cmp flag[reg_4 + 100],%d"%(opcode[ip + 1]))
        print("jnz exit")
        print("inc reg_4")
        ip+=2
    elif tmp==8:
        print("(%d)"%(ip),end="")
        print("mov flag[reg_2],reg_0")
        print("inc reg_2")
        ip+=1

    elif tmp==10:
        print("(%d)"%(ip),end="")
        print("read flag")
        ip+=1
    elif tmp==11:
        print("(%d)"%(ip),end="")
        print("reg_0 = flag[reg_1] - 1")
        ip+=1
    elif tmp==12:
        print("(%d)"%(ip),end="")
        print("reg_0 = flag[reg_1] + 1")
        ip+=1

5. 输出后的伪指令如下，结合分析：
   mov reg_0,0
   mov reg_1,0
   mov reg_2,0
   mov reg_3,0
   mov reg_4,0
   (0)read flag 读取输入的flag
   每次reg_3寄存器加一都是一次对flag的操作，对输入的flag进行opration，然后放入到与flag相对偏移为100的位置
   第一次：
   (1)reg_0 = 16 ^ flag[reg_1]
   (3)mov flag[reg_2],reg_0
   inc reg_2
   (4)reg_0 = flag[reg_1] - 5
   (6)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第二次：
   (7)reg_0 = 32 ^ flag[reg_1]
   (9)mov flag[reg_2],reg_0
   inc reg_2
   (10)reg_0 = 3 * flag[reg_1]
   (12)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第三次：
   (13)reg_0 = flag[reg_1] - 2
   (15)mov flag[reg_2],reg_0
   inc reg_2
   (16)reg_0 = flag[reg_1] - 1
   (17)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第四次：
   (18)reg_0 = flag[reg_1] + 1
   (19)mov flag[reg_2],reg_0
   inc reg_2
   (20)reg_0 = 4 ^ flag[reg_1]
   (22)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第五次：
   (23)reg_0 = 3 * flag[reg_1]
   (25)mov flag[reg_2],reg_0
   inc reg_2
   (26)reg_0 = flag[reg_1] - 33
   (28)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第六次：
   (29)reg_0 = flag[reg_1] - 1
   (30)mov flag[reg_2],reg_0
   inc reg_2
   (31)reg_0 = flag[reg_1] - 1
   (32)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第七次：
   (33)reg_0 = 9 ^ flag[reg_1]
   (35)mov flag[reg_2],reg_0
   inc reg_2
   (36)reg_0 = flag[reg_1] - 32
   (38)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第八次：
   (39)reg_0 = 81 + flag[reg_1]
   (41)mov flag[reg_2],reg_0
   inc reg_2
   (42)reg_0 = 36 ^ flag[reg_1]
   (44)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第九次：
   (45)reg_0 = flag[reg_1] + 1
   (46)mov flag[reg_2],reg_0
   inc reg_2
   (47)reg_0 = flag[reg_1] - 1
   (48)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十次：
   (49)reg_0 = 2 * flag[reg_1]
   (51)mov flag[reg_2],reg_0
   inc reg_2
   (52)reg_0 = 37 + flag[reg_1]
   (54)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十一次：
   (55)reg_0 = 54 + flag[reg_1]
   (57)mov flag[reg_2],reg_0
   inc reg_2
   (58)reg_0 = 65 ^ flag[reg_1]
   (60)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十二次：
   (61)reg_0 = 32 + flag[reg_1]
   (63)mov flag[reg_2],reg_0
   inc reg_2
   (64)reg_0 = 1 * flag[reg_1]
   (66)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十三次：
   (67)reg_0 = 3 * flag[reg_1]
   (69)mov flag[reg_2],reg_0
   inc reg_2
   (70)reg_0 = 37 + flag[reg_1]
   (72)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十四次：
   (73)reg_0 = 9 ^ flag[reg_1]
   (75)mov flag[reg_2],reg_0
   inc reg_2
   (76)reg_0 = flag[reg_1] - 32
   (78)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   第十五次：
   (79)reg_0 = 65 + flag[reg_1]
   (81)mov flag[reg_2],reg_0
   inc reg_2
   (82)reg_0 = flag[reg_1] + 1
   (83)mov flag[reg_3 + 100],reg_0
   inc reg_3
   inc reg_1
   接下来为比较操作，与提供的硬件opcode进行比较：
   (84)cmp flag[reg_4 + 100],34
   jnz exit
   inc reg_4
   (86)cmp flag[reg_4 + 100],63
   jnz exit
   inc reg_4
   (88)cmp flag[reg_4 + 100],52
   jnz exit
   inc reg_4
   (90)cmp flag[reg_4 + 100],50
   jnz exit
   inc reg_4
   (92)cmp flag[reg_4 + 100],114
   jnz exit
   inc reg_4
   (94)cmp flag[reg_4 + 100],51
   jnz exit
   inc reg_4
   (96)cmp flag[reg_4 + 100],24
   jnz exit
   inc reg_4
   (98)cmp flag[reg_4 + 100],167
   jnz exit
   inc reg_4
   (100)cmp flag[reg_4 + 100],49
   jnz exit
   inc reg_4
   (102)cmp flag[reg_4 + 100],241
   jnz exit
   inc reg_4
   (104)cmp flag[reg_4 + 100],40
   jnz exit
   inc reg_4
   (106)cmp flag[reg_4 + 100],132
   jnz exit
   inc reg_4
   (108)cmp flag[reg_4 + 100],193
   jnz exit
   inc reg_4
   (110)cmp flag[reg_4 + 100],30
   jnz exit
   inc reg_4
   (112)cmp flag[reg_4 + 100],122
   jnz exit
   inc reg_4

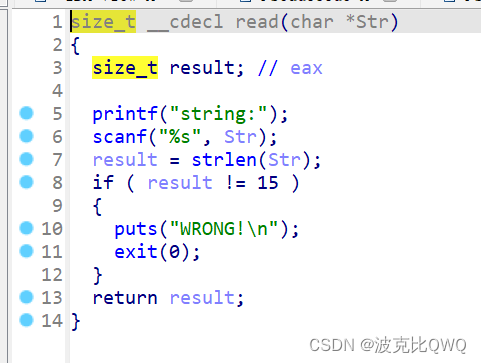

6. 经过分析可以看出，前面对flag的操作共15次比较也是15次，read函数中也明确指出输入的flag长度为15：
7. 提取出上面比较的数据(result)，根据每次的加密操作反写出逆向操作，逆向代码如下：

res=[34,63,52, 50,114,51,24,167,49,241,40,132,193,30,122,]
flag=[]
flag.append((res[0]+5)^16)
flag.append((res[1]//3)^32)
flag.append((res[2]+2+1))
flag.append((res[3]^4)-1)
flag.append((res[4]+33)//3)
flag.append((res[5]+1+1))
flag.append((res[6]+32)^9)
flag.append((res[7]^36)-81)
flag.append((res[8]))
flag.append((res[9]-37)//2)
flag.append((res[10]^65)-54)
flag.append((res[11]-32))
flag.append((res[12]-37)//3)
flag.append((res[13]+32)^9)
flag.append((res[14]-1-65))
for i in flag:
    print(chr(i&0xFF),end="")
#757515121f3d478

最终flag{757515121f3d478}

总结本体和上一篇vm逆向类似，分析出指令的硬件编码后还原指令即可逆向出flag
