实现一个简单的Go语言gRPC示例

最新推荐文章于 2024-07-30 15:40:41 发布

YJius

最新推荐文章于 2024-07-30 15:40:41 发布

阅读量762

点赞数 1

文章标签： golang 开发语言后端

本文链接：https://blog.youkuaiyun.com/yingjiusheng/article/details/130869940

版权

一、根据proto生成go文件

首先，需要安装gRPC和protobuf编译器，可以使用以下命令：

go get -u google.golang.org/grpc
go get -u github.com/golang/protobuf/protoc-gen-go

接下来，创建一个.proto文件，例如：

syntax = "proto3";
package helloworld;
option go_package = "./";
service Greeter {
  rpc SayHello (HelloRequest) returns (HelloReply) {}
}
message HelloRequest {
  string name = 1;
}
message HelloReply {
  string message = 1;
}

然后使用以下命令生成Go代码：

protoc --go_out=. --go-grpc_out=. helloworld.proto

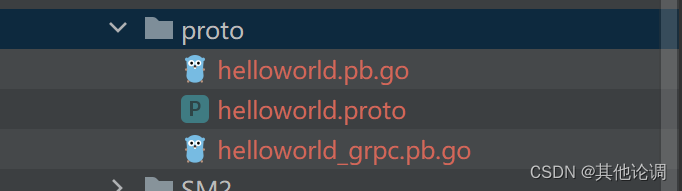

结果如下

生成文件源码如下

helloworld.pb.go

// Code generated by protoc-gen-go. DO NOT EDIT.
// versions:
// 	protoc-gen-go v1.30.0
// 	protoc        v3.19.4
// source: helloworld.proto

package __

import (
	protoreflect "google.golang.org/protobuf/reflect/protoreflect"
	protoimpl "google.golang.org/protobuf/runtime/protoimpl"
	reflect "reflect"
	sync "sync"
)

const (
	// Verify that this generated code is sufficiently up-to-date.
	_ = protoimpl.EnforceVersion(20 - protoimpl.MinVersion)
	// Verify that runtime/protoimpl is sufficiently up-to-date.
	_ = protoimpl.EnforceVersion(protoimpl.MaxVersion - 20)
)

type HelloRequest struct {
	state         protoimpl.MessageState
	sizeCache     protoimpl.SizeCache
	unknownFields protoimpl.UnknownFields

	Name string `protobuf:"bytes,1,opt,name=name,proto3" json:"name,omitempty"`
}

func (x *HelloRequest) Reset() {
	*x = HelloRequest{}
	if protoimpl.UnsafeEnabled {
		mi := &file_helloworld_proto_msgTypes[0]
		ms := protoimpl.X.MessageStateOf(protoimpl.Pointer(x))
		ms.StoreMessageInfo(mi)
	}
}

func (x *HelloRequest) String() string {
	return protoimpl.X.MessageStringOf(x)
}

func (*HelloRequest) ProtoMessage() {}

func (x *HelloRequest) ProtoReflect() protoreflect.Message {
	mi := &file_helloworld_proto_msgTypes[0]
	if protoimpl.UnsafeEnabled && x != nil {
		ms := protoimpl.X.MessageStateOf(protoimpl.Pointer(x))
		if ms.LoadMessageInfo() == nil {
			ms.StoreMessageInfo(mi)
		}
		return ms
	}
	return mi.MessageOf(x)
}

// Deprecated: Use HelloRequest.ProtoReflect.Descriptor instead.
func (*HelloRequest) Descriptor() ([]byte, []int) {
	return file_helloworld_proto_rawDescGZIP(), []int{0}
}

func (x *HelloRequest) GetName() string {
	if x != nil {
		return x.Name
	}
	return ""
}

type HelloReply struct {
	state         protoimpl.MessageState
	sizeCache     protoimpl.SizeCache
	unknownFields protoimpl.UnknownFields

	Message string `protobuf:"bytes,1,opt,name=message,proto3" json:"message,omitempty"`
}

func (x *HelloReply) Reset() {
	*x = HelloReply{}
	if protoimpl.UnsafeEnabled {
		mi := &file_helloworld_proto_msgTypes[1]
		ms := protoimpl.X.MessageStateOf(protoimpl.Pointer(x))
		ms.StoreMessageInfo(mi)
	}
}

func (x *HelloReply) String() string {
	return protoimpl.X.MessageStringOf(x)
}

func (*HelloReply) ProtoMessage() {}

func (x *HelloReply) ProtoReflect() protoreflect.Message {
	mi := &file_helloworld_proto_msgTypes[1]
	if protoimpl.UnsafeEnabled && x != nil {
		ms := protoimpl.X.MessageStateOf(protoimpl.Pointer(x))
		if ms.LoadMessageInfo() == nil {
			ms.StoreMessageInfo(mi)
		}
		return ms
	}
	return mi.MessageOf(x)
}

// Deprecated: Use HelloReply.ProtoReflect.Descriptor instead.
func (*HelloReply) Descriptor() ([]byte, []int) {
	return file_helloworld_proto_rawDescGZIP(), []int{1}
}

func (x *HelloReply) GetMessage() string {
	if x != nil {
		return x.Message
	}
	return ""
}

var File_helloworld_proto protoreflect.FileDescriptor

var file_helloworld_proto_rawDesc = []byte{
	0x0a, 0x10, 0x68, 0x65, 0x6c, 0x6c, 0x6f, 0x77, 0x6f, 0x72, 0x6c, 0x64, 0x2e, 0x70, 0x72, 0x6f,
	0x74, 0x6f, 0x12, 0x0a, 0x68, 0x65, 0x6c, 0x6c, 0x6f, 0x77, 0x6f, 0x72, 0x6c, 0x64, 0x22, 0x22,
	0x0a, 0x0c, 0x48, 0x65, 0x6c, 0x6c, 0x6f, 0x52, 0x65, 0x71, 0x75, 0x65, 0x73, 0x74, 0x12, 0x12,
	0x0a, 0x04, 0x6e, 0x61, 0x6d, 0x65, 0x18, 0x01, 0x20, 0x01, 0x28, 0x09, 0x52, 0x04, 0x6e, 0x61,
	0x6d, 0x65, 0x22, 0x26, 0x0a, 0x0a, 0x48, 0x65, 0x6c, 0x6c, 0x6f, 0x52, 0x65, 0x70, 0x6c, 0x79,
	0x12, 0x18, 0x0a, 0x07, 0x6d, 0x65, 0x73, 0x73, 0x61, 0x67, 0x65, 0x18, 0x01, 0x20, 0x01, 0x28,
	0x09, 0x52, 0x07, 0x6d, 0x65, 0x73, 0x73, 0x61, 0x67, 0x65, 0x32, 0x49, 0x0a, 0x07, 0x47, 0x72,
	0x65, 0x65, 0x74, 0x65, 0x72, 0x12, 0x3e, 0x0a, 0x08, 0x53, 0x61, 0x79, 0x48, 0x65, 0x6c, 0x6c,
	0x6f, 0x12, 0x18, 0x2e, 0x68, 0x65, 0x6c, 0x6c, 0x6f, 0x77, 0x6f, 0x72, 0x6c, 0x64, 0x2e, 0x48,
	0x65, 0x6c, 0x6c, 0x6f, 0x52, 0x65, 0x71, 0x75, 0x65, 0x73, 0x74, 0x1a, 0x16, 0x2e, 0x68, 0x65,
	0x6c, 0x6c, 0x6f, 0x77, 0x6f, 0x72, 0x6c, 0x64, 0x2e, 0x48, 0x65, 0x6c, 0x6c, 0x6f, 0x52, 0x65,
	0x70, 0x6c, 0x79, 0x22, 0x00, 0x42, 0x04, 0x5a, 0x02, 0x2e, 0x2f, 0x62, 0x06, 0x70, 0x72, 0x6f,
	0x74, 0x6f, 0x33,
}

var (
	file_helloworld_proto_rawDescOnce sync.Once
	file_helloworld_proto_rawDescData = file_helloworld_proto_rawDesc
)

func file_helloworld_proto_rawDescGZIP() []byte {
	file_helloworld_proto_rawDescOnce.Do(func() {
		file_helloworld_proto_rawDescData = protoimpl.X.CompressGZIP(file_helloworld_proto_rawDescData)
	})
	return file_helloworld_proto_rawDescData
}

var file_helloworld_proto_msgTypes = make([]protoimpl.MessageInfo, 2)
var file_helloworld_proto_goTypes = []interface{}{
	(*HelloRequest)(nil), // 0: helloworld.HelloRequest
	(*HelloReply)(nil),   // 1: helloworld.HelloReply
}
var file_helloworld_proto_depIdxs = []int32{
	0, // 0: helloworld.Greeter.SayHello:input_type -> helloworld.HelloRequest
	1, // 1: helloworld.Greeter.SayHello:output_type -> helloworld.HelloReply
	1, // [1:2] is the sub-list for method output_type
	0, // [0:1] is the sub-list for method input_type
	0, // [0:0] is the sub-list for extension type_name
	0, // [0:0] is the sub-list for extension extendee
	0, // [0:0] is the sub-list for field type_name
}

func init() { file_helloworld_proto_init() }
func file_helloworld_proto_init() {
	if File_helloworld_proto != nil {
		return
	}
	if !protoimpl.UnsafeEnabled {
		file_helloworld_proto_msgTypes[0].Exporter = func(v interface{}, i int) interface{} {
			switch v := v.(*HelloRequest); i {
			case 0:
				return &v.state
			case 1:
				return &v.sizeCache
			case 2:
				return &v.unknownFields
			default:
				return nil
			}
		}
		file_helloworld_proto_msgTypes[1].Exporter = func(v interface{}, i int) interface{} {
			switch v := v.(*HelloReply); i {
			case 0:
				return &v.state
			case 1:
				return &v.sizeCache
			case 2:
				return &v.unknownFields
			default:
				return nil
			}
		}
	}
	type x struct{}
	out := protoimpl.TypeBuilder{
		File: protoimpl.DescBuilder{
			GoPackagePath: reflect.TypeOf(x{}).PkgPath(),
			RawDescriptor: file_helloworld_proto_rawDesc,
			NumEnums:      0,
			NumMessages:   2,
			NumExtensions: 0,
			NumServices:   1,
		},
		GoTypes:           file_helloworld_proto_goTypes,
		DependencyIndexes: file_helloworld_proto_depIdxs,
		MessageInfos:      file_helloworld_proto_msgTypes,
	}.Build()
	File_helloworld_proto = out.File
	file_helloworld_proto_rawDesc = nil
	file_helloworld_proto_goTypes = nil
	file_helloworld_proto_depIdxs = nil
}

helloworld_grpc.pb.go

// Code generated by protoc-gen-go-grpc. DO NOT EDIT.
// versions:
// - protoc-gen-go-grpc v1.3.0
// - protoc             v3.19.4
// source: helloworld.proto

package __

import (
	context "context"
	grpc "google.golang.org/grpc"
	codes "google.golang.org/grpc/codes"
	status "google.golang.org/grpc/status"
)

// This is a compile-time assertion to ensure that this generated file
// is compatible with the grpc package it is being compiled against.
// Requires gRPC-Go v1.32.0 or later.
const _ = grpc.SupportPackageIsVersion7

const (
	Greeter_SayHello_FullMethodName = "/helloworld.Greeter/SayHello"
)

// GreeterClient is the client API for Greeter service.
//
// For semantics around ctx use and closing/ending streaming RPCs, please refer to https://pkg.go.dev/google.golang.org/grpc/?tab=doc#ClientConn.NewStream.
type GreeterClient interface {
	SayHello(ctx context.Context, in *HelloRequest, opts ...grpc.CallOption) (*HelloReply, error)
}

type greeterClient struct {
	cc grpc.ClientConnInterface
}

func NewGreeterClient(cc grpc.ClientConnInterface) GreeterClient {
	return &greeterClient{cc}
}

func (c *greeterClient) SayHello(ctx context.Context, in *HelloRequest, opts ...grpc.CallOption) (*HelloReply, error) {
	out := new(HelloReply)
	err := c.cc.Invoke(ctx, Greeter_SayHello_FullMethodName, in, out, opts...)
	if err != nil {
		return nil, err
	}
	return out, nil
}

// GreeterServer is the server API for Greeter service.
// All implementations must embed UnimplementedGreeterServer
// for forward compatibility
type GreeterServer interface {
	SayHello(context.Context, *HelloRequest) (*HelloReply, error)
	mustEmbedUnimplementedGreeterServer()
}

// UnimplementedGreeterServer must be embedded to have forward compatible implementations.
type UnimplementedGreeterServer struct {
}

func (UnimplementedGreeterServer) SayHello(context.Context, *HelloRequest) (*HelloReply, error) {
	return nil, status.Errorf(codes.Unimplemented, "method SayHello not implemented")
}
func (UnimplementedGreeterServer) mustEmbedUnimplementedGreeterServer() {}

// UnsafeGreeterServer may be embedded to opt out of forward compatibility for this service.
// Use of this interface is not recommended, as added methods to GreeterServer will
// result in compilation errors.
type UnsafeGreeterServer interface {
	mustEmbedUnimplementedGreeterServer()
}

func RegisterGreeterServer(s grpc.ServiceRegistrar, srv GreeterServer) {
	s.RegisterService(&Greeter_ServiceDesc, srv)
}

func _Greeter_SayHello_Handler(srv interface{}, ctx context.Context, dec func(interface{}) error, interceptor grpc.UnaryServerInterceptor) (interface{}, error) {
	in := new(HelloRequest)
	if err := dec(in); err != nil {
		return nil, err
	}
	if interceptor == nil {
		return srv.(GreeterServer).SayHello(ctx, in)
	}
	info := &grpc.UnaryServerInfo{
		Server:     srv,
		FullMethod: Greeter_SayHello_FullMethodName,
	}
	handler := func(ctx context.Context, req interface{}) (interface{}, error) {
		return srv.(GreeterServer).SayHello(ctx, req.(*HelloRequest))
	}
	return interceptor(ctx, in, info, handler)
}

// Greeter_ServiceDesc is the grpc.ServiceDesc for Greeter service.
// It's only intended for direct use with grpc.RegisterService,
// and not to be introspected or modified (even as a copy)
var Greeter_ServiceDesc = grpc.ServiceDesc{
	ServiceName: "helloworld.Greeter",
	HandlerType: (*GreeterServer)(nil),
	Methods: []grpc.MethodDesc{
		{
			MethodName: "SayHello",
			Handler:    _Greeter_SayHello_Handler,
		},
	},
	Streams:  []grpc.StreamDesc{},
	Metadata: "helloworld.proto",
}

二、编写服务端代码

package main

import (
	"context"
	"google.golang.org/grpc"
	"log"
	"net"
	pb "project01/proto"
)

const (
	port = ":50051"
)

type server struct {
	*pb.UnimplementedGreeterServer
}

func (s *server) SayHello(ctx context.Context, in *pb.HelloRequest) (*pb.HelloReply, error) {
	log.Printf("Received: %v", in.GetName())
	return &pb.HelloReply{Message: "Hello " + in.GetName()}, nil
}
func main() {
	lis, err := net.Listen("tcp", port)
	if err != nil {
		log.Fatalf("failed to listen: %v", err)
	}
	s := grpc.NewServer()
	pb.RegisterGreeterServer(s, &server{})
	if err := s.Serve(lis); err != nil {
		log.Fatalf("failed to serve: %v", err)
	}
}

三、编写客户端代码

package main

import (
	"context"
	"google.golang.org/grpc"
	"log"
	pb "project01/proto"
)

const (
	address = "localhost:50051"
)

func main() {
	// Set up a connection to the server.
	conn, err := grpc.Dial(address, grpc.WithInsecure())
	if err != nil {
		log.Fatalf("did not connect: %v", err)
	}
	defer conn.Close()
	c := pb.NewGreeterClient(conn)
	// Contact the server and print out its response.
	name := "world"
	r, err := c.SayHello(context.Background(), &pb.HelloRequest{Name: name})
	if err != nil {
		log.Fatalf("could not greet: %v", err)
	}
	log.Printf("Greeting: %s", r.GetMessage())
}
