Hive中的分区分桶约束,元数据解析

最新推荐文章于 2024-07-01 22:00:57 发布

原创最新推荐文章于 2024-07-01 22:00:57 发布 · 523 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#hive #元数据

本文探讨了Hive中的分区分桶概念，通过`desc formatted`命令解析了具有主外键约束的表`user_partition_bucket_pk`和`user_partition_bucket_fk`的元数据信息。

Hive中的分区分桶主外键约束

建表

create table user_partition_bucket_pk(id int comment 'ID',name string comment '姓名',age int comment '年龄',id1 int, id2 int,
primary key(id1, id2) disable novalidate) comment '测试分桶'
PARTITIONED BY (date_id string)
clustered by (id) sorted by (id) into 4 buckets row format delimited fields terminated by '\t';

create table user_partition_bucket_fk(id int comment 'ID',name string comment '姓名',age int comment '年龄',id1 int, id2 int,
constraint c1 foreign key(id1, id2) references user_partition_bucket_pk(id1, id2) disable novalidate) comment '测试分桶'
PARTITIONED BY (date_id string)
clustered by (id) sorted by (id) into 4 buckets row format delimited fields terminated by '\t';

desc formatted user_partition_bucket_pk

# col_name	data_type	comment
id	int	ID
name	string	姓名
age	int	年龄
id1	int
id2	int

# Partition Information
# col_name	data_type	comment
date_id	string

# Detailed Table Information
Database:           	default
OwnerType:          	USER
Owner:              	root
CreateTime:         	Mon Dec 09 00:02:36 CST 2019
LastAccessTime:     	UNKNOWN
Retention:          	0
Location:           	hdfs://node01:9000/user/hive/warehouse/user_partition_bucket_pk
Table Type:         	MANAGED_TABLE
Table Parameters:
	COLUMN_STATS_ACCURATE	{\"BASIC_STATS\":\"true\"}
	SORTBUCKETCOLSPREFIX	TRUE
	bucketing_version   	2
	comment             	测试分桶
	numFiles            	0
	numPartitions       	0
	numRows             	0
	rawDataSize         	0
	totalSize           	0
	transient_lastDdlTime	1575820956

# Storage Information
SerDe Library:      	org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe
InputFormat:        	org.apache.hadoop.mapred.TextInputFormat
OutputFormat:       	org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat
Compressed:         	No
Num Buckets:        	4
Bucket Columns:     	[id]
Sort Columns:       	[Order(col:id, order:1)]
Storage Desc Params:
	field.delim         	\t
	serialization.format	\t

# Constraints

# Primary Key
Table:              	default.user_partition_bucket_pk
Constraint Name:    	pk_252586861_1575820956959_0
Column Names:       	id1                 	id2

desc formatted user_partition_bucket_fk

# col_name	data_type	comment
id	int	ID
name	string	姓名
age	int	年龄
id1	int
id2	int

# Partition Information
# col_name	data_type	comment
date_id	string

# Detailed Table Information
Database:           	default
OwnerType:          	USER
Owner:              	root
CreateTime:         	Mon Dec 09 00:03:01 CST 2019
LastAccessTime:     	UNKNOWN
Retention:          	0
Location:           	hdfs://node01:9000/user/hive/warehouse/user_partition_bucket_fk
Table Type:         	MANAGED_TABLE
Table Parameters:
	COLUMN_STATS_ACCURATE	{\"BASIC_STATS\":\"true\"}
	SORTBUCKETCOLSPREFIX	TRUE
	bucketing_version   	2
	comment             	测试分桶
	numFiles            	0
	numPartitions       	0
	numRows             	0
	rawDataSize         	0
	totalSize           	0
	transient_lastDdlTime	1575820981

# Storage Information
SerDe Library:      	org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe
InputFormat:        	org.apache.hadoop.mapred.TextInputFormat
OutputFormat:       	org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat
Compressed:         	No
Num Buckets:        	4
Bucket Columns:     	[id]
Sort Columns:       	[Order(col:id, order:1)]
Storage Desc Params:
	field.delim         	\t
	serialization.format	\t

# Constraints

# Foreign Keys
Table:              	default.user_partition_bucket_fk
Constraint Name:    	c1
Parent Column Name:default.user_partition_bucket_pk.id1	Column Name:id1     	Key Sequence:1
Parent Column Name:default.user_partition_bucket_pk.id2	Column Name:id2     	Key Sequence:2

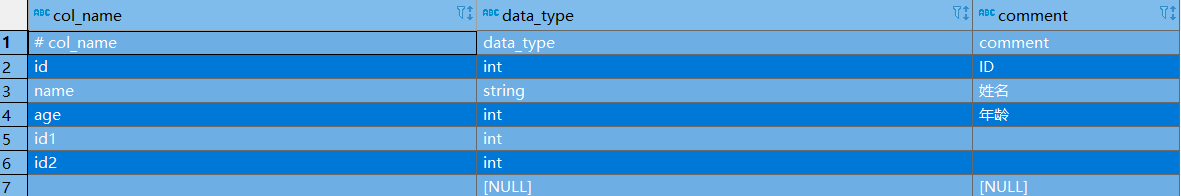

在这里插入图片描述

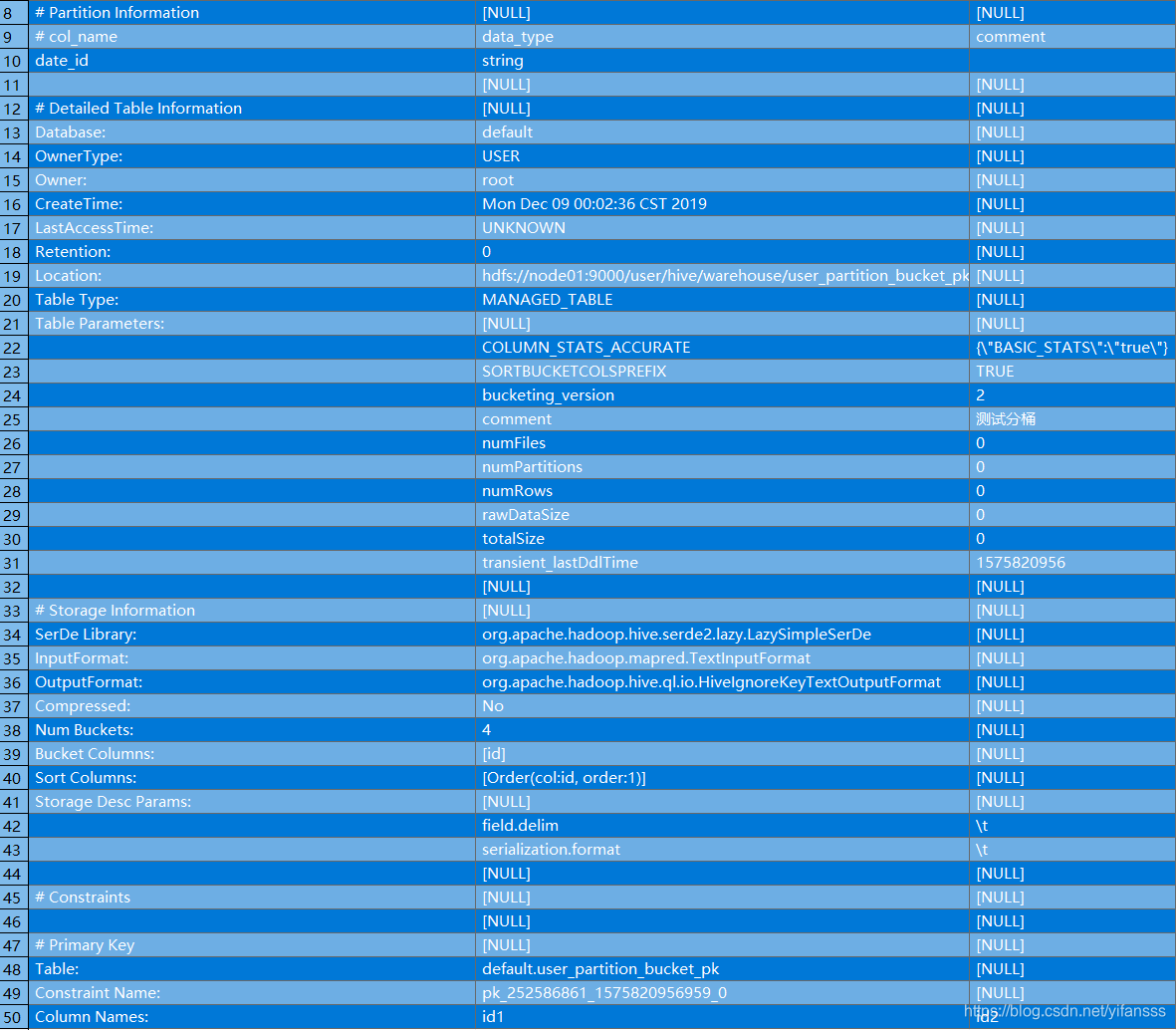

desc formatted user_partition_bucket_fk

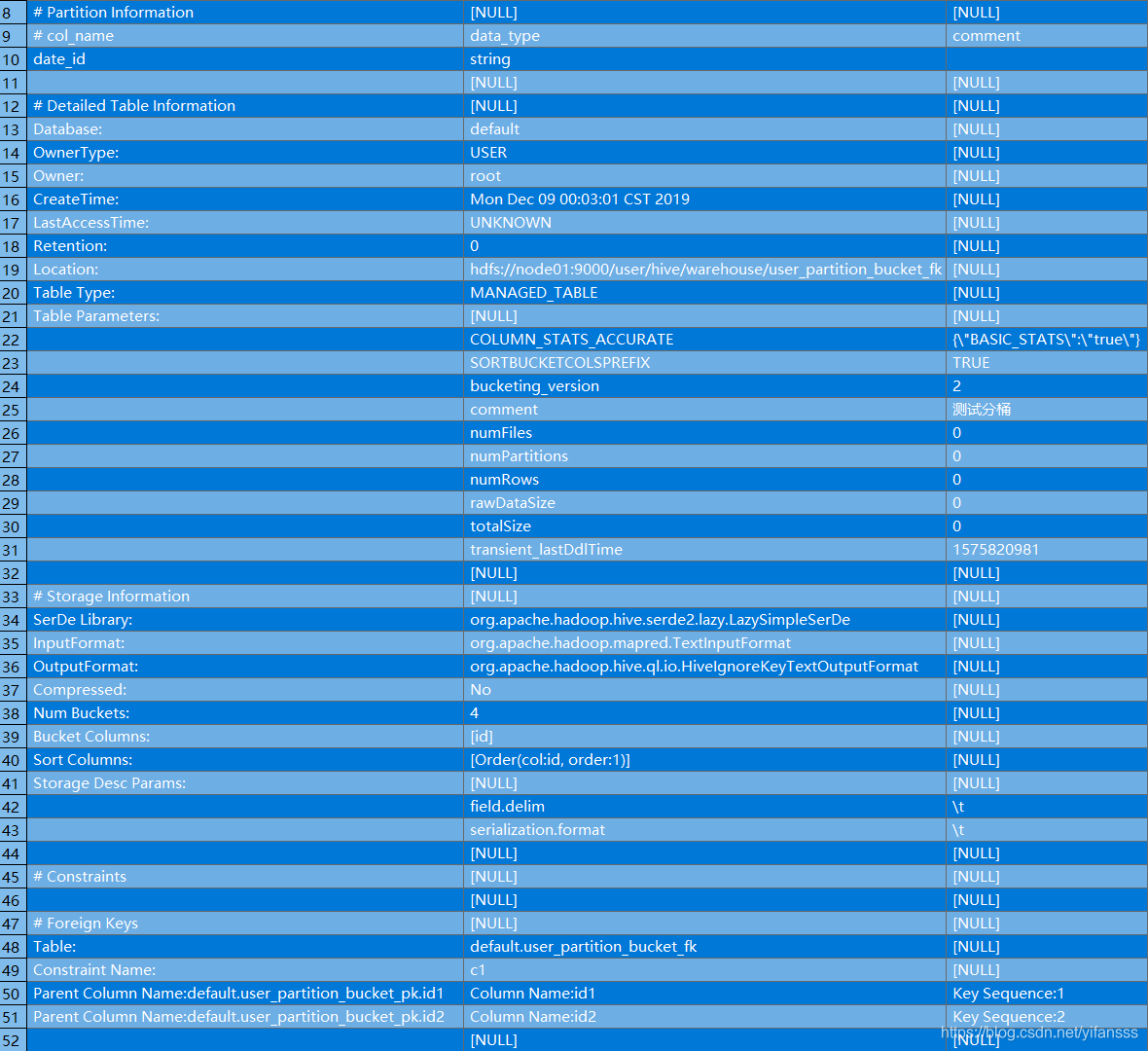

desc formatted user_partition_bucket_pk
