Keepalived+LVS+Httpd高可用实战笔记[多网段]

此次试验模拟外部client通过路由gateway访问内部网络的高可用Keepalived+LVS+Httpd服务集群，两套LVS-DR模式下负载均衡同时提供服务。

request
direct
direct
loadbalance
loadbalance
loadbalance
loadbalance
Client
Gateway
Keepalived
Keepalived
httpd
httpd
创建虚拟机
vmcentos[0]=CentOS7X64-client
vmcentos[1]=CentOS7X64-gateway
vmcentos[2]=CentOS7X64-keep01
vmcentos[3]=CentOS7X64-keep02
vmcentos[4]=CentOS7X64-httpd01
vmcentos[5]=CentOS7X64-httpd02


parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
vmsour="$parentPath/CentOS7X64.Core/CentOS7X64.Core.vmx"
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	echo "Clone: $vmdest"
	vmrun -T ws clone $vmsour  $vmdest  full -cloneName=$item
	sleep 5s;
done;
启动虚拟机
parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	vmshot=`date +%Y%m%d%H%M`
	echo "Start: $vmdest"
	vmrun -T ws start $vmdest
	sleep 5s;
	read -p "按任意键继续..."
done;
挂起虚拟机
parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	vmshot=`date +%Y%m%d%H%M`
	echo "Suspend: $vmdest"
	vmrun -T ws suspend $vmdest
	sleep 5s;
done;
快照备份
parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	vmshot=`date +%Y%m%d`
	echo "Snapshot: $vmdest"
	vmrun -T ws snapshot $vmdest $vmshot
	vmrun -T ws listSnapshots $vmdest
	sleep 5s;
done;
还原虚拟机
parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
vmshot=`date +%Y%m%d`
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	vmshot=`date +%Y%m%d`
	echo "Revert: $vmdest"
	vmrun -T ws revertToSnapshot $vmdest $vmshot
	sleep 5s;
done;
关闭虚拟机
parentPath="/media/WNTime/本地磁盘/VirtualMachine.Spaces"
for item in ${vmcentos[*]};
do
	vmdest="$parentPath/$item/$item.vmx"
	vmshot=`date +%Y%m%d%H%M`
	echo "Stop: $vmdest"
	vmrun -T ws stop $vmdest
	sleep 5s;
	read -p "按任意键继续..."
done;
实验网络规划
clientgatewayKeepalivedKeepalivedhttpdhttpd
网段clientgatewaykeep-101keep-102httpd-111httpd-112
192.168.86.0
192.168.88.0		192.168.88.16
GW:192.168.88.100		192.168.88.100
192.168.86.200
ens36:133.15.6.200		192.168.86.101
GW:192.168.86.200		192.168.86.102
GW:192.168.86.200		192.168.86.111
GW:192.168.86.200		192.168.86.112
GW:192.168.86.200
VIP1192.168.86.251(MASTER)
lo:133.15.6.251		192.168.86.251(BACKUP)
lo:133.15.6.251		lo:133.15.6.251lo:133.15.6.251
VIP2192.168.86.252(BACKUP)
lo:133.15.6.252		192.168.86.252(MASTER)
lo:133.15.6.252		lo:133.15.6.252lo:133.15.6.252
配置hostname及ipaddress

client

## client
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname client
sudo sed -i -e 's/192.168.86.6/192.168.88.16/g' \
-e 's/^GATEWAY=192.168.86.2/GATEWAY=192.168.88.100/g'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33
sudo systemctl restart network

gateway

## gateway
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname gateway
sudo cp /etc/sysconfig/network-scripts/ifcfg-ens33 /etc/sysconfig/network-scripts/ifcfg-ens36
sudo sed -i -e 's/192.168.86.6/192.168.86.200/g' \
-e '/^GATEWAY/d'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33

sudo sed -i -e 's/192.168.86.6/192.168.88.100/g' \
-e '/^GATEWAY=/d'  \
-e '/^UUID=/d' \
-e 's/ens33/ens36/g' \
/etc/sysconfig/network-scripts/ifcfg-ens36
sudo systemctl restart network

# 配置 另外一个Ip 为192.168.88.100

httpd-111

## httpd-111
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname httpd-111
sudo sed -i -e 's/192.168.86.6/192.168.86.111/g' \
-e 's/^GATEWAY=192.168.86.2/GATEWAY=192.168.86.200/g'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33
sudo systemctl restart network

httpd-112

## httpd-112
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname httpd-112
sudo sed -i -e 's/192.168.86.6/192.168.86.112/g' \
-e 's/^GATEWAY=192.168.86.2/GATEWAY=192.168.86.200/g'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33
sudo systemctl restart network

keep-101

## keep-101
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname keep-101
sudo sed -i -e 's/192.168.86.6/192.168.86.101/g' \
-e 's/^GATEWAY=192.168.86.2/GATEWAY=192.168.86.200/g'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33
sudo systemctl restart network

keep-102

## keep-102
# vim /etc/sysconfig/network-script/ifcfg-en33
sudo hostnamectl set-hostname keep-102
sudo sed -i -e 's/192.168.86.6/192.168.86.102/g' \
-e 's/^GATEWAY=192.168.86.2/GATEWAY=192.168.86.200/g'  \
-e '/^UUID=/d' \
/etc/sysconfig/network-scripts/ifcfg-ens33
sudo systemctl restart network
关闭防火墙
sudo setenforce 0
sudo sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

sudo systemctl disable firewalld
sudo systemctl stop firewalld

sudo yum makecache
sudo yum install -y wget net-tools
sudo mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak
sudo wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
sudo yum makecache

注意：一定要关闭防火墙，或是添加相关端口！

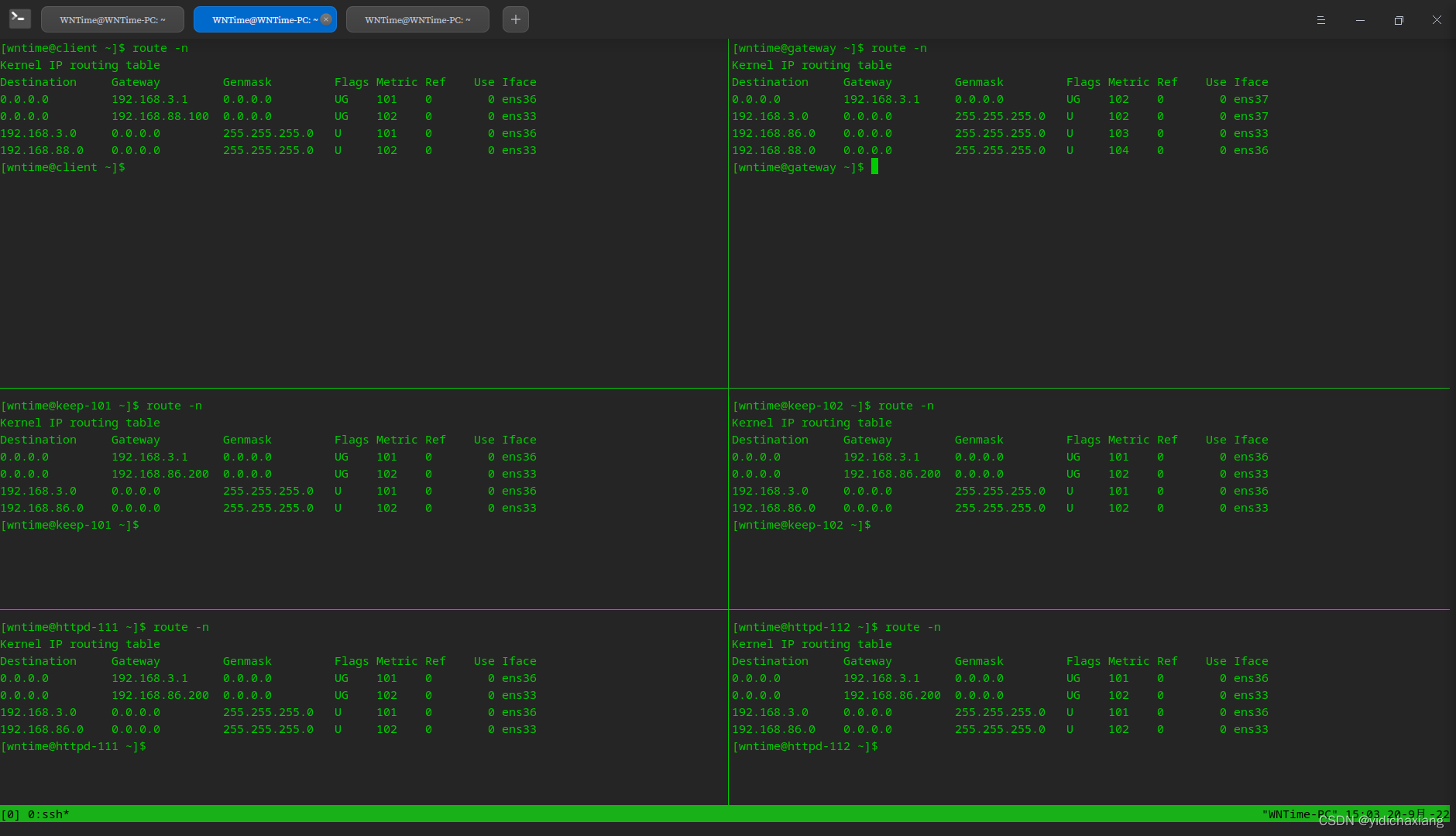

确认网关是否生效
route -n

在这里插入图片描述

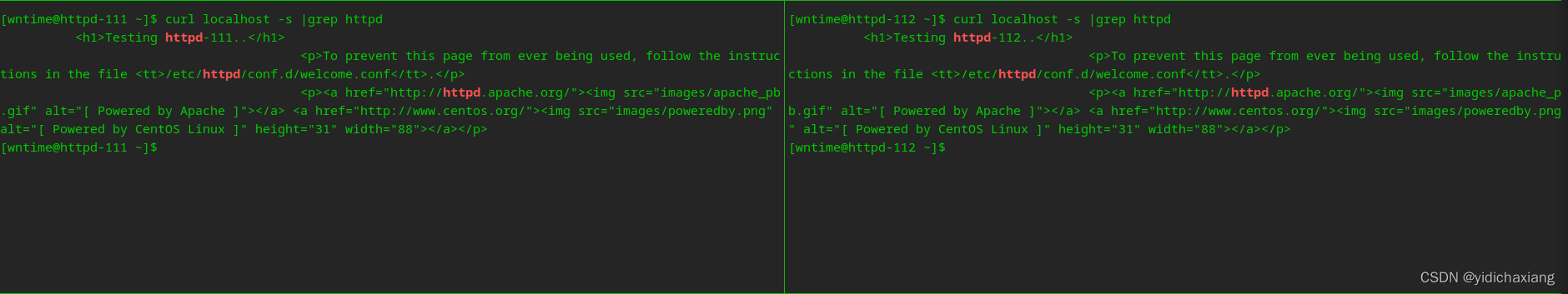

安装 web服务测试

httpd-111, httpd-112

sudo yum install -y httpd
sudo systemctl stop firewalld
echo " sed -i 's/123/$HOSTNAME/' /usr/share/httpd/noindex/index.html" | sudo bash -
sudo systemctl enable httpd
sudo systemctl restart httpd

在这里插入图片描述

安装keepalived ipvsadm

keep-101, keep-102

wget https://www.keepalived.org/software/keepalived-2.1.5.tar.gz --no-check-certificate
sudo yum install -y ipvsadm libnl libnl-devel libnl3-devel net-snmp-devel libnfnetlink-devel gcc make openssl-devel popt-devel curl

tar -xzf keepalived-2.1.5.tar.gz
cd keepalived-2.1.5/
./configure --prefix=/usr/local/keepalived --sysconf=/etc
make && sudo make install
# 测试安装
/usr/local/keepalived/sbin/keepalived -v

在这里插入图片描述

安装成功

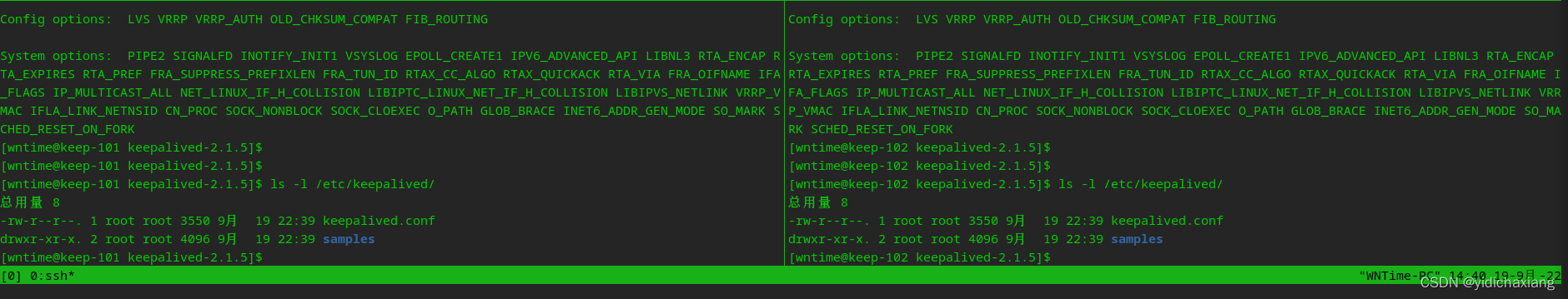

ls -l /etc/keepalived/

在这里插入图片描述

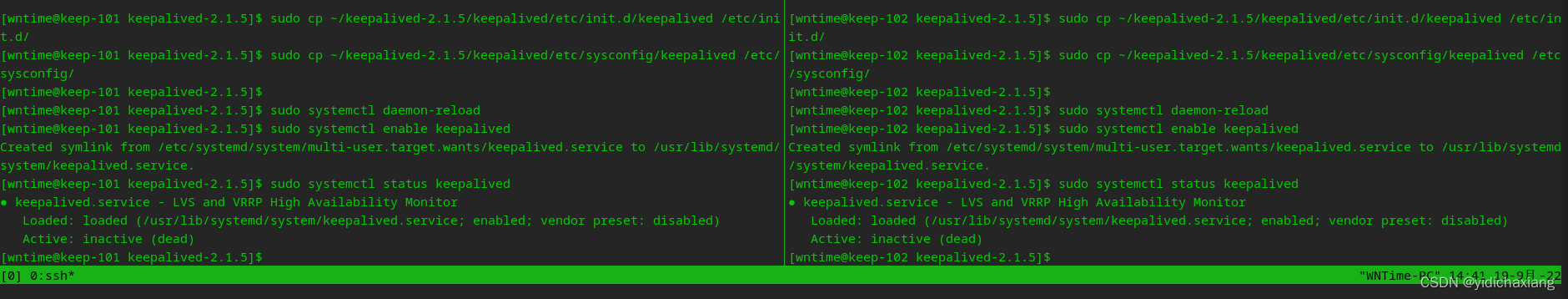

配置系统服务

keep-101, keep-102

# ~/keepalived-2.1.5 是解压出来的文件夹，根据你的解压路径来，不是安装目录
sudo cp ~/keepalived-2.1.5/keepalived/etc/init.d/keepalived /etc/init.d/
sudo cp ~/keepalived-2.1.5/keepalived/etc/sysconfig/keepalived /etc/sysconfig/

sudo systemctl daemon-reload
sudo systemctl enable keepalived
sudo systemctl status keepalived

在这里插入图片描述

高可用配置

keep-101

# 配置lvs
# 开启net.ipv4.ip_forward
sudo vim /etc/sysctl.conf
net.ipv4.ip_forward=1
net.ipv4.conf.all.send_redirects=0
net.ipv4.conf.default.send_redirects=0
net.ipv4.conf.ens33.send_redirects=0

# 加载并生效
sudo sysctl -p

配置keepalived
keep-102

# sudo mv /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.bak
# sudo vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id keep_vip1
}

vrrp_instance VIP_251 {
    state BACKUP
    interface ens33
    virtual_router_id 251
    priority 100
    advert_int 1
    nopreempt
    #preempt_delay 300
    authentication {
        auth_type PASS
        auth_pass 12345678
    }
    virtual_ipaddress {
        133.15.6.251
    }
}

vrrp_instance VIP_252{
    state BACKUP
    interface ens33
    virtual_router_id 252
    priority 90
    advert_int 1
    nopreempt
    #preempt_delay 300
    authentication {
        auth_type PASS
        auth_pass 12345678
    }
    virtual_ipaddress {
        133.15.6.252
    }
}

# 检测语法
/usr/local/keepalived/sbin/keepalived -t
# 启动keepalived
sudo systemctl restart keepalived
sudo systemctl status keepalived

keep-102

# sudo mv /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.bak
# sudo vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id keep_vip2
}

vrrp_instance VIP_251 {
    state BACKUP
    interface ens33
    virtual_router_id 251
    priority 90
    advert_int 1
    nopreempt
    #preempt_delay 300
    authentication {
        auth_type PASS
        auth_pass 12345678
    }
    virtual_ipaddress {
        133.15.6.251
    }
}

vrrp_instance VIP_252{
    state BACKUP
    interface ens33
    virtual_router_id 252
    priority 100
    advert_int 1
    nopreempt
    #preempt_delay 300
    authentication {
        auth_type PASS
        auth_pass 12345678
    }
    virtual_ipaddress {
        133.15.6.252
    }
}

# 检测语法
/usr/local/keepalived/sbin/keepalived -t
# 启动keepalived
sudo systemctl restart keepalived
sudo systemctl status keepalived

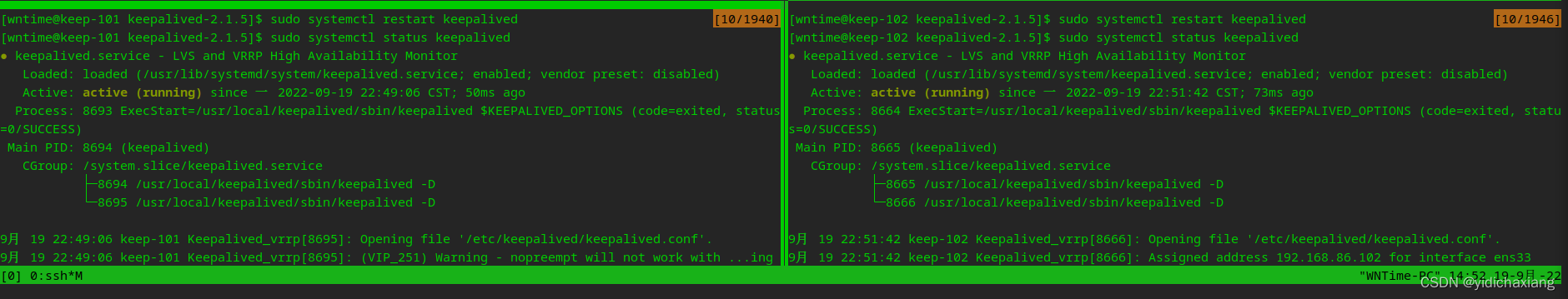

keepalived 配置成功
在这里插入图片描述

配置LVS-DR模式

# httpd-111
su root
echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce

cp /etc/sysconfig/network-scripts/ifcfg-lo /etc/sysconfig/network-scripts/ifcfg-lo.bak
echo '' >> /etc/sysconfig/network-scripts/ifcfg-lo
echo IPADDR1=133.15.6.251 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo NETMASK1=255.255.255.255 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo PREFIX1=32 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo IPADDR2=133.15.6.252>> /etc/sysconfig/network-scripts/ifcfg-lo
echo NETMASK2=255.255.255.255 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo PREFIX2=32 >> /etc/sysconfig/network-scripts/ifcfg-lo
systemctl restart network


# httpd-112
su root
echo 1 > /proc/sys/net/ipv4/conf/all/arp_ignore
echo 1 > /proc/sys/net/ipv4/conf/lo/arp_ignore
echo 2 > /proc/sys/net/ipv4/conf/all/arp_announce
echo 2 > /proc/sys/net/ipv4/conf/lo/arp_announce

cp /etc/sysconfig/network-scripts/ifcfg-lo /etc/sysconfig/network-scripts/ifcfg-lo.bak
echo '' >> /etc/sysconfig/network-scripts/ifcfg-lo
echo IPADDR1=133.15.6.251 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo NETMASK1=255.255.255.255 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo PREFIX1=32 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo IPADDR2=133.15.6.252>> /etc/sysconfig/network-scripts/ifcfg-lo
echo NETMASK2=255.255.255.255 >> /etc/sysconfig/network-scripts/ifcfg-lo
echo PREFIX2=32 >> /etc/sysconfig/network-scripts/ifcfg-lo
systemctl restart network


# keep-101 keepalived.conf 追加配置
# sudo vim /etc/keepalived/keepalived.conf

virtual_server 133.15.6.251 80 {
    delay_loop 1
    lvs_sched wrr
    lvs_method DR
    #persistence_timeout 60
    protocol TCP

    real_server 192.168.86.111 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
    real_server 192.168.86.112 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
}

virtual_server 133.15.6.252 80 {
    delay_loop 1
    lvs_sched wrr
    lvs_method DR
    #persistence_timeout 60
    protocol TCP

    real_server 192.168.86.111 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
	    }
    }
    real_server 192.168.86.112 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
}


# 检测语法
/usr/local/keepalived/sbin/keepalived -t
# 启动keepalived
sudo systemctl restart keepalived
sudo systemctl status keepalived


# keep-102 keepalived.conf 追加配置
# sudo vim /etc/keepalived/keepalived.conf

virtual_server 133.15.6.251 80 {
    delay_loop 1
    lvs_sched wrr
    lvs_method DR
    #persistence_timeout 60
    protocol TCP

    real_server 192.168.86.111 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
    real_server 192.168.86.112 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
}

virtual_server 133.15.6.252 80 {
    delay_loop 1
    lvs_sched wrr
    lvs_method DR
    #persistence_timeout 60
    protocol TCP

    real_server 192.168.86.111 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
	    }
    }
    real_server 192.168.86.112 80 {
        weight 1
        TCP_CHECK {
                connect_port 80
                connect_timeout 3
                retry 3
                delay_before_retry 4
    	}
    }
}


# 检测语法
/usr/local/keepalived/sbin/keepalived -t
# 启动keepalived
sudo systemctl restart keepalived
sudo systemctl status keepalived

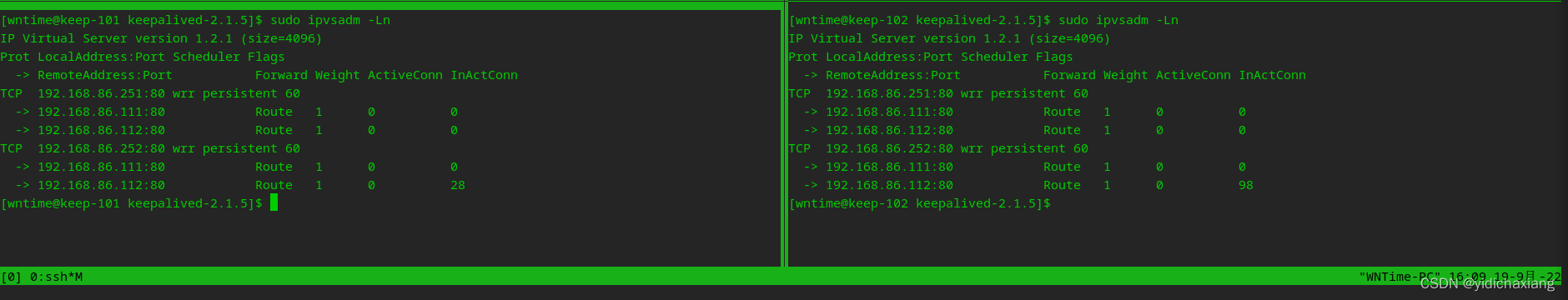

ipvsadm -Ln 规则查看
在这里插入图片描述

测试 lvs 负载均衡效果

gateway 配置

# 配置lvs
# 开启net.ipv4.ip_forward
sudo vim /etc/sysctl.conf
net.ipv4.ip_forward=1
net.ipv4.conf.all.send_redirects=0
net.ipv4.conf.default.send_redirects=0
net.ipv4.conf.ens33.send_redirects=0

# 加载并生效
sudo sysctl -p

su root
echo IPADDR1=133.15.6.200 >> /etc/sysconfig/network-scripts/ifcfg-ens33
echo NETMASK1=255.255.255.255 >> /etc/sysconfig/network-scripts/ifcfg-ens33
echo PREFIX1=32 >> /etc/sysconfig/network-scripts/ifcfg-ens33
systemctl restart network

# 增加网关路由配置
# 即刻生效
sudo route add -net 133.15.6.0/24 dev ens33
# 永久配置
su root
echo "any net 133.15.6.0/24 dev ens33" > /etc/sysconfig/static-routes

client

# 配置 网关
route add -net 133.15.6.0/24 gw 192.168.88.100

while true; do
sleep 1s; date;
curl -s http://133.15.6.251|grep Testing;
curl -s http://133.15.6.251|grep Testing;
curl -s http://133.15.6.252|grep Testing;
curl -s http://133.15.6.252|grep Testing;
done;

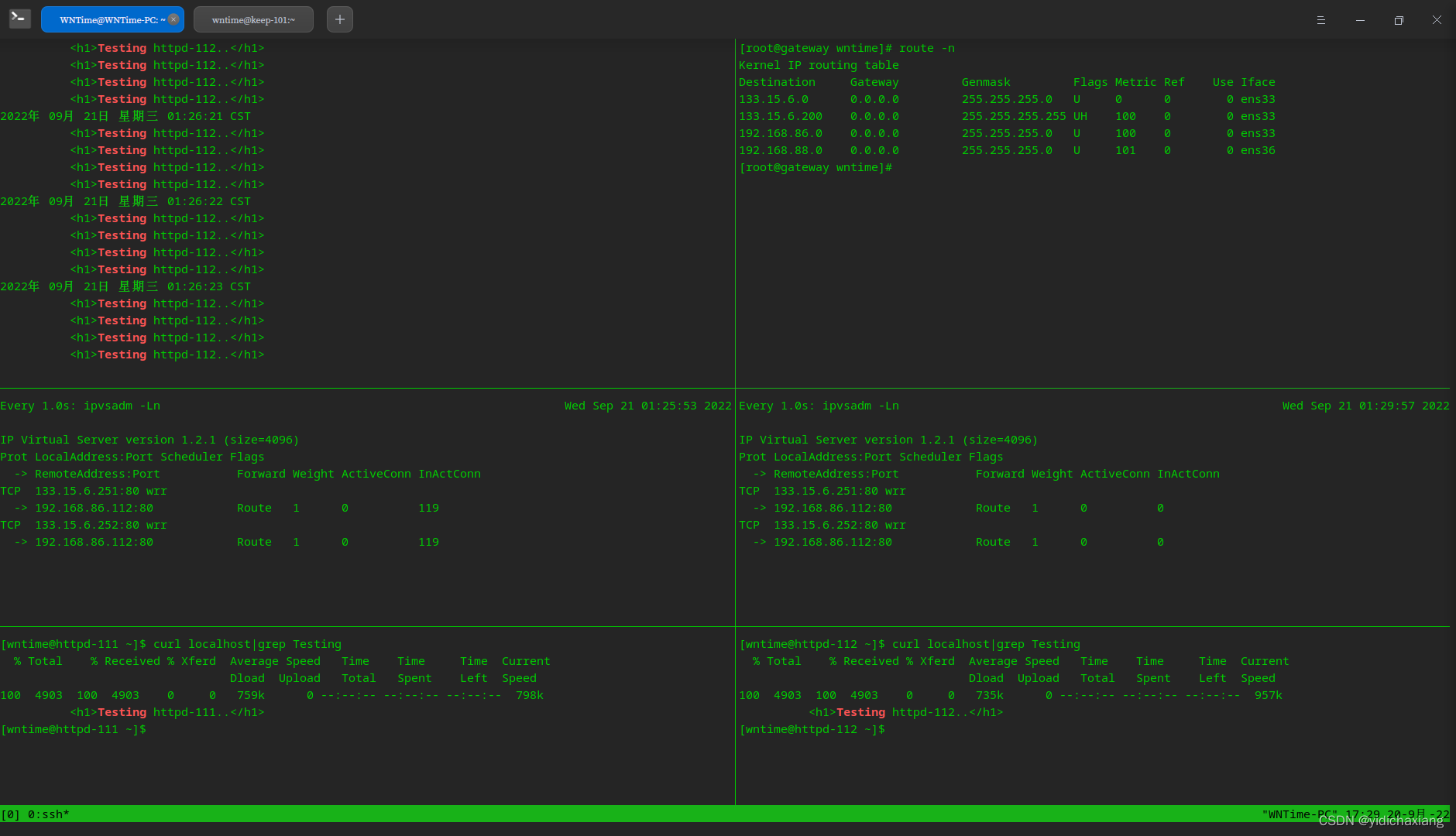

初始测试效果

在这里插入图片描述

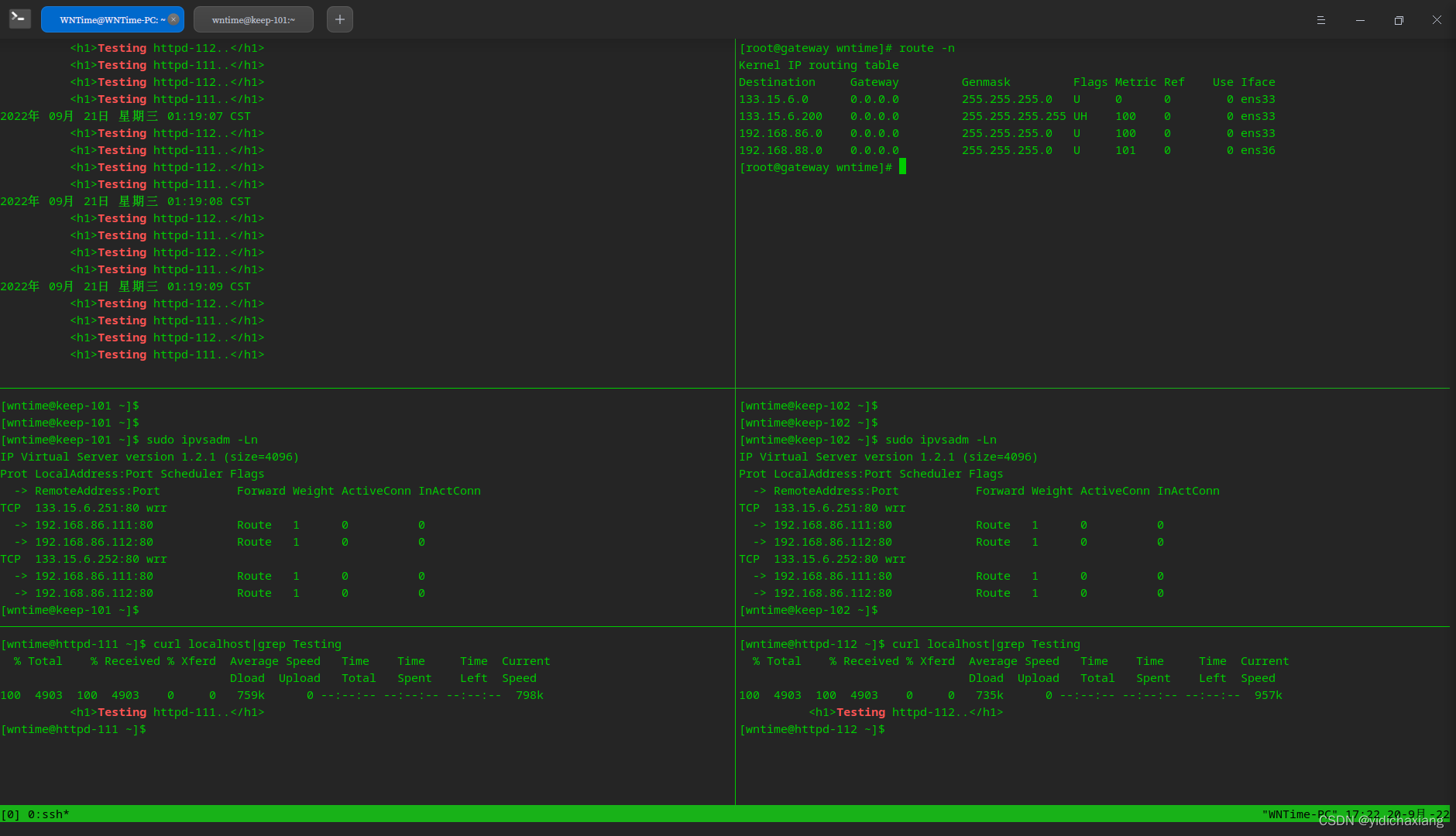

keep-101下线

在这里插入图片描述

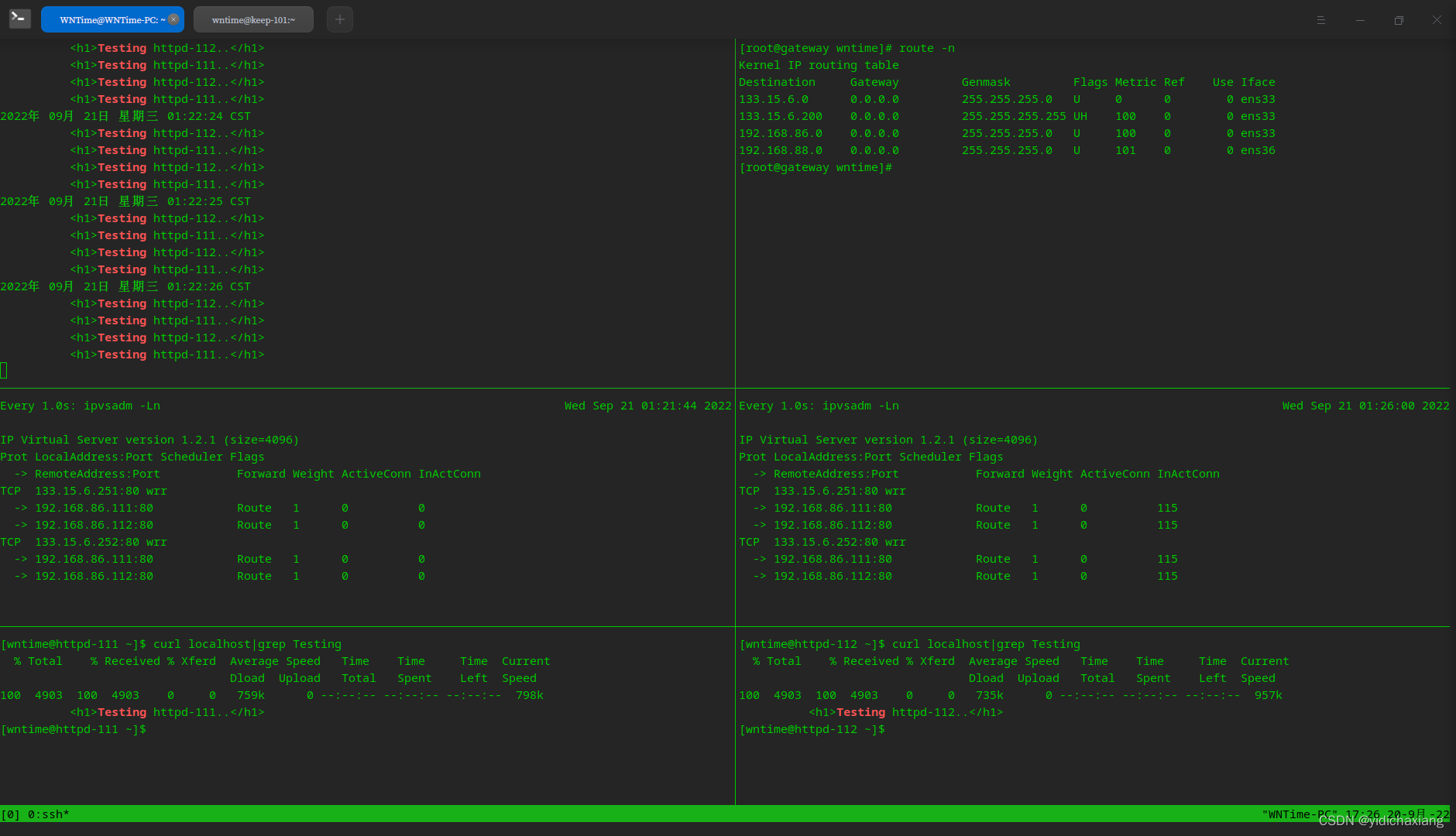

keep-102下线

在这里插入图片描述

keep-102上线

在这里插入图片描述

httpd-111 下线

在这里插入图片描述

httpd-111 上线

在这里插入图片描述

测试完成
CentOS+Keepalived搭建主备双网关
AshQ
06-14 1865
背景 公司有几段公网是用云主机做网关的，且与IDC互联的是/30的一个IP。为了业务可靠，避免网关单点问题，需要做主备两个网关。主的宕机能自动切去备用网关。 施作方案 CentOS+Keepalived+float vip 开始部署 实验环境拓扑图如下所示： 一、配置CentOS云主机 主要是开设两台Centos6.9云主机，挂好两个网卡，一个做WAN卡，一个做LAN卡。配置好I...
运维笔记30 （lvs负载均衡的（nat,tun,dr三种模式，ldirectord健康检测，ldirectord结合heartbeat）keepalived+lvs介绍）
No_red的博客
02-27 1774
概述：           lvs负载均衡是一个虚拟服务器集群项目，无论是哪一种lvs结构都需要一个前端的调度器，让原本应该直接访问真实服务器的网络请求经过该调度器，让该调度器去决定该请求应该由谁处理。根据调度器将网络请求分配到真正服务器的不同方式，基本分成了三种模式--nat,tun,dr，还有一种需要对内核添加功能的模式是fullnat，但这次我们先不介绍这个模式。 1.三种模式的介绍
VIP和RIP不同网段的LVS和keepalived高可用
weixin_33720452的博客
12-01 1648
#说明CentOS6.5 64位 keepalived-1.2.13 ipvsadm v1.26 NAT模式http://zh.linuxvirtualserver.org/http://keepalived.org/http://www.linuxvirtualserver.org/Documents.html http://www.austintek.com/...
Keepalived跨网段设置 -- KeepAlived on different subnets
04-07 4582
notify_script的具体内容取决于你想要实现的功能，但是一般来说，它应该是一个可执行的文件，接受三个参数：$1是keepalived的实例名称，$2是keepalived的状态（MASTER，BACKUP或FAULT），$3是keepalived的类型（INSTANCE或GROUP）。check_haproxy.sh是一个脚本，用于检查haproxy服务的状态，如果haproxy服务正常运行，就返回0，否则返回1。
内部DNS服务器搭建
tb77506668的博客
09-18 1854
内部DNS服务器搭建 场景: 在没有域名的情况下,但是各项服务的ip,又不是固定不变,那么就需要一个内部的DNS域名 机器类型: Centos7 步骤 1. yum install bind bind-devel 2. vim /etc/named.conf 3. ![在这里插入图片描述](https://img-blog.csdnimg.cn/20190918175226696.png?x...
内网简易DNS系统
weixin_33686714的博客
02-25 192
内网DNS系统功能:解析内网域名和DNS-Cache软件:dnsmasq一.安装yum -y install dnsmasq二.服务器配置1.vi /etc/resolv.conf 使本地查询域名时使用dnsmasq服务器nameserver 127.0.0.1 2.vi /etc/dnsmasq.confresolv-file=/etc/dnsmasq.resolvcon...
Linux学习笔记——企业-1.高可用与负载均衡集群
weixin_70372673的博客
12-27 678
本片文章介绍关于LVS负载均衡、如何通过keepalive实现后端主机的健康检测以及双击热备的高可用集群和企业中较为常用的nginx的部署及平滑升级。
lvs NAT模式总结详细笔记
07-23
LVS (Linux Virtual Server) 是一种用于构建高性能、高可用性服务器集群的技术。它能够将多个物理服务器组织起来，形成一个统一的虚拟服务器，从而对外提供服务。LVS支持多种负载均衡算法和技术模式，其中NAT模式是...
LVS/DR模式(直接路由模式)（ipvsadm+ipvs）(2)
asufeiya的博客
10-09 1756
lvs(LB集群的一个实现) 硬件:F5 BIG-IP 太贵 软件： lvs（四层） haproxy nginx （七层） varnish lvs 基础知识 lvs指的是Linux虚拟服务器，是一个虚拟的服务器集群系统。其主要用于多服务器的负载均衡。 优点： 廉价，可把许多低性能的服务器组合在一起形成一个超级服务器。 易用，配置非常简单，且有多种负载均衡的方法。 稳定可靠，即...
Linux云计算 |【第二阶段】CLUSTER-DAY1
小安的运维专栏
08-01 1329
集群及LVS简介、LVS-NAT集群、LVS-DR集群
Keepalived+lvs+httpd之负载均衡
weixin_34413103的博客
08-20 133
2019独角兽企业重金招聘Python工程师标准>>> ...
keepailved基于不同网段虚拟机的httpd服务做高可用
最新发布
qq_35485206的博客
12-20 1015
环境如下：系统：Centos 7.9主服务器：192.168.1.2 vip：192.168.1.100 版本：apache-2.4.6 keepalived-1.3.5备服务器：192.168.2.2 vip：192.168.1.100 版本：apache-2.4.6 keepaliv...
keepalived 主备都存在vip， keepalived主备跨网段配置；keepalived主备服务器不在同一个网段怎么配置
思念十年后
09-01 3499
keepalived 主备都存在vip， keepalived主备跨网段配置；keepalived主备服务器不在同一个网段怎么配置
keepalived 高可用lvs的dr模型（vip与dip不在同一网段）
weixin_30502157的博客
08-07 731
现在rs1和rs2上面安装httpd并准备测试页 [root@rs1 ~]# yum install httpd -y [root@rs1 ~]# echo "this is r1" > /var/www/html/index.html [root@rs1 ~]# systemctl start httpd [root@rs2 ~]# yum inst...
使用Keepalived实现HAProxy高可用
m0_47495420的博客
06-25 427
尽管HAProxy非常稳定，但仍然无法规避操作系统故障、主机硬件故障、网络故障甚至断电带来的风险。所以必须对HAProxy实施高可用方案。下面将介绍利用Keepalived实现的HAPr...
网络安全基础技术扫盲篇 — 内网DNS服务器搭建
wuli1024的博客
01-23 2206
知识宝库在此藏，一键关注获宝藏上文介绍了在主机层面如何搭建一个完整的WEB应用系统。在这过程中呢，有小伙伴就遇到了各式各样的问题。
Keepalived实现双机（主从nginx）主备高可用（1）
qq_44299529的博客
02-17 1263
原理图： 环境： 一台虚拟机里面分别安装两台CentOs7，并在两台centOs7里面分别安装nginx和keepalived。 不会安装的小伙伴戳：安装nginx（官网下载编译安装）_p＆f°的博客-优快云博客 以及：Keepalived安装_p＆f°的博客-优快云博客 配置： 1、nginx安装完毕即可，无需修改配置。在index.html里面修改下，以区分访问到不同的nginx 2、分别修改主备keepalived配置 2.1 修改ip为129的主机配置 （1）找.
keepalived+lvs+httpd实现
weixin_34128534的博客
05-19 166
一：前言Lvs:(LinuxVirtualServer)linux虚拟服务器,是由国人章文嵩于1998年5月创建的开源项目；因其很好的可伸缩性，可靠性和可管理性，一直应用的非常普遍。lvs在实现前端高效的负载均衡的时候，在高并发的情况时，前端的分发器成为整个系统的单点故障。因此考虑对前端的分发器实现高可用，加入一个备用节点。遗憾的是lvs主备之间的资...
【keepalived】keepalived的VIP跨网段Ping存在丢包问题
cnskylee的博客
02-06 5119
跨网段ping keepalived虚拟出来的VIP（10.xxx.xxx.17），存在网络丢包的问题。系统架构：keepalived（2.2.7）+nginx （1.20.1）搭建的主、备节点软负载。在与VIP同网段的虚拟机里面执行ping 10.xxx.xxx.17， 就不会出现这样的问题。可有小伙伴遇到类似的问题？有没有优化的方法，欢迎留言讨论、分享解决方案。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
