nagios监控搭建
| 系统版本 | 当前软件版本 |
|---|---|
| Rocky Linux 9.1 | Nagios 4.4.14 / nrpe 4.1.0 |
| IP地址 | 服务端/客户端 |
|---|---|
| 10.3.3.200 | 服务端 |
| 10.3.3.160 | 客户端 |
| 10.3.3.162 | 客户端 |
服务端搭建
yum install -y epel-release
rpm -ivh https://dl.fedoraproject.org/pub/epel/9/Everything/x86_64/Packages/e/epel-release-9-9.el9.noarch.rpm
yum install -y gcc glibc glibc-common gd gd-devel openssl-devel perl postfix
yum install -y nagios nagios-plugins-nt nagios-plugins-nrpe nagios-plugins-load nagios-plugins-disk nagios-plugins-swap nagios-plugins-procs nagios-plugins-users
systemctl start postfix
systemctl status postfix
systemctl enable postfix
# 创建nagiosadmin 密码
[root@k8s-master ~]# htpasswd -c /etc/nagios/passwd nagiosadmin
New password: devops@123
Re-type new password: devops@123
Adding password for user nagiosadmin
修改配置
修改配置一：
cd /etc/nagios
more cgi.cfg | grep -Ev '^$|^#'
main_config_file=/etc/nagios/nagios.cfg
physical_html_path=/usr/share/nagios/html
url_html_path=/nagios
show_context_help=0
use_pending_states=1
use_authentication=1
use_ssl_authentication=0
authorized_for_system_information=nagiosadmin
authorized_for_configuration_information=nagiosadmin
authorized_for_system_commands=nagiosadmin
authorized_for_all_services=nagiosadmin
authorized_for_all_hosts=nagiosadmin
authorized_for_all_service_commands=nagiosadmin
authorized_for_all_host_commands=nagiosadmin
default_statuswrl_layout=4
ping_syntax=/bin/ping -n -U -c 5 $HOSTADDRESS$
# 修改如下两项即可
refresh_rate=10
# 自动刷新：每 10 秒，系统会自动重新加载数据，显示最新的状态或结果
result_limit=200
# 限制了Nagios在展示状态信息、日志记录或其他相关查询结果时，最多可以显示200条记录
escape_html_tags=1
action_url_target=_blank
notes_url_target=_blank
lock_author_names=1
navbar_search_for_addresses=1
navbar_search_for_aliases=1
修改配置二：
more nagios.cfg | grep -Ev '^$|^#'
log_file=/var/log/nagios/nagios.log
cfg_file=/etc/nagios/objects/commands.cfg
cfg_file=/etc/nagios/objects/contacts.cfg
cfg_file=/etc/nagios/objects/timeperiods.cfg
cfg_file=/etc/nagios/objects/templates.cfg
# 新增如下4行，注释掉localhost.cfg
# cfg_file=/etc/nagios/objects/localhost.cfg
cfg_file=/etc/nagios/objects/hosts.cfg
cfg_file=/etc/nagios/objects/hostsgroup.cfg
cfg_file=/etc/nagios/objects/service.cfg
cfg_file=/etc/nagios/objects/servicegroup.cfg
object_cache_file=/var/spool/nagios/objects.cache
precached_object_file=/var/spool/nagios/objects.precache
resource_file=/etc/nagios/private/resource.cfg
status_file=/var/spool/nagios/status.dat
status_update_interval=10
nagios_user=nagios
nagios_group=nagios
check_external_commands=1
command_file=/usr/local/nagios/var/rw/nagios.cmd
lock_file=/var/run/nagios/nagios.pid
temp_file=/usr/local/nagios/var/nagios.tmp
temp_path=/tmp
event_broker_options=-1
log_rotation_method=d
log_archive_path=/var/log/nagios/archives
use_syslog=1
log_notifications=1
log_service_retries=1
log_host_retries=1
log_event_handlers=1
log_initial_states=0
log_current_states=1
log_external_commands=1
log_passive_checks=1
service_inter_check_delay_method=s
max_service_check_spread=30
service_interleave_factor=s
host_inter_check_delay_method=s
max_host_check_spread=30
max_concurrent_checks=0
check_result_reaper_frequency=10
max_check_result_reaper_time=30
check_result_path=/var/spool/nagios/checkresults
max_check_result_file_age=3600
cached_host_check_horizon=15
cached_service_check_horizon=15
enable_predictive_host_dependency_checks=1
enable_predictive_service_dependency_checks=1
soft_state_dependencies=0
auto_reschedule_checks=0
auto_rescheduling_interval=10
# 每 10 秒钟,设置自动重新调度检查任务的时间间隔 ,当某个服务或主机在之前的检查中被标记为故障或不可用时，系统可以设置自动重新调度检查
auto_rescheduling_window=180
service_check_timeout=60
host_check_timeout=30
event_handler_timeout=30
notification_timeout=30
ocsp_timeout=5
ochp_timeout=5
perfdata_timeout=5
retain_state_information=1
state_retention_file=/var/spool/nagios/retention.dat
retention_update_interval=10
# 每 10 秒钟更新一次保留数据(在大规模的监控环境中。需要根据系统的性能和需求来调整合适的时间间隔。如果不希望过于频繁地更新数据，可以选择较长的时间间隔，如 60 秒、300 秒等)
use_retained_program_state=1
use_retained_scheduling_info=1
retained_host_attribute_mask=0
retained_service_attribute_mask=0
retained_process_host_attribute_mask=0
retained_process_service_attribute_mask=0
retained_contact_host_attribute_mask=0
retained_contact_service_attribute_mask=0
interval_length=30
# 用于设置监控任务执行的时间间隔，单位为秒
check_for_updates=1
bare_update_check=0
use_aggressive_host_checking=0
execute_service_checks=1
accept_passive_service_checks=1
execute_host_checks=1
accept_passive_host_checks=1
enable_notifications=1
# 启用通知功能。当监控到的服务或主机状态发生变化（例如从 OK 到 CRITICAL，或者 WARNING 等状态），系统会自动发送通知给预定的接收者
enable_event_handlers=1
process_performance_data=0
obsess_over_services=0
obsess_over_hosts=0
translate_passive_host_checks=0
passive_host_checks_are_soft=0
check_for_orphaned_services=1
check_for_orphaned_hosts=1
check_service_freshness=1
service_freshness_check_interval=10
# 每10分钟对服务进行新鲜度检查
service_check_timeout_state=c
check_host_freshness=1
# 启用主机新鲜度检查
host_freshness_check_interval=10
# 指定了主机新鲜度检查的时间间隔，单位是 分钟，如果在这个时间间隔内未能收到来自主机的最新状态更新（例如，PING 检查或其他心跳信号），系统会认为主机的状态可能已经过时或不可用。
additional_freshness_latency=15
enable_flap_detection=1
low_service_flap_threshold=5.0
high_service_flap_threshold=20.0
low_host_flap_threshold=5.0
high_host_flap_threshold=20.0
date_format=us
illegal_object_name_chars=`~!$%^&*|'"<>?,()=
illegal_macro_output_chars=`~$&|'"<>
use_regexp_matching=0
use_true_regexp_matching=0
admin_email=nagios@localhost
admin_pager=pagenagios@localhost
daemon_dumps_core=0
use_large_installation_tweaks=0
enable_environment_macros=0
debug_level=0
debug_verbosity=1
debug_file=/var/log/nagios/nagios.debug
max_debug_file_size=1000000
allow_empty_hostgroup_assignment=0
# 最好新增如下
process_performance_data=1
# 启用性能数据的处理功能
service_perfdata_file=/tmp/perfdata.log
# 指定了一个 性能数据文件 的路径，通常用于存储由 Nagios 生成的服务性能数据。
service_perfdata_file_template=$LASTSERVICECHECK$||$HOSTNAME$||$SERVICEDESC$||$SERVICEOUTPUT$||$SERVICEPERFDATA$
# 定义了性能数据文件中每条数据的格式。
# $LASTSERVICECHECK$：上次检查的时间戳。
# $HOSTNAME$：主机名。
# $SERVICEDESC$：服务的描述，例如 "HTTP" 或 "CPU"。
# $SERVICEOUTPUT$：服务的输出信息，通常是监控到的状态信息。
# $SERVICEPERFDATA$：服务的性能数据，通常是具体的性能指标（如 CPU 使用率、磁盘空间等）。
# 这些变量通过 || 分隔符连接，表示每条数据记录的不同字段。
service_perfdata_file_mode=a
# 设置了性能数据文件的 写入模式 ，a 表示 每次写入时，数据将被追加到文件的末尾 .w 表示会覆盖原有文件，每次生成新的性能数据时，文件内容都会被清空
service_perfdata_file_processing_interval=30
# 性能数据文件每 30 秒会被处理一次
修改配置三：
cd objects
# commands.cfg 专门用于定义各种监控命令，这些命令随后可以被Nagios的其他配置文件引用和执行。
vim commands.cfg
# 找到 check_http列 将其原来配置删除，再其下方添加，如下：
define command {
command_name check_http
command_line $USER1$/check_http -I $HOSTADDRESS$ -p $ARG1$ $ARG2$
}
define command {
command_name check_nrpe
command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$
}
define command {
command_name check_nrpe_arg
command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$ -a $ARG2$
}
define command {
command_name check_local_mysql
command_line $USER1$/check_mysql -u $ARG1$ -p $ARG2$
}
define command {
command_name check_mysql
command_line $USER1$/check_mysql -H $HOSTADDRESS$ -u $ARG1$ -p $ARG2$
}
修改配置四：
vim templates.cfg
define host {
name generic-printer
use generic-host
check_period 24x7
check_interval 5
retry_interval 1
max_check_attempts 10
check_command check-host-alive
notification_period workhours
notification_interval 30 # 每隔30分钟向指定的联系人或联系人组（在此配置中为 admins）发送一次通知
notification_options d,r
contact_groups admins
statusmap_image printer.png
register 0
}
define service {
name generic-service ; The 'name' of this service template
active_checks_enabled 1 ; Active service checks are enabled
passive_checks_enabled 1 ; Passive service checks are enabled/accepted
parallelize_check 1 ; Active service checks should be parallelized (disabling this can lead to major performance problems)
obsess_over_service 1 ; We should obsess over this service (if necessary)
check_freshness 0 ; Default is to NOT check service 'freshness'
notifications_enabled 1 ; Service notifications are enabled
event_handler_enabled 1 ; Service event handler is enabled
flap_detection_enabled 1 ; Flap detection is enabled
process_perf_data 1 ; Process performance data
retain_status_information 1 ; Retain status information across program restarts
retain_nonstatus_information 1 ; Retain non-status information across program restarts
is_volatile 0 ; The service is not volatile
check_period 24x7 ; The service can be checked at any time of the day
max_check_attempts 3 ; Re-check the service up to 3 times in order to determine its final (hard) state
;normal_check_interval 1 ; 系统每隔多长时间检查一次某个服务或主机的状态,下方这个参数也是一样
check_interval 1 ; 系统每隔多长时间检查一次某个服务或主机的状态
retry_interval 2 ; Re-check the service every two minutes until a hard state can be determined
contact_groups admins ; Notifications get sent out to everyone in the 'admins' group
notification_options w,u,c,r ; Send notifications about warning, unknown, critical, and recovery events
notification_interval 60 ; Re-notify about service problems every hour
notification_period 24x7 ; Notifications can be sent out at any time
register 0 ; DON'T REGISTER THIS DEFINITION - ITS NOT A REAL SERVICE, JUST A TEMPLATE!
}
define service {
name local-service ; The name of this service template
use generic-service ; Inherit default values from the generic-service definition
max_check_attempts 4 ; Re-check the service up to 4 times in order to determine its final (hard) state
;normal_check_interval 1 ; 系统每隔多长时间检查一次某个服务或主机的状态,下方这个参数也是一样
check_interval 1 ; 系统每隔多长时间检查一次某个服务或主机的状态
retry_interval 1 ; Re-check the service every minute until a hard state can be determined
register 0 ; DON'T REGISTER THIS DEFINITION - ITS NOT A REAL SERVICE, JUST A TEMPLATE!
}
define service {
name es-service ;Elastic search service
use generic-service ;Inheric
contact_groups es-admin ;es admin
register 0 ; DONT REGISTER THIS DEFINITION - ITS NOT A REAL SERVICE, JUST A TEMPLATE!
}
# define host 代表的是主机模版
# define service 代表的是监控模版，监控模版就有两项，一个是 generic-service 一个是基于generic-service分割出来一部分local-service监控nagios本机
修改配置五：
# 先测试一下看看邮件是否可以发送成功
echo "how are you today" | mail -s "test" 1893130****@163.com
# 修改配置
more contacts.cfg | grep -Ev '^$|^#'
# 发送邮件配置
define contact {
contact_name yuhailong ; Short name of user
use generic-contact ; Inherit default values from generic-contact template (defined above)
alias Yu Hai Long ; Full name of user
email 1893130****@163.com ; <<***** CHANGE THIS TO YOUR EMAIL ADDRESS ******
; pager # 如果有短信告警,这里可以选填手机号
}
; 多个以此类推
；例如如果有第二个人
define contact {
contact_name zhangsan ; Short name of user
use generic-contact ; Inherit default values from generic-contact template (defined above)
alias Zhang San ; Full name of user
email zhangsan@163.com ; <<***** CHANGE THIS TO YOUR EMAIL ADDRESS ******
; pager # 如果有短信告警,这里可以选填手机号
}
define contactgroup {
contactgroup_name admins
alias Nagios Administrators
members yuhailong,zhangsan ; 多个以逗号分隔，
}
define contactgroup {
contactgroup_name es-admin
alias Elastic Search Administrators
members yuhailong
}
###启动服务
# 检测nagios配置文件是否正确
nagios -v /etc/nagios/nagios.cfg
# 保证如下两项为0即可
Total Warnings: 0
Total Errors: 0
systemctl restart nagios
systemctl enable nagios

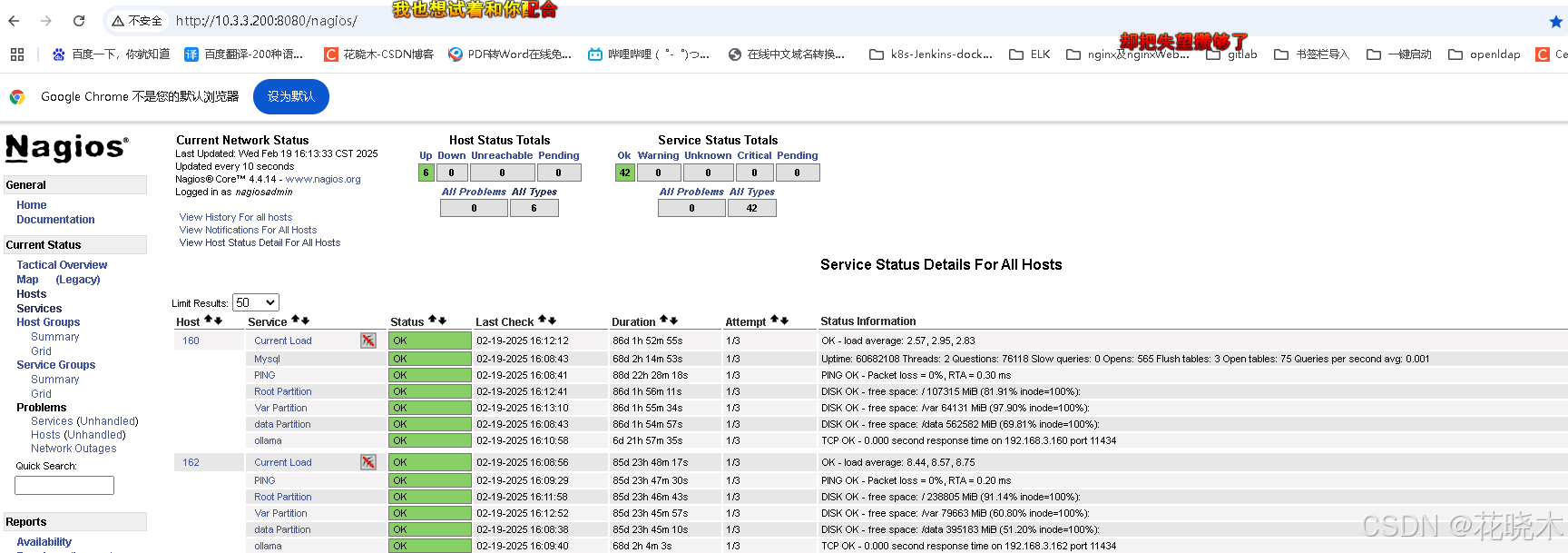

访问：http://10.3.3.200:8080/nagios/
配置监控项
配置需要监控的主机
vim /etc/nagios/objects/hosts.cfg
# 配置的是需要监控的主机。
# use 使用linux-server 模版,模版在templates.cfg定义的 linux-server
# 定义名称，自定义
# alias 定义别名，自定义
# address 监控主机的IP地址
define host {
use linux-server ; Name of host template to use
host_name 160
alias 160
address 192.168.3.160
}
define host {
use linux-server ; Name of host template to use
host_name 200
alias 200
address 192.168.3.200
}
define host {
use linux-server ; Name of host template to use
host_name 162
alias 162
address 192.168.3.162
}
配置需要监控的主机组
vim /etc/nagios/objects/hostsgroup.cfg
define hostgroup {
hostgroup_name nrpe-servers ; The name of the hostgroup
alias Servers with Nrpe ; Long name of the group
members * ; Comma separated list of hosts that belong to this group
}
# 定义组
# hostgroup_name 组名称
# alias 别名
# members 组成员
# 注释
members *
# * 代表所有主机
members *!160 # 表示组成员为所有，但是不包括160
# 在主机组配置中，! 用作排除操作符，用于从集合中排除特定元素。
# 在监控命令（servers）或参数中，! 用作分隔符，用于分隔命令的不同参数。
members 160
# 表示当前组里面只有160一个主机，
members 160,162
# 表示当前组里面有160和162两个主机，多个用逗号分隔
配置需要监控的主机的服务
vim /etc/nagios/objects/service.cfg
define service {
use generic-service ; Name of service template to use
; host 160
hostgroup_name nrpe-servers
service_description PING
check_command check_ping!100.0,20%!500.0,60%
notifications_enabled 1
servicegroups ping-service
}
define service {
use generic-service ; Name of service template to use
hostgroup_name nrpe-servers
service_description Root Partition
check_command check_nrpe_arg!check_disk!/
notifications_enabled 1
servicegroups partition-free-space-services
}
define service {
use generic-service ; Name of service template to use
hostgroup_name nrpe-servers
service_description Var Partition
check_command check_nrpe_arg!check_disk!/var
notifications_enabled 1
servicegroups partition-free-space-services
}
define service {
use generic-service ; Name of service template to use
hostgroup_name nrpe-servers
service_description data Partition
check_command check_nrpe_arg!check_disk!/data
notifications_enabled 1
servicegroups partition-free-space-services
}
define service {
use generic-service ; Name of service template to use
hostgroup_name nrpe-servers
service_description Current Load
check_command check_nrpe!check_load
servicegroups checkload-service
notifications_enabled 0
}
define service {
use generic-service ; Name of service template to use
host_name 200
service_description jumpserver 8089
check_command check_http!8089! -u /
notifications_enabled 1
servicegroups http-services
}
define service {
use generic-service ; Name of service template to use
host_name 200
service_description zabbix 8080
check_command check_http!8080! -u /zabbix ;如果是外网域名的话 使用 -H 指定 如下 域名/IP 都可以
notifications_enabled 1
servicegroups http-services
}
;define service {
; use generic-service ; Name of service template to use
; ;hostgroup_name http-www
; host_name 200
; service_description Http www.okcis.cn
; check_command check_http!9000!-H www.okcis.cn -u /php/echo.php ;-H 118.144.81.101
; notifications_enabled 1
; servicegroups http-services
;}
define service {
use generic-service ; Name of service template to use
host 200
service_description Mysql
check_command check_mysql!root!devops@123
notifications_enabled 1
servicegroups mysql-service
}
define service {
use generic-service ; Name of service template to use
host 160
service_description Mysql
check_command check_mysql!root!dtzxroot@2002.DHW
notifications_enabled 1
servicegroups mysql-service
}
define service {
use generic-service ; Name of service template to use
host_name 160
service_description Redis
check_command check_tcp!6379
notifications_enabled 1
servicegroups redis-service
}
;-----------------------------------------------Local Service ---------------------------------------------------------
; 本机监控
define service {
use local-service ; Name of service template to use
host_name 200
service_description Current Load
check_command check_local_load!50.0,40.0,30.0!80.0,60.0,50.0
servicegroups checkload-service
}
define service {
use local-service ; Name of service template to use
host_name 200
service_description Data Partition
check_command check_local_disk!1%!1%!/data
notifications_enabled 1
servicegroups partition-free-space-services
}
define service {
use local-service ; Name of service template to use
host_name 200
service_description Var Partition
check_command check_local_disk!20%!10%!/var
notifications_enabled 1
servicegroups partition-free-space-services
}
define service {
use local-service ; Name of service template to use
host_name 200
service_description Root Partition
check_command check_local_disk!20%!10%!/
notifications_enabled 1
servicegroups partition-free-space-services
}
# use local-service ： 表示本机nagios使用,其余的都使用 generic-service
# 分号代表注释，host可以写单个主机或多个主机，多个主机以逗号分隔,
# hostgroup_name ： 代表属于这个主机组的服务器都适用这个监控项，hostsgroup_name是在hostsgroup.cfg中定义的
# service_description ： nagios页面展示的名称，对应上要监控的服务名称
# check_command ： 监控服务 # check_local_disk 检查本地磁盘空间使用情况的插件，!20%!10%! 这部分是传递给check_local_disk命令的参数 / 这个是根的意思
# check_command ：这条命令的意思是 监控 根目录，其中设置了警告和严重阈值分别为20%和10%。如果实际使用情况超过了这些阈值，监控系统将相应地发出警告
# notifications_enabled 发生问题是否告警，1是true 0是false
# servicegroups 定义一个server组，方便界面查询。
配置需要监控的主机的服务组
more /etc/nagios/objects/servicegroup.cfg
define servicegroup {
servicegroup_name ping-service
alias Ping Service
}
define servicegroup {
servicegroup_name http-services
alias http Service
}
define servicegroup {
servicegroup_name partition-free-space-services
alias Partition Free Space Services
}
define servicegroup {
servicegroup_name checkload-service
alias Current Load Service
}
define servicegroup {
servicegroup_name mysql-service
alias mysql Service
}
define servicegroup {
servicegroup_name redis-service
alias redis Service
}
客户端搭建
两台客户端 ：10.3.3.160 10.3.3.162
yum install -y epel-release
yum -y install nrpe
[root@localhost ~]# more /etc/nagios/nrpe.cfg | grep -Ev '^$|^#'
log_facility=daemon
debug=0
pid_file=/run/nrpe/nrpe.pid
server_port=5666
nrpe_user=nrpe
nrpe_group=nrpe
# 定义了哪些主机可以通过 NRPE 访问该服务器。
allowed_hosts=127.0.0.1,::1,192.168.3.0/24
# NRPE 会允许远程主机执行一些可能涉及安全隐患的操作
dont_blame_nrpe=1
allow_bash_command_substitution=0
command_timeout=60
connection_timeout=300
disable_syslog=0
command[check_users]=/usr/lib64/nagios/plugins/check_users -w 5 -c 10
command[check_load]=/usr/lib64/nagios/plugins/check_load -w 50,800,1000 -c 200,1000,1000
command[check_disk]=/usr/lib64/nagios/plugins/check_disk -w 20% -c 10% -p $ARG1$
command[check_swap]=/usr/lib64/nagios/plugins/check_swap -w 20% -c 10%
command[check_total_procs]=/usr/lib64/nagios/plugins/check_procs -w 150 -c 200
include_dir=/etc/nrpe.d/
systemctl start nrpe
systemctl enable nrpe
systemctl status nrpe
ss -ntulp | grep 5666
yum install -y nagios-plugins-load nagios-plugins-disk nagios-plugins-swap nagios-plugins-procs nagios-plugins-users nagios-plugins-mysql
ls /usr/lib64/nagios/plugins/
systemctl restart nrpe
systemctl enable nrpe
重启服务
# 检测nagios配置文件是否正确
nagios -v /etc/nagios/nagios.cfg
# 保证如下两项为0即可
Total Warnings: 0
Total Errors: 0
systemctl restart nagios
访问：http://10.3.3.200:8080/nagios/
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
