[HDLBits] Sim/circuit6

Sim/circuit6

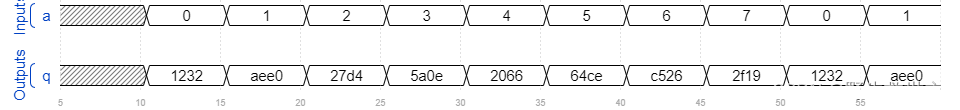

This is a combinational circuit. Read the simulation waveforms to determine what the circuit does, then implement it.

module top_module (
    input [2:0] a,
    output [15:0] q );
    always @(*) begin
        case(a)
            3'd0:q=16'h1232;
            3'd1:q=16'haee0;
            3'd2:q=16'h27d4;
            3'd3:q=16'h5a0e;
            3'd4:q=16'h2066;
            3'd5:q=16'h64ce;
            3'd6:q=16'hc526;
            3'd7:q=16'h2f19;
        endcase
    end
endmodule
