FFMPEG学习记录 ：三，avformat_find_stream_info

一，avformat_find_stream_info

上源码：

/**
 * Read packets of a media file to get stream information. This
 * is useful for file formats with no headers such as MPEG. This
 * function also computes the real framerate in case of MPEG-2 repeat
 * frame mode.
 * The logical file position is not changed by this function;
 * examined packets may be buffered for later processing.
 *
 * @param ic media file handle
 * @param options  If non-NULL, an ic.nb_streams long array of pointers to
 *                 dictionaries, where i-th member contains options for
 *                 codec corresponding to i-th stream.
 *                 On return each dictionary will be filled with options that were not found.
 * @return >=0 if OK, AVERROR_xxx on error
 *
 * @note this function isn't guaranteed to open all the codecs, so
 *       options being non-empty at return is a perfectly normal behavior.
 *
 * @todo Let the user decide somehow what information is needed so that
 *       we do not waste time getting stuff the user does not need.
 */
int avformat_find_stream_info(AVFormatContext *ic, AVDictionary **options);

这个阶段AVFormatContext ，里的 AVInputformat * input和AVStream *Stream 已经完成初始化。



 关键的代码：

static const AVCodec *find_decoder(AVFormatContext *s, const AVStream *st, enum AVCodecID codec_id)
{
#if FF_API_LAVF_AVCTX
FF_DISABLE_DEPRECATION_WARNINGS
    if (st->codec->codec)
        return st->codec->codec;
FF_ENABLE_DEPRECATION_WARNINGS
#endif

    switch (st->codecpar->codec_type) {
    case AVMEDIA_TYPE_VIDEO:
        if (s->video_codec)    return s->video_codec;//应该是后面的调用av_find_best_stream 会走这个逻辑
        break;
    case AVMEDIA_TYPE_AUDIO:
        if (s->audio_codec)    return s->audio_codec;
        break;
    case AVMEDIA_TYPE_SUBTITLE:
        if (s->subtitle_codec) return s->subtitle_codec;
        break;
    }

    return avcodec_find_decoder(codec_id);
}

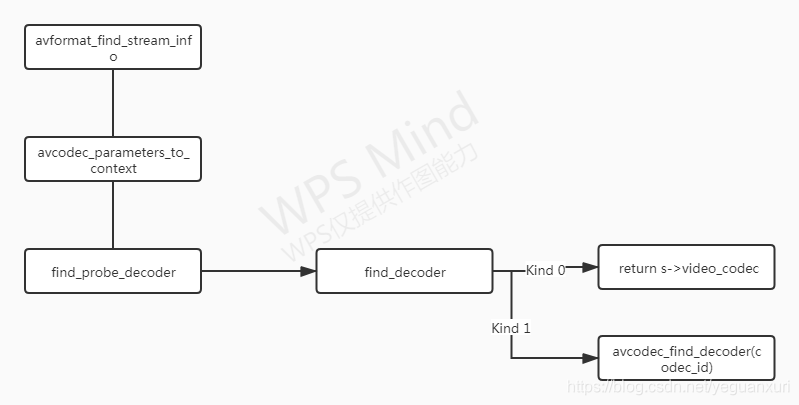

似乎avformat_find_stream_info 这个函数的调用就是为了完成codec 参数的初始化，和codec的创建。

这个函数里还有一句话：

 /* update the stream parameters from the internal codec contexts */

所这个函数主要为了完成codec 信息的初始赋值。

就ffplay.c而言，似乎和stream_component_open()函数有些冲突，后面再分析。

二，av_find_best_stream

/**
 * Find the "best" stream in the file.
 * The best stream is determined according to various heuristics as the most
 * likely to be what the user expects.
 * If the decoder parameter is non-NULL, av_find_best_stream will find the
 * default decoder for the stream's codec; streams for which no decoder can
 * be found are ignored.
 *
 * @param ic                media file handle
 * @param type              stream type: video, audio, subtitles, etc.
 * @param wanted_stream_nb  user-requested stream number,
 *                          or -1 for automatic selection
 * @param related_stream    try to find a stream related (eg. in the same
 *                          program) to this one, or -1 if none
 * @param decoder_ret       if non-NULL, returns the decoder for the
 *                          selected stream
 * @param flags             flags; none are currently defined
 * @return  the non-negative stream number in case of success,
 *          AVERROR_STREAM_NOT_FOUND if no stream with the requested type
 *          could be found,
 *          AVERROR_DECODER_NOT_FOUND if streams were found but no decoder
 * @note  If av_find_best_stream returns successfully and decoder_ret is not
 *        NULL, then *decoder_ret is guaranteed to be set to a valid AVCodec.
 */
int av_find_best_stream(AVFormatContext *ic,
                        enum AVMediaType type,
                        int wanted_stream_nb,
                        int related_stream,
                        AVCodec **decoder_ret,
                        int flags);



int av_find_best_stream(AVFormatContext *ic, enum AVMediaType type,
                        int wanted_stream_nb, int related_stream,
                        AVCodec **decoder_ret, int flags)
{
    ...
    if (decoder_ret) {
            decoder = find_decoder(ic, st, par->codec_id);
            if (!decoder) {
                if (ret < 0)
                    ret = AVERROR_DECODER_NOT_FOUND;
                continue;
            }
        }
    ...
    if (decoder_ret)
        *decoder_ret = (AVCodec*)best_decoder;
    return ret;
}
/*ffplay.c 调用：
 *av_find_best_stream(ic, AVMEDIA_TYPE_VIDEO,
 *                               st_index[AVMEDIA_TYPE_VIDEO], -1, NULL, 0);
*倒数第二个decoder_ret NULL，再结合源码，貌似跑了个寂寞。
**/

这里看来，这个函数不重要。
