用C语言方式实现STM32实现灯亮灭

ycwzs6

于 2022-09-13 19:20:37 发布

阅读量757

点赞数 1

文章标签： stm32 c语言单片机

本文链接：https://blog.youkuaiyun.com/ycwzs6/article/details/126839738

版权

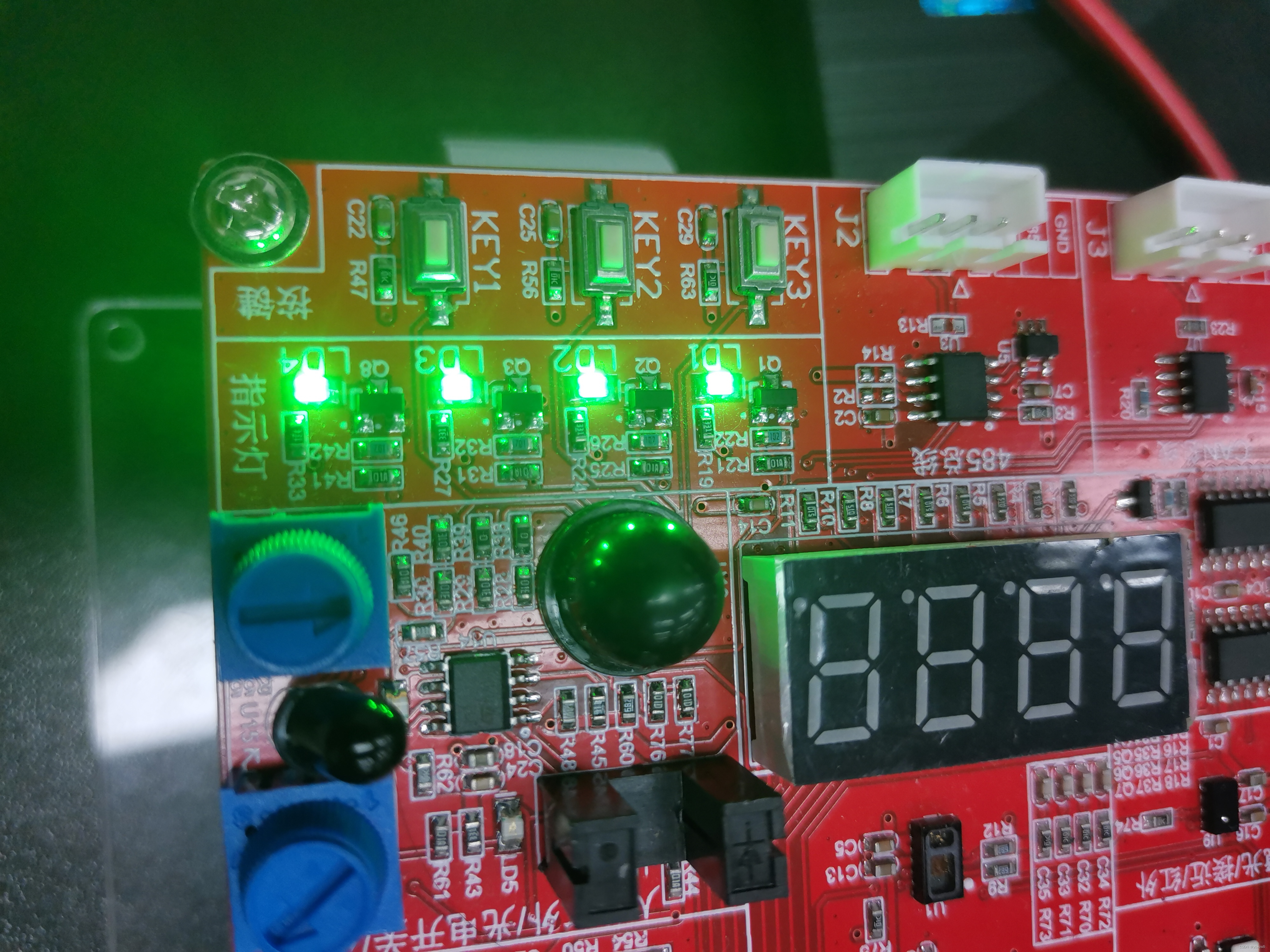

实验现象

在这里插入图片描述

实现代码

gpio.h

#ifndef __GPIO_H__
#define __GPIO_H__

#define RCC_AHB4_ENSETR (*(volatile unsigned int*)0x50000A28)

typedef struct{

    volatile unsigned int MODER;
    volatile unsigned int OTYPER;
    volatile unsigned int OSPEEDR;
    volatile unsigned int PUPDR;
    volatile unsigned int IDR;
    volatile unsigned int ODR;
}gpio;
#define GPIOE ((gpio*)0x50006000)
#define GPIOF ((gpio*)0x50007000)
void LED1_INIT();
void LED1_ON();
void
