js实现图片在div内滚轮放大缩小,有滚动条,双击回原状

本文介绍了一个使用HTML、CSS和JavaScript实现的图片预览功能,包括图片的缩放和平移操作。通过监听鼠标滚轮事件实现图片放大缩小,并通过鼠标拖动实现图片在显示区域内的平移。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

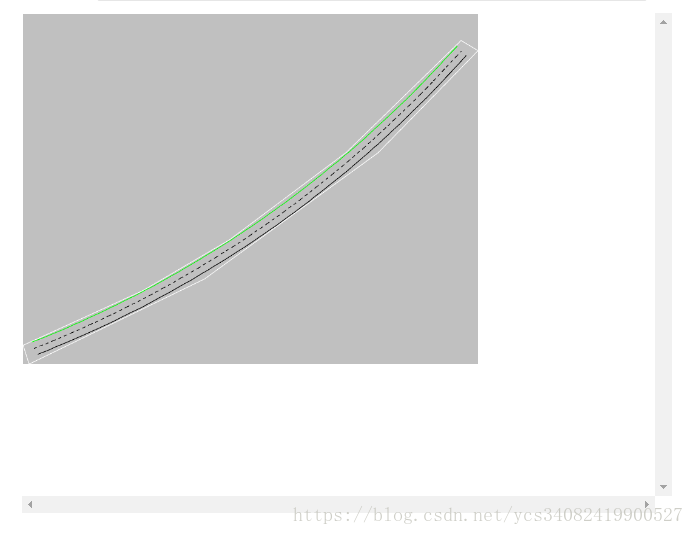

效果图:

<style type="text/css">
	*{padding:0;margin:0;}
	img{border:none;}
	#display{max-width:660px;max-height:510px;margin:30px auto;overflow:scroll;}
</style>

<script type="text/javascript">
	function orgsize(){
		 $("#showimg").width(650);
		 $("#showimg").height(500);
		 $('#showimg').css("margin-left","1px");
		 $('#showimg').css("margin-top","1px");
	 }

	var div1 = document.getElementById("showimg");
	var offX = 0,offY = 0;
	div1.onmousedown = function(ev){
	    ev.preventDefault(); //阻止浏览器动作,有些浏览器试图拖拽图片的时候,是会把图片单独到一个页面来查看的。
	  var oevent = ev || event; //兼容性处理
	  var distanceX = oevent.clientX; //记录鼠标点击x位置
	  var distanceY = oevent.clientY; //记录鼠标点击y位置
	    document.onmousemove = function(ev){ //当鼠标点击后,才对document设置mousemove事件
	        var oevent = ev || event;
	        x1 = oevent.clientX - distanceX;//oevent.clientX是鼠标移动到的x位置,oevent.clientX-distanceX是移动的距离
	        y1 = oevent.clientY - distanceY;
	        distanceX = oevent.clientX; //更新distanceX的位置信息。这一步非常重要非常重要非常重要,因为mousemove事件在鼠标移动时触发,而不是鼠标停止移动后触发
	        distanceY = oevent.clientY;
	        div1.style.marginLeft = (x1 + offX) + "px"; //若x1为正,则鼠标向右移动,设置图片的margin-left为正,向右偏移;为负同理向左偏移。
	        div1.style.marginTop = (y1+ offY) +"px"; //offX和offY为前一次的偏移,本次移动是在前一次的基础上发生的,要加上偏移值才是鼠标本次移动后图片的位置。
	        offX = x1+offX; //记录此时图片的偏移位置
	        offY = y1+offY;
	    };
	  document.onmouseup = function(){ //鼠标抬起后,就取消document的mousemove事件
	            document.onmousemove = null;
	  };

	}

</script>

<script type="text/javascript">

	window.onload=function(){
	    var display = document.getElementById('display');
	    var _wheelDelta=0,upcheck=-1;
	    addScrollListener(display,wheelHandle);
	}
	function addScrollListener(element, wheelHandle) {
	    if(typeof element != 'object') return;
	    if(typeof wheelHandle != 'function') return;
	    // 监测浏览器
	    if(typeof arguments.callee.browser == 'undefined') {
	        var user = navigator.userAgent;
	        var b = {};
	        b.opera = user.indexOf("Opera") > -1 && typeof window.opera == "object";
	        b.khtml = (user.indexOf("KHTML") > -1 || user.indexOf("AppleWebKit") > -1 || user.indexOf("Konqueror") > -1) && !b.opera;
	        b.ie = user.indexOf("MSIE") > -1 && !b.opera;
	        b.gecko = user.indexOf("Gecko") > -1 && !b.khtml;
	        arguments.callee.browser = b;
	    }
	    if(element == window)
	        element = document;
	    if(arguments.callee.browser.ie)
	        element.attachEvent('onmousewheel', wheelHandle);
	    else
	        element.addEventListener(arguments.callee.browser.gecko ? 'DOMMouseScroll' : 'mousewheel', wheelHandle, false);
	}
	function getStyleValue(objname,stylename){
	    if(objname.currentStyle){
	        return objname.currentStyle[stylename]
	    }else if(window.getComputedStyle){
	        stylename = stylename.replace(/([A-Z])/g, "-$1").toLowerCase();
	        return window.getComputedStyle(objname, null).getPropertyValue(stylename);
	        //return window.getComputedStyle(objname , null)[stylename];
	    }
	}
	function wheelHandle(e) {
	    if(e.wheelDelta) {
	        //document.getElementById('display').innerHTML = (e.wheelDelta > 0 ? '上' : '下');

	        upcheck = e.wheelDelta >0 ? 1 : 0;
	        //_wheelDelta += e.wheelDelta/(-40);
	    } else {
	        //alert(e.detail);
	        upcheck = e.detail <0 ? 1 : 0;
	        //_wheelDelta +=e.detail;
	    }
	    showimg();
	}

	function showimg(){
	    var tmpobj = document.getElementById("showimg");
	    var width = parseInt(getStyleValue(tmpobj,'width'));
	    var height = parseInt(getStyleValue(tmpobj,'height'));
	    var i = width/height;//    alert(i);
	    //alert( width + '   ' + height);
	    /*if(_wheelDelta<0){
	        if(width>=0){
	            tmpobj.style.height = (width + _wheelDelta*10) + 'px';
	            tmpobj.style.width = (height + _wheelDelta*10*i) + 'px';
	        }
	    }else{
	        if(width<=1024){
	            tmpobj.style.height = (width - _wheelDelta*10) + 'px';
	            tmpobj.style.width = (height - _wheelDelta*10*i) + 'px';
	        }
	    }*/
	    if(upcheck){
	        if(width<=3096){
	            tmpobj.style.height = (height + 30) + 'px';
	            tmpobj.style.width = (width + 30*i) + 'px';
	        }
	    }else{
	        if(width>=35){
	            tmpobj.style.height = (height - 30) + 'px';
	            tmpobj.style.width = (width - 30*i) + 'px';
	        }
	    }
	}

	/*var scrollfunc = function(event) {
	var direct = 0;
	if (event.wheelDelta) {
	    alert(wheelDelta);
	    //direct = event.wheelDelta > 0 ? 1 : -1;
	} else if (event.detail) {
	    alert(event.detail);
	    //direct = event.detail < 0 ? 1 : -1;
	}
	};
	Event.observe(document, 'mousewheel', scrollfunc);
	Event.observe(document, 'DOMMouseScroll', scrollfunc);*/ //firefox

</script>
<div id="display" style="height:500px;width:650px;margin:0 auto">

		<img src="${staticPath }/scene/areaPic" id="showimg" width="650px" height="500px" ondblclick="orgsize()" style="display:block;margin:auto;cursor:pointer;" />

	</div>

资源文件下载:https://download.youkuaiyun.com/download/ycs34082419900527/10660939
