FL2440无线路由器制作---RT3070 STA模式

$\color{Red}{FL2440添加RT3070实现无线上网功能---STA模式}$

$\color{Red}{>>>想要让网卡设备成为STA，就要移植wpa\_supplicant}$

$\color{Cyan}{rtl3070的中文名为雷凌3070，是台湾雷凌科技有限公司生产的一款专用于usb无线网卡的处理芯片，是一种低功耗高度集成的MAC/BBP和2.4G RF单一芯片，支持300Mbps的吞吐量。}$

$\color{Cyan}{RT3070无线网卡有两种工作模式STA模式和软AP模式，分别由STA驱动和软AP驱动来实现。} ​$

$\color{Cyan}{软AP即软件完成AP功能。}$

$\color{Cyan}{基于FL2440上面已经使能的DM9000有限网卡和USB驱动，可以试用DM9000网卡实现介入网线实现上网功能。}$

查看网卡芯片支持的频率：802.11

​ Linux的内核对于RT3070的驱动已经比较完善，只需要修改增加内核对RT3070的支持便可以实现无线上网功能。

$\color{Purple}{一、添加makemeunconfig选项支持wireless无线上网}$

现在开始在Linux-3.0内核中添加支持：

[yan@localhost linux-3.0]$ export TERM=vt100
[yan@localhost linux-3.0]$ make meunconfig

[*] Networking support  --->
            -*-   Wireless  --->
                         <*>   cfg80211 - wireless configuration API                              //支持无线网段802.11
                         [*]     enable powersave by default
                         [*]     cfg80211 wireless extensions compatibility
                         [*]   Wireless extensions sysfs files
                         {*}   Common routines for IEEE802.11 drivers
                         <*>   Generic IEEE 802.11 Networking Stack (mac80211)
             [ ]   Enable mac80211 mesh networking (pre-802.11s) support
             [ ]   Enable LED triggers
             [ ]   Select mac80211 debugging features  --->

Device Drivers  --->
            Generic Driver Options  --->
                        {*} Userspace firmware loading support                                        //支持固件，rt2870.bin
                        [*]   Include in-kernel firmware blobs in kernel binary
            [*] Network device support  --->
                        [*]   Wireless LAN  --->
                                    <*>   Ralink driver support  --->
                                            <*>   Ralink rt27xx/rt28xx/rt30xx (USB) support
                                            [*]     rt2800usb - Include support for rt33xx devices
                                            [*]   Ralink debug output

重新编译、下载、烧录、开机：

[fl2440@uboot]# tftp 30008000 linuxrom-s3c2440.bin
[fl2440@uboot]# nand erase 100000 F00000
[fl2440@uboot]# nand write 30008000 100000 400000

或者
[fl2440@uboot]# set blx 'tftp 30008000 linuxrom-s3c2440.bin;nand erase 100000 F00000;nand write 30008000 100000 $fliezize'
[fl2440@uboot]# run blx

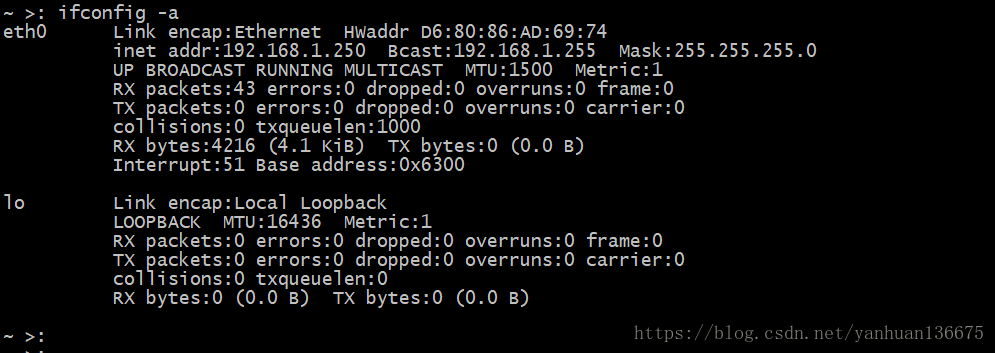

没有插入无线网卡设备，查看当前内核已有的网卡设备信息。由信息可知，没有wlan0，没有无线设备。

~ >: ifconfig -a

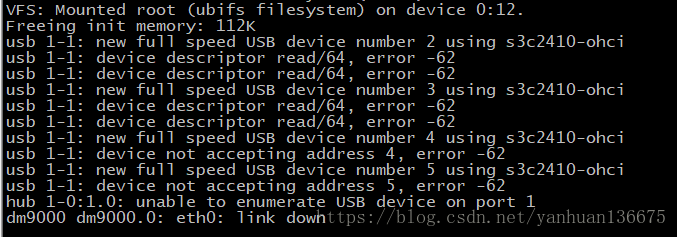

现在插入无线网卡设备RT3070后，重新启动开发板，会打印USB设备信息，插入不同的USB位置，会有不同。

输入ifconfig -a查看所有网卡设备信息：

​ 为什么网卡还没有出现，但是USB已经识别了。
想了一下是不是没有USB驱动？我去找了一下：添加USB驱动

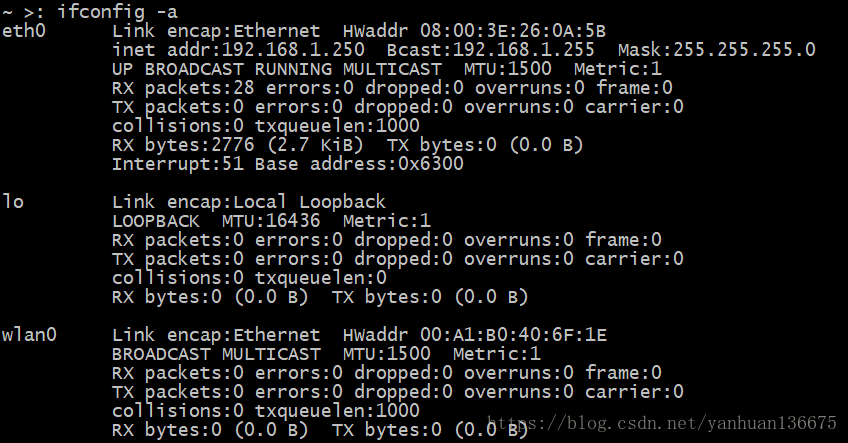

USB驱动添加后，wlan0终于找到：

$\color{Purple}{二、无线网络配置工具wireless tools和wpa\_supplicant以及OpenSSL移植}$

​ 目前可以使用wireless-tools或wpa_supplicant工具来配置无线网络。但要注意对无线网络的配置是全局性的，而非针对具体的接口。wpa_supplicant是一个较好的选择，但缺点是它不支持所有的驱动。 另外，wpa_supplicant目前只能连接到那些你已经配置好ESSID的无线网络。而wireless-tools支持几乎所有的无线网卡和驱动，但它不能连接到那些只支持WPA的AP。

Wireless Tools移植

#下载源码，解压源码
[yan@localhost wireless]$ wget https://hewlettpackard.github.io/wireless-tools/wireless_tools.29.tar.gz

#修改Makefile
11   ## Compiler to use (modify this for cross compile).
12   CC = /opt/xtools/arm920t/bin/arm-linux-gcc
13   ## Other tools you need to modify for cross compile (static lib only).
14   AR = /opt/xtools/arm920t/bin/arm-linux-ar
15   RANLIB = /opt/xtools/arm920t/bin/arm-linux-ranlib

#编译
[yan@localhost wireless]$ make

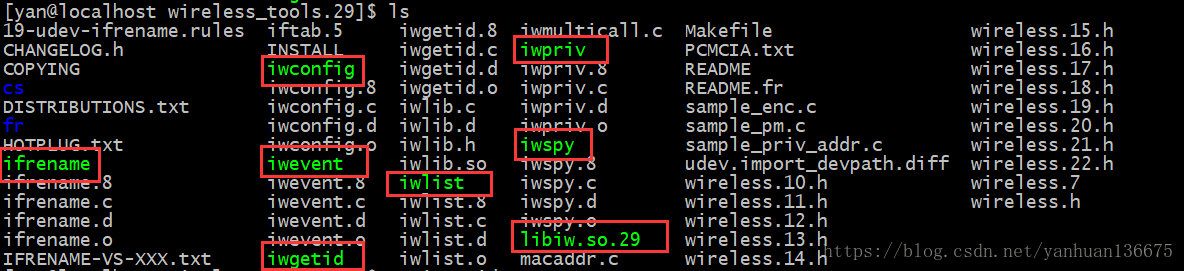

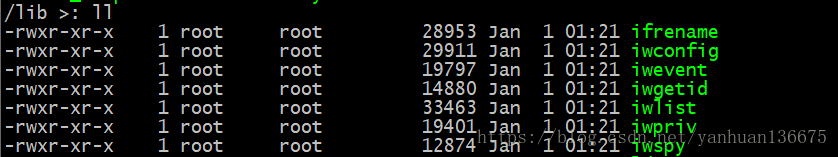

复制这8个文件到开发板上的/bin/和/lib/，并赋予权限chmod a+x {file}

Openssl移植

#下载源码，解压源码
[yan@localhost wireless]$ wget https://www.openssl.org/source/old/0.9.x/openssl-0.9.8i.tar.gz

[yan@localhost openssl-0.9.8i]$ mkdir install
#修改Makefile
29   INSTALLTOP=/home/yan/FL2440_openfile/3rdparty/wireless/openssl-0.9.8i/install
32   OPENSSLDIR=/home/yan/FL2440_openfile/3rdparty/wireless/openssl-0.9.8i/install
62   CC=/opt/xtools/arm920t/bin/arm-linux-gcc
69   AR=/opt/xtools/arm920t/bin/arm-linux-ar $(ARFLAGS) r
70   RANLIB=/opt/xtools/arm920t/bin/arm-linux-ranlib

#编译、安装
[yan@localhost openssl-0.9.8i]$ make      #make 和 make install 一起会错误不知道是为什么
[yan@localhost openssl-0.9.8i]$ make install

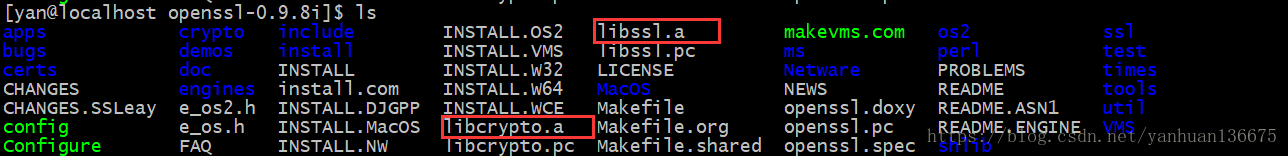

复制libcrypto.a和libssl.a到开发板上的/lib/，并赋予权限

wpa_supplicant移植

#下载源码，解压源码
[yan@localhost wireless]$ wget http://hostap.epitest.fi/releases/wpa_supplicant-0.7.3.tar.gz
[yan@localhost wireless]$ cd wpa_supplicant-0.7.3/wpa_supplicant

#修改配置文件
[yan@localhost wpa_supplicant]$ cp defconfig .config        //.config才是将要执行的菜单文件
26   #CC=mipsel-uclibc-gcc
27   #CC=/opt/brcm/hndtools-mipsel-uclibc/bin/mipsel-uclibc-gcc
28   #使用交叉编译器编译，并-L指定库的路径为刚刚安装的openssl
29   CC=/opt/xtools/arm920t/bin/arm-linux-gcc -L/home/yan/FL2440_openfile/3rdparty/wireless/openssl-0.9.8i/install/lib
30   #CFLAGS += -Os
31   #-I指定链接库的名字
32   CFLAGS += -I/home/yan/FL2440_openfile/3rdparty/wireless/openssl-0.9.8i/install/include
33   #CPPFLAGS += -I../src/include -I../../src/router/openssl/include
34   #LIBS += -L/opt/brcm/hndtools-mipsel-uclibc-0.9.19/lib -lssl
35   LIBS += /home/yan/FL2440_openfile/3rdparty/wireless/openssl-0.9.8i/install/lib

#编译
[yan@localhost wpa_supplicant]$ make

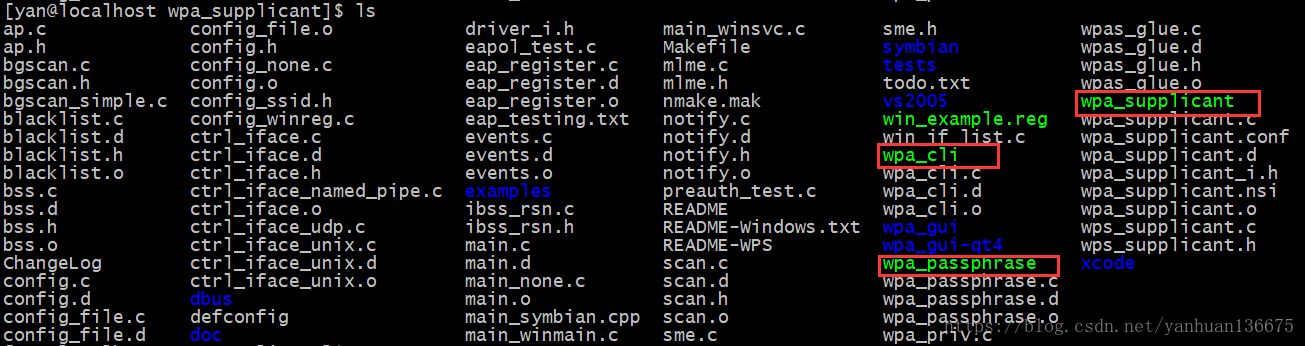

将编译生成的如下文件，复制到开发板上的/bin/下

1、wpa_cli

2、wpa_passphrase 生成配置文件

3、wpa_supplicant 连接wifi命令

将编译生成的如下文件，复制到开发板上的/bin/下1、wpa_cli2、wpa_passphrase 生成配置文件3、wpa_supplicant 连接wifi命令

#wpa_supplicant.conf配置文件保留着需要连接AP的SSID和key等信息，可以使用wpa_supplicant.conf一键生成
#Router_Link是我将要连接的路由器的SSID
#helloworld是SSID为Router_Link的路由器认证密码
~ >: wpa_passphrase Router_Link helloworld>> /etc/wpa_supplicant.conf

#修改wpa_supplicant.conf
/etc >: vim wpa_supplicant.conf
#ctrl_interface_group=wheel
ctrl_interface=/var/run/wpa_supplicant

network={
        ssid="Router_Link"
        key_mgmt=WPA-PSK      #Using WPA-PSK encryption mode
        proto=WPA2
        group=TKIP CCMP
        pairwise=TKIP CCMP    #Automatic matching encryption algorithm： TKIP 或 CCMP
        psk="helloworld"                      #Router password
        #psk=e4b06c8c07884f29176d1f87925ca411047d867bdbd1b88906d7fabc45575aad
}

#此时启用wpa_supplicant会报错，错误原因是：缺少Loading firmware file 'rt2870.bin'.
/etc >: wpa_supplicant -B -d -Dwext -i wlan0 -c /etc/wpa_supplicant.conf
Initializing interface 'wlan0' conf '/etc/wpa_supplicant.conf' driver 'wext' ctrl_interface 'N/A' bridge 'N/A'
Configuration file '/etc/wpa_supplicant.conf' -> '/etc/wpa_supplicant.conf'
Reading configuration file '/etc/wpa_supplicant.conf'
ctrl_interface='/var/run/wpa_supplicant'
Priority group 0
   id=0 ssid='Router_LingYun_Master'
WEXT: cfg80211-based driver detected
phy0 -> rt2x00lib_request_firmware: Info - Loading firmware file 'rt2870.bin'.
phy0 -> rt2x00lib_request_firmware: Error - Failed to request Firmware.
Could not set interface wlan0 flags: No such file or directory
Failed to initialize driver interface
Failed to add interface wlan0
Cancelling scan request
Cancelling authentication timeout

#使能网卡模块也会报错，错误原因是：缺少Loading firmware file 'rt2870.bin'.
~ >: ifconfig wlan0 up
phy0 -> rt2x00lib_request_firmware: Info - Loading firmware file 'rt2870.bin'.
phy0 -> rt2x00lib_request_firmware: Error - Failed to request Firmware.
ifconfig: SIOCSIFFLAGS: No such file or directory

复制firmware

#下载固件
[yan@localhostwireless]$ wget https://coding.net/u/sfantree/p/self_use_OSS/git/raw/master/source/rt2870.bin

#复制到开发板上
/lib/firmware >: ls
rt2870.bin

使能网卡

#使能网卡
~ >: ifconfig wlan0 up
usb 1-1.3: USB disconnect, device number 4
usb 1-1.3: new full speed USB device number 5 using s3c2410-ohci
phy2 -> rt2x00_set_chip: Info - Chipset detected - rt: 3070, rf: 0005, rev: 0201.
phy2 -> rt2x00lib_request_firmware: Info - Loading firmware file 'rt2870.bin'.
phy2 -> rt2x00lib_request_firmware: Info - Firmware detected - version: 0.29.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 0 - CWmin: 3, CWmax: 4, Aifs: 2, TXop: 102.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 1 - CWmin: 4, CWmax: 5, Aifs: 2, TXop: 188.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 2 - CWmin: 5, CWmax: 10, Aifs: 3, TXop: 0.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 3 - CWmin: 5, CWmax: 10, Aifs: 7, TXop: 0.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 2 - CWmin: 4, CWmax: 10, Aifs: 3, TXop: 0.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 3 - CWmin: 4, CWmax: 10, Aifs: 7, TXop: 0.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 1 - CWmin: 3, CWmax: 4, Aifs: 2, TXop: 94.
phy2 -> rt2x00mac_conf_tx: Info - Configured TX queue 0 - CWmin: 2, CWmax: 3, Aifs: 2, TXop: 47.

~ >: ifconfig
eth0      Link encap:Ethernet  HWaddr 08:00:3E:26:0A:5B
          inet addr:192.168.2.5  Bcast:192.168.2.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:11508 errors:0 dropped:0 overruns:0 frame:0
          TX packets:10935 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:6177465 (5.8 MiB)  TX bytes:503291 (491.4 KiB)
          Interrupt:51 Base address:0x6300

wlan0     Link encap:Ethernet  HWaddr 00:A1:B0:40:6F:1E
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:23 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:6769 (6.6 KiB)  TX bytes:443 (443.0 B)

网卡已经激活， 但目前未网络参数配置。

启动wpa_supplicant，激活wlan0

~ >: wpa_supplicant -B -d -Dwext -i wlan0 -c /etc/wpa_supplicant.conf
Initializing interface 'wlan0' conf '/etc/wpa_supplicant.conf' driver 'wext' ctrl_interface 'N/A' bridge 'N/A'
Configuration file '/etc/wpa_supplicant.conf' -> '/etc/wpa_supplicant.conf'
Reading configuration file '/etc/wpa_supplicant.conf'
ctrl_interface='/var/run/wpa_supplicant'
Priority group 0
   id=0 ssid='Router_LingYun_Master'
WEXT: cfg80211-based driver detected
phy0 -> rt2x00lib_request_firmware: Info - Loading firmware file 'rt2870.bin'.
phy0 -> rt2x00lib_request_firmware: Info - Firmware detected - version: 0.29.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 0 - CWmin: 3, CWmax: 4, Aifs: 2, TXop: 102.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 1 - CWmin: 4, CWmax: 5, Aifs: 2, TXop: 188.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 2 - CWmin: 5, CWmax: 10, Aifs: 3, TXop: 0.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 3 - CWmin: 5, CWmax: 10, Aifs: 7, TXop: 0.
SIOCGIWRANGE: WE(compiled)=22 WE(source)=21 enc_capa=0xf
  capabilities: key_mgmt 0xf enc 0xf flags 0x0
netlink: Operstate: linkmode=1, operstate=5
Own MAC address: 00:a1:b0:40:6f:1e
wpa_driver_wext_set_key: alg=0 key_idx=0 set_tx=0 seq_len=0 key_len=0
wpa_driver_wext_set_key: alg=0 key_idx=1 set_tx=0 seq_len=0 key_len=0
wpa_driver_wext_set_key: alg=0 key_idx=2 set_tx=0 seq_len=0 key_len=0
wpa_driver_wext_set_key: alg=0 key_idx=3 set_tx=0 seq_len=0 key_len=0
wpa_driver_wext_set_countermeasures
RSN: flushing PMKID list in the driver
Setting scan request: 0 sec 100000 usec
EAPOL: SUPP_PAE entering state DISCONNECTED
EAPOL: Supplicant port status: Unauthorized
EAPOL: KEY_RX entering state NO_KEY_RECEIVE
EAPOL: SUPP_BE entering state INITIALIZE
EAP: EAP entering state DISABLED
EAPOL: Supplicant port status: Unauthorized
EAPOL: Supplicant port status: Unauthorized
Added interface wlan0
Daemonize..
~ >: phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 2 - CWmin: 4, CWmax: 10, Aifs: 3, TXop: 0.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 3 - CWmin: 4, CWmax: 10, Aifs: 7, TXop: 0.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 1 - CWmin: 3, CWmax: 4, Aifs: 2, TXop: 94.
phy0 -> rt2x00mac_conf_tx: Info - Configured TX queue 0 - CWmin: 2, CWmax: 3, Aifs: 2, TXop: 47.

查看当前网卡信息

~ >: ifconfig
eth0      Link encap:Ethernet  HWaddr 66:D8:26:8A:DA:F9
          inet addr:192.168.1.250  Bcast:192.168.1.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:64 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:6232 (6.0 KiB)  TX bytes:0 (0.0 B)
          Interrupt:51 Base address:0x6300

wlan0     Link encap:Ethernet  HWaddr 00:A1:B0:40:6F:1E
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:19 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:6178 (6.0 KiB)  TX bytes:443 (443.0 B)

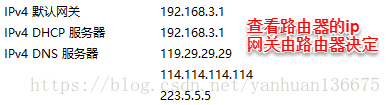

由于还没有开启DHCP，所以需要手动分配IP等各种配置，这里配置由你的网络环境决定。

配置IP地址

~ >: ifconfig wlan0 192.168.3.211
~ >: ifconfig
eth0      Link encap:Ethernet  HWaddr 66:D8:26:8A:DA:F9
          inet addr:192.168.1.250  Bcast:192.168.1.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:67 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:6520 (6.3 KiB)  TX bytes:0 (0.0 B)
          Interrupt:51 Base address:0x6300

wlan0     Link encap:Ethernet  HWaddr 00:A1:B0:40:6F:1E
          inet addr:192.168.3.211  Bcast:192.168.3.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:55 errors:0 dropped:2 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:15313 (14.9 KiB)  TX bytes:443 (443.0 B)

配置默认网关和DNS

~ >: route add default gw 192.168.3.1
~ >: echo "nameserver 114.114.114.114" > /etc/resolv.conf
~ >: ifconfig
eth0      Link encap:Ethernet  HWaddr 66:D8:26:8A:DA:F9
          inet addr:192.168.1.250  Bcast:192.168.1.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:91 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:8824 (8.6 KiB)  TX bytes:0 (0.0 B)
          Interrupt:51 Base address:0x6300

wlan0     Link encap:Ethernet  HWaddr 00:A1:B0:40:6F:1E
          inet addr:192.168.3.211  Bcast:192.168.3.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:155 errors:0 dropped:34 overruns:0 frame:0
          TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:29699 (29.0 KiB)  TX bytes:443 (443.0 B)

ping测试

~ >: ping baidu.com
PING baidu.com (220.181.57.216): 56 data bytes
64 bytes from 220.181.57.216: seq=0 ttl=44 time=325.000 ms
64 bytes from 220.181.57.216: seq=1 ttl=44 time=335.000 ms
64 bytes from 220.181.57.216: seq=2 ttl=44 time=185.000 ms

网卡成功联网，网卡芯片快速闪烁

使能DHCP服务

上面只能手动配置ip，现在开启DHCP服务，使其自动获取IP地址。

busybox已经集成了DHCP的客户端和服务端，源码编译过后的examples/udhcpc/simple.script作为DHCP客户端的示例配置文件如下，将其重命名为/usr/share/udhcpc/default.script，特别注意必须给default.script可执行权限。

/usr/share/udhcpc >: vim default.scrupt
#!/bin/sh
# udhcpc script edited by Yanhuan

RESOLV_CONF="/etc/resolv.conf"

[ -n "$1" ] || { echo "Error: should be called from udhcpc"; exit 1; }

NETMASK=""
[ -n "$subnet" ] && NETMASK="netmask $subnet"
BROADCAST="broadcast +"
[ -n "$broadcast" ] && BROADCAST="broadcast $broadcast"

case "$1" in
    deconfig)
        echo "Setting IP address 0.0.0.0 on $interface"
        ifconfig $interface 0.0.0.0
        ;;

    renew|bound)
        echo "Setting IP address $ip on $interface"
        ifconfig $interface $ip $NETMASK $BROADCAST

        if [ -n "$router" ] ; then
            echo "Deleting routers"
            while route del default gw 0.0.0.0 dev $interface ; do
                :
            done

            metric=0
            for i in $router ; do
                echo "Adding router $i"
                route add default gw $i dev $interface metric $((metric++))
            done
        fi

        echo "Recreating $RESOLV_CONF"
        echo -n > $RESOLV_CONF-$$
        [ -n "$domain" ] && echo "search $domain" >> $RESOLV_CONF-$$
        for i in $dns ; do
            echo " Adding DNS server $i"
            echo "nameserver $i" >> $RESOLV_CONF-$$
        done
        mv $RESOLV_CONF-$$ $RESOLV_CONF
        ;;
esac

exit 0

~ >: ls /usr/share/udhcpc/
default.script
~ >: udhcpc -i wlan0
udhcpc: started, v1.27.1
udhcpc: sending discover
udhcpc: sending select for 192.168.3.136
udhcpc: sending select for 192.168.3.136
udhcpc: lease of 192.168.3.136 obtained, lease time 86400
#成功

执行udhcpc -i wlan0之后即可自动获取IP，执行这个命令后udhcpc会以守护进程方式在后台运行。
