spring-mvc request 处理(三)

本文详细剖析了Spring MVC框架中DispatcherServlet的工作原理,包括请求处理流程、doDispatch方法执行细节、Handler查找机制以及拦截器的工作机制。

1 首先来跟踪一下全局调用链(Dispatcherservlet)

这里写图片描述
上图可以看出doDispatch方法是主要由6种请求方式调来,分析doDispatch方法前,我觉得有必要分析一个FrameworkServlet.processRequesty方法

protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {

    long startTime = System.currentTimeMillis();
    Throwable failureCause = null;
    //请求本地信息
    LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
    LocaleContext localeContext = buildLocaleContext(request);

    //request处理,r
    RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
    ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
    asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new FrameworkServlet.RequestBindingInterceptor());

    //初台化请求求处理
    initContextHolders(request, localeContext, requestAttributes);

    try {
        doService(request, response);
    }
    catch (ServletException ex) {
        failureCause = ex;
        throw ex;
    }
    catch (IOException ex) {
        failureCause = ex;
        throw ex;
    }
    catch (Throwable ex) {
        failureCause = ex;
        throw new NestedServletException("Request processing failed", ex);
    }

    finally {
        resetContextHolders(request, previousLocaleContext, previousAttributes);
        if (requestAttributes != null) {
            requestAttributes.requestCompleted();
        }

        if (logger.isDebugEnabled()) {
            if (failureCause != null) {
                this.logger.debug("Could not complete request", failureCause);
            }
            else {
                if (asyncManager.isConcurrentHandlingStarted()) {
                    logger.debug("Leaving response open for concurrent processing");
                }
                else {
                    this.logger.debug("Successfully completed request");
                }
            }
        }
        //发布请求处理
        publishRequestHandledEvent(request, response, startTime, failureCause);
    }
}

2. doDispatch 方法概览

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    //处理器调用连,包含拦截器及处理器
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {
            //检测是否有文件上传
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            // Determine handler for the current request.
            //1.通的HandlerMappping所有实现寻找请求对应的handler
            mappedHandler = getHandler(processedRequest);
            if (mappedHandler == null || mappedHandler.getHandler() == null) {
                //没找到相应处理器
                noHandlerFound(processedRequest, response);
                return;
            }

            // Determine handler adapter for the current request.
            //获取处理器适配器
            HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

            // Process last-modified header, if supported by the handler.
            String method = request.getMethod();
            boolean isGet = "GET".equals(method);
            if (isGet || "HEAD".equals(method)) {
                long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                if (logger.isDebugEnabled()) {
                    logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
                }
                if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                    return;
                }
            }
            //2.拦截器前置调用
            if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                return;
            }

            //3.适配器调用目标方法
            mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            if (asyncManager.isConcurrentHandlingStarted()) {
                return;
            }

            applyDefaultViewName(processedRequest, mv);
            //4.拦截器后置调用
            mappedHandler.applyPostHandle(processedRequest, response, mv);
        }
        catch (Exception ex) {
            dispatchException = ex;
        }
        catch (Throwable err) {
            // As of 4.3, we're processing Errors thrown from handler methods as well,
            // making them available for @ExceptionHandler methods and other scenarios.
            dispatchException = new NestedServletException("Handler dispatch failed", err);
        }
        //调用结果处理
        processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
    }
    catch (Exception ex) {
        //5.调用异常处理
        triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
    }
    catch (Throwable err) {
        triggerAfterCompletion(processedRequest, response, mappedHandler,
                new NestedServletException("Handler processing failed", err));
    }
    finally {
        if (asyncManager.isConcurrentHandlingStarted()) {
            // Instead of postHandle and afterCompletion
            if (mappedHandler != null) {
                mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
            }
        }
        else {
            // Clean up any resources used by a multipart request.
            if (multipartRequestParsed) {
                cleanupMultipart(processedRequest);
            }
        }
    }
}

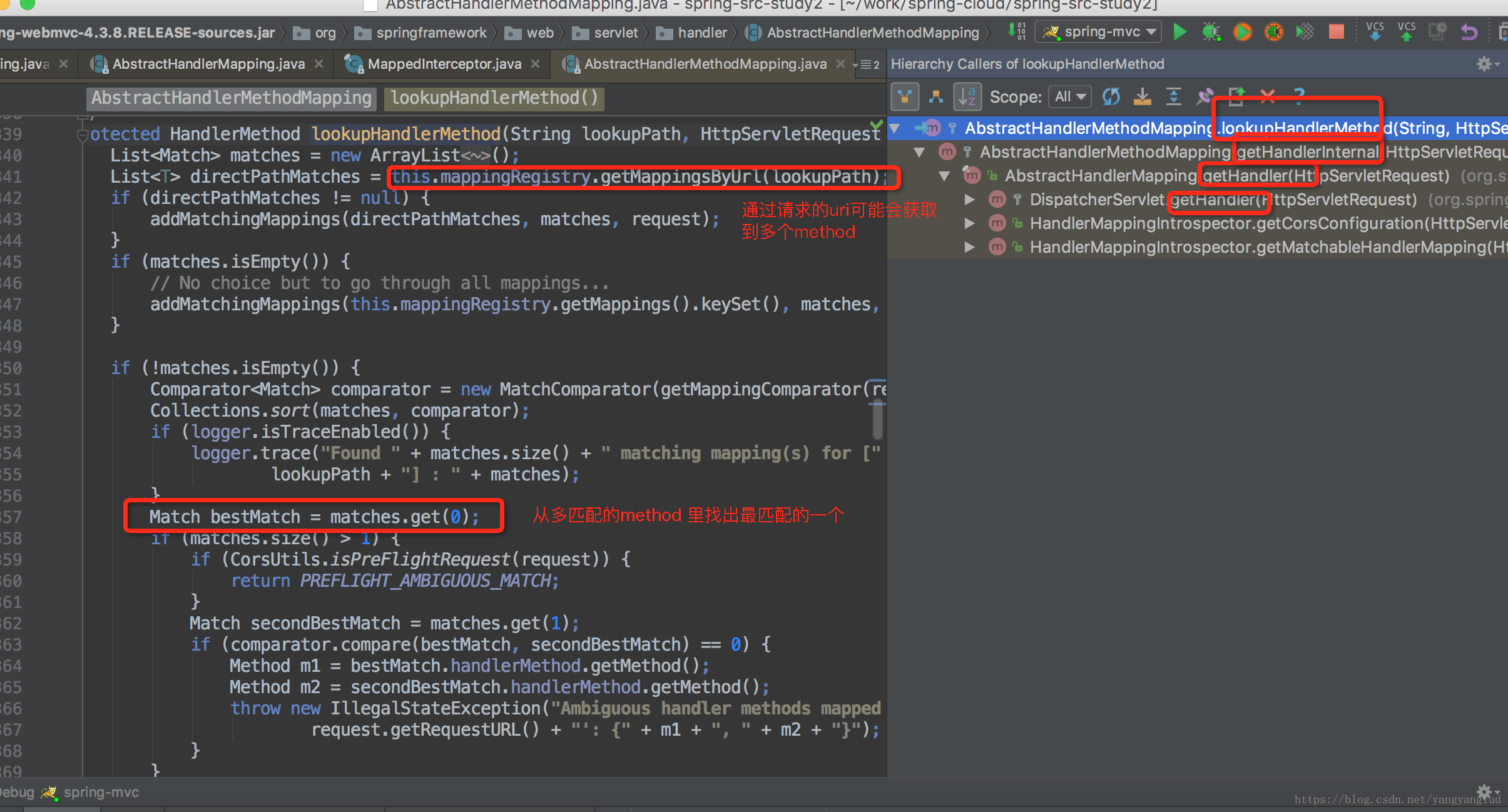

3. 请求 handler 查找过程

这里写图片描述

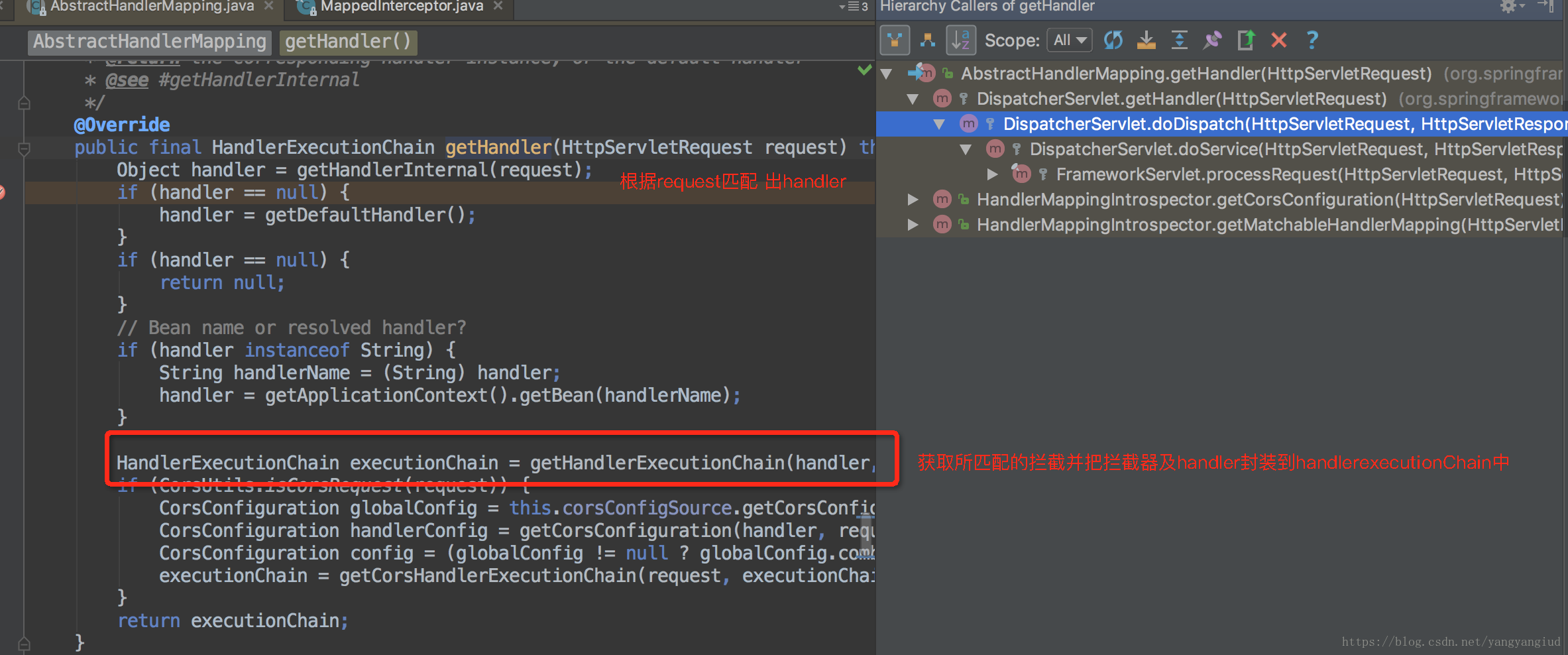

4.拦截器的获取及前置拦截和后置拦截调用

这里写图片描述

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {

HandlerInterceptor[] interceptors = getInterceptors();
   if (!ObjectUtils.isEmpty(interceptors)) {//前置拦截
      for (int i = 0; i < interceptors.length; i++) {
         HandlerInterceptor interceptor = interceptors[i];
         if (!interceptor.preHandle(request, response, this.handler)) {
            triggerAfterCompletion(request, response, null);
            return false;
         }
         this.interceptorIndex = i;//记录当前调用拦截到的位置,待到触发完调用完成拦截反着顺退出
      }
   }
   return true;
}

void applyPostHandle(HttpServletRequest request, HttpServletResponse response, ModelAndView mv) throws Exception {
   HandlerInterceptor[] interceptors = getInterceptors();
   if (!ObjectUtils.isEmpty(interceptors)) {
      for (int i = interceptors.length - 1; i >= 0; i--) {//后置拦截,反顺序调用
         HandlerInterceptor interceptor = interceptors[i];
         interceptor.postHandle(request, response, this.handler, mv);
      }
   }
}

void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, Exception ex)
      throws Exception {

   HandlerInterceptor[] interceptors = getInterceptors();
   if (!ObjectUtils.isEmpty(interceptors)) {
      for (int i = this.interceptorIndex; i >= 0; i--) {//触发完成调用,从前置拦截最后一个拦截器位置,反顺调用
         HandlerInterceptor interceptor = interceptors[i];
         try {
            interceptor.afterCompletion(request, response, this.handler, ex);
         }
         catch (Throwable ex2) {
            logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
         }
      }
   }
}
