XXL-JOB-2.4.0执行器整合应用端口

2023年10月16日

10:33

1、在XxlJobConfig中新增ExecutorBiz实例注入到spring容器中

    @Bean(name = "executorBiz")
    public ExecutorBiz xxlExecutorBiz() {
        return new ExecutorBizImpl();
    }

2、在应用中新建XXLjob执行器所需的rest接口

package com.xxl.job.executor.mvc.controller;

import com.xxl.job.core.biz.ExecutorBiz;
import com.xxl.job.core.biz.model.IdleBeatParam;
import com.xxl.job.core.biz.model.KillParam;
import com.xxl.job.core.biz.model.LogParam;
import com.xxl.job.core.biz.model.TriggerParam;
import com.xxl.job.core.util.GsonTool;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

@RestController
@RequestMapping("xxljob")
@EnableAutoConfiguration
public class XxljobController {

    @Resource
    private ExecutorBiz executorBiz;

    @PostMapping("beat")
    @ResponseBody
    public Object beat() {
        return executorBiz.beat();
    }

    @PostMapping("idleBeat")
    @ResponseBody
    public Object idleBeat(@RequestBody final String requestData) {
        final IdleBeatParam idleBeatParam = GsonTool.fromJson(requestData, IdleBeatParam.class);
        return this.executorBiz.idleBeat(idleBeatParam);
    }

    @PostMapping("run")
    @ResponseBody
    public Object run(@RequestBody final String requestData) {
        final TriggerParam triggerParam = GsonTool.fromJson(requestData, TriggerParam.class);
        return this.executorBiz.run(triggerParam);
    }

    @PostMapping("kill")
    @ResponseBody
    public Object kill(@RequestBody final String requestData) {
        final KillParam killParam = GsonTool.fromJson(requestData, KillParam.class);
        return this.executorBiz.kill(killParam);
    }

    @PostMapping("log")
    @ResponseBody
    public Object log(@RequestBody final String requestData) {
        final LogParam logParam = GsonTool.fromJson(requestData, LogParam.class);
        return this.executorBiz.log(logParam);
    }
}

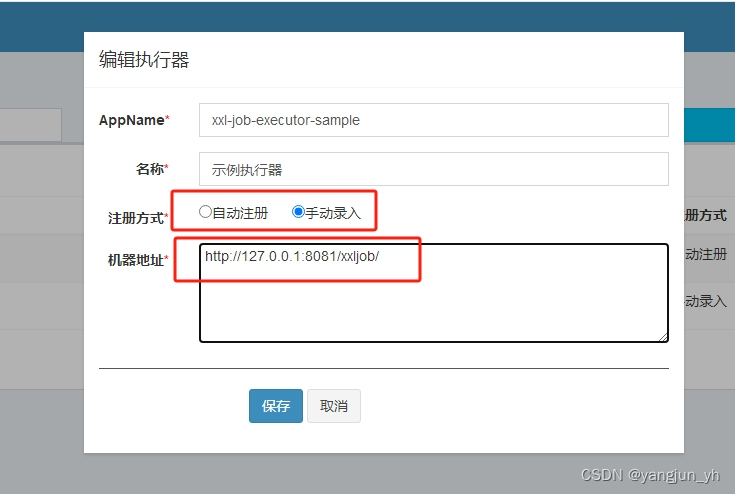

3、在调度中心执行器管理中配置注册方式为手动，地址为：http://ip:prot/context/xxljob/即可，调度中心在执行任务时即可通过应用端口进行任务调度，不从默认的9999端口进行访问
