Activity View加载过程－源码分析

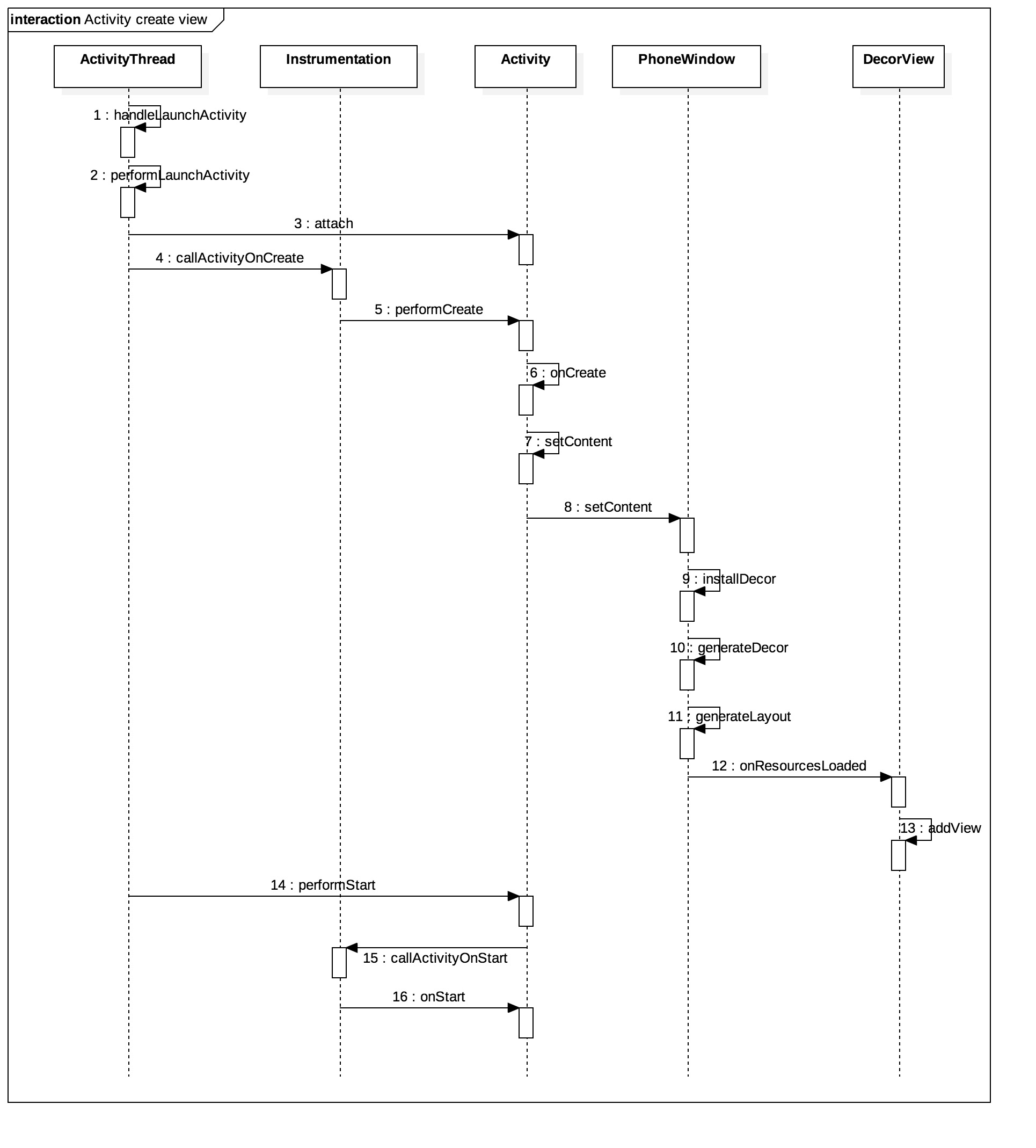

从ActivityThread handleLaunchActivity() 方法开始，时序图如下：

接下来一步步去跟踪源码分析：

1、第一步通过ActivityThread Handler子类H 调用handleLaunchActivity方法。

private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent, String reason) {
        // If we are getting ready to gc after going to the background, well
        // we are back active so skip it.
        unscheduleGcIdler();
        mSomeActivitiesChanged = true;

        ......省略代码
        WindowManagerGlobal.initialize();

        Activity a = performLaunchActivity(r, customIntent);

        ......省略代码
    }

2、然后调用performLaunchActivity通过反射来创建Activity对象。

private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {

        ......省略代码

        ContextImpl appContext = createBaseContextForActivity(r);
        Activity activity = null;
        try {
            java.lang.ClassLoader cl = appContext.getClassLoader();
            activity = mInstrumentation.newActivity(
                    cl, component.getClassName(), r.intent);
            StrictMode.incrementExpectedActivityCount(activity.getClass());
            r.intent.setExtrasClassLoader(cl);
            r.intent.prepareToEnterProcess();
            if (r.state != null) {
                r.state.setClassLoader(cl);
            }
        } catch (Exception e) {
            if (!mInstrumentation.onException(activity, e)) {
                throw new RuntimeException(
                    "Unable to instantiate activity " + component
                    + ": " + e.toString(), e);
            }
        }

        try {
            Application app = r.packageInfo.makeApplication(false, mInstrumentation);

            if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
            if (localLOGV) Slog.v(
                    TAG, r + ": app=" + app
                    + ", appName=" + app.getPackageName()
                    + ", pkg=" + r.packageInfo.getPackageName()
                    + ", comp=" + r.intent.getComponent().toShortString()
                    + ", dir=" + r.packageInfo.getAppDir());

            if (activity != null) {
                CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
                Configuration config = new Configuration(mCompatConfiguration);
                if (r.overrideConfig != null) {
                    config.updateFrom(r.overrideConfig);
                }
                if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
                        + r.activityInfo.name + " with config " + config);
                Window window = null;
                if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
                    window = r.mPendingRemoveWindow;
                    r.mPendingRemoveWindow = null;
                    r.mPendingRemoveWindowManager = null;
                }
                appContext.setOuterContext(activity);
                activity.attach(appContext, this, getInstrumentation(), r.token,
                        r.ident, app, r.intent, r.activityInfo, title, r.parent,
                        r.embeddedID, r.lastNonConfigurationInstances, config,
                        r.referrer, r.voiceInteractor, window, r.configCallback);

                if (customIntent != null) {
                    activity.mIntent = customIntent;
                }
                r.lastNonConfigurationInstances = null;
                checkAndBlockForNetworkAccess();
                activity.mStartedActivity = false;
                int theme = r.activityInfo.getThemeResource();
                if (theme != 0) {
                    activity.setTheme(theme);
                }

                activity.mCalled = false;
                if (r.isPersistable()) {
                    mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
                } else {
                    mInstrumentation.callActivityOnCreate(activity, r.state);
                }


        return activity;
    }

3、调用attach传入一系列参数对象，并且调用Instrumentation类的 callActivityOnCreate方法

public void callActivityOnCreate(Activity activity, Bundle icicle,
            PersistableBundle persistentState) {
        prePerformCreate(activity);
        activity.performCreate(icicle, persistentState);
        postPerformCreate(activity);
    }

4、然后调用Activity的performCreate方法并继续调用平时最常见到的onCreate方法。

final void performCreate(Bundle icicle, PersistableBundle persistentState) {
        mCanEnterPictureInPicture = true;
        restoreHasCurrentPermissionRequest(icicle);
        if (persistentState != null) {
            onCreate(icicle, persistentState);
        } else {
            onCreate(icicle);
        }
        mActivityTransitionState.readState(icicle);

        mVisibleFromClient = !mWindow.getWindowStyle().getBoolean(
                com.android.internal.R.styleable.Window_windowNoDisplay, false);
        mFragments.dispatchActivityCreated();
        mActivityTransitionState.setEnterActivityOptions(this, getActivityOptions());
    }

5、接下来就会调用平时在自己Activity onCreate中写的setContent方法，这里的getWindow获取的就是前面attachy方法中创建的PhoneWindow对象

public void setContentView(View view) {
        getWindow().setContentView(view);
        initWindowDecorActionBar();
    }

下面的 mWindow = new PhoneWindow(this, window, activityConfigCallback);

final void attach(Context context, ActivityThread aThread,
            Instrumentation instr, IBinder token, int ident,
            Application application, Intent intent, ActivityInfo info,
            CharSequence title, Activity parent, String id,
            NonConfigurationInstances lastNonConfigurationInstances,
            Configuration config, String referrer, IVoiceInteractor voiceInteractor,
            Window window, ActivityConfigCallback activityConfigCallback) {
        attachBaseContext(context);

        mFragments.attachHost(null /*parent*/);

        mWindow = new PhoneWindow(this, window, activityConfigCallback);
        mWindow.setWindowControllerCallback(this);
        ......省略代码
    }

6、这里调用PhoneWindow中的setContent方法来进行初始化相关View。

@Override
    public void setContentView(View view, ViewGroup.LayoutParams params) {

        if (mContentParent == null) {
            installDecor();
        } else if (!hasFeature(FEATURE_CONTENT_TRANSITIONS)) {
            mContentParent.removeAllViews();
        }

        if (hasFeature(FEATURE_CONTENT_TRANSITIONS)) {
            view.setLayoutParams(params);
            final Scene newScene = new Scene(mContentParent, view);
            transitionTo(newScene);
        } else {
            mContentParent.addView(view, params);
        }
        ...... 省略相关代码
    }

7、在这进入installDecor方法。

private void installDecor() {
        mForceDecorInstall = false;
        if (mDecor == null) {
            mDecor = generateDecor(-1);
            mDecor.setDescendantFocusability(ViewGroup.FOCUS_AFTER_DESCENDANTS);
            mDecor.setIsRootNamespace(true);
            if (!mInvalidatePanelMenuPosted && mInvalidatePanelMenuFeatures != 0) {
                mDecor.postOnAnimation(mInvalidatePanelMenuRunnable);
            }
        } else {
            mDecor.setWindow(this);
        }
        if (mContentParent == null) {
            mContentParent = generateLayout(mDecor);

            // Set up decor part of UI to ignore fitsSystemWindows if appropriate.
            mDecor.makeOptionalFitsSystemWindows();

            final DecorContentParent decorContentParent = (DecorContentParent) mDecor.findViewById(
                    R.id.decor_content_parent);

           ......省略代码


    }

8、此时会调用installDecor方法来生成DecorView，这里会发现DecorView其实是继承自FrameLayout的。

protected DecorView generateDecor(int featureId) {
        // System process doesn't have application context and in that case we need to directly use
        // the context we have. Otherwise we want the application context, so we don't cling to the
        // activity.
        Context context;
        if (mUseDecorContext) {
            Context applicationContext = getContext().getApplicationContext();
            if (applicationContext == null) {
                context = getContext();
            } else {
                context = new DecorContext(applicationContext, getContext().getResources());
                if (mTheme != -1) {
                    context.setTheme(mTheme);
                }
            }
        } else {
            context = getContext();
        }
        return new DecorView(context, featureId, this, getAttributes());
    }

9、上面installDecor在生成DecorView之后还会调用generateLayout 根据theme去选择相应的布局通过onResourcesLoaded方法填充到DecorView中去，并且返回com.android.internal.R.id.content这个FrameLayout

protected ViewGroup generateLayout(DecorView decor) {
        mDecor.startChanging();
        mDecor.onResourcesLoaded(mLayoutInflater, layoutResource);

        ViewGroup contentParent = (ViewGroup)findViewById(ID_ANDROID_CONTENT);
        if (contentParent == null) {
            throw new RuntimeException("Window couldn't find content container view");
        }

        return contentParent;
    }

二、上面分析的是Activity启动时View的创建过程，接下来分析Resume View流程，时序图如下：

1、通过ActivityThread Handler子类H 调用handleResumeActivity方法，通过getWindowManager获取WindowManager的实现类WindowManagerImpl对象

final void handleResumeActivity(IBinder token,
            boolean clearHide, boolean isForward, boolean reallyResume, int seq, String reason) {
        // TODO Push resumeArgs into the activity for consideration
        r = performResumeActivity(token, clearHide, reason);

        if (r != null) {
            final Activity a = r.activity;


            // The window is now visible if it has been added, we are not
            // simply finishing, and we are not starting another activity.
            if (!r.activity.mFinished && willBeVisible
                    && r.activity.mDecor != null && !r.hideForNow) {
                if (r.newConfig != null) {
                    performConfigurationChangedForActivity(r, r.newConfig);
                    if (DEBUG_CONFIGURATION) Slog.v(TAG, "Resuming activity "
                            + r.activityInfo.name + " with newConfig " + r.activity.mCurrentConfig);
                    r.newConfig = null;
                }
                if (localLOGV) Slog.v(TAG, "Resuming " + r + " with isForward="
                        + isForward);
                WindowManager.LayoutParams l = r.window.getAttributes();
                if ((l.softInputMode
                        & WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION)
                        != forwardBit) {
                    l.softInputMode = (l.softInputMode
                            & (~WindowManager.LayoutParams.SOFT_INPUT_IS_FORWARD_NAVIGATION))
                            | forwardBit;
                    if (r.activity.mVisibleFromClient) {
                        ViewManager wm = a.getWindowManager();
                        View decor = r.window.getDecorView();
                        wm.updateViewLayout(decor, l);
                    }
                }

                r.activity.mVisibleFromServer = true;
                mNumVisibleActivities++;
                if (r.activity.mVisibleFromClient) {
                    r.activity.makeVisible();
                }
            }

    }

2、接下来调用WindowManagerImpl的addView方法。

@Override
    public void addView(@NonNull View view, @NonNull ViewGroup.LayoutParams params) {
        applyDefaultToken(params);
        mGlobal.addView(view, params, mContext.getDisplay(), mParentWindow);
    }

3、调用WindowManagerGlobal的addView方法，同时生成ViewRootImpl对象

public void addView(View view, ViewGroup.LayoutParams params,
            Display display, Window parentWindow) {
        ViewRootImpl root;
        View panelParentView = null;

        ...... 省略代码
            root = new ViewRootImpl(view.getContext(), display);

            view.setLayoutParams(wparams);

            mViews.add(view);
            mRoots.add(root);
            mParams.add(wparams);

            // do this last because it fires off messages to start doing things
            try {
                root.setView(view, wparams, panelParentView);
            } catch (RuntimeException e) {
                // BadTokenException or InvalidDisplayException, clean up.
                if (index >= 0) {
                    removeViewLocked(index, true);
                }
                throw e;
            }
        }
    }

4、调用ViewRootImpl的setView方法

public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
        synchronized (this) {
            if (mView == null) {
                mView = view;

                mAdded = true;
                int res; /* = WindowManagerImpl.ADD_OKAY; */

                // Schedule the first layout -before- adding to the window
                // manager, to make sure we do the relayout before receiving
                // any other events from the system.
                requestLayout();
                if ((mWindowAttributes.inputFeatures
                        & WindowManager.LayoutParams.INPUT_FEATURE_NO_INPUT_CHANNEL) == 0) {
                    mInputChannel = new InputChannel();
                }
                mForceDecorViewVisibility = (mWindowAttributes.privateFlags
                        & PRIVATE_FLAG_FORCE_DECOR_VIEW_VISIBILITY) != 0;
        }
    }

5、这里调用requestLayout来初始化Layout

@Override
    public void requestLayout() {
        if (!mHandlingLayoutInLayoutRequest) {
            checkThread();
            mLayoutRequested = true;
            scheduleTraversals();
        }
    }

void scheduleTraversals() {
        if (!mTraversalScheduled) {
            mTraversalScheduled = true;
            mTraversalBarrier = mHandler.getLooper().getQueue().postSyncBarrier();
            mChoreographer.postCallback(
                    Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null);
            if (!mUnbufferedInputDispatch) {
                scheduleConsumeBatchedInput();
            }
            notifyRendererOfFramePending();
            pokeDrawLockIfNeeded();
        }
    }

6、然后调用mTraversalRunnable中的doTraversal() 方法

void doTraversal() {
        if (mTraversalScheduled) {
            mTraversalScheduled = false;
            mHandler.getLooper().getQueue().removeSyncBarrier(mTraversalBarrier);

            if (mProfile) {
                Debug.startMethodTracing("ViewAncestor");
            }

            performTraversals();

            if (mProfile) {
                Debug.stopMethodTracing();
                mProfile = false;
            }
        }
    }

7、调用performTraversals，然后依次调用 performMeasure、performLayout、performDraw()，分别进行View的测量、布局、及绘制。

private void performTraversals() {
            if (!mStopped || mReportNextDraw) {
                boolean focusChangedDueToTouchMode = ensureTouchModeLocally(
                        (relayoutResult&WindowManagerGlobal.RELAYOUT_RES_IN_TOUCH_MODE) != 0);
                if (focusChangedDueToTouchMode || mWidth != host.getMeasuredWidth()
                        || mHeight != host.getMeasuredHeight() || contentInsetsChanged ||
                        updatedConfiguration) {
                    int childWidthMeasureSpec = getRootMeasureSpec(mWidth, lp.width);
                    int childHeightMeasureSpec = getRootMeasureSpec(mHeight, lp.height);

                    if (DEBUG_LAYOUT) Log.v(mTag, "Ooops, something changed!  mWidth="
                            + mWidth + " measuredWidth=" + host.getMeasuredWidth()
                            + " mHeight=" + mHeight
                            + " measuredHeight=" + host.getMeasuredHeight()
                            + " coveredInsetsChanged=" + contentInsetsChanged);

                     // Ask host how big it wants to be
                    performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);

                    // Implementation of weights from WindowManager.LayoutParams
                    // We just grow the dimensions as needed and re-measure if
                    // needs be
                    int width = host.getMeasuredWidth();
                    int height = host.getMeasuredHeight();
                    boolean measureAgain = false;

                    if (lp.horizontalWeight > 0.0f) {
                        width += (int) ((mWidth - width) * lp.horizontalWeight);
                        childWidthMeasureSpec = MeasureSpec.makeMeasureSpec(width,
                                MeasureSpec.EXACTLY);
                        measureAgain = true;
                    }
                    if (lp.verticalWeight > 0.0f) {
                        height += (int) ((mHeight - height) * lp.verticalWeight);
                        childHeightMeasureSpec = MeasureSpec.makeMeasureSpec(height,
                                MeasureSpec.EXACTLY);
                        measureAgain = true;
                    }

                    if (measureAgain) {
                        if (DEBUG_LAYOUT) Log.v(mTag,
                                "And hey let's measure once more: width=" + width
                                + " height=" + height);
                        performMeasure(childWidthMeasureSpec, childHeightMeasureSpec);
                    }

                    layoutRequested = true;
                }
            }
        } else {
            // Not the first pass and no window/insets/visibility change but the window
            // may have moved and we need check that and if so to update the left and right
            // in the attach info. We translate only the window frame since on window move
            // the window manager tells us only for the new frame but the insets are the
            // same and we do not want to translate them more than once.
            maybeHandleWindowMove(frame);
        }

        final boolean didLayout = layoutRequested && (!mStopped || mReportNextDraw);
        boolean triggerGlobalLayoutListener = didLayout
                || mAttachInfo.mRecomputeGlobalAttributes;
        if (didLayout) {
            performLayout(lp, mWidth, mHeight);

            // By this point all views have been sized and positioned
            // We can compute the transparent area

            if ((host.mPrivateFlags & View.PFLAG_REQUEST_TRANSPARENT_REGIONS) != 0) {
                // start out transparent
                // TODO: AVOID THAT CALL BY CACHING THE RESULT?
                host.getLocationInWindow(mTmpLocation);
                mTransparentRegion.set(mTmpLocation[0], mTmpLocation[1],
                        mTmpLocation[0] + host.mRight - host.mLeft,
                        mTmpLocation[1] + host.mBottom - host.mTop);

                host.gatherTransparentRegion(mTransparentRegion);
                if (mTranslator != null) {
                    mTranslator.translateRegionInWindowToScreen(mTransparentRegion);
                }

                if (!mTransparentRegion.equals(mPreviousTransparentRegion)) {
                    mPreviousTransparentRegion.set(mTransparentRegion);
                    mFullRedrawNeeded = true;
                    // reconfigure window manager
                    try {
                        mWindowSession.setTransparentRegion(mWindow, mTransparentRegion);
                    } catch (RemoteException e) {
                    }
                }
            }

            if (DBG) {
                System.out.println("======================================");
                System.out.println("performTraversals -- after setFrame");
                host.debug();
            }
        }


        if (!cancelDraw && !newSurface) {
            if (mPendingTransitions != null && mPendingTransitions.size() > 0) {
                for (int i = 0; i < mPendingTransitions.size(); ++i) {
                    mPendingTransitions.get(i).startChangingAnimations();
                }
                mPendingTransitions.clear();
            }

            performDraw();
        } else {
            if (isViewVisible) {
                // Try again
                scheduleTraversals();
            } else if (mPendingTransitions != null && mPendingTransitions.size() > 0) {
                for (int i = 0; i < mPendingTransitions.size(); ++i) {
                    mPendingTransitions.get(i).endChangingAnimations();
                }
                mPendingTransitions.clear();
            }
        }

        mIsInTraversal = false;
    }
