CUDA性能优化系列——Kmeans算法调优（三）

最新推荐文章于 2025-07-15 08:50:17 发布

原创

最新推荐文章于 2025-07-15 08:50:17 发布 · 2k 阅读

3 ·

CC 4.0 BY-SA版权

文章标签：

#cuda #gpgpu

本文探讨了四种不同的GPU计算调度方式：单流同步调用、单流异步调用、多流执行（通过OpenMP开启4个线程，每个线程持有一个流）以及多流执行但不添加事件同步。通过对KMeans算法的实现，比较了它们的执行时间和内存拷贝overlap效果。结果显示，多流执行并添加事件同步的方式能有效提高执行效率，但执行结果稳定性有待提升。

本篇对调度方式进行优化，实现内存拷贝和计算overlap。

单流同步调用

/*
单流同步
*/
void CallKmeansSync()
{


	//TODO:init host memory
	float* h_Src/*[Coords][SrcCount]*/,
		* h_Clusters/*[ClusterCount][Coords]*/;
	int* h_MemberShip/*[kSrcCount]*/,
		* h_MemberCount/*[kClusterCount]*/;
	h_Src = (float*)malloc(kSrcCount * kCoords * sizeof(float));
	h_Clusters = (float*)malloc(kClusterCount * kCoords * sizeof(float));/*[kClusterCount][kCoords]*/
	for (size_t i = 0; i < kClusterCount; i++)
	{


		for (int j = 0; j < kCoords; ++j)
		{


			h_Clusters[i * kCoords + j] = float(100 * i + 10);
		}
	}
	for (size_t i = 0; i < kClusterCount; i++)
	{


		for (size_t j = 0; j < (kSrcCount / kClusterCount); j++)
		{


			for (size_t iDim = 0; iDim < kCoords; iDim++)
			{


				h_Src[iDim * kSrcCount + i * (kSrcCount / kClusterCount) + j] = i * 100 + 0.5f;// -(float)((rand() % 100) / 100);
			}
		}
	}
	h_MemberShip = (int*)malloc(kSrcCount * sizeof(int));
	memset(h_MemberShip, 9, kSrcCount * sizeof(int));
	h_MemberCount = (int*)malloc(kClusterCount * sizeof(int));
	memset(h_MemberCount, 0, kClusterCount * sizeof(int));

	//TODO:init device mempry
	float* d_pSrc/*[Coords][SrcCount]*/,
		* d_pClusters/*[ClusterCount][Coords]*/;
	int* d_pChanged/*[1]*/,
		* d_pMemberShip/*[kSrcCount]*/,
		* d_pMemberCount/*[kClusterCount]*/;
	cudaMalloc(&d_pSrc, kSrcCount * kCoords * sizeof(float));
	cudaMemcpy(d_pSrc, h_Src, kSrcCount * kCoords * sizeof(float), cudaMemcpyHostToDevice);

	cudaMalloc(&d_pClusters, kClusterCount * kCoords * sizeof(float));


	cudaMalloc(&d_pMemberShip, kSrcCount * sizeof(int));
	cudaMemcpy(d_pMemberShip, h_MemberShip, kSrcCount * sizeof(int), cudaMemcpyHostToDevice);

	cudaMalloc(&d_pMemberCount, kClusterCount * sizeof(int));
	cudaMemcpy(d_pMemberCount, h_MemberCount, kClusterCount * sizeof(int), cudaMemcpyHostToDevice);

	cudaMalloc(&d_pChanged, sizeof(int));

	//TODO:find the points
	int itCount = 0;
	int iChanged = 0;
	cudaStream_t sMember, sNewCluster;
	cudaStreamCreate(&sMember);
	cudaStreamCreate(&sNewCluster);
	cudaEvent_t eMember, eNewCluster;
	cudaEventCreate(&eMember);
	cudaEventCreate(&eNewCluster);
	do
	{


		{


			const int UnrollScale = 8;
			cudaMemcpy(d_pClusters, h_Clusters, kClusterCount * kCoords * sizeof(float), cudaMemcpyHostToDevice);//s1
			cudaMemset(d_pMemberCount, 0, kClusterCount * sizeof(int));//s1
			kKmeansClassifyMembershipMath<kCoords, UnrollScale, kClusterCount, kClusterUnroll> << <kGridCount * 1, kBlockSize / UnrollScale, kClusterCount* kCoords * sizeof(float) >> >
				(kSrcCount, kCoords, kClusterCount, d_pSrc, d_pMemberShip, d_pClusters, d_pChanged);
			checkCUDARtn(cudaDeviceSynchronize());
			cudaMemcpy(&iChanged, d_pChanged, sizeof(int), cudaMemcpyDeviceToHost);//s1
			cudaMemset(d_pChanged, 0, sizeof(int));//s1
			cudaMemset(d_pClusters, 0, kClusterCount * kCoords * sizeof(float));//s2
			const int kUnrollAdvUNROLLSCALE = 16;
			kkKmeansUnrollAdv<kBlockSize / kExecuteScale, kUnrollAdvUNROLLSCALE, kCoords, kClusterCount> << <kGridCount * kExecuteScale / kUnrollAdvUNROLLSCALE, kBlockSize / kExecuteScale, (kBlockSize * kCoords + kBlockSize) * sizeof(float) / kExecuteScale >> > (kSrcCount, kCoords, kClusterCount, d_pSrc, d_pMemberShip, d_pClusters, d_pMemberCount);//s2
			checkCUDARtn(cudaDeviceSynchronize());
			cudaMemcpy(h_MemberCount, d_pMemberCount, kClusterCount * sizeof(int), cudaMemcpyDeviceToHost);//s2
			cudaMemcpy(h_Clusters, d_pClusters, kClusterCount * kCoords * sizeof(float), cudaMemcpyDeviceToHost);//s2
			for (size_t i = 0; i < kClusterCount; i++)//s2
			{


				for (int j = 0; j < kCoords; ++j)
				{


					h_Clusters[i * kCoords + j] = (h_MemberCount[i] == 0) ? 0 : (h_Clusters[i * kCoords + j] / h_MemberCount[i]);
				}
			}
		}
	} while (/*(0 != iChanged) &&*/ itCount++ < 8);
	std::cout << "it count " << itCount << std::endl;
	cudaEventDestroy(eMember);
	cudaEventDestroy(eNewCluster);
	cudaStreamDestroy(sMember);
	cudaStreamDestroy(sNewCluster);
	free(h_Src);
	free(h_Clusters);
	free(h_MemberShip);
	free(h_MemberCount);
	cudaFree(d_pSrc);
	cudaFree(d_pClusters);
	cudaFree(d_pChanged);
	cudaFree(d_pMemberShip);
	cudaFree(d_pMemberCount);
}

void CallFunckmeans(int FuncIndex)
{


	const int kSingleStm = 0;
	const int kMultStm = 1;
	const int kPrevCopy = 2;
	const int kNonSync = 3;
	const int kSync = 4;
	if (FuncIndex == kSingleStm)
	{


		CallKmeansSingleStm();
	}
	else if (FuncIndex == kMultStm)
	{


		CallKmeansMultOverlap();
	}
	else if (FuncIndex == kPrevCopy)
	{


		CallKmeansMultPrevCopy();
	}
	else if (FuncIndex == kNonSync)
	{


		CallKmeansMultNonSync();
	}
	else if (FuncIndex == kSync)
	{


		CallKmeansSync();
	}
	return;
}

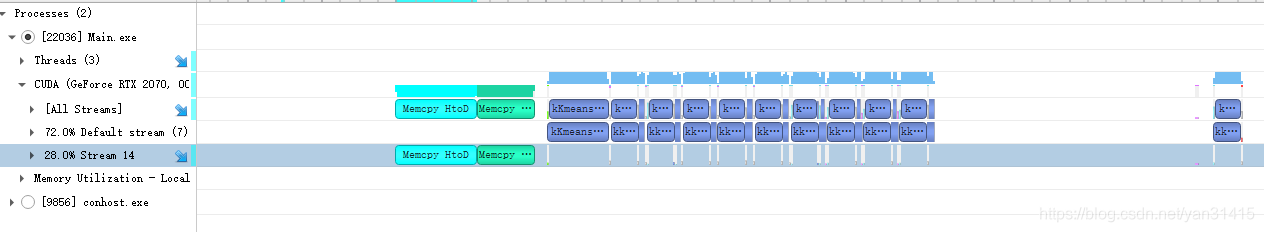

调度情况
在这里插入图片描述
总耗时7ms，可以看到核函数之间由于同步没有连续执行

单流异步调用

在这里插入代码片/*
单流异步
*/
void CallKmeansSingleStm()
{



	//TODO:init host memory
	float* h_Src/*[Coords][SrcCount]*/,
		* h_Clusters/*[ClusterCount][Coords]*/;
	int* h_MemberShip/*[kSrcCount]*/,
		* h_MemberCount/*[kClusterCount]*/;
	//h_Src = (float*)malloc(kSrcCount * kCoords * sizeof(float));
	cudaMallocHost(&h_Src, kSrcCount * kCoords * sizeof(float));
	h_Clusters = (float*)malloc(kClusterCount * kCoords * sizeof(float));/*[kClusterCount][kCoords]*/
	for (size_t i = 0; i < kClusterCount; i++)
	{


		for (int j = 0; j < kCoords; ++j)
		{


			h_Clusters[i * kCoords + j] = float(100 * i + 10);
		}
	}
	for (size_t i = 0; i < kClusterCount; i++)
	{


		for (size_t j = 0; j < (kSrcCount / kClusterCount); j++)
		{


			for (size_t iDim = 0; iDim < kCoords; iDim++)
			{


				h_Src[iDim * kSrcCount + i * (kSrcCount / kClusterCount) + j] = i * 100 + 0.5f;// -(float)((rand() % 100) / 100);
			}
		}
	}
	//h_MemberShip = (int*)malloc(kSrcCount * sizeof(int));
	cudaMallocHost(&h_MemberShip, kSrcCount * sizeof(int));
	memset(h_MemberShip, 9, kSrcCount * sizeof(int));
	h_MemberCount = (int*)malloc(kClusterCount * sizeof(int));
	memset(h_MemberCount, 0, kClusterCount * sizeof(int));

	//TODO:init stream
	cudaStream_t stm;
	cudaStreamCreate(&stm);
	const int EventNum = 10;
	cudaEvent_t event[EventNum];
	for (size_t i = 0; i < EventNum; i++)
	{


		cudaEventCreate(&event[i]);
	}

	//TODO:init device mempry
	float* d_pSrc/*[Coords][SrcCount]*/,
		* d_pClusters/*[ClusterCount][Coords]*/;
	int* d_pChanged/*[1]*/,
		* d_pMemberShip/*[kSrcCount]*/,
		* d_pMemberCount/*[kClusterCount]*/;
	cudaMalloc(&d_pSrc, kSrcCount * kCoords * sizeof(float));
	cudaMalloc(&d_pClusters, kClusterCount * k
