利用css+js制作广告轮播

现在一般的网站都有广告轮播的部分。参考了网上零零散散的教程,今天尝试自己做了各轮播的效果。放不了效果视频,就放个图片吧。
如下

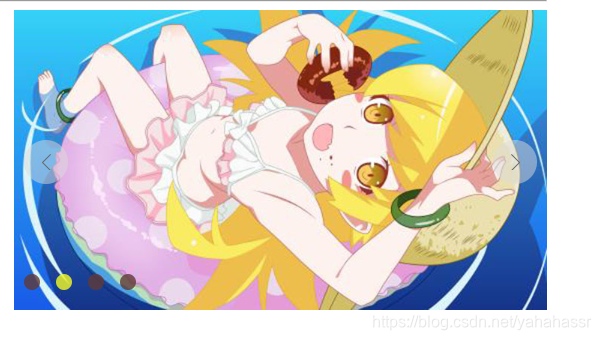

在这里插入图片描述
四张图片在滚动,每隔5秒向后跳一张,下方的四个点像走马灯一样一个个循环

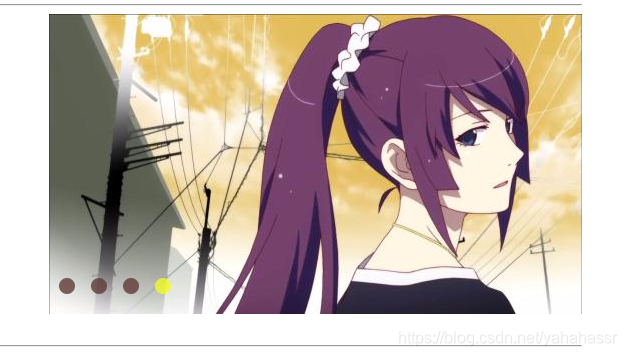

在这里插入图片描述
图片转换过程采取淡入淡出的渐变方式

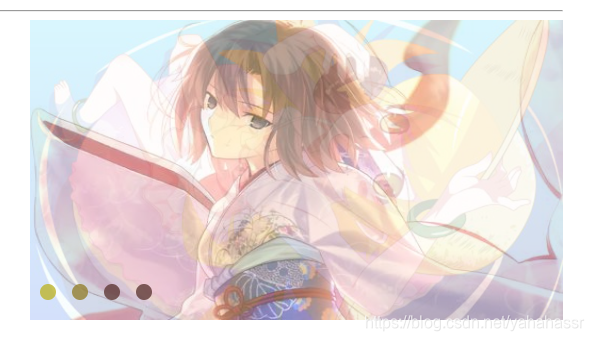

在这里插入图片描述
鼠标悬停在图片上方会出现,左右两个箭头。点击可以实现向前或向后跳转。当然点击下方的四个点也可以跳转。基本上就是常规的广告轮播。

实现方法、
html部分

	<div id="ad" class="ad" onmouseover="mouseover(this,1)" onmouseout="mouseover(this,0)">
		<!-- 向前箭头 -->
		<div class="prev-button" name="slide-button" onclick="add(-1)">
			<div class="slidePrev slide" id="prev" >
				<button class="prev" type="image"></button>
			</div>
		</div>
		<!-- 四张图片 -->
		<ul class="pic">
			<li><a href="https://www.baidu.com" target="_blank"><img name="adimages" class="adimage" src="img/index1.jpg" alt="广告" style="z-index: 10;"></a></li>
			<li><a href="https://www.bilibili.com" target="_blank"><img name="adimages" class="adimage" src="img/index2.jpg" alt="广告" ></a></li>
			<li><a href="https://www.163.com" target="_blank"><img name="adimages" class="adimage" src="img/index3.jpg" alt="广告" ></a></li>
			<li><a href="http://www.haoliners.net" target="_blank"><img name="adimages" class="adimage" src="img/index4.jpg" alt="广告" ></a></li>
		</ul>
		<!-- 下方4个小点 -->
		<div class="slide-point">
			<ul>
				<li class="slide-point-focus first-point" name="points" id="1" onclick="change(0)"></li>
				<li class="slide-point-focus" name="points" id="2" onclick="change(1)"></li>
				<li class="slide-point-focus" name="points" id="3" onclick="change(2)"></li>
				<li class="slide-point-focus" name="points" id="4" onclick="change(3)"></li>
			</ul>
		</div>
		<!-- 向后箭头 -->
		<div class="next-button" name="slide-button">
			<div class="slideNext slide" id="next" onclick="add(1)">
				<button class="next" type="image"></button>
			</div>
		</div>

	</div>

css部分

.ad{
	display: block;
	width: 533px;
	height:300px;
	overflow: hidden;
	float: right;
	position: relative;
}
.prev-button{
	position: absolute;
	z-index: 400;
    width: 44px;
    height: 44px;
	top: 130px;
	left: 10px;
	cursor: pointer;
}
.slide:hover{
     background-color: rgba(220,220,220,.8);
}
.next-button{
	position: absolute;
	z-index: 400;
    width: 44px;
    height: 44px;
	top: 130px;
	right: 10px;
	cursor: pointer;
}
.slide{
	width: 44px;
    height: 44px;
	background-color: rgba(220,220,220,.5);
	border-radius: 22px;
	overflow: hidden;
	cursor: pointer;
}
.slide-point{
	z-index: 200;
	width: 128px;
	height: 16px;
	display: block;
	position: absolute;
	bottom: 20px;
	left: 10px;
}
.on{
	background: rgba(242,250,36,.8) !important;
}
li.first-point{
	background: rgba(242,250,36,.8);
}
.slide-point-focus{
	float:left;
	margin-right: 16px;
	width: 16px;
	height: 16px;
	border-radius: 8px;
	background:rgba(95,57,55,.8);
	transition: background 1s;
	cursor: pointer;
}

.prev{
	border: none;
	outline: none;
	width: 30px;
	height: 30px;
	background: transparent;
	background-image: url(../img/left.png);
	cursor: pointer;
}
.next{
	border: none;
	outline: none;
	width: 30px;
	height: 30px;
	background: transparent;
	background-image: url(../img/right.png);
	cursor: pointer;
}

箭头制作:
我的前后箭头是用两张 ><符号的png照片,再在其放在一个div容器中,将容器背景利用border-radius 设置成圆形,添加上颜色,制作成的。如果要实现半透明的效果最好的是利用rgba()设置背景色。opacity会影响其内部元素的透明度。
然后将id='ad‘整个div容器设置为relative,箭头所在容器设置为absolutive,利用绝对定位,将其放在左右。为了不被图片覆盖,还需要将其z-index设置在上方,一开始的opacity设置为1(或者将某一张开始设为1且要放最上方。不然一开始没图片显示)。opacity设置为渐变 transition。

图片部分:
四张图片都采取绝对定位。外部容器相对定位。图片的左上角都为0,0.这样子4张图片就叠在一起。利用opacity属性设置图片的循环显示(四张图片任一时刻只让一张的opacity为1,其他为0,只要利用js设置好变化顺序,那么就会表现出轮播的效果)

底部四个小点:
利用css画四个点(border-radius+background-color),设置好四个小点的间距。z-index要设置在图片之上。再多建一个 .on的样式,与一般样式slide-point-focus不同点在于背景颜色(用来标注当前页面)

js代码

 <script>
var timer = null;// 计时器
var index = 0;//当前图片下标
//startTime表示计时函数,即到时间应该做什么操作。这里是,时间到了将所有图片的opacity设置为0,再将下一张图片的opacity设置为1。同时将图片所在图层放最上方(不然点击的时候链接一直是同一个)
startTime = function(){
	index++;
	if(index>3){
    	index = 0;
    }
    images = document.getElementsByName("adimages")
    points = document.getElementsByName("points")
    for(var i=0;i<images.length;i++){
    	points[i].className = "slide-point-focus";
    }
    points[index].className += " on";
    for(var i=0;i<images.length;i++){
    	images[i].style.opacity = 0;
    	images[i].style.zIndex = 0;
    }
    images[index].style.opacity = 1;
    images[index].style.zIndex = 20;
    console.log(index);
}
//设置跳转时间间隔
timer = setInterval(startTime, 5000);
//这是点击左右箭头的操作。只需要将index+1,计时器清空,重启即可。
function add(type){
	clearInterval(timer);//清空计时
	index += type;
	index = (index+4) % 4;
	console.log(index);
	images = document.getElementsByName("adimages")
    points = document.getElementsByName("points")
    for(var i=0;i<images.length;i++){
    	points[i].className = "slide-point-focus";
    }
    points[index].className += " on";
    for(var i=0;i<images.length;i++){
    	images[i].style.opacity = 0;
    }
    images[index].style.opacity = 1;
    timer = setInterval(startTime, 5000);//重启计时
}
//这个是点击下方四个点的动作。只要将index设置为相应的位置即可。
function change(index1){
	clearInterval(timer);
	index = index1;
	images = document.getElementsByName("adimages")
    points = document.getElementsByName("points")
    for(var i=0;i<images.length;i++){
    	points[i].className = "slide-point-focus";
    }
    points[index].className += " on";
    for(var i=0;i<images.length;i++){
    	images[i].style.opacity = 0;
    }
    images[index].style.opacity = 1;
    timer = setInterval(startTime, 5000);
}
//这个是鼠标悬浮在图片上会显示左右箭头的js代码。
function mouseover(cursor,i){
	next = document.getElementById("next");
	prev = document.getElementById("prev")
    if(i==0){
         next.style.display = 'none';
         prev.style.display = 'none';
    }else{
    	next.style.display = 'block';
    	prev.style.display = 'block';
    }
}
</script>

制作这个简单的轮播花了我老久了(主要太菜)。卡最长时间的是鼠标移入移出,显示箭头,一开始我将箭头设置为响应对象。麻烦事很多。用visibility:hidden;发现隐藏不了元素。用display:none;倒是可以了,但是会闪烁(原因见【1】)。网上说用onmouseleave和onmouseenter可以解决,但是我试过不行(原因见【2】)。但是可以在要隐藏元素外面再套一个元素。将外面这个元素设为响应对象,注意这个外部不元素要有固定大小,再使用display:none。但是这种方法最终效果不好。因为按钮太小了,不好找。后来将整个图片设为响应对象。效果好多了,也简单多了。

【1】
opacity:0,该元素隐藏起来了,但不会改变页面布局,并且,如果该元素已经绑定一些事件,如click事件,那么点击该区域,也能触发点击事件的
visibility:hidden,该元素隐藏起来了,但不会改变页面布局,但是不会触发该元素已经绑定的事件
display:none,把元素隐藏起来,并且会改变页面布局,可以理解成在页面中把该元素删除掉。

【2】onmouseleave和onmouseenter二者的本质区别在于,museenter不会冒泡。如果元素仅仅是不可见,那onmouseenter应该可以解决闪烁的问题。但是我是将元素删除了。所以主要问题不在访问子元素(??大概)。
