涉及知识点

1.定位：子绝父相
2.border-radius 画圆、半圆
3.transform:rotate(15deg)调整线条角度
4.z-index 调整层级

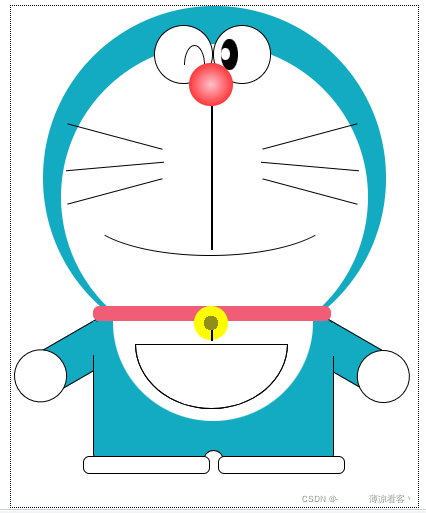

效果图

在这里插入图片描述哆啦A梦
源代码

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        .bg {
            position: relative;
            width: 325px;
            height: 400px;
            background-color: white;
            margin: 0 auto;
            border: 1px dotted black;
        }

        .top {
            width: 100%;
            height: 245px;
            overflow: hidden;
        }

        .head {
            position: relative;
            width: 275px;
            height: 275px;
            border-radius: 50%;
            background-color: rgb(19, 171, 194);
            margin: 0 auto;
        }

        .head2 {
            position: absolute;
            top: 30px;
            left: 15px;
            width: 245px;
            height: 245px;
            border-radius: 50%;
            background-color: white;
        }

        .eye-left {
            position: absolute;
            top: -15px;
            left: 74px;
            width: 45px;
            height: 45px;
            border-radius: 50%;
            border: 1px solid black;
            background-color: white;
        }

        .eye-right {
            position: absolute;
            top: -15px;
            left: 121px;
            width: 45px;
            height: 45px;
            border-radius: 50%;
            border: 1px solid black;
            background-color: white;
        }

        .eye-left-inner {
            position: absolute;
            top: 15px;
            left: 23px;
            width: 15px;
            height: 15px;
            border-radius: 50% 50% 0 0 / 100% 100% 0 0;
            border: 1px solid rgb(10, 6, 6);
            border-bottom: transparent;
        }

        .eye-right-inner {
            position: absolute;
            top: 10px;
            left: 6px;
            width: 13px;
            height: 25px;
            border-radius: 50% 50% 50% 50%;
            background-color: black;
        }

        .eye-right-inner2 {
            position: absolute;
            top: 17px;
            left: 6px;
            width: 7px;
            height: 10px;
            border-radius: 50% 50%;
            background-color: white;
        }

        .nose {
            position: absolute;
            top: 15px;
            left: 102px;
            width: 35px;
            height: 35px;
            border-radius: 50%;
            background-image: radial-gradient(pink 0, red);
        }

        .nose-line {
            position: absolute;
            top: 50px;
            left: 120px;
            width: 1px;
            height: 115px;
            background-color: black;
        }

        .hu1,
        .hu1-r,
        .hu2,
        .hu2-r,
        .hu3,
        .hu3-r {
            position: absolute;
            top: 74px;
            left: 4px;
            transform: rotate(15deg);
            width: 78px;
            height: 1px;
            background-color: black;
        }

        .hu1-r {
            left: 160px;
            transform: rotate(-15deg);
        }

        .hu2 {
            top: 98px;
            transform: rotate(-5deg);
        }

        .hu2-r {
            left: 160px;
            top: 98px;
            transform: rotate(5deg);
        }

        .hu3 {
            top: 118px;
            transform: rotate(-15deg);
        }

        .hu3-r {
            left: 160px;
            top: 118px;
            transform: rotate(15deg);
        }

        .mouth {
            position: absolute;
            top: 98px;
            left: 18px;
            width: 200px;
            height: 70px;
            border-radius: 70%;
            border-width: 1px;
            border-style: solid;
            border-color: transparent transparent black transparent;
        }

        .mid {
            z-index: 5;
            position: absolute;
            top: 240px;
            left: 65px;
            width: 191px;
            height: 12px;
            border-radius: 5px;
            background-color: rgb(241, 93, 118);
        }

        .bell {
            position: absolute;
            top: 0;
            left: 81px;
            width: 27px;
            height: 27px;
            background-image: radial-gradient(rgb(144, 144, 24) 0 30%, yellow 20% 100%);
            border-radius: 50%;
        }

        .v-line {
            position: absolute;
            top: 19px;
            left: 95px;
            width: 1px;
            height: 9px;
            background-color: black;
        }

        .body {
            position: absolute;
            z-index: 4;
            top: 252px;
            left: 65px;
            width: 191px;
            height: 110px;
            border-radius: 5px;
            border-bottom: 1px solid black;
            border-left: 1px solid black;
            border-right: 1px solid black;
            background-color: rgb(19, 171, 194);
        }

        .circle1 {
            position: absolute;
            z-index: 4;
            top: 0;
            left: 15px;
            width: 160px;
            height: 80px;
            background: white;
            border-radius: 0 0 50% 50% / 0 0 100% 100%;
        }

        .circle2 {
            position: absolute;
            z-index: 5;
            top: 18px;
            left: 33px;
            width: 120px;
            height: 50px;
            background: white;
            border-width: 1px;
            border-style: solid;
            border-color: black;
            border-radius: 0 0 50% 50% / 0 0 100% 100%;
        }

        .circle3 {
            position: absolute;
            top: 103px;
            left: 87px;
            width: 15px;
            height: 7px;
            border-radius: 50% 50% 0 0 / 100% 100% 0 0;
            border: 1px solid black;
            border-color: black transparent transparent transparent;
            background-color: white;
        }

        .left-line {
            position: absolute;
            top: 0;
            left: -1px;
            width: 3px;
            height: 27px;
            background-color: rgb(19, 171, 194);
        }

        .right-line {
            position: absolute;
            top: 1px;
            left: 189px;
            width: 3px;
            height: 27px;
            background-color: rgb(19, 171, 194);
        }

        .left-hand {
            position: absolute;
            z-index: 2;
            top: 260px;
            left: 21px;
            width: 67px;
            height: 33px;
            transform: rotate(-30deg);
            border: 1px solid black;
            background-color: rgb(19, 171, 194);
        }

        .left-hand-circle {
            position: absolute;
            top: -5px;
            left: -25px;
            width: 40px;
            height: 40px;
            border-radius: 50%;
            background: white;
            border: 1px solid black;
        }

        .right-hand {
            position: absolute;
            z-index: 2;
            top: 260px;
            left: 231px;
            width: 67px;
            height: 33px;
            transform: rotate(210deg);
            border: 1px solid black;
            background-color: rgb(19, 171, 194);
        }

        .right-hand-circle {
            position: absolute;
            top: -5px;
            left: -25px;
            width: 40px;
            height: 40px;
            border-radius: 50%;
            background: white;
            border: 1px solid black;
        }

        .left-footer,
        .right-footer {
            position: absolute;
            z-index: 4;
            top: 360px;
            left: 57px;
            width: 100px;
            height: 12px;
            background-color: white;
            border-radius: 5px;
            border: 1px solid black;
        }

        .right-footer {
            left: 165px;
        }
    </style>
</head>

<body>
    <div class="bg">
        <div class="top">
            <div class="head">
                <div class="head2">
                    <div class="eye-left">
                        <div class="eye-left-inner"></div>
                    </div>
                    <div class="eye-right">
                        <div class="eye-right-inner"></div>
                        <div class="eye-right-inner2"></div>
                    </div>
                    <div class="nose">

                    </div>
                    <div class="nose-line"></div>
                    <div class="hu1"></div>
                    <div class="hu1-r"></div>
                    <div class="hu2"></div>
                    <div class="hu2-r"></div>
                    <div class="hu3"></div>
                    <div class="hu3-r"></div>
                    <div class="mouth"></div>
                </div>
            </div>

        </div>
        <div class="mid">
            <div class="bell"></div>
            <div class="v-line"></div>
        </div>
        <div class="body">
            <div class="circle1"></div>
            <div class="circle2"></div>
            <div class="circle3"></div>
            <dic class="left-line"></dic>
            <div class="right-line"></div>

        </div>
        <div class="left-hand">
            <div class="left-hand-circle"></div>
        </div>
        <div class="right-hand">
            <div class="right-hand-circle"></div>
        </div>
        <div class="footer">
            <div class="left-footer"></div>
            <div class="right-footer"></div>
        </div>
    </div>
</body>

</html>
