1.LCD汉字取模教程

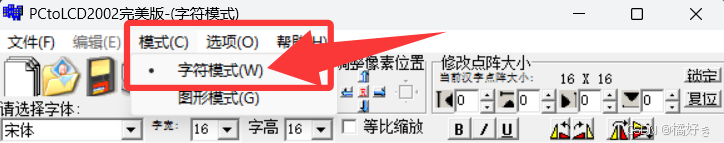

1.1 选择模式->字符

​

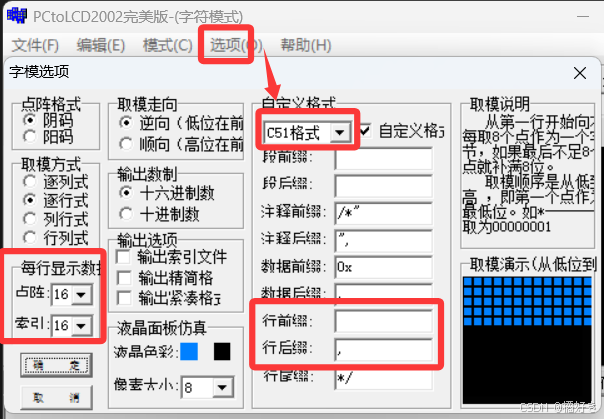

1.2 选择选项

1. 自定义格式（51是因为51单片机：行业标准术语，标准悠久）

   • C51格式：C语言格式
   • A51格式：汇编格式

2. 行前缀、行后缀：注释格式

3. 每行显示数组

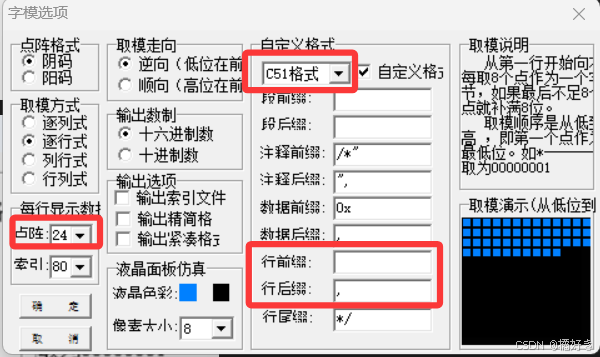

   • 点阵：输出字符一行几个
     建议:要生成16x16的字体，那么这里的“点阵”就应该设置为 16，看着比较对称
   • 索引：输出汉字一行几个
     建议:没啥用，往大了设置

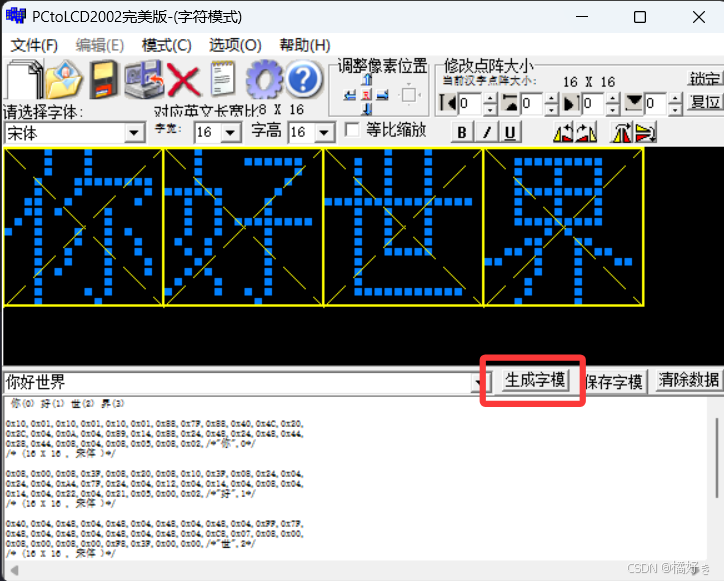

1.3 点击生成字模

生成结果如下，因为设置的点阵为12，所以点阵每行显示12位🥲

 你(0) 好(1) 世(2) 界(3)

0x10,0x01,0x10,0x01,0x10,0x01,0x88,0x7F,0x88,0x40,0x4C,0x20,
0x2C,0x04,0x0A,0x04,0x89,0x14,0x88,0x24,0x48,0x24,0x48,0x44,
0x28,0x44,0x08,0x04,0x08,0x05,0x08,0x02,/*"你",0*/
/* (16 X 16 , 宋体 )*/

0x08,0x00,0x08,0x3F,0x08,0x20,0x08,0x10,0x3F,0x08,0x24,0x04,
0x24,0x04,0xA4,0x7F,0x24,0x04,0x12,0x04,0x14,0x04,0x08,0x04,
0x14,0x04,0x22,0x04,0x21,0x05,0x00,0x02,/*"好",1*/
/* (16 X 16 , 宋体 )*/

0x40,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0xFF,0x7F,
0x48,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0xC8,0x07,0x08,0x00,
0x08,0x00,0x08,0x00,0xF8,0x3F,0x00,0x00,/*"世",2*/
/* (16 X 16 , 宋体 )*/

0x00,0x00,0xF8,0x0F,0x88,0x08,0x88,0x08,0xF8,0x0F,0x88,0x08,
0x88,0x08,0xF8,0x0F,0x40,0x01,0x30,0x06,0x2C,0x1A,0x23,0x62,
0x20,0x02,0x10,0x02,0x10,0x02,0x08,0x02,/*"界",3*/
/* (16 X 16 , 宋体 )*/

1.4 加入数组

注意编码格：GB2312
解决移植中景圆电子1.8寸TFT屏幕出现中文乱码现象-优快云博客

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[32];
}typFNT_GB16;

//阴码、逐行式、逆向、C51
const typFNT_GB16 tfont16[]={
//你(0) 好(1) 世(2) 界(3)
"你",0x10,0x01,0x10,0x01,0x10,0x01,0x88,0x7F,0x88,0x40,0x4C,0x20,
0x2C,0x04,0x0A,0x04,0x89,0x14,0x88,0x24,0x48,0x24,0x48,0x44,
0x28,0x44,0x08,0x04,0x08,0x05,0x08,0x02,/*"你",0*/
/* (16 X 16 , 宋体 )*/

"好",0x08,0x00,0x08,0x3F,0x08,0x20,0x08,0x10,0x3F,0x08,0x24,0x04,
0x24,0x04,0xA4,0x7F,0x24,0x04,0x12,0x04,0x14,0x04,0x08,0x04,
0x14,0x04,0x22,0x04,0x21,0x05,0x00,0x02,/*"好",1*/
/* (16 X 16 , 宋体 )*/

"世",0x40,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0xFF,0x7F,
0x48,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0xC8,0x07,0x08,0x00,
0x08,0x00,0x08,0x00,0xF8,0x3F,0x00,0x00,/*"世",2*/
/* (16 X 16 , 宋体 )*/

"界",0x00,0x00,0xF8,0x0F,0x88,0x08,0x88,0x08,0xF8,0x0F,0x88,0x08,
0x88,0x08,0xF8,0x0F,0x40,0x01,0x30,0x06,0x2C,0x1A,0x23,0x62,
0x20,0x02,0x10,0x02,0x10,0x02,0x08,0x02,/*"界",3*/
/* (16 X 16 , 宋体 )*/

};
